Telerik Report - Why setting a text box formula will make the text box very long

[Trey]

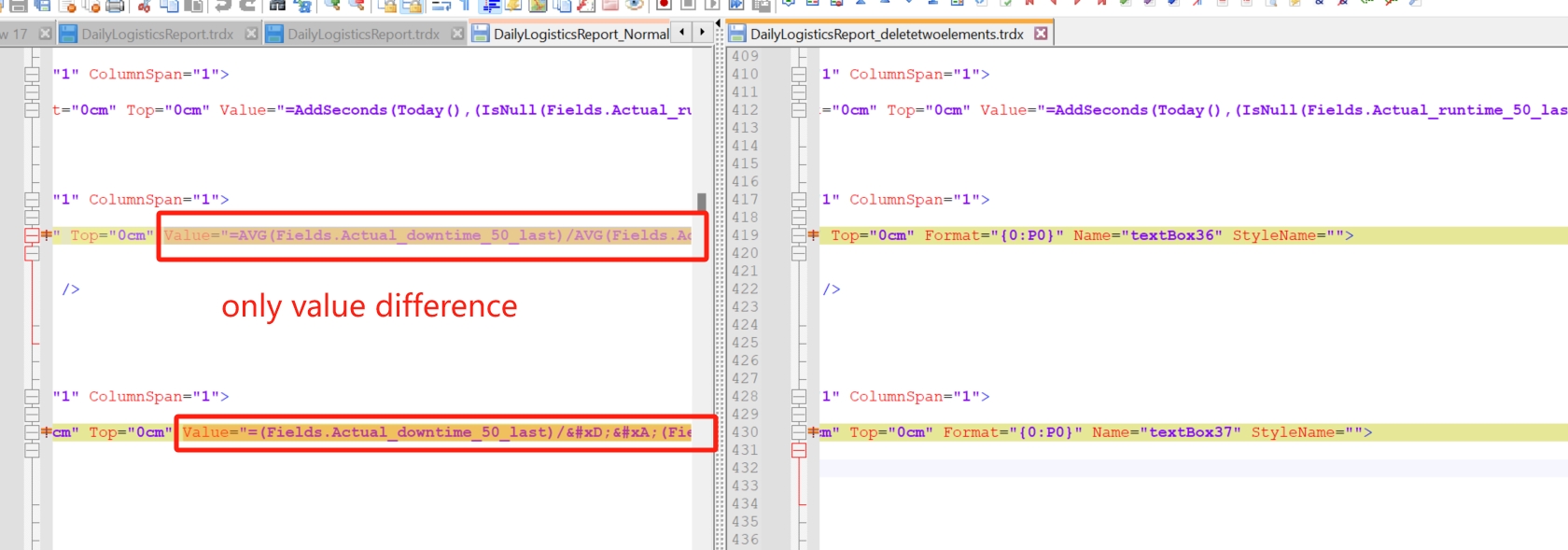

Compare between non-delete and delete two textbox, just have value difference.

------------original report code

<TextBox Width="1in" Height="0.7cm" Left="0cm" Top="0cm" Value="=AVG(Fields.Actual_downtime_50_last)/AVG(Fields.Actual_runtime_50_last)" Format="{0:P0}" Name="textBox36" StyleName="">

<TextBox Width="1in" Height="0.609cm" Left="0cm" Top="0cm" Value="=(Fields.Actual_downtime_50_last)/&#xD;&#xA;(Fields.Actual_runtime_50_last)" Format="{0:P0}" Name="textBox37" StyleName="">

-----------after deleting value

<TextBox Width="1in" Height="0.7cm" Left="0cm" Top="0cm" Format="{0:P0}" Name="textBox36" StyleName="">

<TextBox Width="1in" Height="0.7cm" Left="0cm" Top="0cm" Format="{0:P0}" Name="textBox36" StyleName="">

-----------------------------------

I want to know how to fix this, because the final value isn't long



[Momchil]

Hello Trey,

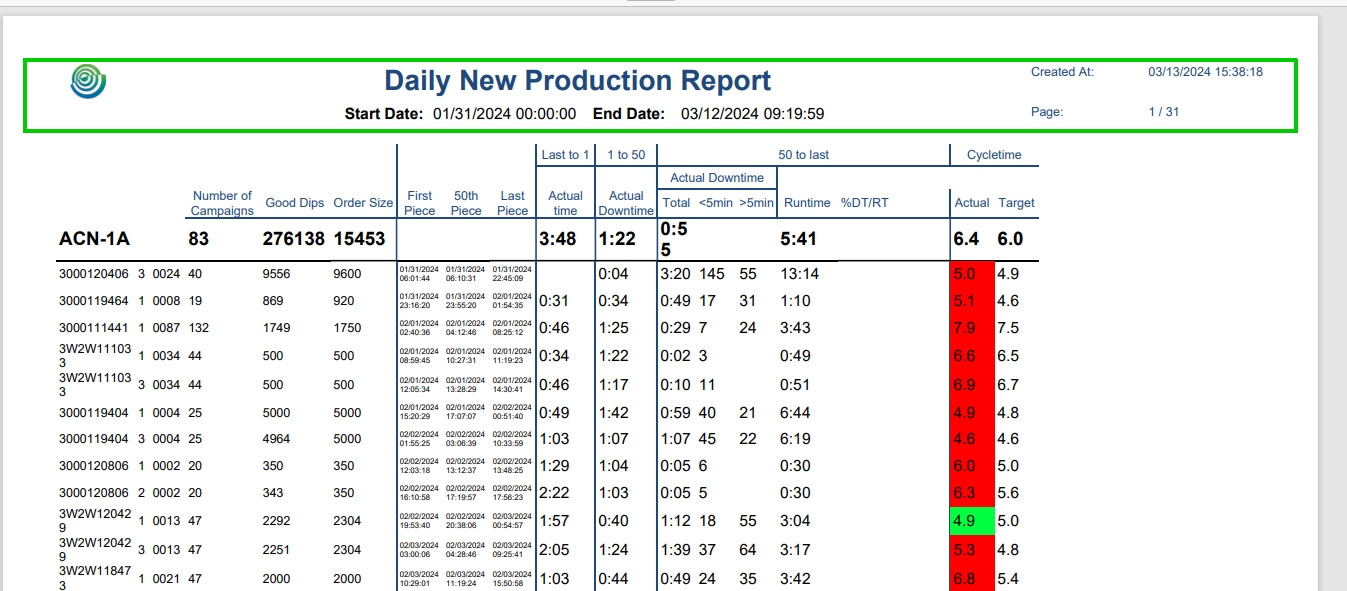

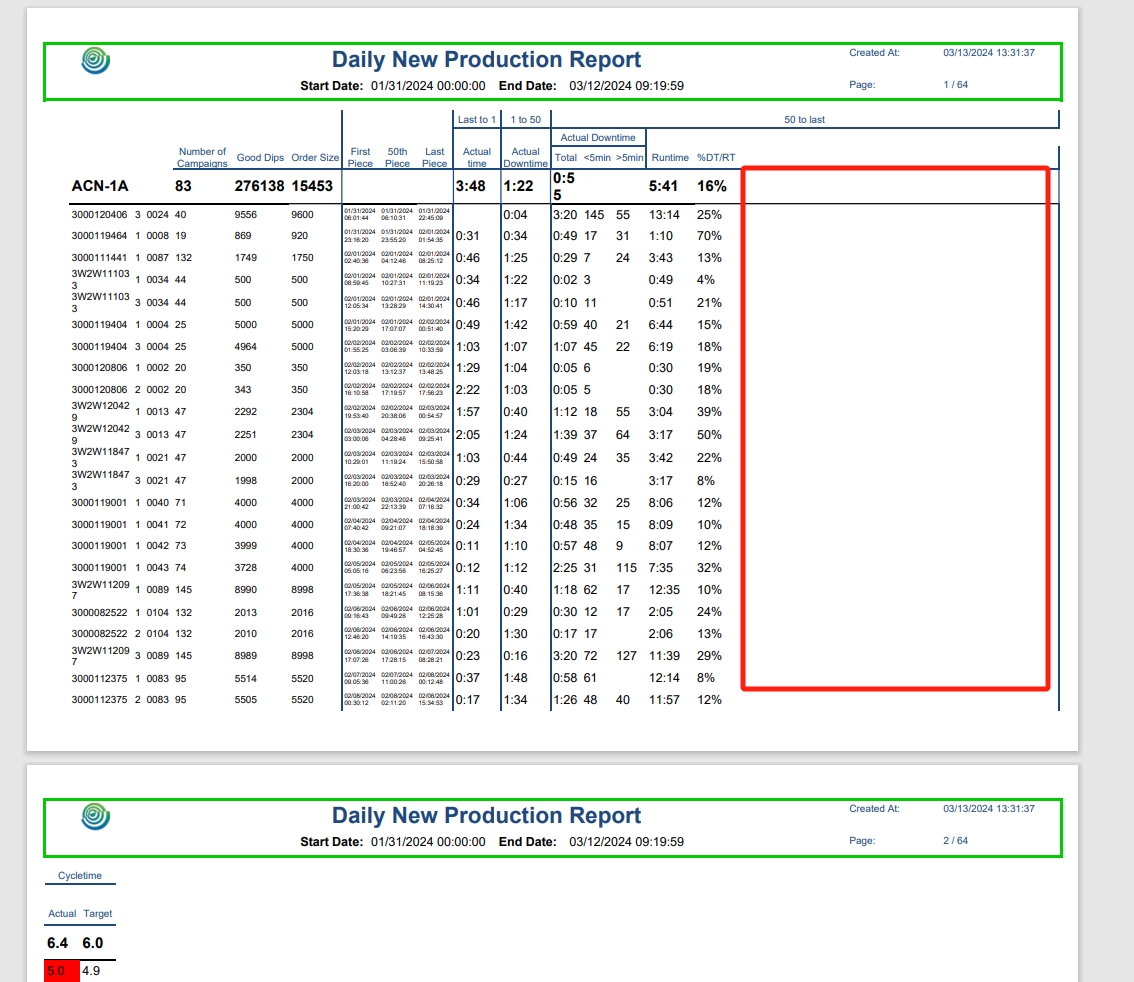

Indeed, from the screenshots it looks like the text box is growing horizontally but this is not expected. Even if the value of the text box was too long, it should grow only vertically, as it does in the first column for some rows.

Perhaps there are bindings applied to the textbox/table or there is a column grouping that breaks for some reason. However, based on the existing information, I cannot pinpoint the source of the issue.

Can you share your report along with some sample data so that I can reproduce this behavior locally?

Thank you in advance.

Kind Regards,
Momchil
Progress Telerik

[Trey]

Hi Momchil,

I am so sorry, I forgot to reply.

Maybe I know the problem.

For example, expression - AVG(Fields.Actual_downtime_50_last)/AVG(Fields.Actual_runtime_50_last), if the result value is 0.1343953953546545365677647. This string value will expand the lenght of textbox. Even if I set the format to '{0:P0}', and the final value is 13% that I want to display.

My solution is that I caculated the value in stored procedure,and outputed the string '13%' .

I don't know whether this is a problem that need to optimize. Maybe need to adjust the length of textbox after formatting.

Just FYI
