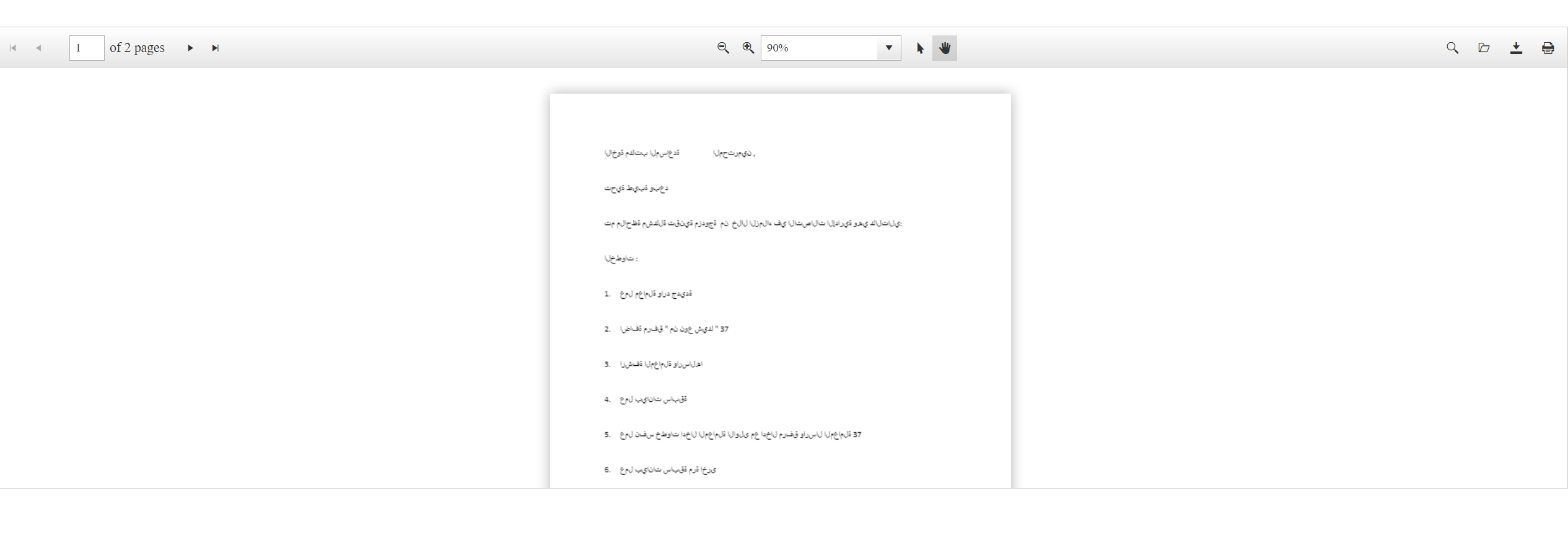

telerik radpdfviewer render arabic letters in reverse

4 Answers 373 Views

PdfViewer

This is a migrated thread and some comments may be shown as answers.

Hazim asked on 27 Jun 2020, 10:49 PM


You can check your example :https://demos.telerik.com/aspnet-ajax/pdfviewer/applicationscenarios/dplintegration/defaultcs.aspx

This is my code:

<%@ Register TagPrefix="telerik" Namespace="Telerik.Web.UI" Assembly="Telerik.Web.UI" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN" "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">

<html xmlns='http://www.w3.org/1999/xhtml'>

<head runat="server">

<title>Telerik ASP.NET Example</title>

<script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/pdf.js/2.2.2/pdf.js"></script>

<link href="styles.css" rel="stylesheet" />

</head>

<body>

<form id="form1" runat="server">

<telerik:RadScriptManager runat="server" ID="RadScriptManager1" />

<telerik:RadSkinManager ID="RadSkinManager1" runat="server" ShowChooser="true" />

<script type="text/javascript">

window.pdfjsLib.GlobalWorkerOptions.workerSrc = 'https://cdnjs.cloudflare.com/ajax/libs/pdf.js/2.2.2/pdf.worker.js';

function pageLoad(app, args) {

var upload = $find('<%= RadAsyncUpload1.ClientID %>');

$(upload.get_element()).find("input[type='file']").attr("accept", ".docx, .rtf, .html, .txt, .xlsx, .csv");

}

function fileUploaded(sender, args) {

$find('<%= RadAjaxManager1.ClientID %>').ajaxRequest();

}

</script>

<telerik:RadAjaxManager ID="RadAjaxManager1" runat="server" EnablePageHeadUpdate="false">

<AjaxSettings>

<telerik:AjaxSetting AjaxControlID="RadAjaxManager1">

<UpdatedControls>

<telerik:AjaxUpdatedControl ControlID="RadAsyncUpload1" />

<telerik:AjaxUpdatedControl ControlID="RadPdfViewer1" LoadingPanelID="RadAjaxLoadingPanel1" />

<telerik:AjaxUpdatedControl ControlID="RadLabel1" />

</UpdatedControls>

</telerik:AjaxSetting>

</AjaxSettings>

</telerik:RadAjaxManager>

<telerik:RadAjaxLoadingPanel ID="RadAjaxLoadingPanel1" runat="server">

</telerik:RadAjaxLoadingPanel>

<div class="demo-container size-wide" runat="server">

<telerik:RadAsyncUpload ID="RadAsyncUpload1" runat="server"

OnClientFileUploaded="fileUploaded" OnFileUploaded="RadAsyncUpload1_FileUploaded"

AllowedFileExtensions=".docx,.rtf,.html,.txt,.xlsx,.csv" HideFileInput="true"

AutoAddFileInputs="false" Localization-Select="Upload And Convert" EnableInlineProgress="false"

MultipleFileSelection="Disabled" />

<telerik:RadLabel ID="RadLabel1" runat="server" Text="Displayed Document: <b>Document.pdf</b>"

Style="float: left;">

</telerik:RadLabel>

<telerik:RadLabel ID="RadLabel2" runat="server" Text="Supported formats: <b>.docx / .rtf / .html / .txt / .xlsx / .csv</b>"

Style="float: right;">

</telerik:RadLabel>

<br />

<div dir="ltr" runat="server">

<telerik:RadPdfViewer runat="server" ID="RadPdfViewer1" Height="550px" Width="100%" Scale="0.9" Skin="Default" RenderMode="Lightweight">

<%--<PdfjsProcessingSettings File="../../Document.pdf"></PdfjsProcessingSettings>--%>

</telerik:RadPdfViewer>

</div>

</form>

</body>

</html>

using System;

using System.IO;

using System.Text.RegularExpressions;

using Telerik.Web.UI;

using Telerik.Windows.Documents.Common.FormatProviders;

using Telerik.Windows.Documents.Flow.FormatProviders.Docx;

using Telerik.Windows.Documents.Flow.FormatProviders.Html;

using Telerik.Windows.Documents.Flow.FormatProviders.Rtf;

using Telerik.Windows.Documents.Flow.FormatProviders.Txt;

using Telerik.Windows.Documents.Flow.Model;

using Telerik.Windows.Documents.Spreadsheet.FormatProviders;

using Telerik.Windows.Documents.Spreadsheet.FormatProviders.OpenXml.Xlsx;

using Telerik.Windows.Documents.Spreadsheet.FormatProviders.TextBased.Csv;

using Telerik.Windows.Documents.Spreadsheet.Model;

namespace MCS.Web

{

public partial class DefaultCS : BasePageClass

{

protected void Page_Load(object sender, EventArgs e)

{

int maxSize = 10 * 1024 * 1024; // 10MB

RadAsyncUpload1.MaxFileSize = maxSize;

RadPdfViewer1.MaxSerializerLength = maxSize;

}

protected void RadAsyncUpload1_FileUploaded(object sender, FileUploadedEventArgs e)

{

byte[] renderedBytes = null;

string extention = Path.GetExtension(e.File.FileName);

// RadFlow Documents

if (Regex.IsMatch(extention, ".docx|.rtf|.html|.txt"))

{

IFormatProvider<RadFlowDocument> provider = null;

RadFlowDocument document = null;

switch (extention)

{

case ".docx": provider = new DocxFormatProvider(); break;

case ".rtf": provider = new RtfFormatProvider(); break;

case ".html": provider = new HtmlFormatProvider(); break;

case ".txt": provider = new TxtFormatProvider(); break;

default: provider = null; break;

}

document = provider.Import(e.File.InputStream);

Telerik.Windows.Documents.Flow.FormatProviders.Pdf.PdfFormatProvider pdfProvider = new

Telerik.Windows.Documents.Flow.FormatProviders.Pdf.PdfFormatProvider();

using (MemoryStream ms = new MemoryStream())

{

pdfProvider.Export(document, ms);

renderedBytes = ms.ToArray();

}

// Workbook Documents

else if (Regex.IsMatch(extention, ".xlsx|.csv"))

{

IWorkbookFormatProvider provider = null;

Workbook document = null;

switch (extention)

{

case ".xlsx": provider = new XlsxFormatProvider(); break;

case ".csv": provider = new CsvFormatProvider(); break;

default: provider = null; break;

}

document = provider.Import(e.File.InputStream);

Telerik.Windows.Documents.Spreadsheet.FormatProviders.Pdf.PdfFormatProvider pdfProvider = new

Telerik.Windows.Documents.Spreadsheet.FormatProviders.Pdf.PdfFormatProvider();

using (MemoryStream ms = new MemoryStream())

{

pdfProvider.Export(document, ms);

renderedBytes = ms.ToArray();

}

RadLabel1.Text = "Displayed Document: <b>" + e.File.FileName + "</b>";

RadPdfViewer1.PdfjsProcessingSettings.FileSettings.Data = Convert.ToBase64String(renderedBytes);

}

4 Answers, 1 is accepted

answered on 01 Jul 2020, 08:15 AM

Hi Hazim,

If you open a .pdf file with Arabic text directly in the RadPdfViewer, it will work as expected.

However, if you try to convert another format containing Arabic to .pdf, I am afraid DPL libraries do not support this:
https://feedback.telerik.com/document-processing/1356019-pdfprocessing-support-for-rtl-right-to-left-text

Regards,
Eyup
