Tabbing within an Add Record form of a RadGrid

1 Answer 107 Views

Grid

This is a migrated thread and some comments may be shown as answers.

WCRA Dev asked on 16 Dec 2010, 03:40 PM

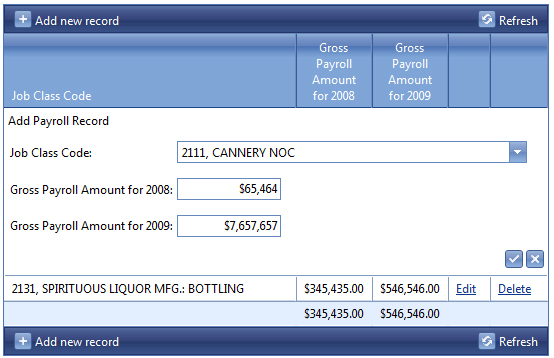

I have a radgrid that has an Add Record form that has a RadComboBox and 2 RadNumericTextBox's (see attached image). I want to be able to press the TAB key on the Job Class Code RadComboBox and tab to the is the Gross Payroll Amount for 2008 RadNumericTextBox. Instead the tab goes to the submit button. How do I control the tabbing between fields? Below is the code for the RadGrid.

<telerik:RadGrid ID="gvGrossPayroll" runat="server"

AllowAutomaticDeletes="True" AllowAutomaticUpdates="True" AllowAutomaticInserts="False" OnInsertCommand="gvGrossPayroll_InsertCommand"

AutoGenerateColumns="False" DataSourceID="SDS_Payroll" GridLines="None" OnItemCommand="gvGrossPayroll_ItemCommand"

ShowFooter="True" Skin="Web20" Width="544px">

<MasterTableView AutoGenerateColumns="False" CommandItemDisplay="TopAndBottom"

DataKeyNames="ID" DataSourceID="SDS_Payroll">

<RowIndicatorColumn>

<HeaderStyle Width="20px" />

</RowIndicatorColumn>

<ExpandCollapseColumn>

<HeaderStyle Width="20px" />

</ExpandCollapseColumn>

<CommandItemSettings />

<Columns>

<telerik:GridBoundColumn DataField="id" ReadOnly="True" UniqueName="ID"

Visible="False">

</telerik:GridBoundColumn>

<telerik:GridTemplateColumn EditFormColumnIndex="0" HeaderText="Job Class Code" DataField="JobClass"

UniqueName="JobClass" Visible="true" ReadOnly="False" HeaderStyle-VerticalAlign="Bottom">

<ItemTemplate>

<asp:Label ID="JobClass" runat="server" Text='<%# Bind("JobClass") %>'></asp:Label>

</ItemTemplate>

<InsertItemTemplate>

<telerik:RadComboBox ID="ddlJobClassID" Runat="server" AllowCustomText="True"

DataSourceID="SqlDataSourceDDL" DataTextField="JobClass"

DataValueField="JobClassID" EmptyMessage="Please enter a job class code"

EnableViewState="False" AppendDataBoundItems="true"

ErrorMessage="You must enter a job class code to add a record"

MarkFirstMatch="True" ShowDropDownOnTextboxClick="False" Skin="Web20"

ToolTip="Enter a Job Class Code" Width="350px" SelectedValue='<%# Bind("JobClassID") %>'>

</telerik:RadComboBox>

<asp:RequiredFieldValidator ID="RequiredFieldValidator1" runat="server"

ErrorMessage="Job Class Code is a required field" Font-Bold="True"

Font-Names="Arial Narrow" ForeColor="Red" ControlToValidate="ddlJobClassID"

ToolTip="Job Class Code is a required field">X

</asp:RequiredFieldValidator>

</InsertItemTemplate>

<EditItemTemplate>

<asp:Label ID="JobClass" runat="server" Text='<%# Bind("JobClassID") %>'></asp:Label>

</EditItemTemplate

<HeaderStyle VerticalAlign="Bottom" />

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn EditFormColumnIndex="0" HeaderText="Year1"

UniqueName="PayrollAmount1" Visible="true" Aggregate="Sum" DataField="PayrollAmount1"

FooterAggregateFormatString="{0:C}" HeaderStyle-Width="60px">

<ItemTemplate>

<asp:Label ID="PayrollAmount1" runat="server" Text='<%# Eval("PayrollAmount1", "{0:C}") %>'></asp:Label>

</ItemTemplate>

<InsertItemTemplate>

<telerik:RadNumericTextBox ID="txtPayrollAmount1a" Runat="server"

Culture="English (United States)" MinValue="0" NumberFormat-DecimalDigits="0"

Skin="Web20" TabIndex="2" ToolTip="Payroll Amount" Type="Currency"

Width="100px" Value="0" Text='<%# Bind("PayrollAmount1") %>' >

<EnabledStyle HorizontalAlign="Right" />

<NumberFormat DecimalDigits="0" />

</telerik:RadNumericTextBox>

</InsertItemTemplate>

<EditItemTemplate>

<telerik:RadNumericTextBox ID="txtPayrollAmount1" Runat="server"

Culture="English (United States)" MinValue="0" NumberFormat-DecimalDigits="0"

Skin="Web20" TabIndex="2" ToolTip="Payroll Amount" Type="Currency"

Text='<%# Bind("PayrollAmount1") %>' Width="100px">

<EnabledStyle HorizontalAlign="Right" />

<NumberFormat DecimalDigits="0" />

</telerik:RadNumericTextBox>

</EditItemTemplate>

<FooterStyle Font-Bold="False" Font-Italic="False" Font-Overline="False"

Font-Strikeout="False" Font-Underline="False" HorizontalAlign="Right"

Wrap="True" />

<HeaderStyle Font-Bold="False" Font-Italic="False" Font-Overline="False"

Font-Strikeout="False" Font-Underline="False" HorizontalAlign="Center"

Wrap="True" />

<ItemStyle Font-Bold="False" Font-Italic="False" Font-Overline="False"

Font-Strikeout="False" Font-Underline="False" HorizontalAlign="Right"

Wrap="True" />

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn EditFormColumnIndex="0" HeaderText="Year2"

UniqueName="PayrollAmount2" Visible="true" DataField="PayrollAmount2" Aggregate="Sum"

FooterAggregateFormatString="{0:C}" HeaderStyle-Width="60px" >

<ItemTemplate>

<asp:Label ID="PayrollAmount2" runat="server"

Text='<%# Eval("PayrollAmount2", "{0:C}") %>'></asp:Label>

</ItemTemplate>

<InsertItemTemplate>

<telerik:RadNumericTextBox ID="txtPayrollAmount2" Runat="server"

Culture="English (United States)" MinValue="0" NumberFormat-DecimalDigits="0"

Skin="Web20" TabIndex="2" ToolTip="Payroll Amount" Type="Currency" Value="0"

Width="100px" Text='<%# Bind("PayrollAmount2") %>'>

<EnabledStyle HorizontalAlign="Right" />

<NumberFormat DecimalDigits="0" />

</telerik:RadNumericTextBox>

</InsertItemTemplate>

<EditItemTemplate>

<telerik:RadNumericTextBox ID="txtPayrollAmount2" Runat="server"

Culture="English (United States)" MinValue="0" NumberFormat-DecimalDigits="0"

Skin="Web20" TabIndex="2" ToolTip="Payroll Amount" Type="Currency"

Width="100px" Text='<%# Bind("PayrollAmount2") %>'>

<EnabledStyle HorizontalAlign="Right" />

<NumberFormat DecimalDigits="0" />

</telerik:RadNumericTextBox>

</EditItemTemplate>

<FooterStyle Font-Bold="False" Font-Italic="False" Font-Overline="False"

Font-Strikeout="False" Font-Underline="False" HorizontalAlign="Right"

Wrap="True" />

<HeaderStyle Font-Bold="False" Font-Italic="False" Font-Overline="False"

Font-Strikeout="False" Font-Underline="False" HorizontalAlign="Center"

Wrap="True" />

<ItemStyle Font-Bold="False" Font-Italic="False" Font-Overline="False"

Font-Strikeout="False" Font-Underline="False" HorizontalAlign="Right"

Wrap="True" />

</telerik:GridTemplateColumn>

<telerik:GridEditCommandColumn>

</telerik:GridEditCommandColumn>

<telerik:GridButtonColumn CommandName="Delete"

ConfirmText="Delete this payroll record?" ImageUrl="/images/delete.gif"

Text="Delete" UniqueName="column3">

</telerik:GridButtonColumn>

<telerik:GridBoundColumn DataField="MemberID" DataType="System.Int16"

UniqueName="MemberID" ReadOnly="True" Visible="False">

</telerik:GridBoundColumn>

</Columns>

<EditFormSettings CaptionDataField="MemberID"

CaptionFormatString="Edit Payroll Record" ColumnNumber="1"

InsertCaption="Add Payroll Record">

<FormTableItemStyle Wrap="False" />

<FormCaptionStyle CssClass="EditFormHeader" />

<FormMainTableStyle BackColor="White" CellPadding="3" CellSpacing="0"

GridLines="None" Width="100%" />

<FormTableStyle BackColor="White" CellPadding="2" CellSpacing="0"

Height="110px" />

<FormTableAlternatingItemStyle Wrap="False" />

<EditColumn ButtonType="ImageButton" CancelText="Cancel edit"

InsertText="Insert Record" UniqueName="EditCommandColumn1"

UpdateText="Update record">

</EditColumn>

<FormTableButtonRowStyle CssClass="EditFormButtonRow" HorizontalAlign="Right" />

</EditFormSettings>

</MasterTableView>

<ClientSettings AllowDragToGroup="True">

<Selecting AllowRowSelect="True" />

</ClientSettings>

<HeaderContextMenu CssClass="GridContextMenu GridContextMenu_Web20"

EnableImageSprites="True">

</HeaderContextMenu>

</telerik:RadGrid>

Tabbing within an Add Record form of a RadGrid

1 Answer, 1 is accepted
