SUB REPORT

[MasiULLAH]

How to display they data in subreport how to use it explain using any example and demos reporting design and to use parameter

[Dess | Tech Support Engineer, Principal]

Hello,

The SubReport item enables you to display reports within reports and serves as a container, similar to the report sections, growing in size depending on its children. Please refer to the following help articles demonstrating how to setup a sub-report:

SubReport Item Overview.

Create Master-Detail Reports with SubReports

I have prepared a sample .trdp report to achieve master-detail report (CategoriesProductsSubreport.trdp) using a SubReport Item (ProductsReport.trdp). The master report contains table filled with Northwind.Categories table. The SubReport item shows the Northwind.Products records filtered by the respective CategoryID:

The report is achieved by using the following steps:

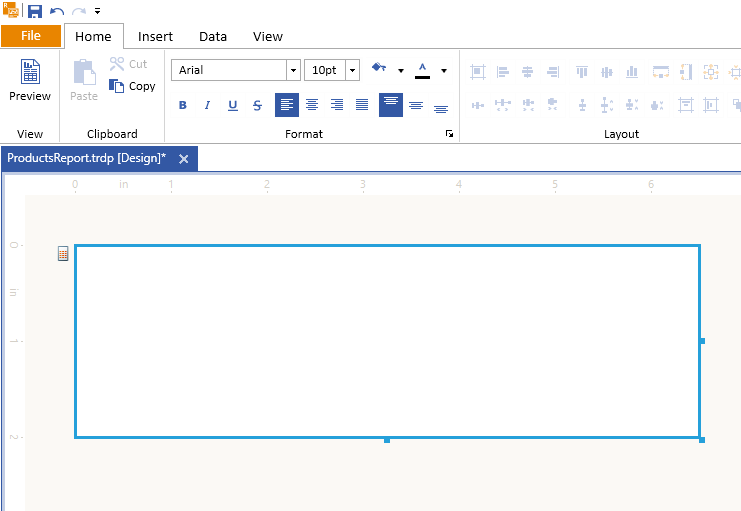

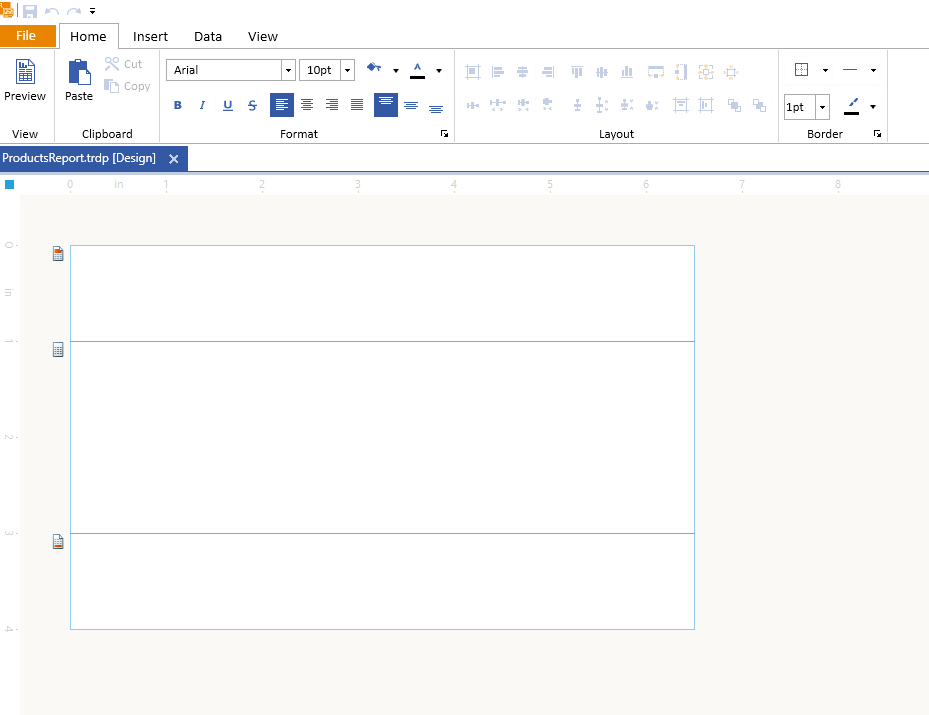

1. Start with a blank report:

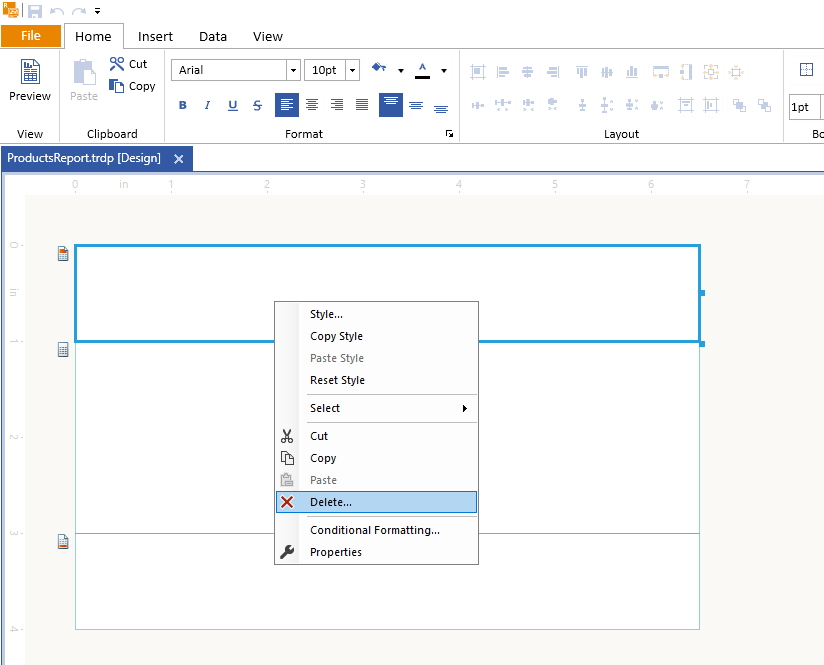

2. Select the header/footer section and delete them by using the context menu:

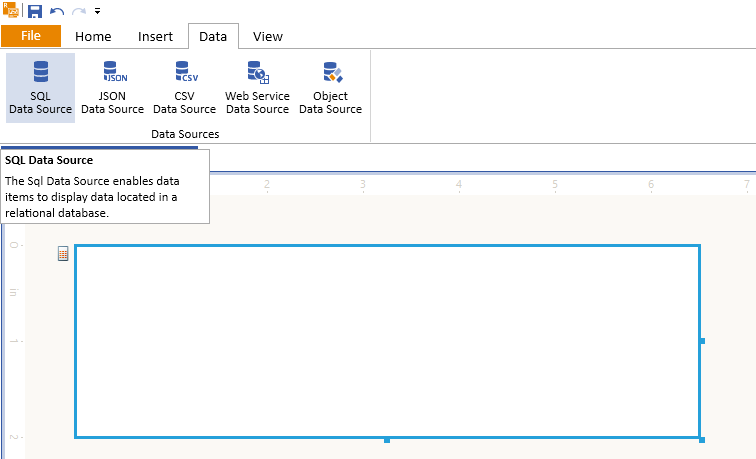

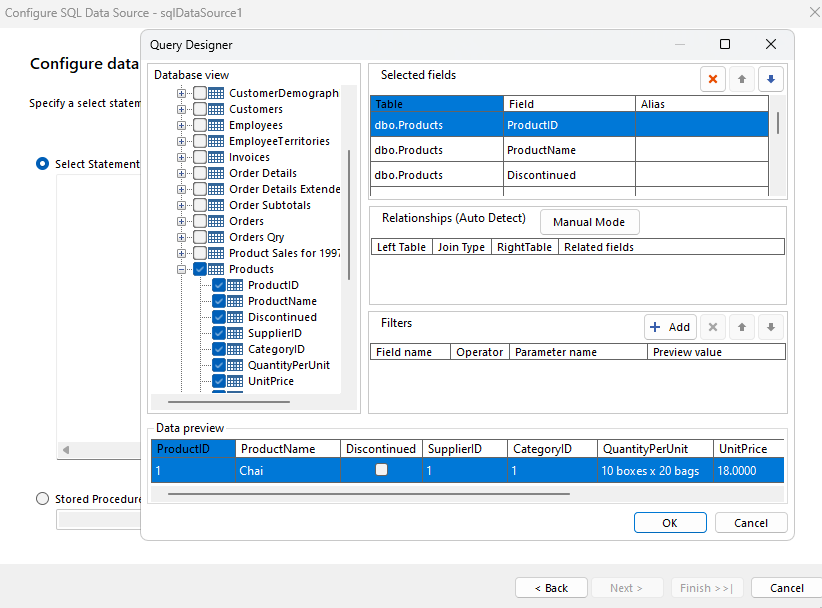

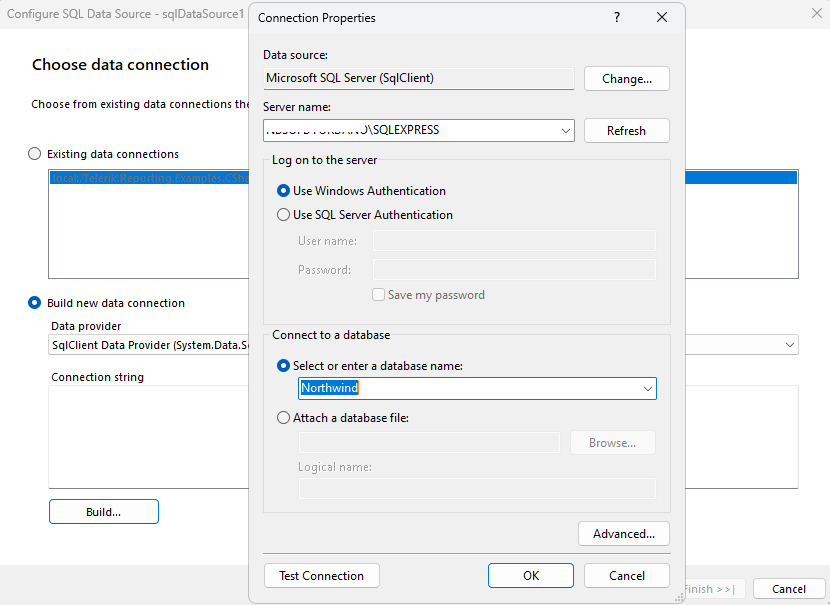

3. Select the Data tab and add a new SQL Data Source populated with the Northwind.Products table:

Default SQL query:

SELECT
	[dbo].[Products].[ProductID],
	[dbo].[Products].[ProductName],
	[dbo].[Products].[Discontinued],
	[dbo].[Products].[SupplierID],
	[dbo].[Products].[CategoryID],
	[dbo].[Products].[QuantityPerUnit],
	[dbo].[Products].[UnitPrice],
	[dbo].[Products].[UnitsInStock],
	[dbo].[Products].[UnitsOnOrder],
	[dbo].[Products].[ReorderLevel]
FROM [dbo].[Products]

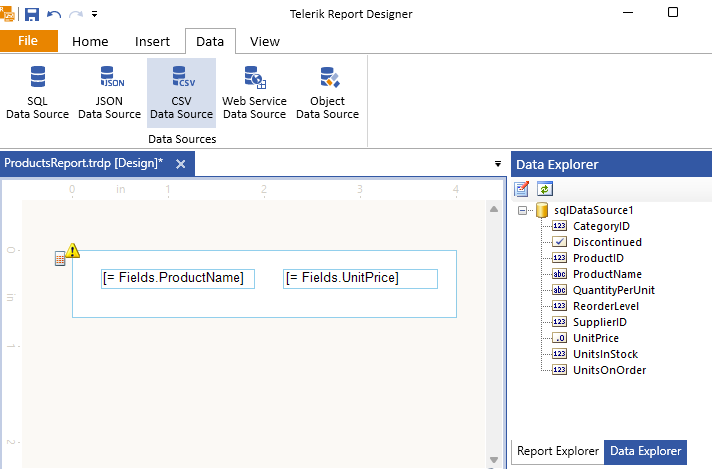

4. From the Data Explorer (on the right side), drag the ProductName and UnitPrice fields to the report's detailSection:

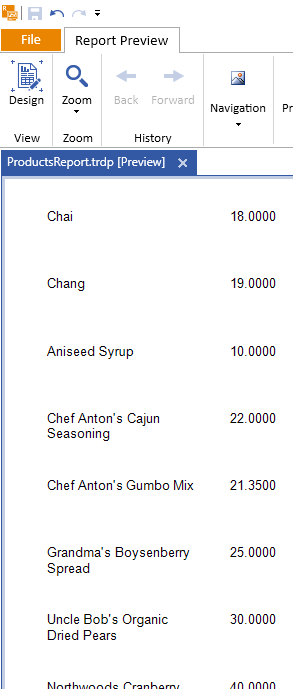

5. Preview the report to see that all Products are listed:

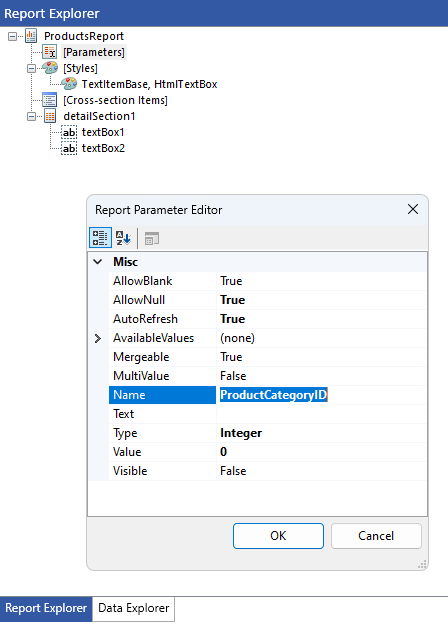

6. Add an integer report parameter ProductCategoryID which will be used for filtering the products:

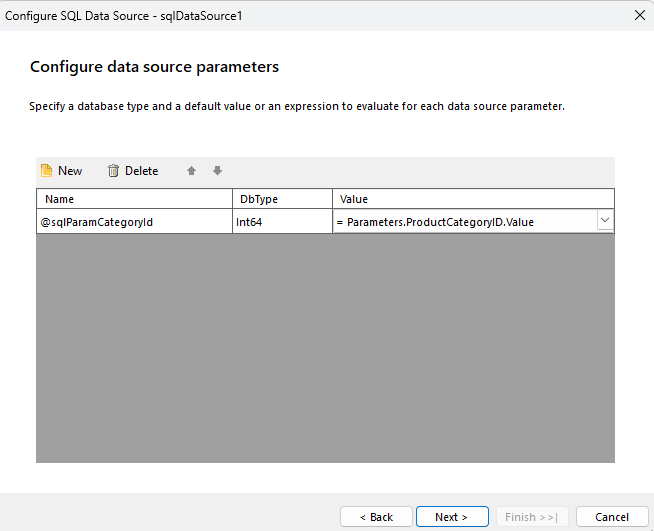

7. Update the SELECT query of the added SQLDataSource and add a WHERE clause using a SQL parameter ( which is mapped to the previously created report parameter):

SELECT
	[dbo].[Products].[ProductID],
	[dbo].[Products].[ProductName],
	[dbo].[Products].[Discontinued],
	[dbo].[Products].[SupplierID],
	[dbo].[Products].[CategoryID],
	[dbo].[Products].[QuantityPerUnit],
	[dbo].[Products].[UnitPrice],
	[dbo].[Products].[UnitsInStock],
	[dbo].[Products].[UnitsOnOrder],
	[dbo].[Products].[ReorderLevel]
FROM [dbo].[Products]
WHERE [dbo].[Products].[CategoryID]=@sqlParamCategoryId

8. Save the report (ProductsReport.trdp). This would be used as our sub-report

9. Create a new blank report (CategoriesProducts.trdp)

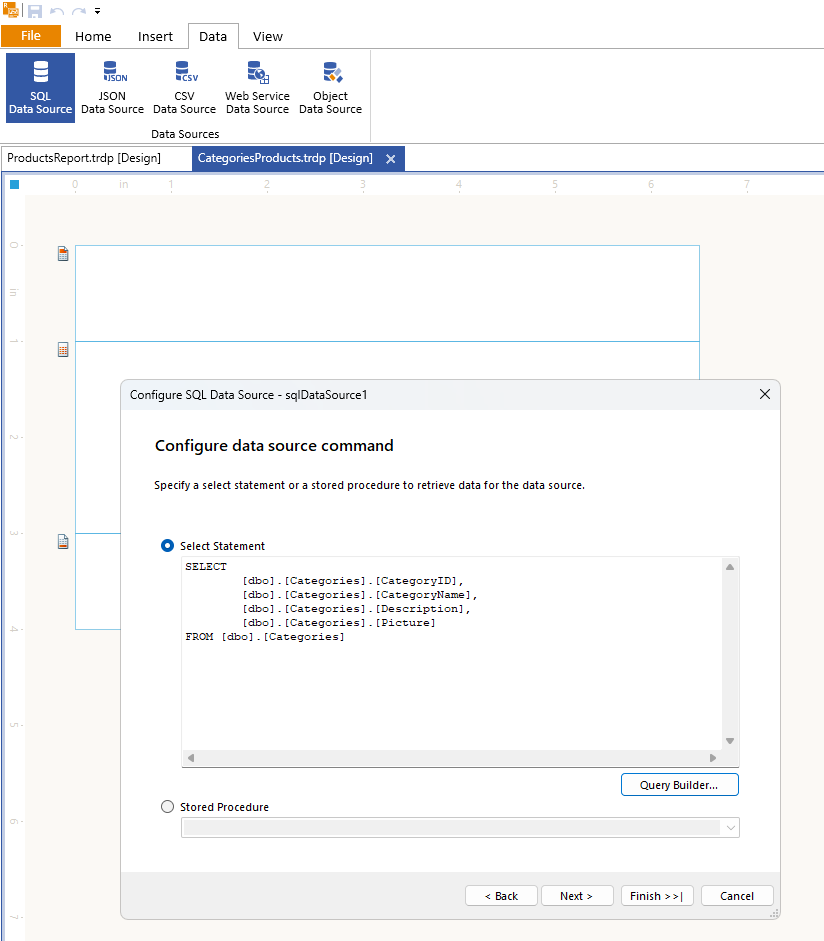

10. Add a new SQL Data Source filled with the Northwind.Categories table:

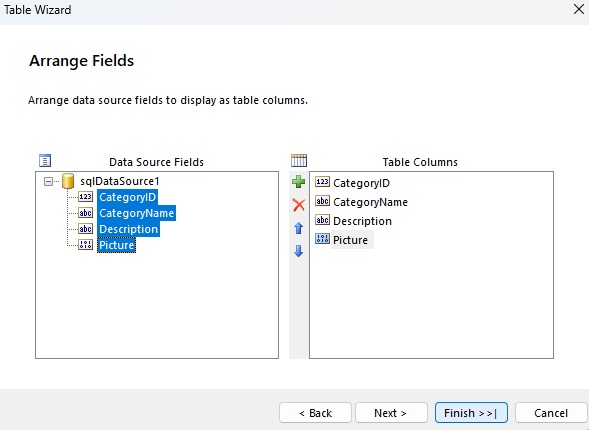

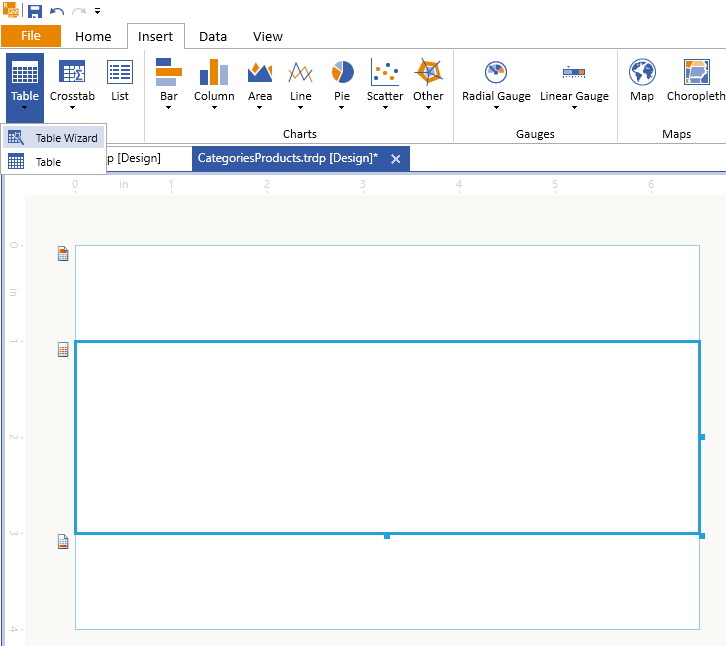

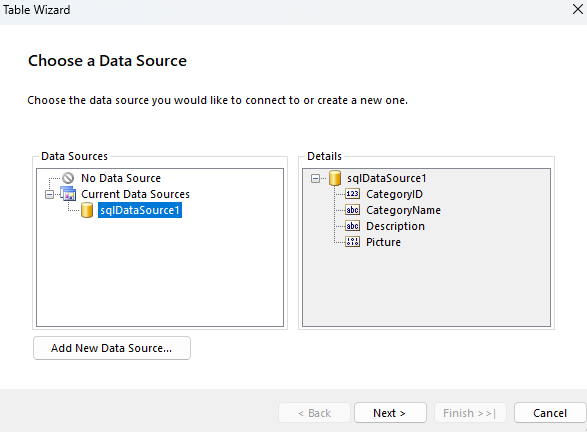

11. Select the report's detailSection and use the Table Wizard to add a table bound to the just added SQLDataSource:

12. Select the "Picture" header and change its text to "Products":

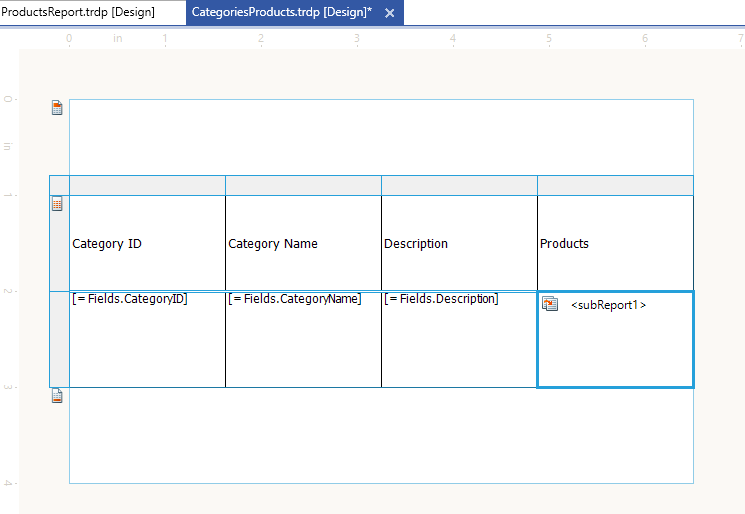

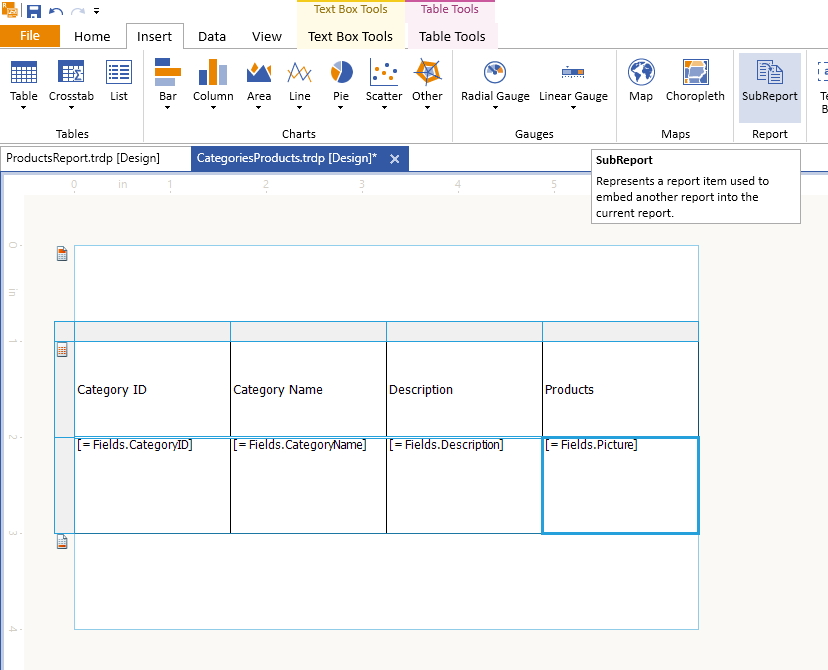

13. Select the data row >> the cell bound to the Picture field and add a SubReport item:

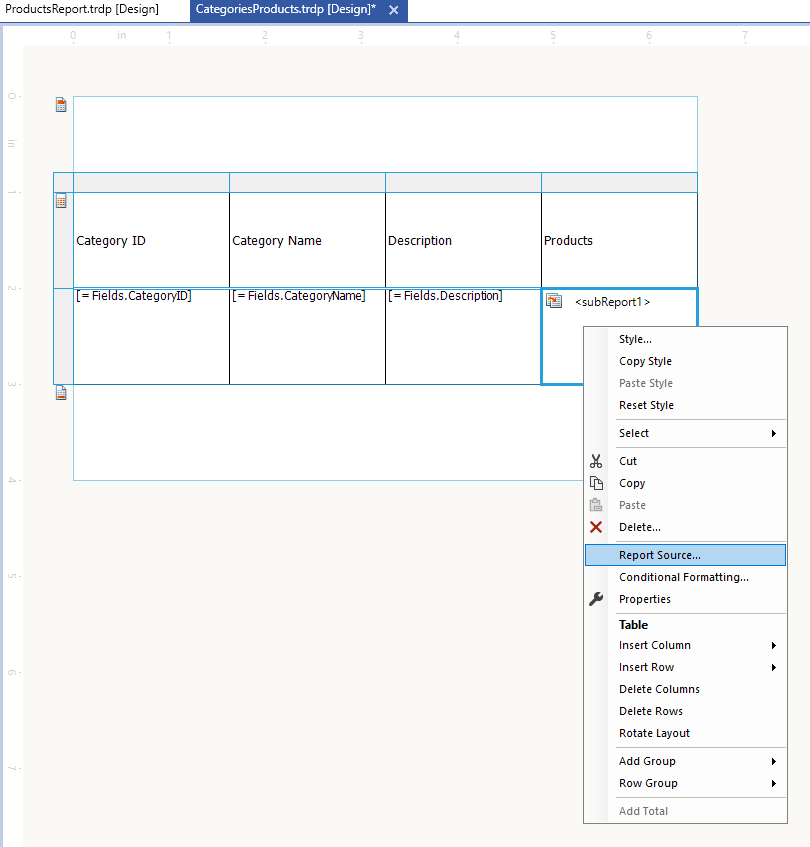

14. Right-click the SubReport item and select the report Source option:

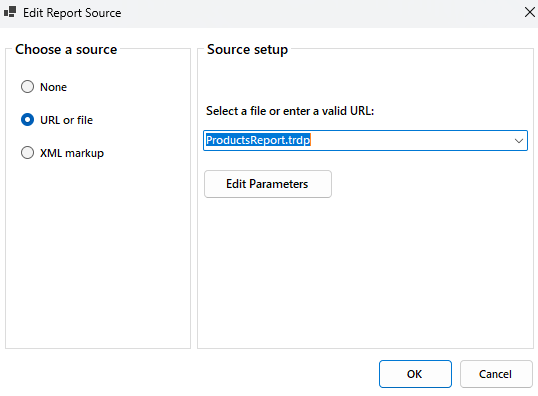

15. Select the URL option and select the previously created ProductsReport.trdp:

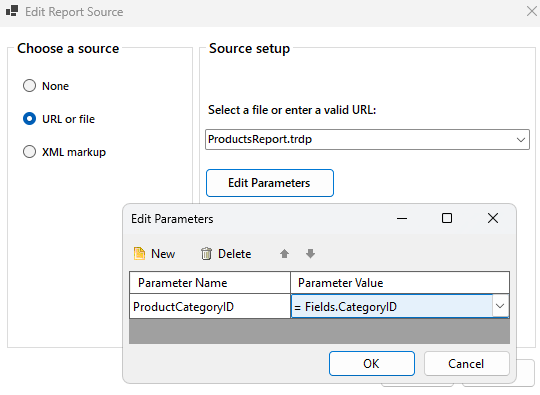

16. Click the Edit Parameters button and link the SubReport parameter (ProductCategoryID) with the master report's CategoryID field:

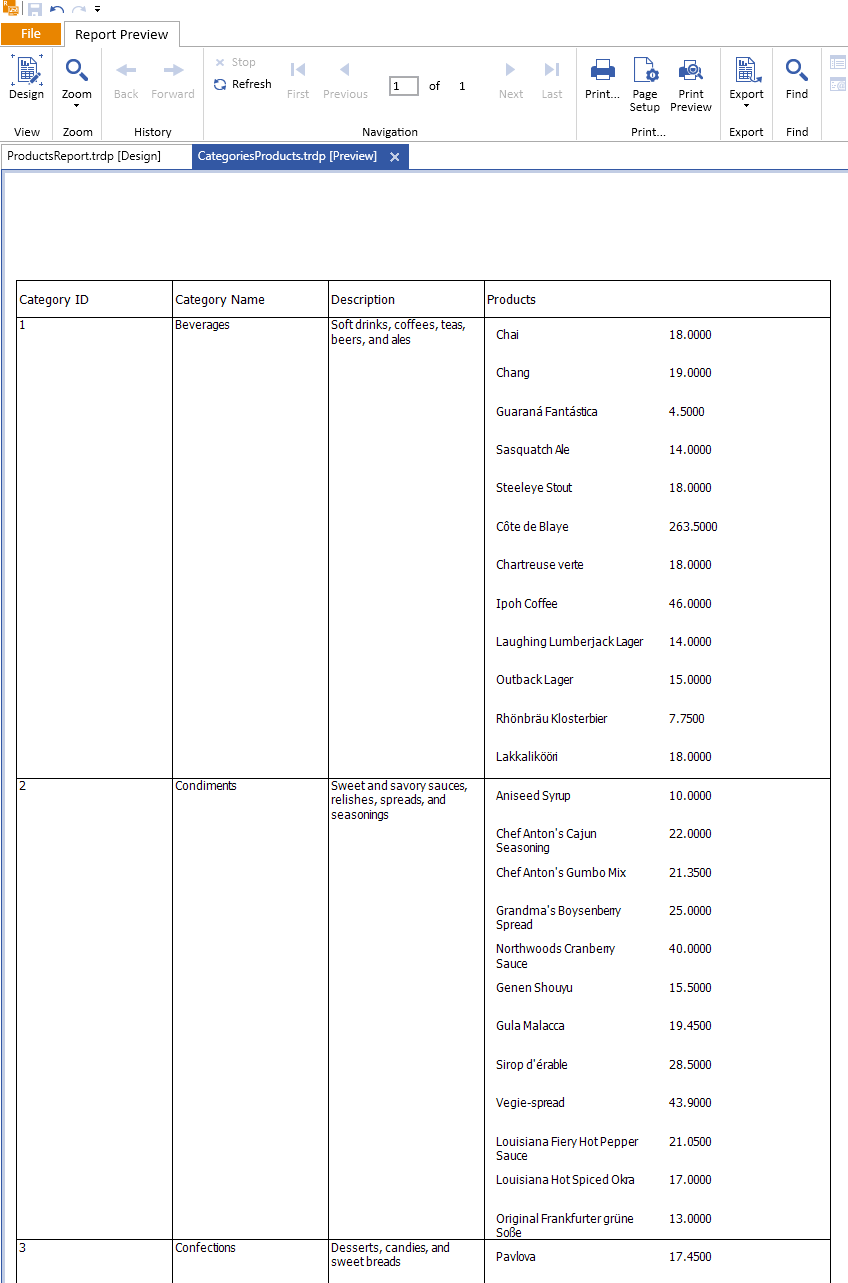

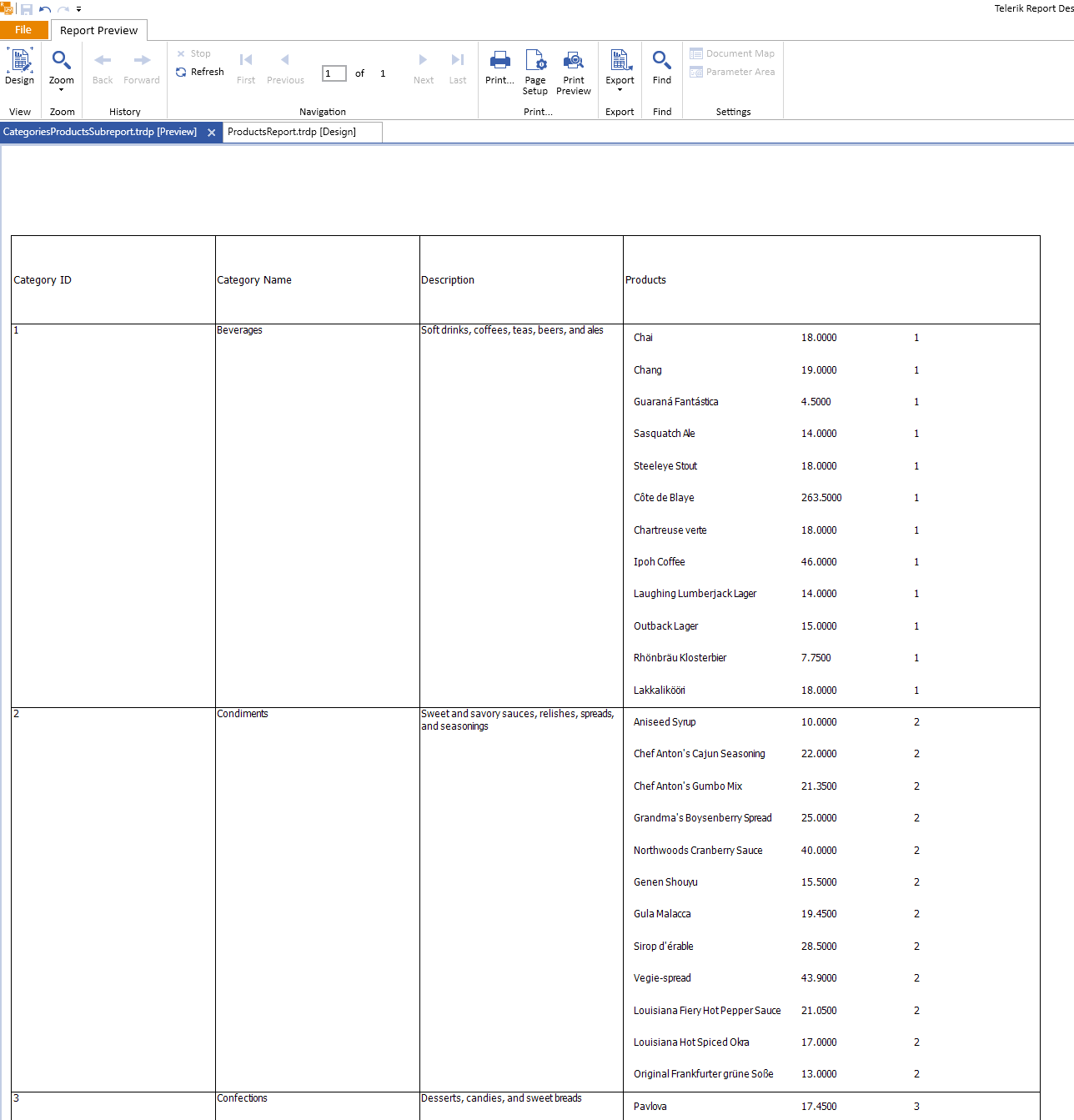

17. Save the changes and preview the master report. You will see all categories listed with the respective products for each category:

I hope you find this information helpful. Please, let me know if there is anything else I can assist you with.

Regards,
Dess | Tech Support Engineer, Principal
Progress Telerik

[MasiULLAH]

Hi Dess can you give sample trdp file of sub report using Rest Api JSON SAMPLE data's and how its work on sub report Rest Api data's https://api.restful-api.dev/objects use this rest api

all users data / users1/users2 like this format and then how to display the system.object[]

[Dess | Tech Support Engineer, Principal]

Hi,

If you are seeing "system.object[]" in the report, it seems that the data displayed in the report item represents a collection. I would suggest you to have a look at the following KB article which is quite useful on this topic and provides two solutions:

How to Create a Report that Displays Hierarchical Nested Data

How to bind Sub Report to Main Report's Data

Databind to Collection Properties

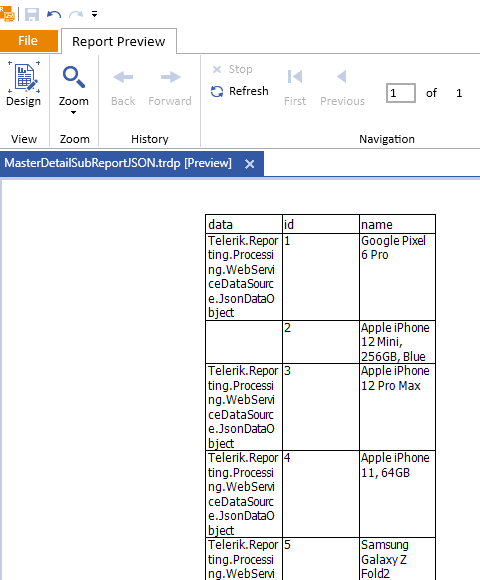

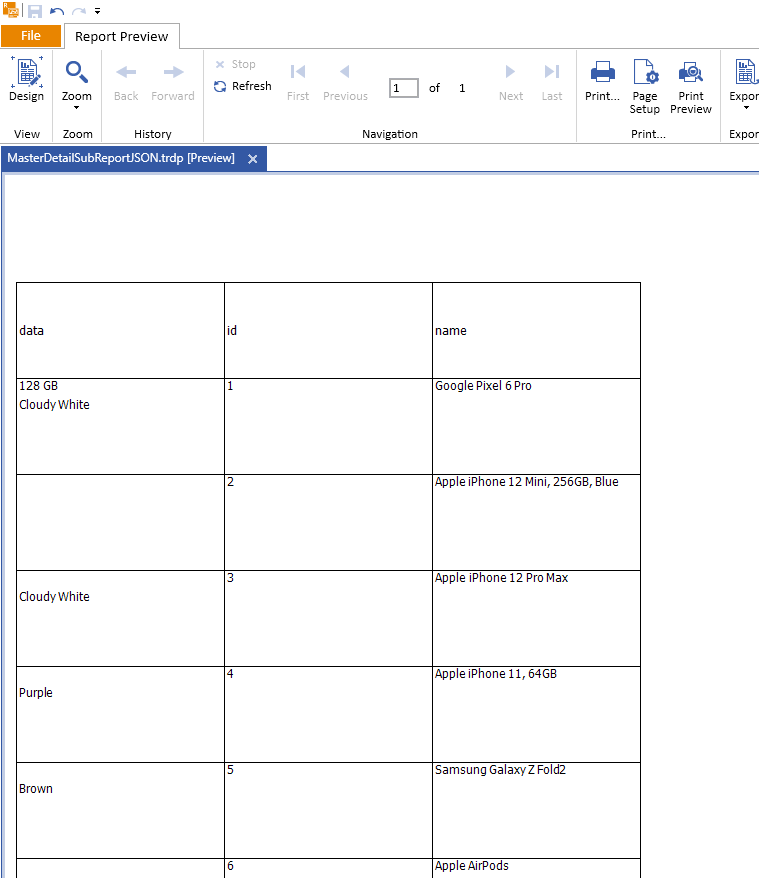

Considering the provided JSON data, I tried the JsonDataSource and the Table wizard in a brand new report . Initially, the observed result:

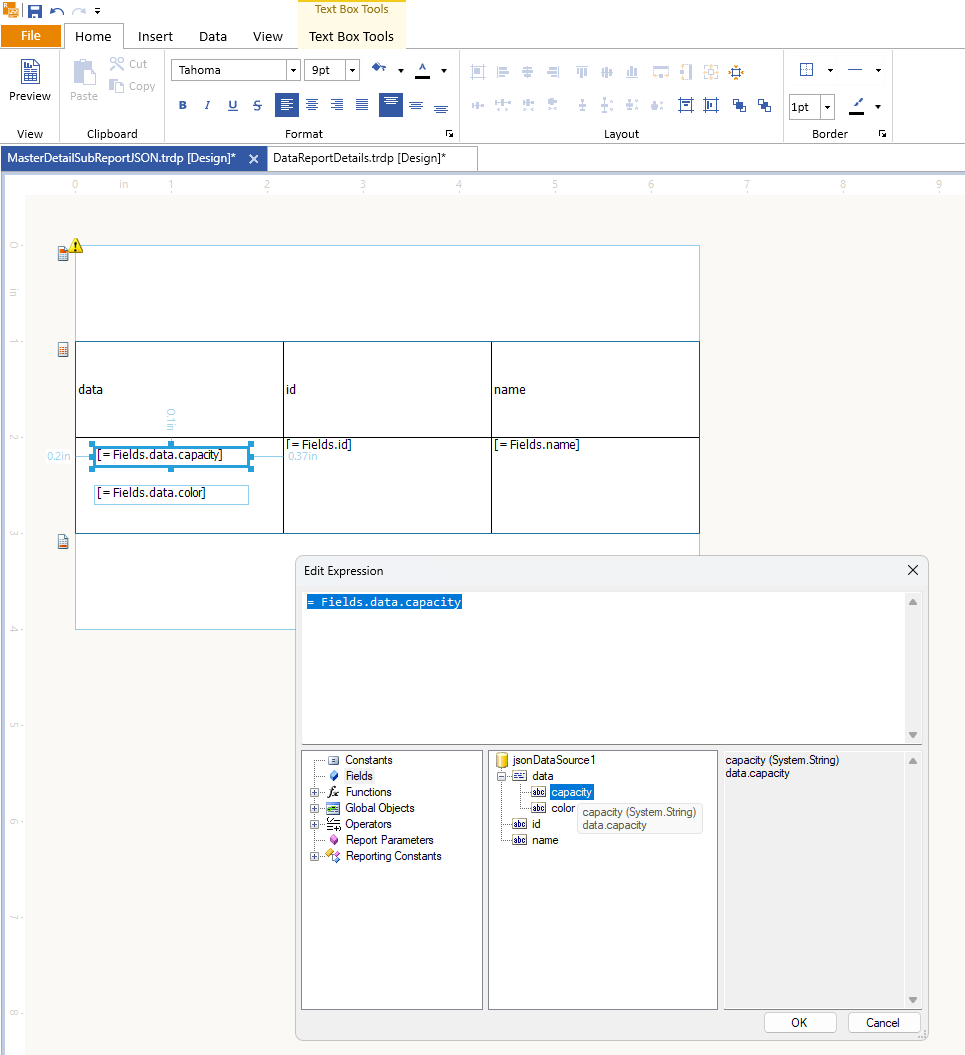

You can delete the default report item for the data field and add a Panel with two text boxes that are bound to the respective nested data field, e.g.:

I believe that you will find this helpful.
