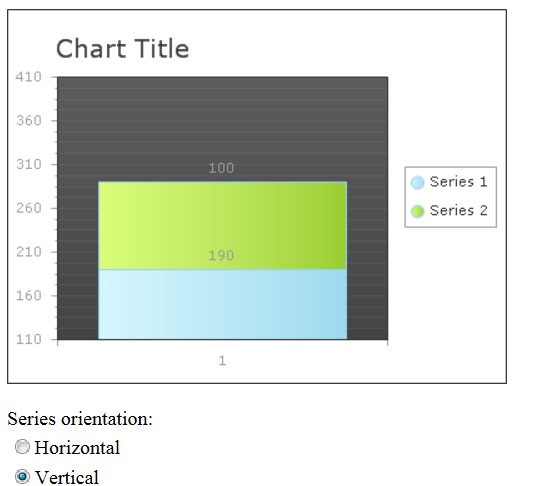

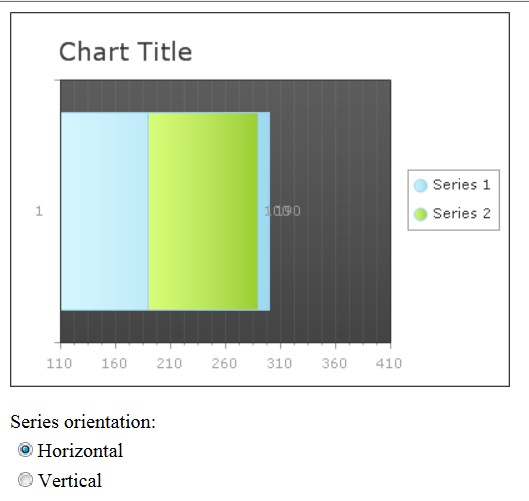

I need to show a horizontal stackedbar RadChart for several (say, 2) series, each series has one item and with some limitations for min and max values. I insert below a page with some simple code and attach 2 images. As you can see if orientation is vertical that all is perfect. But when I change orientation to horizontal one I get some exccessive bar after the last bar. Is it a bug ? How can I fix that? I use Q2 2010 version in this project. May be it is fixed in more latest versions?
I need to show a horizontal stackedbar RadChart for several (say, 2) series, each series has one item and with some limitations for min and max values. I insert below a page with some simple code and attach 2 images. As you can see if orientation is vertical that all is perfect. But when I change orientation to horizontal one I get some exccessive bar after the last bar. Is it a bug ? How can I fix that? I use Q2 2010 version in this project. May be it is fixed in more latest versions?
<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Stackbar2.aspx.cs" Inherits="Stackbar2" %><%@ Register assembly="Telerik.Web.UI" namespace="Telerik.Charting" tagprefix="telerik" %><!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"><html xmlns="http://www.w3.org/1999/xhtml"><head runat="server"> <title></title></head><body> <form id="form1" runat="server"> <telerik:RadScriptManager ID="RadScriptManager1" runat="server"> </telerik:RadScriptManager> <div> <telerik:RadChart ID="RadChart1" runat="server" DefaultType="StackedBar" SeriesOrientation="Vertical"> <Series> <telerik:ChartSeries Name="Series 1" Type="StackedBar"> <Items> <telerik:ChartSeriesItem Name="Item 1" YValue="190"> </telerik:ChartSeriesItem> </Items> </telerik:ChartSeries> <telerik:ChartSeries Name="Series 2" Type="StackedBar"> <Items> <telerik:ChartSeriesItem Name="Item 1" YValue="100" > </telerik:ChartSeriesItem> </Items> </telerik:ChartSeries> </Series> </telerik:RadChart> <br /> <asp:Label ID="lblChartOrientation" runat="server" Text="Series orientation:" /><asp:RadioButtonList AutoPostBack="true" ID="OrientationList" runat="server" OnSelectedIndexChanged="OrientationList_SelectedIndexChanged"><asp:ListItem Text="Horizontal" Value="Horizontal" /><asp:ListItem Text="Vertical" Value="Vertical" Selected="True" /></asp:RadioButtonList> </div> </form> </body> </html> using System;using System.Collections.Generic;using System.Linq;using System.Web;using System.Web.UI;using System.Web.UI.WebControls;using Telerik.Charting;using System.Drawing;public partial class Stackbar2 : System.Web.UI.Page{ protected void Page_Load(object sender, EventArgs e) { if(!IsPostBack) Settings(); } private void Settings() { ChartSeriesCollection coll = RadChart1.Series; for (int i = 0; i < coll.Count; i++) { } double yMin=110; double yMax=400; double step = 50; RadChart1.PlotArea.YAxis.AddRange(yMin, yMax, step); RadChart1.PlotArea.YAxis.AutoScale = false; } protected void OrientationList_SelectedIndexChanged(object sender, EventArgs e) { RadChart1.SeriesOrientation = (ChartSeriesOrientation)Enum.Parse(typeof(ChartSeriesOrientation), OrientationList.SelectedValue); }}3 Answers, 1 is accepted
0
Hello Evgeny,
It seems there is indeed a problem with stacked bars in horizontal orientation and we will forward it to our developers for further review. As a workaround for the time being we would suggest you to use either automatic axis range, or use custom axis range with MinValue=0.
Hope this helps.
Greetings,
Giuseppe
the Telerik team
It seems there is indeed a problem with stacked bars in horizontal orientation and we will forward it to our developers for further review. As a workaround for the time being we would suggest you to use either automatic axis range, or use custom axis range with MinValue=0.
Hope this helps.
Greetings,
Giuseppe
the Telerik team
