Stepped Layout Error

[Ryan Lege]

I've tried a million times and I get the same issue. When I try the stepped layout I get a generation error that states "OBJECT WITH NAME 'Country' ALREADY EXISTS. OBJECTS SHOULD HAVE UNIQUE NAMES".  Yet the query IS bringing back unique names. I looked at the designer code generated and sure enough it is creating children with the same name, not sure why.

[Steve]

Hello Ryan Lege,

The Stepped Layout is the default option in the Report Wizard and we have not been contacted with such a problem so far. We would appreciate if you share which version of Telerik Reporting you're using and whether you can reproduce this with a query to the AdventureWorks database or only when querying your database. If you can reproduce this with the AdventureWorks, please provide us with the exact query to use in order to replicate the problem. If the issue occurs only with your database, please open an official support thread and attach a sample report and your database.

Best wishes,
Steve
the Telerik team

[Ryan Lege]

No I'm talking about the Crosstab wizard control. I did try it with AdventureWorks and got the same problem. Here is the query:

SELECT        Production.Product.Name, Production.ProductInventory.Quantity, Production.ProductSubcategory.Name AS Sub, Production.Location.Name AS Location
FROM            Production.Product INNER JOIN
                         Production.ProductSubcategory ON Production.Product.ProductSubcategoryID = Production.ProductSubcategory.ProductSubcategoryID INNER JOIN
                         Production.ProductInventory ON Production.Product.ProductID = Production.ProductInventory.ProductID INNER JOIN
                         Production.Location ON Production.ProductInventory.LocationID = Production.Location.LocationID

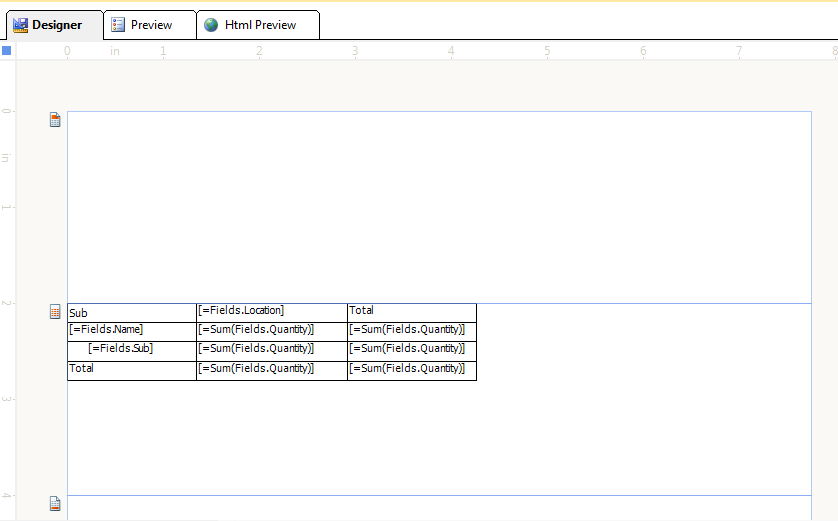

And here is the CrossTab Configuration plus the visual designer view attached:



//



// crosstab1



//



this.crosstab1.Body.Columns.Add(new Telerik.Reporting.TableBodyColumn(new Telerik.Reporting.Drawing.Unit(1.5708342790603638D, Telerik.Reporting.Drawing.UnitType.Inch)));



this.crosstab1.Body.Columns.Add(new Telerik.Reporting.TableBodyColumn(new Telerik.Reporting.Drawing.Unit(1.3520834445953369D, Telerik.Reporting.Drawing.UnitType.Inch)));



this.crosstab1.Body.Rows.Add(new Telerik.Reporting.TableBodyRow(new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch)));



this.crosstab1.Body.Rows.Add(new Telerik.Reporting.TableBodyRow(new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch)));



this.crosstab1.Body.Rows.Add(new Telerik.Reporting.TableBodyRow(new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch)));



this.crosstab1.Body.SetCellContent(0, 0, this.textBox7);



this.crosstab1.Body.SetCellContent(0, 1, this.textBox8);



this.crosstab1.Body.SetCellContent(1, 0, this.textBox9);



this.crosstab1.Body.SetCellContent(1, 1, this.textBox10);



this.crosstab1.Body.SetCellContent(2, 0, this.textBox11);



this.crosstab1.Body.SetCellContent(2, 1, this.textBox12);

tableGroup1.Groupings.AddRange(



new Telerik.Reporting.Data.Grouping[] {



new Telerik.Reporting.Data.Grouping("=Fields.Location")});

tableGroup1.Name =



"Location";

tableGroup1.ReportItem =



this.textBox1;

tableGroup1.Sortings.AddRange(



new Telerik.Reporting.Data.Sorting[] {



new Telerik.Reporting.Data.Sorting("=Fields.Location", Telerik.Reporting.Data.SortDirection.Asc)});

tableGroup2.ReportItem =



this.textBox2;



this.crosstab1.ColumnGroups.Add(tableGroup1);



this.crosstab1.ColumnGroups.Add(tableGroup2);



this.crosstab1.Corner.SetCellContent(0, 0, this.textBox6);



this.crosstab1.DataSource = this.sqlDataSource1;



this.crosstab1.Items.AddRange(new Telerik.Reporting.ReportItemBase[] {



this.textBox1,



this.textBox2,



this.textBox6,



this.textBox7,



this.textBox8,



this.textBox9,



this.textBox10,



this.textBox11,



this.textBox12,



this.textBox3,



this.textBox4,



this.textBox5});



this.crosstab1.Location = new Telerik.Reporting.Drawing.PointU(new Telerik.Reporting.Drawing.Unit(3.9418537198798731E-05D, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(3.9418537198798731E-05D, Telerik.Reporting.Drawing.UnitType.Inch));



this.crosstab1.Name = "crosstab1";

tableGroup4.Groupings.AddRange(



new Telerik.Reporting.Data.Grouping[] {



new Telerik.Reporting.Data.Grouping("=Fields.Name")});

tableGroup4.Name =



"Name";

tableGroup4.ReportItem =



this.textBox3;

tableGroup4.Sortings.AddRange(



new Telerik.Reporting.Data.Sorting[] {



new Telerik.Reporting.Data.Sorting("=Fields.Name", Telerik.Reporting.Data.SortDirection.Asc)});

tableGroup6.Groupings.AddRange(



new Telerik.Reporting.Data.Grouping[] {



new Telerik.Reporting.Data.Grouping("=Fields.Sub")});

tableGroup6.Name =



"Sub";

tableGroup6.ReportItem =



this.textBox4;

tableGroup6.Sortings.AddRange(



new Telerik.Reporting.Data.Sorting[] {



new Telerik.Reporting.Data.Sorting("=Fields.Sub", Telerik.Reporting.Data.SortDirection.Asc)});

tableGroup5.ChildGroups.Add(tableGroup6);

tableGroup5.Groupings.AddRange(



new Telerik.Reporting.Data.Grouping[] {



new Telerik.Reporting.Data.Grouping("=Fields.Sub")});

tableGroup5.Name =



"Sub";

tableGroup5.Sortings.AddRange(



new Telerik.Reporting.Data.Sorting[] {



new Telerik.Reporting.Data.Sorting("=Fields.Sub", Telerik.Reporting.Data.SortDirection.Asc)});

tableGroup3.ChildGroups.Add(tableGroup4);

tableGroup3.ChildGroups.Add(tableGroup5);

tableGroup3.Groupings.AddRange(



new Telerik.Reporting.Data.Grouping[] {



new Telerik.Reporting.Data.Grouping("=Fields.Name")});

tableGroup3.Name =



"Name";

tableGroup3.Sortings.AddRange(



new Telerik.Reporting.Data.Sorting[] {



new Telerik.Reporting.Data.Sorting("=Fields.Name", Telerik.Reporting.Data.SortDirection.Asc)});

tableGroup7.ReportItem =



this.textBox5;



this.crosstab1.RowGroups.Add(tableGroup3);



this.crosstab1.RowGroups.Add(tableGroup7);



this.crosstab1.Size = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(4.2645845413208008D, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(0.800000011920929D, Telerik.Reporting.Drawing.UnitType.Inch));



this.crosstab1.StyleName = "Normal.TableNormal";



//



// textBox1



//



this.textBox1.Name = "textBox1";



this.textBox1.Size = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(1.5708333253860474D, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch));



this.textBox1.StyleName = "Normal.TableGroup";



this.textBox1.Value = "=Fields.Location";



//



// textBox2



//



this.textBox2.Name = "textBox2";



this.textBox2.Size = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(1.3520834445953369D, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch));



this.textBox2.StyleName = "Normal.GrandTotal";



this.textBox2.Value = "Total";



//



// textBox3



//



this.textBox3.Name = "textBox3";



this.textBox3.Size = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(1.3416666984558106D, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch));



this.textBox3.Style.Padding.Left = new Telerik.Reporting.Drawing.Unit(0D, Telerik.Reporting.Drawing.UnitType.Inch);



this.textBox3.StyleName = "Normal.SubTotal";



this.textBox3.Value = "=Fields.Name";



//



// textBox4



//



this.textBox4.Name = "textBox4";



this.textBox4.Size = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(1.3416666984558106D, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch));



this.textBox4.Style.Padding.Left = new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch);



this.textBox4.StyleName = "Normal.SubTotal";



this.textBox4.Value = "=Fields.Sub";



//



// textBox5



//



this.textBox5.Name = "textBox5";



this.textBox5.Size = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(1.3416666984558106D, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch));



this.textBox5.StyleName = "Normal.GrandTotal";



this.textBox5.Value = "Total";



//



// textBox6



//



this.textBox6.Name = "textBox6";



this.textBox6.Size = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(1.3416666984558106D, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch));



this.textBox6.StyleName = "Normal.TableHeader";



this.textBox6.Value = "Sub";



//



// textBox7



//



this.textBox7.Name = "textBox7";



this.textBox7.Size = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(1.5708333253860474D, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch));



this.textBox7.StyleName = "Normal.SubTotal";



this.textBox7.Value = "=Sum(Fields.Quantity)";



//



// textBox8



//



this.textBox8.Name = "textBox8";



this.textBox8.Size = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(1.3520834445953369D, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch));



this.textBox8.StyleName = "Normal.GrandTotal";



this.textBox8.Value = "=Sum(Fields.Quantity)";



//



// textBox9



//



this.textBox9.Name = "textBox9";



this.textBox9.Size = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(1.5708333253860474D, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch));



this.textBox9.StyleName = "Normal.TableBody";



this.textBox9.Value = "=Sum(Fields.Quantity)";



//



// textBox10



//



this.textBox10.Name = "textBox10";



this.textBox10.Size = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(1.3520834445953369D, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch));



this.textBox10.StyleName = "Normal.GrandTotal";



this.textBox10.Value = "=Sum(Fields.Quantity)";



//



// textBox11



//



this.textBox11.Name = "textBox11";



this.textBox11.Size = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(1.5708333253860474D, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch));



this.textBox11.StyleName = "Normal.GrandTotal";



this.textBox11.Value = "=Sum(Fields.Quantity)";



//



// textBox12



//



this.textBox12.Name = "textBox12";



this.textBox12.Size = new Telerik.Reporting.Drawing.SizeU(new Telerik.Reporting.Drawing.Unit(1.3520834445953369D, Telerik.Reporting.Drawing.UnitType.Inch), new Telerik.Reporting.Drawing.Unit(0.20000000298023224D, Telerik.Reporting.Drawing.UnitType.Inch));



this.textBox12.StyleName = "Normal.GrandTotal";



this.textBox12.Value = "=Sum(Fields.Quantity)";

[Hrisi]

Hello Ryan Lege,

This is a known issue with our Crosstab Wizard and the fix will be available in the upcoming service pack. In meantime you can do the following:

• Generate the Crosstab with the wizard
• Open the Group Explorer and you can see the nested groups with the same names. Change the names.

In your case you have two row groups with the name "Name" and two row groups with the name "Sub".

Kind regards,
Hrisi
the Telerik team
