[Rodrigo]

Hello

I have a chart in WPF and I go to Reporting but I have some doubts that following are:

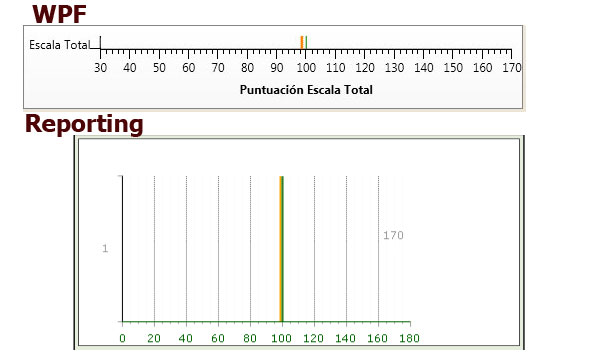

They have to be the closest thing to signed attachment.

- As I can make the high is less.
- As I can change or hide where it says 0 and 170 for a text or hide it, is a series: Code

Telerik.Reporting.Charting.ChartSeriesItem seriesItem = new Telerik.Reporting.Charting.ChartSeriesItem();
chartLinea.PlotArea.YAxis[a].TextBlock.Text = "Escala Total";
seriesItem.Label.TextBlock.Text = "Escala Total";
seriesItem.YValue = Convert.ToInt32(sujeto.EscalaTotal);
seriesItem.Name = "Escala Total";
seriesItem.Visible = false;

series.Appearance.LegendDisplayMode = Telerik.Reporting.Charting.ChartSeriesLegendDisplayMode.SeriesName;


                // se inserta el de 170 puntos
chartLinea.PlotArea.YAxis[a++].TextBlock.Text = "";
seriesItem.Label.TextBlock.Text = "";
seriesItem.YValue = 170;
seriesItem.Name = "";
seriesItem.Visible = false;
series.Appearance.LegendDisplayMode = Telerik.Reporting.Charting.ChartSeriesLegendDisplayMode.SeriesName;
series.AddItem(seriesItem);


series.Appearance.LabelAppearance.LabelLocation = Telerik.Reporting.Charting.Styles.StyleSeriesItemLabel.ItemLabelLocation.Outside;
chartLinea.Series.Clear();
chartLinea.Series.Add(series);

- Also get the minimum of the Y t max but does nothing. Code

chartLinea.PlotArea.YAxis.MinValue = 30;
chartLinea.PlotArea.YAxis.MaxValue = 170;
chartLinea.PlotArea.YAxis.Step = 10;
chartLinea.PlotArea.YAxis.Appearance.Color = System.Drawing.Color.DarkGreen;
chartLinea.PlotArea.YAxis.Appearance.TextAppearance.TextProperties.Color = System.Drawing.Color.DarkGreen;
chartLinea.PlotArea.YAxis.Appearance.TextAppearance.Visible = true;
chartLinea.PlotArea.YAxis.Appearance.Visible = Telerik.Reporting.Charting.Styles.ChartAxisVisibility.True;
chartLinea.PlotArea.YAxis.Appearance.ValueFormat = Telerik.Reporting.Charting.Styles.ChartValueFormat.General;

thanks

[Rodrigo]

help please

[Evgenia]

Hi Rodrigo,

1. Why don't you change the scale of the XAxis? Instead of 1, you can set its MaxValue to 0.3 or even smaller. This can be done by turning off the AutoScale property of the XAxis and setting your own MinValue, MaxValue and Step as described in our documentation.

2. Based on the information provided it is hard for me to say where these labels are set and how to hide them. Please send us your full source code and we'll help you with that.

3. What is your question? I couldn't understand what you want to achieve.

Kind regards,
Evgenia
the Telerik team
