Self-referencing Hierarchy and checkbox

[Djefri]

<telerik:RadGrid ID="RadGrid1" runat="server" OnColumnCreated="RadGrid1_ColumnCreated" Skin="Office2007" Width="600px" OnItemCreated="RadGrid1_ItemCreated" OnItemDataBound="RadGrid1_ItemDataBound" AutoGenerateColumns="false" OnNeedDataSource="RadGrid1_NeedDataSource">
  <MasterTableView HierarchyDefaultExpanded="true" HierarchyLoadMode="Client" AllowSorting="true" DataKeyNames="mnid, mnparent,mnnamein">
    <SelfHierarchySettings ParentKeyName="mnparent" KeyName="mnid" />
        <Columns>
        <telerik:GridBoundColumn DataField="mnnamein" HeaderText="Menu"UniqueName="mnnamein"
          HeaderStyle-Width="350px"></telerik:GridBoundColumn>
        <telerik:GridTemplateColumn  UniqueName="CheckBoxTemplateColumn" HeaderText="Open">
        <ItemTemplate>
            <asp:CheckBox id="CheckBox1" runat="server"></asp:CheckBox>
        </ItemTemplate>
        </telerik:GridTemplateColumn>
        </Columns>
   </MasterTableView>
   <ClientSettings AllowExpandCollapse="true" />
</telerik:RadGrid>

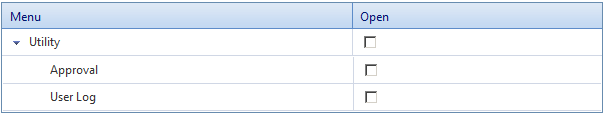

I have grid like this(for picture in my attachement). The problem, if I select the parent checkbok then details checkbok also select and if I select details checkbok then parent checkbox also select.

How to doing like that??

thanks

[Djefri]

if grid have one parent group it is easy, but if grid has more than one parent
How ...?

this is code for One Parent :

<telerik:RadGrid ID="RadGrid1" runat="server" OnColumnCreated="RadGrid1_ColumnCreated" Skin="Office2007" Width="600px"
OnItemCreated="RadGrid1_ItemCreated" OnItemDataBound="RadGrid1_ItemDataBound" AutoGenerateColumns="false"
OnNeedDataSource="RadGrid1_NeedDataSource" AllowMultiRowSelection="true">
<MasterTableView HierarchyDefaultExpanded="true" HierarchyLoadMode="Client" AllowSorting="true" Name="asd" DataKeyNames="mnid, mnparent,mnnameen">
<SelfHierarchySettings ParentKeyName="mnparent" KeyName="mnid" />
<Columns>
<telerik:GridBoundColumn DataField="mnnameen" HeaderText="Menu" UniqueName="mnnameen" HeaderStyle-Width="350px"></telerik:GridBoundColumn>
<telerik:GridTemplateColumn  UniqueName="CheckBoxTemplateColumn" HeaderText="Open">
<ItemTemplate>
<asp:CheckBox id="CheckBox1" OnCheckedChanged="ToggleRowSelection" runat="server"></asp:CheckBox>
</ItemTemplate>
</telerik:GridTemplateColumn>
</Columns>
</MasterTableView>
<ClientSettings AllowExpandCollapse="true" EnableRowHoverStyle="true">
<Selecting AllowRowSelect="True" />
<ClientEvents OnRowSelecting="RowSelecting" />
</ClientSettings>
</telerik:RadGrid>

Public Sub HideExpandColumnRecursive(ByVal tableView As GridTableView)
Dim nestedViewItems As GridItem() = tableView.GetItems(GridItemType.NestedView)
For Each nestedViewItem As GridNestedViewItem In nestedViewItems
For Each nestedView As GridTableView In nestedViewItem.NestedTableViews
nestedView.Style("border") = "0"

Dim MyExpandCollapseButton As Button = DirectCast(nestedView.ParentItem.FindControl("MyExpandCollapseButton"), Button)
Dim MyCBox As CheckBox = DirectCast(nestedView.ParentItem.FindControl("CheckBox1"), CheckBox)
If nestedView.Items.Count = 0 Then
If Not MyExpandCollapseButton Is Nothing Then
MyExpandCollapseButton.Style("visibility") = "hidden"
End If
nestedViewItem.Visible = False
MyCBox.Attributes.Add("onclick", "Select(this);")
Else
If Not MyExpandCollapseButton Is Nothing Then
MyExpandCollapseButton.Style.Remove("visibility")
MyCBox.Attributes.Add("onclick", "SelectAll(this);")
End If
End If

If nestedView.HasDetailTables Then
HideExpandColumnRecursive(nestedView)
End If
Next
Next
End Sub

function Select(CheckBoxControl) {

if (CheckBoxControl.checked == true) {

  document.getElementById("RadGrid1_ctl00_ctl04_CheckBox1").checked = true;

} else {

document.getElementById("RadGrid1_ctl00_ctl04_CheckBox1").checked = false;

           }

       }
function SelectAll(CheckBoxControl) {

if (CheckBoxControl.checked == true) {

var i;

for (i = 0; i < document.forms[0].elements.length; i++) {

if ((document.forms[0].elements[i].type == 'checkbox') && (document.forms[0].elements[i].name.indexOf('RadGrid1') > -1)) {

document.forms[0].elements[i].checked = true;

}

}

} else {

var i;

for (i = 0; i < document.forms[0].elements.length; i++) {

if ((document.forms[0].elements[i].type == 'checkbox') && (document.forms[0].elements[i].name.indexOf('RadGrid1') > -1)) {

document.forms[0].elements[i].checked = false;

}

}

}

}

Protected Sub ToggleRowSelection(ByVal sender As Object, ByVal e As EventArgs)
CType(CType(sender, CheckBox).Parent.Parent, GridItem).Selected = CType(sender, CheckBox).Checked
End Sub

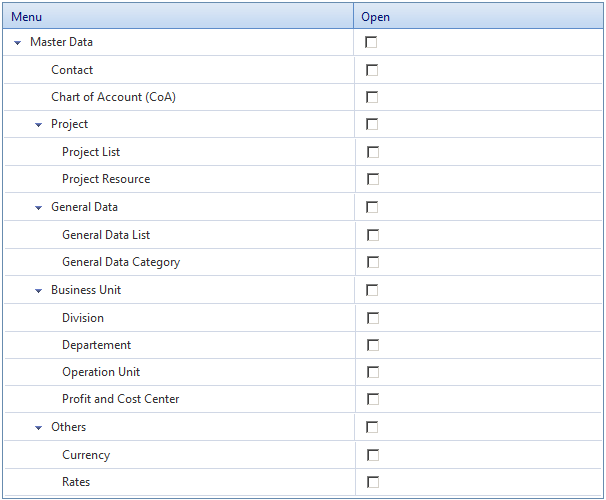

for picture in my attacement

[Djefri]

please help me...

[Djefri]

I'll answer my own question since no one person who can answer

function CheckedChanged(CheckBoxControl) {
    var name = CheckBoxControl.id;
    var gabungan = name.split("__");
    if (gabungan[1] == 0) {
        SelectAll(CheckBoxControl);
    } else {
        SelectItem(CheckBoxControl, gabungan);
    }
}

function SelectAll(CheckBoxControl) {
    if (CheckBoxControl.checked == true) {
        var i;
        for (i = 0; i < document.forms[0].elements.length; i++) {
            if ((document.forms[0].elements[i].type == 'checkbox') && (document.forms[0].elements[i].name.indexOf('RadGrid1') > -1)) {
                document.forms[0].elements[i].checked = true;
            }
        }
    } else {
        var i;
        for (i = 0; i < document.forms[0].elements.length; i++) {
            if ((document.forms[0].elements[i].type == 'checkbox') && (document.forms[0].elements[i].name.indexOf('RadGrid1') > -1)) {
                document.forms[0].elements[i].checked = false;
            }
        }
    }
}

function SelectItem(CheckBoxControl, gabungan) {
    var i;
    for (i = gabungan[1].length - 4; i > 0; i -= 4) {
        var idcboxnya = gabungan[1].substring(0, i);
        var j;
        for (j = 0; j < document.forms[0].elements.length; j++) {
            if (CheckBoxControl.checked == true) {
                if ((document.forms[0].elements[j].type == 'checkbox') && (document.forms[0].elements[j].name.indexOf('RadGrid1') > -1)) {
                    var idcbox = document.forms[0].elements[j].id.split("__");
                    if (idcboxnya == idcbox[1]) {
                        document.forms[0].elements[j].checked = true;
                    } else {
                        var myRegExp = gabungan[1];
                        var matchPos1 = idcbox[1].search(myRegExp);

                        if (matchPos1 != -1) {
                            document.forms[0].elements[j].checked = true;
                        }
                    }
                }
            } else {
                if ((document.forms[0].elements[j].type == 'checkbox') && (document.forms[0].elements[j].name.indexOf('RadGrid1') > -1)) {
                    var idcbox = document.forms[0].elements[j].id.split("__");
                    var myRegExp = gabungan[1];
                    var matchPos1 = idcbox[1].search(myRegExp);

                    if (matchPos1 != -1) {
                        document.forms[0].elements[j].checked = false;
                    }
                }
            }
        }
    }
}

Public Sub HideExpandColumnRecursive(ByVal tableView As GridTableView)
    Dim nestedViewItems As GridItem() = tableView.GetItems(GridItemType.NestedView)

    Dim itemid As String, itemidnya As String
    For Each item As GridItem In tableView.Items
        If TypeOf item Is GridDataItem Then
            Dim dataItem As GridDataItem = CType(item, GridDataItem)
            itemid = dataItem.ClientID
            Dim data() As String = Split(itemid, "__")
            Dim checkBox As CheckBox = TryCast(dataItem("CheckBoxTemplateColumn").FindControl("CheckBox1"), CheckBox)
            itemidnya = "_" & data(1) & "__CheckBox1"
            checkBox.ID = itemidnya
        End If
    Next

    For Each nestedViewItem As GridNestedViewItem In nestedViewItems
        For Each nestedView As GridTableView In nestedViewItem.NestedTableViews
            nestedView.Style("border") = "0"

            Dim MyExpandCollapseButton As Button = DirectCast(nestedView.ParentItem.FindControl("MyExpandCollapseButton"), Button)
            'Dim MyCBox As CheckBox = DirectCast(nestedView.ParentItem.FindControl("CheckBox1"), CheckBox)
            If nestedView.Items.Count = 0 Then
                If Not MyExpandCollapseButton Is Nothing Then
                    MyExpandCollapseButton.Style("visibility") = "hidden"
                End If
                nestedViewItem.Visible = False
            Else
                If Not MyExpandCollapseButton Is Nothing Then
                    MyExpandCollapseButton.Style.Remove("visibility")
                End If
            End If

            If nestedView.HasDetailTables Then
                HideExpandColumnRecursive(nestedView)
            End If
        Next
    Next
End Sub

Thanks
