Prime asked on 13 Nov 2011, 12:01 PM


Dear Support team

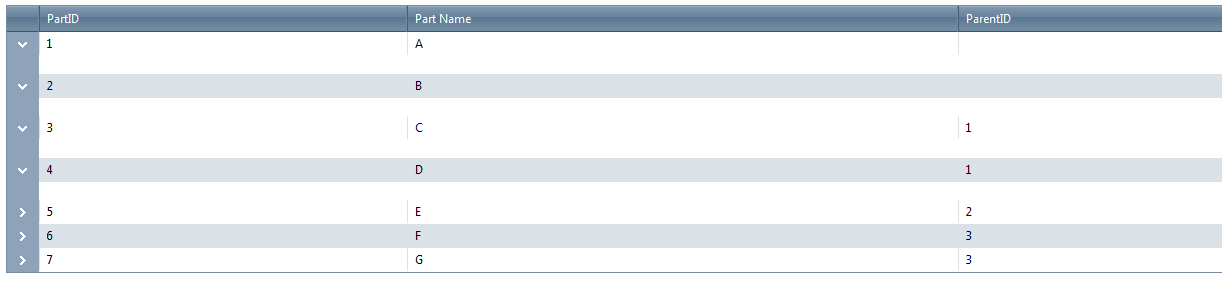

I wanted to create a RadGrid with self-referencing hierarchy so i did what ever was written in documentation. now the table shows up with collapse/expand column but it doesn't show chid hierarch.
Please help me to solve the issue.

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="Default" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head runat="server">

<title></title>

<telerik:RadStyleSheetManager id="RadStyleSheetManager1" runat="server" />

</head>

<body>

<form id="form1" runat="server">

<telerik:RadScriptManager ID="RadScriptManager1" runat="server"

EnableTheming="True">

<Scripts>

<asp:ScriptReference Assembly="Telerik.Web.UI"

Name="Telerik.Web.UI.Common.Core.js">

</asp:ScriptReference>

<asp:ScriptReference Assembly="Telerik.Web.UI"

Name="Telerik.Web.UI.Common.jQuery.js">

</asp:ScriptReference>

<asp:ScriptReference Assembly="Telerik.Web.UI"

Name="Telerik.Web.UI.Common.jQueryInclude.js">

</asp:ScriptReference>

<asp:ScriptReference Assembly="Telerik.Web.UI"

Name="Telerik.Web.UI.Common.jQueryInclude.js">

</asp:ScriptReference>

<asp:ScriptReference Assembly="Telerik.Web.UI"

Name="Telerik.Web.UI.Common.jQuery.js">

</asp:ScriptReference>

<asp:ScriptReference Assembly="Telerik.Web.UI"

Name="Telerik.Web.UI.Common.Core.js">

</asp:ScriptReference>

</Scripts>

</telerik:RadScriptManager>

<asp:SqlDataSource ID="SqlDataSource1" runat="server"

ConnectionString="<%$ ConnectionStrings:ConnectionString %>"

DeleteCommand="DELETE FROM [Parts] WHERE [PartID] = @PartID"

InsertCommand="INSERT INTO [Parts] ([Part Name], [ParentID]) VALUES (@Part_Name, @ParentID)"

SelectCommand="SELECT * FROM [Parts]"

UpdateCommand="UPDATE [Parts] SET [Part Name] = @Part_Name, [ParentID] = @ParentID WHERE [PartID] = @PartID">

<DeleteParameters>

<asp:Parameter Name="PartID" Type="Int32" />

</DeleteParameters>

<InsertParameters>

<asp:Parameter Name="Part_Name" Type="String" />

<asp:Parameter Name="ParentID" Type="Int32" />

</InsertParameters>

<UpdateParameters>

<asp:Parameter Name="Part_Name" Type="String" />

<asp:Parameter Name="ParentID" Type="Int32" />

<asp:Parameter Name="PartID" Type="Int32" />

</UpdateParameters>

</asp:SqlDataSource>

<telerik:RadGrid ID="RadGrid1" runat="server" AllowAutomaticDeletes="True"

AllowAutomaticInserts="True" AllowAutomaticUpdates="True"

AutoGenerateHierarchy="True" CellSpacing="0" DataSourceID="SqlDataSource1"

GridLines="None">

<MasterTableView AutoGenerateColumns="False" DataKeyNames="PartID,ParentID"

DataSourceID="SqlDataSource1">

<SelfHierarchySettings KeyName="PartID" ParentKeyName="`" />

<CommandItemSettings ExportToPdfText="Export to PDF"></CommandItemSettings>

<RowIndicatorColumn FilterControlAltText="Filter RowIndicator column">

<HeaderStyle Width="20px"></HeaderStyle>

</RowIndicatorColumn>

<ExpandCollapseColumn FilterControlAltText="Filter ExpandColumn column">

<HeaderStyle Width="20px"></HeaderStyle>

</ExpandCollapseColumn>

<Columns>

<telerik:GridBoundColumn DataField="PartID" DataType="System.Int32"

FilterControlAltText="Filter PartID column" HeaderText="PartID" ReadOnly="True"

SortExpression="PartID" UniqueName="PartID">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn DataField="Part Name"

FilterControlAltText="Filter Part Name column" HeaderText="Part Name"

SortExpression="Part Name" UniqueName="Part Name">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn DataField="ParentID" DataType="System.Int32"

FilterControlAltText="Filter ParentID column" HeaderText="ParentID"

SortExpression="ParentID" UniqueName="ParentID">

</telerik:GridBoundColumn>

</Columns>

<EditFormSettings>

<EditColumn FilterControlAltText="Filter EditCommandColumn column"></EditColumn>

</EditFormSettings>

</MasterTableView>

<FilterMenu EnableImageSprites="False"></FilterMenu>

<HeaderContextMenu CssClass="GridContextMenu GridContextMenu_Default"></HeaderContextMenu>

</telerik:RadGrid>

<script type="text/javascript">

//Put your Java Script code here.

</script>

<telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">

</telerik:RadAjaxManager>

<telerik:RadSkinManager ID="RadSkinManager1" Runat="server" Skin="WebBlue">

</telerik:RadSkinManager>

<div>

</div>

</form>

</body>

</html>

1 Answer, 1 is accepted

0
