Scrooling not woriking in Radgrid

[Dhamodharan]

Hi,

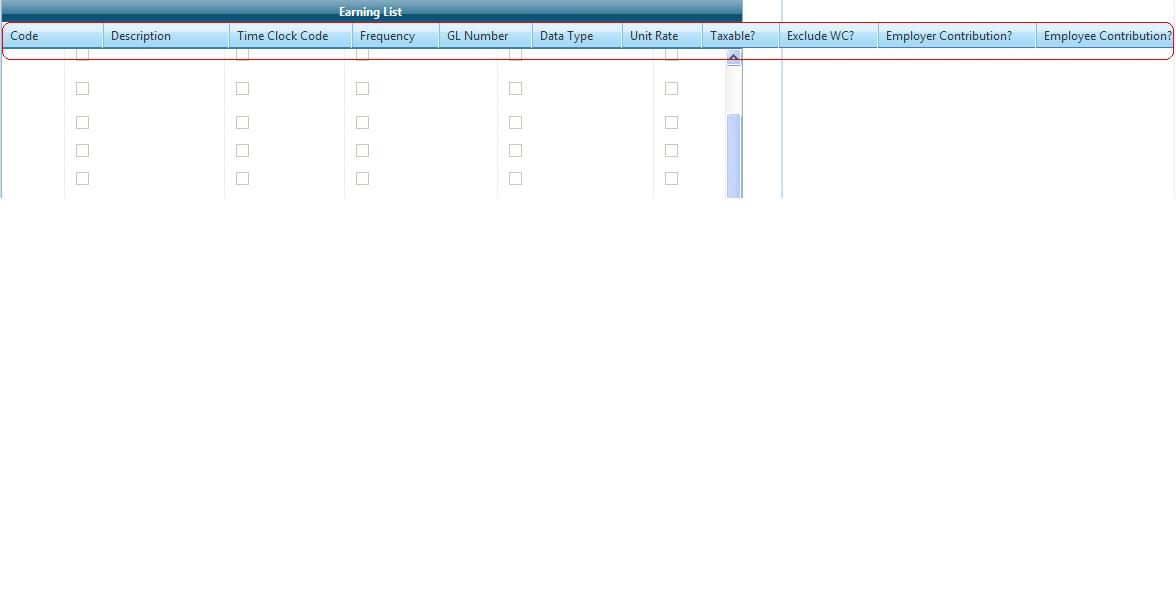

I have using scrolling in my grid. but header alignment is not including width. i have attached image.

I have set width size=740px in radgrid and also using

 <ClientSettings>
                            <Scrolling AllowScroll="True" UseStaticHeaders="true" SaveScrollPosition="true" />
                        </ClientSettings>

Data showing into scrolling but header not shown.

Find the attached image please give me a tips ASAP.

Thanks in Advance,
Dhamu.

[Pavlina]

Hello,

Can you please try setting TableLayout property of the MasterTableView to Fixed and let me know about the result?

Kind regards,
Pavlina
the Telerik team

[Dhamodharan]

Hi,

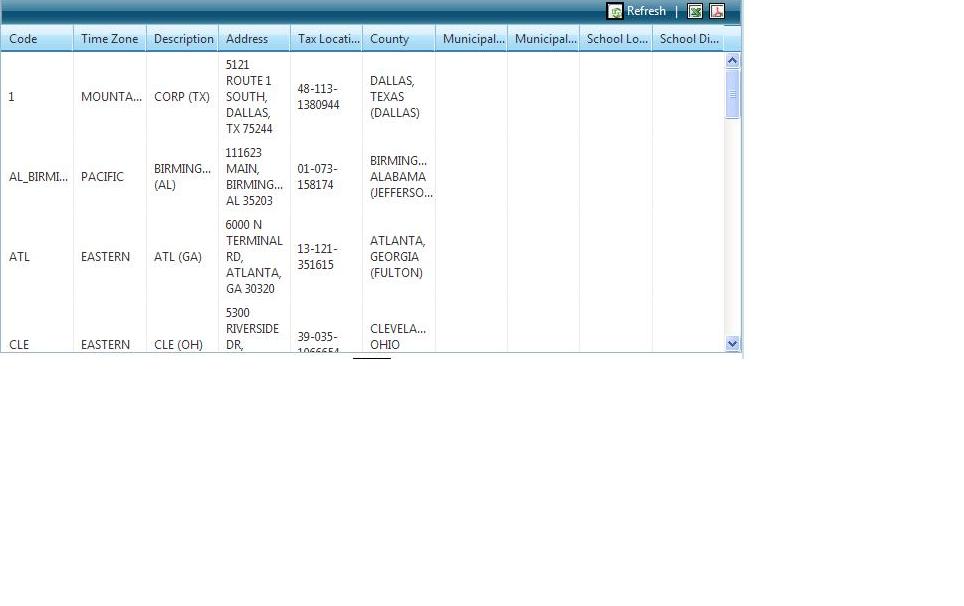

When i am using table layout=fixed means scroll option not working. all columns reduced length. i have attached image also.

Please check give me a tips ASAP.


Thanks,
Dhamu

[Pavlina]

Hello,

In your case you should pay attention to the following:

1. The RadGrid MasterTableView's TableLayout should be set to Fixed.
2. All column widths should be set by using HeaderStyle-Width only. No ItemStyle-Width.

If you need further assistance, please provide a sample page, which demonstrates your scenario.

Kind regards,
Pavlina
the Telerik team

[Dhamodharan]

Hi,

I have used both what u told. but still i have same problem

Please check my code

 <telerik:RadGrid ID="dgWorkSiteList" runat="server" DataSourceID="sdsWorkSiteList" AutoGenerateColumns="False" style="z-index:-1"  AllowSorting="True" GridLines="None" Width="740px"  >

                        <ExportSettings  ExportOnlyData="true" IgnorePaging="True" OpenInNewWindow="true"> </ExportSettings>
                           <MasterTableView  AllowMultiColumnSorting="true" CommandItemDisplay="Top" TableLayout="Fixed" >
                            <CommandItemSettings ShowExportToPdfButton="true" ShowExportToCsvButton="false" ShowExportToExcelButton="True" ShowExportToWordButton="false"  ShowAddNewRecordButton="False"/>
                            <Columns>
                                <telerik:GridBoundColumn DataField="work_site_code" HeaderText="Code" SortExpression="work_site_code">
                                </telerik:GridBoundColumn>
                                <telerik:GridBoundColumn DataField="wrk_time_zone_code" HeaderText="Time Zone" SortExpression="wrk_time_zone_code">
                                </telerik:GridBoundColumn>
                                <telerik:GridBoundColumn DataField="description" HeaderText="Description" SortExpression="description">
                                </telerik:GridBoundColumn>
                                <telerik:GridBoundColumn DataField="address" HeaderText="Address" SortExpression="address">
                                </telerik:GridBoundColumn>
                                <telerik:GridBoundColumn  DataField="tax_location_id" HeaderText="Tax Location ID" SortExpression="tax_location_id" >
                                  </telerik:GridBoundColumn>
                                <telerik:GridBoundColumn DataField="county_name" HeaderText="County" SortExpression="county_name" >
                                </telerik:GridBoundColumn>
                                 <telerik:GridBoundColumn DataField="muni_location_id" HeaderText="Municipality Location ID" SortExpression="muni_location_id" >
                                </telerik:GridBoundColumn>
                                 <telerik:GridBoundColumn DataField="muni_name" HeaderText="Municipality" SortExpression="muni_name" >
                                </telerik:GridBoundColumn>
                                 <telerik:GridBoundColumn DataField="school_location_id" HeaderText="School Location ID" SortExpression="school_location_id" >
                                </telerik:GridBoundColumn>
                                 <telerik:GridBoundColumn DataField="school_dist_name" HeaderText="School Dist Name" SortExpression="school_dist_name" >
                                </telerik:GridBoundColumn>
                            </Columns>
                        </MasterTableView>
                        <HeaderStyle Wrap="false" />
                        <ClientSettings>
                            <Scrolling AllowScroll="True" UseStaticHeaders="True" SaveScrollPosition="true"/>
                        </ClientSettings>
                    </telerik:RadGrid>
            </asp:View>

[Pavlina]

Hi,

In order to display horizontal scroll for navigation, you need to make sure that the total width of the columns (either auto-generated or declaratively set) exceeds the width of the grid (as demonstrated in the attached project).

Regards,
Pavlina
the Telerik team
