Reverse behavior of up/down arrows in NumericTextBox on RadGrid

4 Answers 214 Views
NumericTextBox
This is a migrated thread and some comments may be shown as answers.
Chris
Top achievements
Rank 1
Chris asked on 23 Mar 2018, 04:25 PM

We have a numeric text box on a RadGrid, and the spin buttons are enabled. From a UX standpoint, we want to reverse the functionality of the up/down buttons. We want the up button to move the value lower, as the item is rising up the "rankings" in our list.

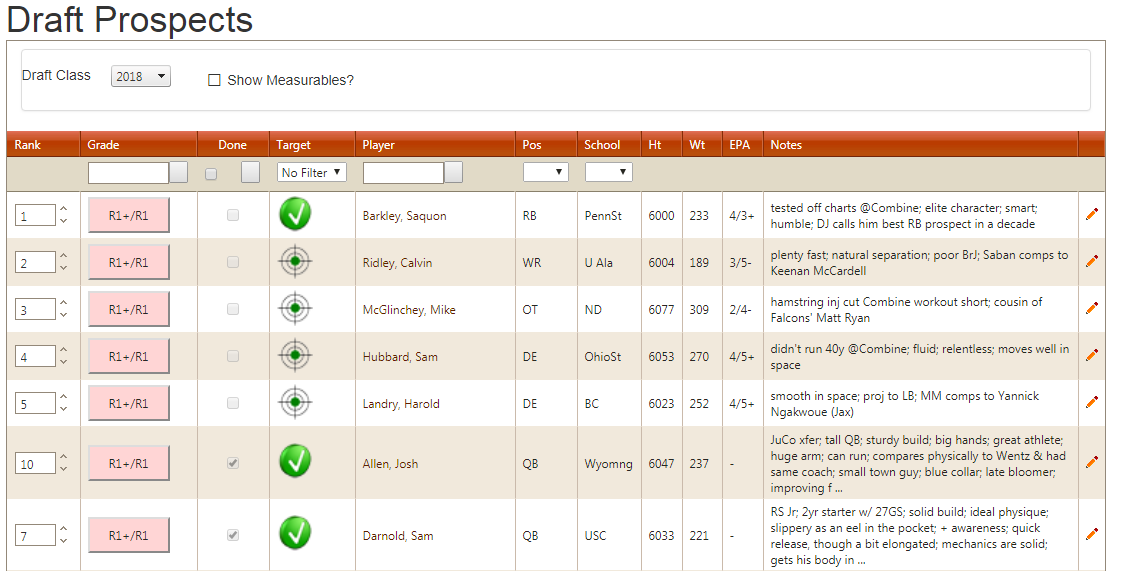

The page in question is not accessible, but I've attached a screenshot, and what we're trying to do should be pretty obvious from looking at it. In this shot, I have clicked the up arrow next to Josh Allen's "Rank" four times, with the intention of moving him higher in the list (by higher, I mean "better," as in a top ten list.) But, what it did was raise the value of "Rank" from 6 to 10.

Any idea how we can handle this?

Thanks...



Chris Barry



4 Answers, 1 is accepted

Sort by
0
Chris
Top achievements
Rank 1
answered on 25 Mar 2018, 12:12 PM

Do I need to turn off the spin buttons - and roll my own?  add a column with up down buttons one on top each other and add event handlers to manage the up down?  The master page the grid sits on is embedded in Angular js and I have so far been unable to hit on the css that affects the page - the Skin for the grid is Sunset (THANK YOU for not removing it - like you did Forest) so I've tried html .RadGrid_Sunset .riUp before / .riDown before but no dice - but even reversing the location won't affect the functionality

in case you get confused, there are really 2 Chris's - the real deal and fake Chris, me - I'm his developer - I used to post as Marianne only now my old posts show as Elliott

0
Accepted
Vessy
Telerik team
answered on 28 Mar 2018, 11:00 AM
Hi Chris,

Setting the IncrementSettings-Step property to a negative value should do the trick:
<telerik:RadNumericTextBox ID="Numeric1" runat="server"  IncrementSettings-Step="-1" ShowSpinButtons="true">
</telerik:RadNumericTextBox>

I hope this helps.

Regards,
Vessy
Progress Telerik
Try our brand new, jQuery-free Angular components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.
0
Greg
Top achievements
Rank 1
answered on 08 Mar 2020, 09:22 AM

Can you please show me a piece of sample code on how to do this declaratively.  I'm trying to turn off the up/down arrow key behavior in a GridNumericColumn that I create in my CodeBehind.

Thanks.

0
Vessy
Telerik team
answered on 12 Mar 2020, 10:36 AM

Hi Greg,

I am afraid that the IncrementSettings-Step property is not exposed for the default spinner buttons of the NumericColumn edit template. If you want to achieve the behavior previously discussed in this thread, you will need to define a custom Edit Form/Template, containing a RadNumericTextBox control:

https://docs.telerik.com/devtools/aspnet-ajax/controls/grid/data-editing/edit-mode/custom-edit-forms#template

Regards,
Vessy
Progress Telerik

Get quickly onboarded and successful with UI for ASP.NET AJAX with the Virtual Classroom technical trainings, available to all active customers. Learn More.
