Resources not being 'selected' in Telerik Scheduler Edit Dialog

3 posts, 0 answers
  1. Matthew
    Matthew avatar
    5 posts
    Member since:
    Sep 2011

    Posted 26 Sep 2011 Link to this post

    I've implemented Telerik scheduler on timeline view. I am allowing a M:M relationship between my y-axis resource (advocates) and Meetings. Here is what my scheduler looks like:

    Timeline View

    When I double click one of the instances of the meeting, the advanced edit dialog appears. However, in here, none of the advocates are selected as participants in the meeting:

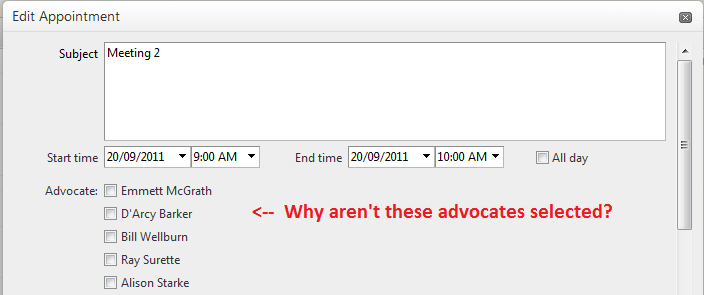

    Advocate Resources - edit meeting dialog

    There are a number of advocates for whom this meeting appears in the timeline. Why do they not get displayed as selected in the edit form?

    The problem doesn't end there. I have a second type of resources (legislators). There is a similar problem here - I have relationships defined for this meeting and 4 legislators, but only the first legislator is checked (and the other three remain unckecked):

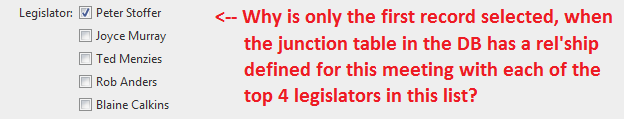

    Legislator Resources - edit meeting dialog

    I need to add two other types of resources, and I expect that I will have a similar problem to the two I have already added.

    I have been able to verify visually by changing the grouping of my scheduler and through SQL queries that the relationships in the database are valid. So, why am I unable to see each of these related resources checked? My scheduler code is as follows:

    <telerik:RadScheduler runat="server" ID="RadScheduler1"
        AdvancedForm-Enabled="true"
        AllowEdit="true"
        AllowInsert="true"
        DataEndField="End"
        DataKeyField="ID"
        DataSourceID="EventsDataSource"
        DataStartField="Start"
        DataSubjectField="Subject"
        DayEndTime="17:00:00"
        DayStartTime="07:00:00"
        EnableAdvancedForm="true"
        Localization-HeaderMultiDay="Work Week"
        OverflowBehavior="Expand"
        OnAppointmentDelete="OnAppointmentDelete"
        OnAppointmentInsert="OnAppointmentInsert"
        OnAppointmentUpdate="OnAppointmentEdited"
        OnNavigationComplete="RadScheduler1_NavigationComplete"
        SelectedDate="9/20/2011"
        SelectedView="TimelineView"
        >
        <AppointmentContextMenuSettings EnableDefault="true" />
        <AdvancedForm Modal="true" />
        <ResourceTypes>
            <telerik:ResourceType KeyField="Adv_AdvocateID" AllowMultipleValues="true" Name="Advocate" TextField="Adv_FullName" ForeignKeyField="Adv_AdvocateID"
                DataSourceID="AdvocatesDataSource" />
        </ResourceTypes>
        <ResourceTypes>
            <telerik:ResourceType KeyField="Leg_LegID" Name="Legislator" AllowMultipleValues="true" TextField="Leg_FullName" ForeignKeyField="Leg_LegID"
                DataSourceID="LegislatorsDataSource" />
        </ResourceTypes>
        <TimelineView UserSelectable="true" GroupBy="Advocate" GroupingDirection="Vertical" />
        <MultiDayView UserSelectable="false" />
        <DayView UserSelectable="false" />
        <WeekView UserSelectable="false" />
        <MonthView UserSelectable="false" />
    </telerik:RadScheduler>


    I'm hoping someone can shed some insight into how to correctly display the selected resources in the edit appointment dialog, and I thank you in advance for your help.

  2. Matthew
    Matthew avatar
    5 posts
    Member since:
    Sep 2011

    Posted 28 Sep 2011 Link to this post

    I don't see this question as being that advanced...surely someone would be able to reply, even if it is to tell me to get lost?
  3. Peter
    Admin
    Peter avatar
    6637 posts

    Posted 28 Sep 2011 Link to this post

    Hi Matthew,

    You need to Implement A Provider That Supports Multi-valued Resources.

    Only custom providers can provide the support to allow multi-valued resources (resources that can have multiple values assigned to a single appointment).

    Kind regards,

    Peter
    the Telerik team
