Required Field validator position

[Prachi]

Hi,

I am using template coulmn and adding required field validator and span tag to show * in red color.

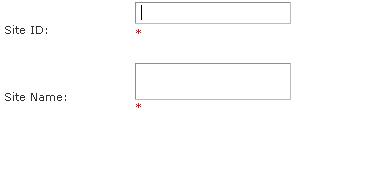

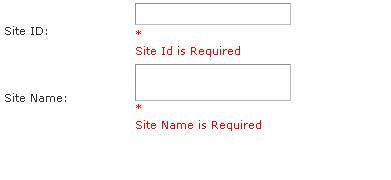

I am struggling eith the allignment of the same. Please find attached the images depecting few cases.
I have tried adding br tag after span tag, after required field etc but it is not alligned properly.

All I am trying to implement is to have a Red * in the initial load of the page and required field error message on next line. I also need to take care of the scenario of people working on different resolution screen. I have 5 required fields.

<telerik:GridTemplateColumn HeaderText="Site ID" DataField="SiteID" UniqueName="SiteID"
                        EditFormColumnIndex="0" SortExpression="SiteID" AllowFiltering="true">
                        <EditItemTemplate>
                            <telerik:RadTextBox runat="server" ID="txtSiteId" Text='<%# Bind("SiteID") %>' MaxLength="50">
                            </telerik:RadTextBox>
                            <span style="color: red">*</span>
                            <asp:RequiredFieldValidator ID="RequiredFieldValidatorSiteId" runat="server" ErrorMessage="Site Id is Required"
                                ControlToValidate="txtSiteId" ValidationGroup="requiredFieldGroup">
                            </asp:RequiredFieldValidator>
                        </EditItemTemplate>
                        <ItemTemplate>
                            <%#Eval("SiteID")%>
                        </ItemTemplate>
                    </telerik:GridTemplateColumn>

[Shinu]

Hi,

I have made some modifications in order to show the error message as in the screenshot. Here is the sample code.
aspx:

<telerik:GridTemplateColumn HeaderText="Site ID" DataField="SiteID" UniqueName="SiteID" EditFormColumnIndex="0" SortExpression="SiteID" AllowFiltering="true">
   <EditItemTemplate>
     <telerik:RadTextBox runat="server" ID="txtSiteId" Text='<%# Bind("SiteID") %>' MaxLength="50"></telerik:RadTextBox>
        <span style="color: red">*</span>
          <br />
    <asp:RequiredFieldValidator ID="RequiredFieldValidatorSiteId" runat="server" ErrorMessage="Site Id is Required" ControlToValidate="txtSiteId" ValidationGroup="requiredFieldGroup"></asp:RequiredFieldValidator>
   </EditItemTemplate>
   <ItemTemplate>
        <%#Eval("SiteID")%>
   </ItemTemplate>
</telerik:GridTemplateColumn>

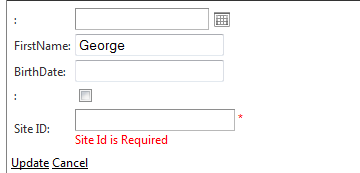

Attached is the screenshot.

Thanks,
Shinu.

[Prachi]

Thanks Shinu.

I had already tried the code suggested by you.
It works fine for only one field.

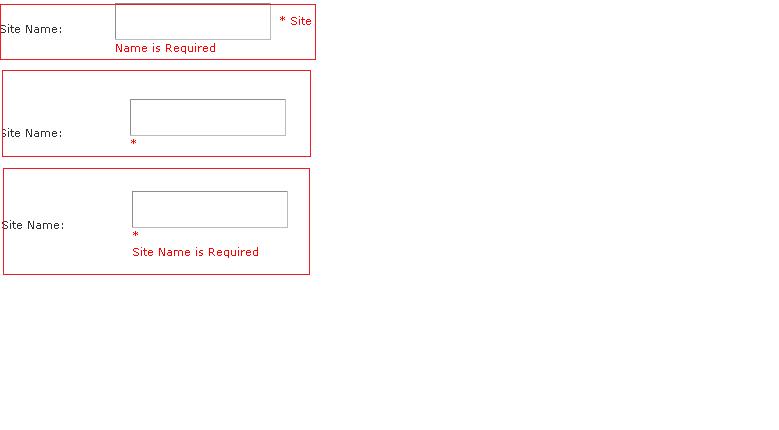

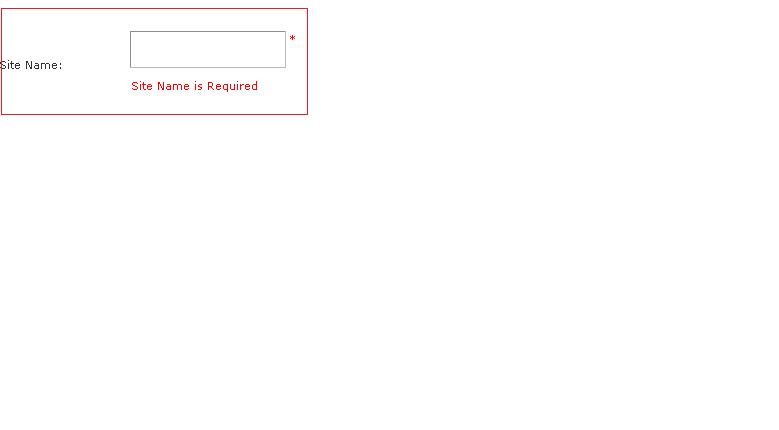

If I apply the <br/> in two consecutive fields then it appeares as attached image.

I am using following code :

<telerik:GridTemplateColumn HeaderText="Site ID" DataField="SiteID" UniqueName="SiteID"
                        EditFormColumnIndex="0" SortExpression="SiteID" AllowFiltering="true">
                        <EditItemTemplate>
                            <telerik:RadTextBox runat="server" ID="txtSiteId" Text='<%# Bind("SiteID") %>' MaxLength="50">
                            </telerik:RadTextBox>
                            <span style="color: red">*</span>
                            <br />
                            <asp:RequiredFieldValidator ID="RequiredFieldValidatorSiteId" runat="server" ErrorMessage="Site Id is Required"
                                ControlToValidate="txtSiteId" ValidationGroup="requiredFieldGroup"></asp:RequiredFieldValidator>
                        </EditItemTemplate>
                        <ItemTemplate>
                            <%#Eval("SiteID")%>
                        </ItemTemplate>
                    </telerik:GridTemplateColumn>
                    <telerik:GridTemplateColumn HeaderText="Site Name" DataField="Name" UniqueName="Name"
                        EditFormColumnIndex="0" SortExpression="Name" AllowFiltering="true">
                        <EditItemTemplate>
                            <telerik:RadTextBox runat="server" ID="txtSiteName" Text='<%# Bind("Name") %>' TextMode="MultiLine" Rows="2" MaxLength="100">
                            </telerik:RadTextBox>
                            <span style="color: red">*</span>
                            <br />
                            <asp:RequiredFieldValidator ID="RequiredFieldValidatorSiteName" runat="server" ErrorMessage="Site Name is Required"
                                ControlToValidate="txtSiteName" ValidationGroup="requiredFieldGroup"></asp:RequiredFieldValidator>
                        </EditItemTemplate>
                        <ItemTemplate>
                            <%#Eval("Name")%>
                        </ItemTemplate>
                    </telerik:GridTemplateColumn>

[Kostadin]

Hi Prachi,

I was not able to reproduce your issue. I simply add <br /> tags after the <span> tags as Shinu suggested and everything works as expected. I prepared a small sample based on the information that you provided and attached it to this thread. Can you take a look at it and let me know how it differs from your real setup?

Kind regards,
Kostadin
the Telerik team
