Remove Some Rows in Code before Excel (HTML) Export

4 posts, 0 answers
  1. Dan
    Dan avatar
    135 posts
    Member since:
    Feb 2011

    Posted 24 Jan 2015 Link to this post

    I am hoping someone can point me in the right direction.  I have a dataset displaying in my RadGrid.  When we export to Excel (HTML) I would like to remove some of the rows - based on a DataKeyValue.  How/where would I do this?
  2. Dan
    Dan avatar
    135 posts
    Member since:
    Feb 2011

    Posted 25 Jan 2015 Link to this post

    Here is what I found to work for me:

    1. Set a variable when Exporting to Excel - I did this in the ItemCommand Event
    2. Check this variable on ItemDataBound event
    3. Pull the <tr> out like this: Dim row As TableRow = TryCast(e.Item, TableRow)
    4. If you want the row to NOT show in Excel - add this: row.Style("display") = "none"
  3. Kevin
    Kevin avatar
    36 posts
    Member since:
    Jul 2018

    Posted 26 Jun Link to this post

    My export function look like

            static excelExport(e) {
                e.workbook.sheets.forEach(function (sheet) {
                    for (var rowIndex = 1; rowIndex < sheet.rows.length; rowIndex++) {
                        if (sheet.rows[rowIndex].type == "group-header") {
                            const row = sheet.rows[rowIndex];
                            row.Style("display") = "none";
                        }
                    }
                });
            }

    I want to remove all of the group header rows. I am not sure how to find the Style for this row.



  4. Attila Antal
    Admin
    Attila Antal avatar
    386 posts

    Posted 01 Jul Link to this post

    Hi Kevin,

    I assume that the code you've shared is JavaScript and is trying to remove the ColGroups on client. It is a bit complicated to do that as the Grid renders multiple rows with multiple table header cells, where the rows might have rowsSpan and cells can have colspan applied.

    I suggest using the server-side approach for eliminating the ColumnGroups from the exported file.

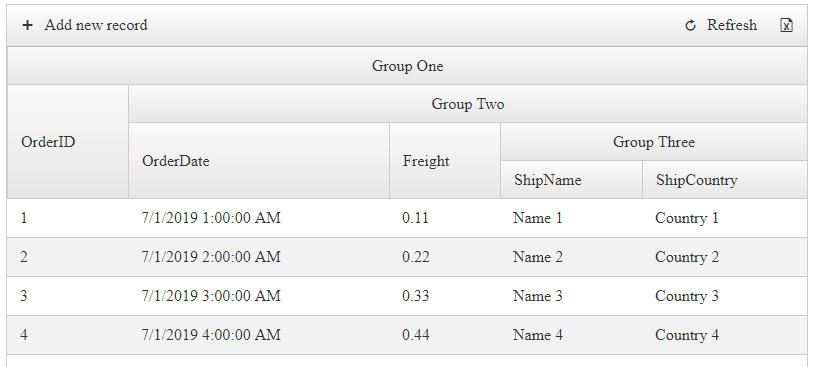

    Assuming the following structure:




    Settings:

    <ExportSettings OpenInNewWindow="true" IgnorePaging="true" ExportOnlyData="true">
        <Excel Format="Html" />
    </ExportSettings>
    <MasterTableView AutoGenerateColumns="False" DataKeyNames="OrderID" CommandItemDisplay='<%# !RadGrid1.IsExporting ? GridCommandItemDisplay.Top : GridCommandItemDisplay.None  %>' CommandItemSettings-ShowExportToExcelButton="true">
    </MasterTableView>

    ColGroups can be eliminated on the server using the following server-side code in the PreRender event of the Grid:

    C#

    protected void RadGrid1_PreRender(object sender, EventArgs e)
    {
        if (RadGrid1.IsExporting)
        {
            foreach (GridColumn col in RadGrid1.MasterTableView.RenderColumns.Where(x=> x.Visible))
            {
                col.ColumnGroupName = string.Empty;
            }
            RadGrid1.Rebind();
        }
    }


    VB

    Protected Sub RadGrid1_PreRender(ByVal sender As Object, ByVal e As EventArgs)
        If RadGrid1.IsExporting Then

            For Each col As GridColumn In RadGrid1.MasterTableView.RenderColumns.Where(Function(x) x.Visible)
                col.ColumnGroupName = String.Empty
            Next

            RadGrid1.Rebind()
        End If
    End Sub

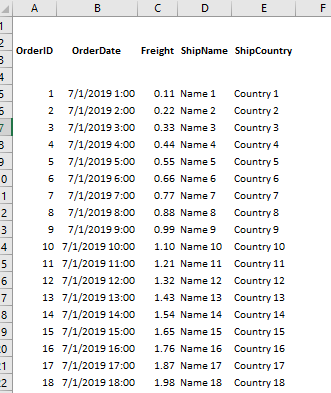

    Result:



    Kind regards,
    Attila Antal
    Progress Telerik
