Remove header separator bar from above vertical scrollbar

[Chris LaFrancis]

I am using the latest radgrid with the web20 skin. My header row wraps some of the column names to 2 lines. I have scrollign turned on with static headers. Filtering is also turned on. There is a sperator line betweent he header text and the filtering text boxes. The line is not the same though above the scrollbar. It is only one line deep instead of 2 like the rest of the column headers.

Is there a way to turn off that line above the scrollbar?

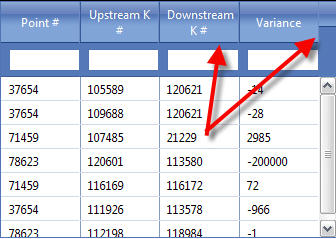

I have included a screenshot of the grid I am working with.

Thank you for yor help.

[Dimo]

Hi Chris,

This is an existing limitation in the RadGrid rendering - the background image at the top right is unable to expand together with the header row.

You can set

<telerik:RadGrid  CssClass="rgTwoLines" />

in order to switch the image with a higher one, which should match a two-lined header.

For cases in which the header row height is unknown, it is recommended to remove the top-right background image completely with

<telerik:RadGrid  CssClass="rgNoScrollImage" />


Sincerely yours,
Dimo
