[Solved] RadWizard rendered programatically - loosing Title/ValGroup properties on step change

[Ken]

Good morning,

I have a scenario where I'm creating a RadWizard control dynamically. I'm looping through an object to set up the wizard steps, and then on WizardStepCreated, I'm adding all the controls to the step. The RadWizard's RenderedSteps="All"

When the page is first rendered, everything works fine. The step Title is populated, the validation groups work fine. The issue I'm having is when I add an ActiveStepChanged method in order to save the data on each step change, I lose my step properties (.Title, .ValidationGroup, etc).

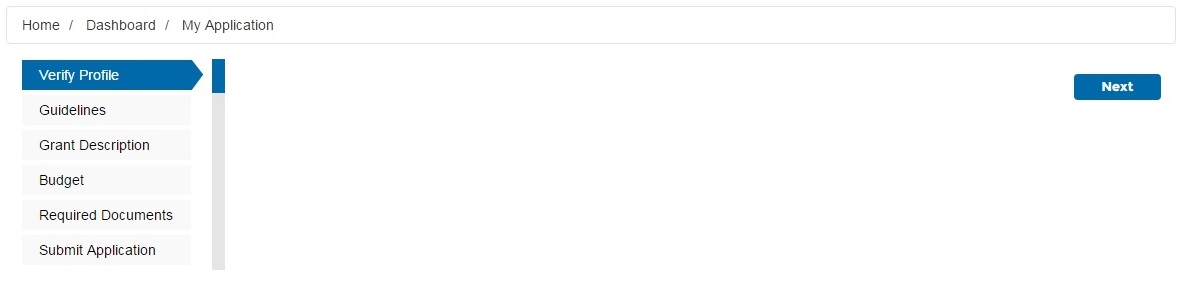

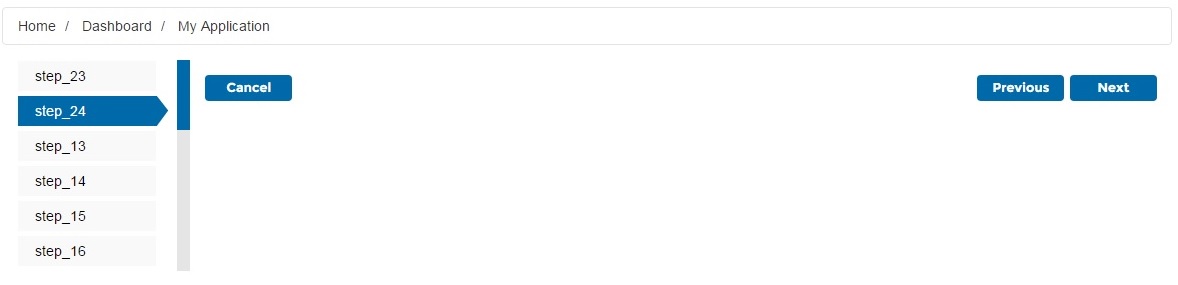

(See photos attached)

My code is below. Thank you for your help!

Chris

ContentPage:

<%@ Page Title="Application Rendering Engine" Language="vb" AutoEventWireup="false" MasterPageFile="~/Application.Master" CodeBehind="ApplicationForm.aspx.vb" Inherits="Public_Portal.ApplicationForm" %>

<%@ MasterType VirtualPath="~/Application.Master" %>


<asp:Content ID="Content1" ContentPlaceHolderID="head" runat="server">
</asp:Content>
<asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceHolder1" runat="server">

    <telerik:RadAjaxManagerProxy runat="server" ID="ajaxProxy">
        <AjaxSettings>
        </AjaxSettings>
    </telerik:RadAjaxManagerProxy>


    <!-- Inside Page Body Content -->
    <div class="container">
        <div class="row">
            <div class="col-sm-12 col-md-12 col-lg-12 col-xs-12">

                <!-- Breadcrumbs -->
                <ul class="ApplicationFormBreadcrumb">
                    <li>
                        <asp:HyperLink ID="hlBreadcrumb_Home" runat="server" Text="Home" NavigateUrl="~/Default.aspx" />
                    </li>
                    <li>
                        <asp:HyperLink ID="hlBreadcrumb_Dashboard" runat="server" Text="Dashboard" NavigateUrl="~/Dashboard.aspx" />
                    </li>
                    <li class="active">
                        <asp:HyperLink ID="hlBreadcrumb_MyApplication" runat="server" Text="My Application" NavigateUrl="#" />
                    </li>
                </ul>

            </div>
        </div>
        <div class="row">
            <!-- Inside Content Right Side Main -->
            <div class="col-sm-12 col-md-12 col-lg-12 col-xs-12">
                <div class="tab-content">

                    <telerik:RadWizard runat="server" ID="wizMyApplication"
                        Skin="MetroTouch"
                        RenderedSteps="All"
                        DisplayCancelButton="true"
                        DisplayNavigationBar="true"
                        DisplayProgressBar="true"
                        Width="100%"
                        DisplayNavigationButtons="true"
                        NavigationButtonsPosition="Bottom"
                        ProgressBarPosition="left"
                        NavigationBarPosition="left">
                    </telerik:RadWizard>

                </div>
            </div>
        </div>
    </div>


</asp:Content>



ContentPage code-behind:



Imports System.IO
Imports Telerik.Web.UI
Imports Portal_BusinessObjects
Public Class ApplicationForm
    Inherits clsPage


#Region "Page Events"

    Protected Sub Page_Load(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Load
        Dim objApplication As New clsApplication()

        If Not Page.IsPostBack Then

            If Application_ID > 0 Then
                objApplication = New clsApplication(Application_ID, Application_Mode)
            Else
                objApplication = New clsApplication(Application_ID, Application_Mode, Form_Version_ID, Application_EligibleProgram)
            End If

            MyApplication = objApplication

            '***********************************
            '   BUILD WIZARD STEPS
            '***********************************
            Dim i As Integer = 0
            For Each formStep As clsFormStep In objApplication.Application_Form.Form_Steps

                Dim [wizStep] As New RadWizardStep()
                Dim strTitle As String = String.Empty
                Dim strTooltip As String = String.Empty

                If i = 0 Then
                    [wizStep].DisplayCancelButton = False
                End If

                If clsGlobal.CurrentLang = clsGlobal.AvailableLanguages.en Then
                    strTitle = formStep.E_Name
                    strTooltip = formStep.E_Desc
                Else
                    strTitle = formStep.F_Name
                    strTooltip = formStep.F_Desc
                End If

                [wizStep].Title = strTitle
                [wizStep].ID = "step_" & formStep.Form_Step_ID
                [wizStep].ValidationGroup = "valGroup_" & wizStep.ID
                wizMyApplication.WizardSteps.Add([wizStep])

                i = i + 1
            Next

        End If

    End Sub

#End Region

#Region "Page Control Events"



    '*************************************************************
    '
    '          RENDERING CONTROLS ON WIZARD STEP
    '
    '*************************************************************
    Private Sub wizMyApplication_WizardStepCreated(sender As Object, e As WizardStepCreatedEventArgs) Handles wizMyApplication.WizardStepCreated
        Dim strStepPrefix As String = e.RadWizardStep.ID
        Dim strValidationGroup As String = "valGroup_" & strStepPrefix
        Dim intFormStepID As Integer = CInt(strStepPrefix.Replace("step_", ""))

        'Add Step Validation group
        Dim valSummary As New ValidationSummary
        valSummary.ID = "valSum_" & strStepPrefix

        Call ConfigureValidationSummary(valSummary, strValidationGroup)
        e.RadWizardStep.Controls.Add(valSummary)

        Dim objStep As clsFormStep = MyApplication.Application_Form.Form_Steps.Find(Function(x) x.Form_Step_ID = intFormStepID)

        'Loop through all fields in the Form_Step
        For Each field In objStep.Form_Fields

            Select Case field.Control_Type_Code

                Case clsFormStepDetail.ControlTypes.Textbox

                    Dim txtStandard As ucTextbox = LoadControl("~/Control_Library/Standard_Controls/ucTextbox.ascx")
                    Dim objTexbox As New clsTextbox()
                    With objTexbox

                        'Set textbox properties
                        .Textbox_Configuration = objTexbox
                        .Validation_Group = strValidationGroup

                    End With

                    e.RadWizardStep.Controls.Add(txtStandard)

                Case clsFormStepDetail.ControlTypes.Checkbox

                    Dim chkCheckbox As ucCheckbox = LoadControl("~/Control_Library/Standard_Controls/ucCheckbox.ascx")
                    With chkCheckbox

                        'Set checkbox properties
                        .Configure_Validation_Required_Field_Ind = field.Validation_Required_Field_Ind
                        .Validation_Group = strValidationGroup
                    End With

                    e.RadWizardStep.Controls.Add(chkCheckbox)

                Case clsFormStepDetail.ControlTypes.Dropdown

                    Dim ddCodeTable As ucDropdownList = LoadControl("~/Control_Library/Standard_Controls/ucDropdownList.ascx")
                    With ddCodeTable

            'Set dropdown properties
                        .Configure_Validation_Required_Field_Ind = field.Validation_Required_Field_Ind
                        .Validation_Group = strValidationGroup
                    End With

                    e.RadWizardStep.Controls.Add(ddCodeTable)


            End Select


        Next



    End Sub


    '*************************************************************
    '
    '           FINISH BUTTON - SAVE CODE GOES HERE
    '
    '*************************************************************
    Private Sub wizMyApplication_FinishButtonClick(sender As Object, e As WizardEventArgs) Handles wizMyApplication.FinishButtonClick

    Call SaveApplicationForm()

        Response.Redirect("~/Dashboard.aspx?msg=applicationSubmitted")

    End Sub



    Private Sub wizMyApplication_ActiveStepChanged(sender As Object, e As EventArgs) Handles wizMyApplication.ActiveStepChanged

    Call SaveApplicationForm()

    End Sub


#End Region


#Region "Functions and Sub-routines"

    Private Sub ConfigureValidationSummary(ByVal valSum As ValidationSummary, ByVal strValGroup As String)

        With valSum
            .DisplayMode = ValidationSummaryDisplayMode.BulletList
            .ShowMessageBox = False
            .ValidationGroup = strValGroup
            .ShowSummary = True
            .CssClass = "alert alert-danger"

        End With

    End Sub


    Private Sub SaveApplicationForm()

    'Save form values to database here

    End Sub

#End Region



End Class





[Veselin Tsvetanov]

Hi Chris,

The observed behavior is due to the fact that when added dynamically, RadWizardSteps persist only their ID property after postback. To avoid the observed issue, I would recommend you to set the title and the validation group of the step in the OnWizardStepCreated event handler, where you also generate and add the controls for the specific step. For reference, you could consult this RadWizard demo.

I hope that the above helps you.

Regards,
Veselin Tsvetanov
Telerik

[Ken]

Wow, I'm not sure why I didn't think of that!

 Your solution worked perfectly, thank you so much for your assistance.

Cheers!
