RadTreeView and Linked Tables

[Jean Cuteaux]

I've been wrestling for a while trying to databind to 2 tables essentially. Custom collections that inherit from IBindingLists, but the core type of collection is not really the problem. I can succesfully bind as long as i only bind one table or collection. Things get tricky when I try to programmatically bind to the next table.

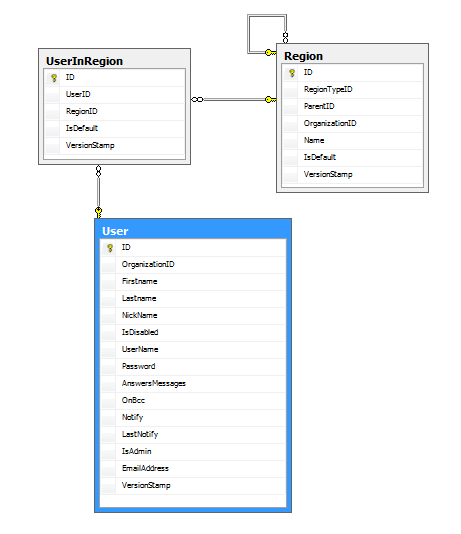

To help understand my problem I am attaching a database diagram of the tables in question.

How can I use databindings to populate data coming from that type of relations, a self-referencing table and a link-table.

I read almost everything available in the forums and online, and found nice text, but no concrete example close to this scenario.

My treeView is not using declarative datasources, I am using the OnDatabinding event to populate the grid:

<telerik:RadTreeView runat="server" ID="RadTreeView1" EnableDragAndDrop="True" OnClientMouseOver="onTreeViewMouseOver"
        OnClientMouseOut="onTreeViewMouseOut" OnClientContextMenuItemClicking="onClientContextMenuItemClicking"
        OnClientNodeDragStart="onTreeViewDragStart" OnDataBinding="RadTreeView1_DataBinding"
        OnClientNodeDropping="onTreeViewDropping" OnClientContextMenuShowing="onClientContextMenuShowing"
        OnNodeDrop="RadTreeView1_NodeDrop" OnNodeDataBound="RadTreeView1_NodeDataBound"
        OnClientNodeDragging="onTreeViewDragging" OnNodeEdit="RadTreeView1_NodeEdit"
        oncontextmenuitemclick="RadTreeView1_ContextClick"
        AppendDataBoundItems="True">

        <ContextMenus>
            <telerik:RadTreeViewContextMenu ID="MainContextMenu" OnDataBinding="MainContextMenu_DataBinding" runat="server">
                <Items>
                    <telerik:RadMenuItem Value="Rename" Text="Rename ..." Enabled="false" ImageUrl="~/Images/rename.gif" PostBack="false"></telerik:RadMenuItem>
                    <telerik:RadMenuItem Value="NewRootUnit" Text="New ..." ImageUrl="~/Images/newfolder.gif"></telerik:RadMenuItem>
                    <telerik:RadMenuItem Value="Delete" Text="Delete ..." ImageUrl="~/Images/deletefolder.gif"></telerik:RadMenuItem>
                    <telerik:RadMenuItem IsSeparator="true"></telerik:RadMenuItem>
                    <telerik:RadMenuItem Value="SetAsDefault" Text="Set as default ..." ImageUrl="~/Images/default.png"></telerik:RadMenuItem>
                </Items>
                <CollapseAnimation Type="InCubic" />
            </telerik:RadTreeViewContextMenu>
        </ContextMenus>
    </telerik:RadTreeView>

And in the NodeDataBound event I actually use custome attributes to hold all the data I need.

My problem comes when i want to hook up the UserInRegion collection of record to the Region Collection.

Thank you in advance,

Jean
