RadSplitter

2 posts, 0 answers
  1. Stardome20
    Stardome20 avatar
    7 posts
    Member since:
    Nov 2012

    Posted 21 Apr 2013 Link to this post

    <body>
        <form id="form1" runat="server">
        <asp:ScriptManager ID="ScriptManager1" runat="server">
        </asp:ScriptManager>

         <telerik:RadSplitter ID="RadSplitter1" runat="server" Width="800" Height="500">
              <telerik:RadPane ID="navigationPane" runat="server">
                   Left Pane
              </telerik:RadPane>
              <telerik:RadSplitBar ID="RadSplitbar1" runat="server" CollapseMode="Forward">
              </telerik:RadSplitBar>
              <telerik:RadPane ID="contentPane" runat="server" PersistScrollPosition="False">
                   Right Pane
                       <div id="Map">
        </div>
              </telerik:RadPane>
         </telerik:RadSplitter>
        </form>
    </body>
     Hi i have this above code for my web application, so basically i need a help, I cant find tutorial on demo.telerik so I need your help.
    the slider is a bit too thick as compare to this website.
    http://demos.telerik.com/aspnet-ajax/splitter/examples/splitterorientation/defaultcs.aspx

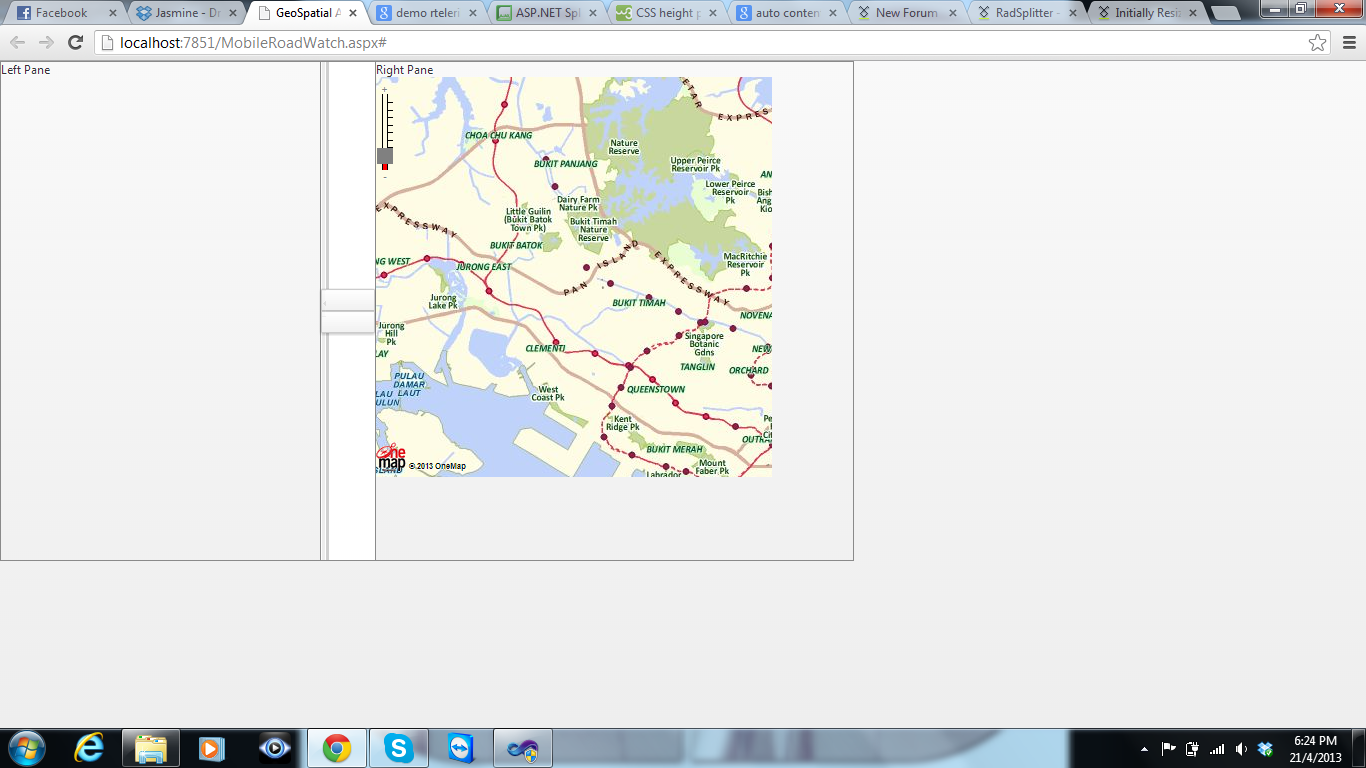

    2nd problem is if i drag the slider toward left, the content on the right panel did not enlarge and it stay the same
    the content on the right panel is <div id ="Map"></div>. some sort of liek there is not auto resize to fit the right panel
  2.
  3. Vessy
    Admin
    Vessy avatar
    2322 posts

    Posted 24 Apr 2013 Link to this post

    Hi Koh,

    If I understand your first question correctly, you want to increase the SplitBar's size. If so, this could be configured through the Spliter's SplitBarsSize property, e.g.:
    <telerik:RadSplitter ID="RadSplitter1" runat="server" Width="800" Height="500" SplitBarsSize="15">
        ...
    </telerik:RadSplitter>

    If you choose this approach most probably you will need to overwrite some of the SplitBar's CSS styles, in order to provide you custom image for its background.

    Another option is to change the skin of the Splitter with one, which has bigger SplitBar by design. Such skins are BlackMetroTouch, MetroTouch, Glow and Silk.

    Regarding your second question - I am afraid that I was not able to reproduce the shown in the attached screenshot issue with the provided code snippet. For your convenience I am attaching my test project - could you reproduce the save problem with it? If no - could you modify it up to a point where the problem occurs and send it back so we could examine it further?

    Looking forward to hearing from you,
    Veselina Raykova
    the Telerik team
