Radgrid's detail table doesn't display at all

6 posts, 0 answers
  1. Asim
    Asim avatar
    4 posts
    Member since:
    Oct 2013

    Posted 27 Oct 2013 Link to this post

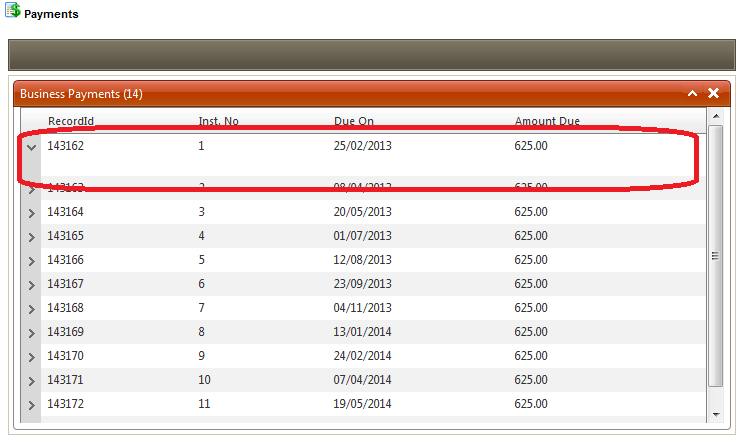

    I am using radgrid control and trying to populate a detail table with it. But records are being displayed in the master table but detail table is not being displayed at all.

    aspx
      <telerik:RadGrid ID="radBusinessParentDetail"
            runat="server" AutoGenerateColumns="False" AllowSorting="True" AllowMultiRowSelection="False"
            DataSourceID="SqlDataSourcePaymentMaster"
            AllowPaging="false" EnableLinqExpressions="false" GridLines="None" ShowStatusBar="true">
            <ClientSettings AllowExpandCollapse="True"></ClientSettings>
            <MasterTableView DataKeyNames="RecordId" AllowMultiColumnSorting="True" HierarchyLoadMode="Client" Width="100%">
                <DetailTables>
                    <telerik:GridTableView Name="PaymentDetail" AutoGenerateColumns="true"
                        DataKeyNames="PaymentScheduleId" Width="100%" DataSourceID="SqlDataSourcePaymentDetail">
                        <ParentTableRelation>
                            <telerik:GridRelationFields DetailKeyField="PaymentScheduleId" MasterKeyField="RecordId">
                            </telerik:GridRelationFields>
                        </ParentTableRelation>
                        <Columns>
                                <telerik:GridBoundColumn DataField="PaidDate" HeaderText="Paid On" SortExpression="PaidDate" DataFormatString="{0:dd/MM/yyyy}"></telerik:GridBoundColumn>
                                <telerik:GridBoundColumn Aggregate="Sum" DataField="AmountPaid" HeaderText="Amount Paid" SortExpression="AmountPaid"></telerik:GridBoundColumn>
                                <telerik:GridBoundColumn Aggregate="Sum" DataField="Commission" HeaderText="Commission" SortExpression="Commission"></telerik:GridBoundColumn>
                                <telerik:GridBoundColumn Aggregate="Sum" DataField="GST" HeaderText="GST" SortExpression="GST"></telerik:GridBoundColumn>
                                <telerik:GridBoundColumn Aggregate="Sum" DataField="NetReceived" HeaderText="Net" SortExpression="NetReceived"></telerik:GridBoundColumn>
                                <telerik:GridBoundColumn DataField="PaymentMethod" HeaderText="Payment Method" SortExpression="PaymentMethod"></telerik:GridBoundColumn>
                                <telerik:GridBoundColumn DataField="Comment" HeaderText="Comment" SortExpression="Comment"></telerik:GridBoundColumn>
                                <telerik:GridBoundColumn DataField="MiscField" HeaderText="Terminal ID" SortExpression="MiscField"></telerik:GridBoundColumn>
                                <telerik:GridBoundColumn DataField="IsCommissionPaid" HeaderText="Commission Paid"></telerik:GridBoundColumn>
                        </Columns>
                    </telerik:GridTableView>
                </DetailTables>
                <Columns>
                        <telerik:GridBoundColumn DataField="RecordId" HeaderText="RecordId" SortExpression="RecordId" UniqueName="RecordId"></telerik:GridBoundColumn>
                        <telerik:GridBoundColumn Aggregate="Count" DataField="InstallmentNo" HeaderText="Inst. No"></telerik:GridBoundColumn>
                        <telerik:GridBoundColumn DataField="DueDate" HeaderText="Due On" SortExpression="DueDate" DataFormatString="{0:dd/MM/yyyy}"></telerik:GridBoundColumn>
                        <telerik:GridBoundColumn Aggregate="Sum" DataField="AmountDue" HeaderText="Amount Due" SortExpression="AmountDue"></telerik:GridBoundColumn>
                </Columns>
            </MasterTableView>
        </telerik:RadGrid>
    <asp:SqlDataSource ID="SqlDataSourcePaymentMaster" ConnectionString="<%$ ConnectionStrings:COMS %>"
            ProviderName="System.Data.SqlClient"
            SelectCommand = "select RecordId, InstallmentNo, DueDate, AmountDue from paymentschedule where studentid='1302438' and isrefunded=0"
            runat="server">

    </asp:SqlDataSource>

    <asp:SqlDataSource ID="SqlDataSourcePaymentDetail" ConnectionString="<%$ ConnectionStrings:COMS %>"
            ProviderName="System.Data.SqlClient" SelectCommand="select
                                PaidDate, Commission, NetReceived, GST, PaymentMethod, Comment, MiscField
                                from paymentscheduledetail where PaymentScheduleId=@RecordId"
            runat="server">
            <SelectParameters>
                <asp:SessionParameter Name="RecordId" SessionField="RecordId" Type="Int32">
                </asp:SessionParameter>
            </SelectParameters>
        </asp:SqlDataSource>
  2. Princy
    Princy avatar
    17421 posts
    Member since:
    Mar 2007

    Posted 27 Oct 2013 Link to this post

    Hi Asim,

    Please modify your select query as shown below and see if it helps.Add PaymentScheduleId to the select command.

    ASPX:
    <asp:SqlDataSource ID="SqlDataSourcePaymentDetail" ConnectionString="<%$ ConnectionStrings:COMS %>"
    ProviderName="System.Data.SqlClient" SelectCommand="select PaymentScheduleId, PaidDate, Commission,
    NetReceived, GST, PaymentMethod, Comment, MiscField from paymentscheduledetail where PaymentScheduleId=@RecordId" runat="server">
            <SelectParameters>
                <asp:SessionParameter Name="RecordId" SessionField="RecordId" Type="Int32">
                </asp:SessionParameter>
            </SelectParameters>
        </asp:SqlDataSource>

    Thanks,
    Princy
  3. Asim
    Asim avatar
    4 posts
    Member since:
    Oct 2013

    Posted 27 Oct 2013 Link to this post

    Hi Princy,
    Thanks for the reply. But problem is still the same. please have a look at the attachment.
  4. Jayesh Goyani
    Jayesh Goyani avatar
    2733 posts
    Member since:
    May 2010

    Posted 28 Oct 2013 Link to this post

    Hello,

    I have tried with the below code snippet and its works for me. Please try with the below code snippet and let me know if any concern.

    <telerik:RadGrid ID="radBusinessParentDetail"
               runat="server" AutoGenerateColumns="False" AllowSorting="True" AllowMultiRowSelection="False"
               DataSourceID="SqlDataSourcePaymentMaster"
               AllowPaging="false" EnableLinqExpressions="false" GridLines="None" ShowStatusBar="true">
               <ClientSettings AllowExpandCollapse="True"></ClientSettings>
               <MasterTableView DataKeyNames="RecordId" AllowMultiColumnSorting="True" HierarchyLoadMode="Client" Width="100%">
                   <DetailTables>
                       <telerik:GridTableView Name="PaymentDetail"
                           DataKeyNames="PaymentScheduleId" Width="100%" DataSourceID="SqlDataSourcePaymentDetail">
                           <ParentTableRelation>
                               <telerik:GridRelationFields DetailKeyField="PaymentScheduleId" MasterKeyField="RecordId"></telerik:GridRelationFields>
                           </ParentTableRelation>
                           <Columns>
                               <telerik:GridBoundColumn DataField="NetReceived" HeaderText="NetReceived"></telerik:GridBoundColumn>
                           </Columns>
                       </telerik:GridTableView>
                   </DetailTables>
                   <Columns>
                       <telerik:GridBoundColumn DataField="RecordId" HeaderText="RecordId" SortExpression="RecordId" UniqueName="RecordId"></telerik:GridBoundColumn>
                       <telerik:GridBoundColumn Aggregate="Count" DataField="InstallmentNo" HeaderText="Inst. No"></telerik:GridBoundColumn>
                   </Columns>
               </MasterTableView>
           </telerik:RadGrid>
           <asp:SqlDataSource ID="SqlDataSourcePaymentMaster" runat="server" ConnectionString="<%$ ConnectionStrings:JayeshTestConnectionString %>"
               SelectCommand="SELECT [RecordId], [InstallmentNo] FROM [paymentschedule]"></asp:SqlDataSource>
           <asp:SqlDataSource ID="SqlDataSourcePaymentDetail" runat="server" ConnectionString="<%$ ConnectionStrings:JayeshTestConnectionString %>"
               SelectCommand="SELECT [PaidDate], [PaymentScheduleId], [NetReceived], [paymentscheduledetailId] FROM [paymentscheduledetail] WHERE ([PaymentScheduleId] = @PaymentScheduleId)">
               <SelectParameters>
                   <asp:SessionParameter Name="PaymentScheduleId" SessionField="RecordId" Type="Int32" />
               </SelectParameters>
           </asp:SqlDataSource>

    Note :
    <SelectParameters>
                   <asp:SessionParameter Name="PaymentScheduleId" SessionField="RecordId" Type="Int32" />
               </SelectParameters>


    Thanks,
    Jayesh Goyani
  5. Kiran
    Kiran  avatar
    43 posts
    Member since:
    Oct 2018

    Posted 23 Apr Link to this post

    Same Issue. Please Help.



         <asp:UpdatePanel ID="UpdatePanel1" runat="server">
             <ContentTemplate>
               <telerik:RadGrid ID="RG_OPERATORS" AutoGenerateColumns="false" AllowSorting="TRUE" runat="server" Skin="Black" ShowFooter="True" OnNeedDataSource="RG_OPERATORS_NeedDataSource" >
             <HeaderContextMenu CssClass="GridContextMenu GridContextMenu_Black">
                        </HeaderContextMenu>
            <MasterTableView DataKeyNames="SYS_ID,EMP_ID,SORT_PRIORITY, OPERATOR" EnableHierarchyExpandAll="true" Name="Master" AutoGenerateColumns="false" >
                <EditFormSettings>
                    <EditColumn FilterControlAltText="Filter EditCommandColumn column" />
                </EditFormSettings>
                <CommandItemSettings ExportToPdfText="Export to Pdf" />
                <RowIndicatorColumn FilterControlAltText="Filter RowIndicator column" Visible="False" />
                <ExpandCollapseColumn FilterControlAltText="Filter ExpandColumn column" Created="True" />
                <DetailTables>
                    <telerik:GridTableView DataKeyNames="USER_ID" DataSourceID="SqlDataSource1" Width="100%" AllowSorting="true" EnableHierarchyExpandAll="true"  Name="DETAIL">
                        <ParentTableRelation>
                            <telerik:GridRelationFields DetailKeyField="USER_ID" MasterKeyField="OPERATOR" ></telerik:GridRelationFields>
                        </ParentTableRelation>
                        <ExpandCollapseColumn FilterControlAltText="Filter ExpandColumn column"   />
                        <Columns>
                            <telerik:GridBoundColumn DataField="SYS_DT_TM" DefaultInsertValue="" HeaderText="TRANS DATE" ReadOnly="True" SortExpression="SYS_DT_TM" UniqueName="TRANS_SYS_DT_TM" Visible="True">
                            </telerik:GridBoundColumn>
                            <telerik:GridBoundColumn DataField="TRANS_ID" DefaultInsertValue="" HeaderText="TRANS ID" ReadOnly="True" SortExpression="TRANS_ID" UniqueName="TRANS_ID" Visible="True">
                            </telerik:GridBoundColumn>
                            <telerik:GridBoundColumn DataField="START_LOC" DefaultInsertValue="" HeaderText="START LOC" ReadOnly="True" SortExpression="START_LOC" UniqueName="START_LOC" Visible="True">
                            </telerik:GridBoundColumn>
                            <telerik:GridBoundColumn DataField="END_LOC" DefaultInsertValue="" HeaderText="END LOC" ReadOnly="True" SortExpression="END_LOC" UniqueName="END_LOC" Visible="True">
                            </telerik:GridBoundColumn>
                            <telerik:GridBoundColumn DataField="LOAD_ID" DefaultInsertValue="" HeaderText="LOAD ID" ReadOnly="True" SortExpression="LOAD_ID" UniqueName="LOAD_ID" Visible="True">
                            </telerik:GridBoundColumn>
                            <telerik:GridBoundColumn DataField="USER_ID" DefaultInsertValue="" HeaderText="USER ID" ReadOnly="True" SortExpression="USER_ID" UniqueName="USER_ID" Visible="True">
                            </telerik:GridBoundColumn>
                        </Columns>
                    </telerik:GridTableView>
                </DetailTables>
                <Columns>

                    <telerik:GridBoundColumn DataField="SYS_ID" DefaultInsertValue=""
                        HeaderText="SYS_ID" ReadOnly="True" SortExpression="SYS_ID" UniqueName="SYS_ID" Visible="FALSE">
                    <ItemStyle Font-Size="12pt" ForeColor="White" HorizontalAlign="LEFT" />
                    </telerik:GridBoundColumn>

                     <telerik:GridBoundColumn DataField="OPERATOR" DefaultInsertValue=""  Aggregate="Count"
                        HeaderText="OPERATOR" ReadOnly="False" SortExpression="OPERATOR" UniqueName="OPERATOR" Visible="TRUE">
                        <ItemStyle  ForeColor="White" Font-Size="10pt" HorizontalAlign="LEFT" />
                    </telerik:GridBoundColumn>

                    <telerik:GridBoundColumn DataField="DOCK_STATUS" DefaultInsertValue=""
                        HeaderText="DOCK_STATUS" ReadOnly="False" SortExpression="DOCK_STATUS" UniqueName="DOCK_STATUS" Visible="TRUE">
                     <ItemStyle  ForeColor="White" Font-Size="10pt" HorizontalAlign="LEFT" />
                    </telerik:GridBoundColumn>

                           <telerik:GridBoundColumn DataField="IB_ROUTES"   DefaultInsertValue=""
                        HeaderText="IB_ROUTES" ReadOnly="False" SortExpression="IB_ROUTES"
                        UniqueName="IB_ROUTES" Visible="TRUE">
                        <ItemStyle  ForeColor="WHITE" Font-Size="10pt" HorizontalAlign="LEFT" />
                    </telerik:GridBoundColumn>

                    <telerik:GridBoundColumn DataField="PUNCH_STATUS" DefaultInsertValue=""
                        HeaderText="PUNCH_STATUS" ReadOnly="False" SortExpression="PUNCH_STATUS" UniqueName="PUNCH_STATUS" Visible="TRUE">
                       <ItemStyle  ForeColor="White" Font-Size="10pt" HorizontalAlign="LEFT" />
                    </telerik:GridBoundColumn>

                    <telerik:GridBoundColumn DataField="PUNCH_TIME" DefaultInsertValue=""
                        HeaderText="PUNCH_TIME" ReadOnly="False" SortExpression="PUNCH_TIME" UniqueName="PUNCH_TIME" Visible="TRUE">
                        <ItemStyle ForeColor="White" Font-Size="10pt" HorizontalAlign="LEFT" />
                    </telerik:GridBoundColumn>

                    <telerik:GridBoundColumn DataField="OPR_LAST_SCAN_DTTM" DefaultInsertValue=""
                        HeaderText="LAST SCANNED DT TM" ReadOnly="False" SortExpression="OPR_LAST_SCAN_DTTM" UniqueName="OPR_LAST_SCAN_DTTM" Visible="TRUE">
                        <ItemStyle ForeColor="White" Font-Size="10pt" HorizontalAlign="LEFT" />
                    </telerik:GridBoundColumn>

                    <telerik:GridBoundColumn DataField="OPR_LAST_SCAN_TRANSID" DefaultInsertValue=""
                        HeaderText="LAST SCANNED TRANS ID" ReadOnly="False" SortExpression="OPR_LAST_SCAN_TRANSID" UniqueName="OPR_LAST_SCAN_TRANSID" Visible="TRUE">
                        <ItemStyle ForeColor="White" Font-Size="10pt" HorizontalAlign="LEFT" />
                    </telerik:GridBoundColumn>


                </Columns>
            </MasterTableView>
        </telerik:RadGrid>

             </ContentTemplate>
         </asp:UpdatePanel>


        <br />

        <asp:Label ID="Label11" runat="server" Visible="false" Text='<%# Eval("OPERATOR")%>'></asp:Label>
           <asp:SqlDataSource ID="SqlDataSource1" runat="server" ConnectionString="<%$ ConnectionStrings:FCSConnectionString %>" ProviderName="System.Data.SqlClient"
               SelectCommand="SELECT TOP (20) SYS_DT_TM, TRANS_ID, START_LOC, END_LOC, LOAD_ID, USER_ID FROM TRANS WHERE USER_ID = 'AVISCO' ORDER BY SYS_DT_TM DESC">
                <SelectParameters>
                     <asp:ControlParameter Name ="OPERATOR" ControlID="Label11"  PropertyName ="Text"/>
                </SelectParameters>
                </asp:SqlDataSource>

  6. Eyup
    Admin
    Eyup avatar
    3867 posts

    Posted 25 Apr Link to this post

    Hello Kiran,

    I've already replied to your query in the other forum:
    https://www.telerik.com/forums/radgrid-detail-table-showing-blank-rows#Ic5x96wJskuQEyA93cpJ1A

    I suggest that we continue our technical conversation on the mentioned thread. Also, try to avoid opening duplicate threads so we can better focus on the specific questions and issues at hand.

    Regards,
    Eyup
    Progress Telerik
