[Solved] RadGrid Requirement with "InPlace" Edit mode

[Nani]

Hi Telerik Team,

I have a RadGrid requirement that needs "InPlace" Editmode in which there need to be two dropdown columns one depends on other dropdown selection...

so i have seen a example in your site

http://demos.telerik.com/aspnet-ajax/grid/examples/dataediting/validation/defaultcs.aspx

in this example when "Adding new Record" can i load data in second "Dropdownlist" depending on the first "Dropdownlist" selected value.
If so what is the best template column i can use to have an access on Dropdownlists.

Can u please guide me with correct approach how to obtain this requirement.

Its urgent...Please do respond

Thanks in Advance

[Pavlina]

Hello Nani,

The project in the code library below shows how to use related RadComboBoxes for Insert and Update operations in RadGrid:
http://www.telerik.com/community/code-library/aspnet-ajax/general/using-related-radcomboboxes-in-radgrid.aspx

Give it a try and see if it works as you expected.

All the best,
Pavlina
the Telerik team

[Nani]

HI Pavlina,
It almost worked and i have one more concern of setting the "Combobox value" to the label text when i hit "Edit button". I am attaching code and also the snipshot how its  behaving...

And more concern is when i hit "Add new record" i have a required field validators for the columns and "Source Breakdown*" combobox should reflect according to the "Source*" combobox but before firing the "Selectionchanged event its firing "validators" and "Selection change event is not firing.

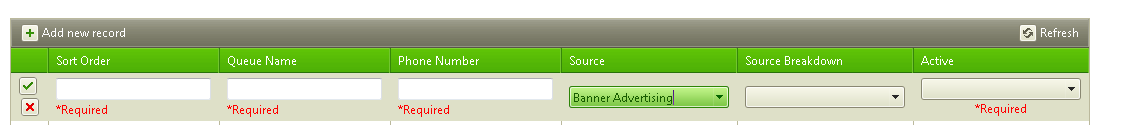

*Find in snipshots attached

---ASPX code for columns----

<Columns>
                    <telerik:GridEditCommandColumn ButtonType="ImageButton">
                        <HeaderStyle Width="20px" />
                        <ItemStyle CssClass="MyImageButton" />
                    </telerik:GridEditCommandColumn>
                    <telerik:GridBoundColumn DataField="SortOrder" HeaderText="Sort Order" SortExpression="SortOrder"
                        UniqueName="SortOrder" HeaderStyle-Width="25px" ItemStyle-HorizontalAlign="Left">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="QueueName" HeaderText="Queue Name" SortExpression="QueueName"
                        UniqueName="QueueName" HeaderStyle-Width="230px" ItemStyle-HorizontalAlign="Left">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="PhoneNumber" HeaderText="Phone Number" SortExpression="PhoneNumber"
                        UniqueName="PhoneNumber" HeaderStyle-Width="100px" ItemStyle-HorizontalAlign="Left">
                    </telerik:GridBoundColumn>
                    <telerik:GridTemplateColumn HeaderText="Source" UniqueName="SourceName" HeaderStyle-Width="200px"
                        ItemStyle-HorizontalAlign="Left">
                        <ItemTemplate>
                            <asp:Label ID="lblsource" runat="server"></asp:Label>
                        </ItemTemplate>
                        <EditItemTemplate>
                            <telerik:RadComboBox ID="cmbsource" runat="server" AutoPostBack="true" OnSelectedIndexChanged="cmbsource_SelectedIndexChanged"
                                Height="150px">
                            </telerik:RadComboBox>
                            <asp:RequiredFieldValidator ID="validator3" runat="server" ControlToValidate="cmbsource"
                                Display="Dynamic" ErrorMessage="*Required" ForeColor="Red">
                            </asp:RequiredFieldValidator>
                        </EditItemTemplate>
                    </telerik:GridTemplateColumn>
                    <telerik:GridTemplateColumn HeaderText="Source Breakdown" UniqueName="SourceBreakdown"
                        HeaderStyle-Width="200px" ItemStyle-HorizontalAlign="Left">
                        <ItemTemplate>
                            <asp:Label ID="lblbreakdown" runat="server"></asp:Label>
                        </ItemTemplate>
                        <EditItemTemplate>
                            <telerik:RadComboBox ID="cmbbreakdown" runat="server">
                            </telerik:RadComboBox>
                        </EditItemTemplate>
                    </telerik:GridTemplateColumn>
                    <telerik:GridTemplateColumn HeaderText="Active" DataField="Active" UniqueName="Active"
                        HeaderStyle-Width="40px">
                        <ItemTemplate>
                            <asp:Label ID="lblActive" runat="server" Text='<%# Convert.ToBoolean(Eval("Active"))==true ? "No" : "Yes"%>'></asp:Label></ItemTemplate>
                        <EditItemTemplate>
                            <telerik:RadComboBox ID= "cmbactive" runat= "server" Text= '<%# Bind("Active") %>'>
                                <Items>
                                    <telerik:RadComboBoxItem Text= "" Value= ""/>
                                    <telerik:RadComboBoxItem Text= "Yes" Value= "False" />
                                    <telerik:RadComboBoxItem Text= "No" Value= "True" />
                                </Items>
                            </telerik:RadComboBox>
                            <asp:RequiredFieldValidator ID="validator4" runat="server" ControlToValidate="cmbactive"
                                Display="Dynamic" ErrorMessage="*Required" ForeColor="Red">
                            </asp:RequiredFieldValidator>
                        </EditItemTemplate>
                    </telerik:GridTemplateColumn>
                </Columns>

Code behind which shows setting text in "Label" and binding values in  "Combobox"

protected void rgQueue_ItemDataBound(object sender, GridItemEventArgs e)
       {
           if (e.Item.ItemType == GridItemType.Item || e.Item.ItemType == GridItemType.AlternatingItem)
           {
               int index = e.Item.ItemIndex;
               Label textsource = (Label)e.Item.FindControl("lblsource");
               Label textbreak = (Label)e.Item.FindControl("lblbreakdown");

               using (EnabledDataContext db = new EnabledDataContext())
               {
                   var queues = (from queue in db.Queues
                                 where queue.StoreID.Equals(535)
                                 select new
                                 {
                                     Queue = queue.Queue1,
                                     SortOrder = queue.SortOrder,
                                     QueueName = queue.Media,
                                     PhoneNumber = queue.PhoneNumber,
                                     SourceID = queue.SourceID,
                                     SourceBreakdownID = queue.SourceBreakdownID,
                                     Active = queue.Deleted
                                 }).OrderBy(a => a.SortOrder).ThenBy(a => a.QueueName).ToList();

                   var sources = (from source in db.Sources
                                  where source.SourceID == queues.ElementAt(index).SourceID &&
                                        source.StoreID == 535
                                  select new
                                  {
                                      SourceID = source.SourceID,
                                      SourceName = source.SourceName
                                  }).OrderBy(a => a.SourceName).ToList();
                   var breakdowns = (from sourcebreakdown in db.SourceBreakdowns
                                     where sourcebreakdown.SourceBreakdownID == queues.ElementAt(index).SourceBreakdownID &&
                                           sourcebreakdown.StoreID == 535
                                     select new
                                     {
                                         SourceBreakdownID = sourcebreakdown.SourceBreakdownID,
                                         BreakdownValue = sourcebreakdown.BreakdownValue
                                     }).OrderBy(a => a.BreakdownValue).ToList();

                   if (sources.Count != 0) { textsource.Text = sources.ElementAt(0).SourceName; }
                   else { textsource.Text = "Selected by user"; }

                   if (breakdowns.Count != 0) { textbreak.Text = breakdowns.ElementAt(0).BreakdownValue; }
                   else { textbreak.Text = "Selected by user"; }

               }
           }

           if (e.Item is GridEditableItem && e.Item.IsInEditMode)
           {
               int index = e.Item.ItemIndex;
               GridEditableItem editableitem = e.Item as GridEditableItem;
               RadComboBox listsource = (RadComboBox)e.Item.FindControl("cmbsource");
               RadComboBox listbreakdown = (RadComboBox)e.Item.FindControl("cmbbreakdown");

               using (EnabledDataContext db = new EnabledDataContext())
               {

                   var queues = (from queue in db.Queues
                                 where queue.StoreID.Equals(535)
                                 select new
                                 {
                                     Queue = queue.Queue1,
                                     SortOrder = queue.SortOrder,
                                     QueueName = queue.Media,
                                     PhoneNumber = queue.PhoneNumber,
                                     SourceID = queue.SourceID,
                                     SourceBreakdownID = queue.SourceBreakdownID,
                                     Active = queue.Deleted
                                 }).OrderBy(a => a.SortOrder).ThenBy(a => a.QueueName).ToList();

                   var sources = (from source in db.Sources
                                  where source.StoreID == 535 && !source.Deleted
                                  select new
                                  {
                                      SourceID = source.SourceID.ToString(),
                                      SourceName = source.SourceName
                                  }).OrderBy(a => a.SourceName).ToList();
                   sources.Insert(0, new { SourceID = "", SourceName = "Selected by user" });
                   if (index >= 0 && index <= queues.Count)
                   {
                       var breakdowns = (from sourcebreakdown in db.SourceBreakdowns
                                         where sourcebreakdown.SourceBreakdownID == queues.ElementAt(index).SourceBreakdownID ||
                                               sourcebreakdown.SourceID == queues.ElementAt(index).SourceID && !sourcebreakdown.Deleted
                                         select new
                                         {
                                             SourceBreakdownID = sourcebreakdown.SourceBreakdownID.ToString(),
                                             BreakdownValue = sourcebreakdown.BreakdownValue
                                         }).OrderBy(a => a.BreakdownValue).ToList();
                       breakdowns.Insert(0, new { SourceBreakdownID = "", BreakdownValue = "Selected by user" });

                       listbreakdown.DataSource = breakdowns;
                       listbreakdown.DataTextField = "BreakdownValue";
                       listbreakdown.DataValueField = "SourceBreakdownID";
                       listbreakdown.DataBind();
                       listbreakdown.Items.FindItemByText("Selected by user").ForeColor = Color.Red;
                   }
                   listsource.DataSource = sources;
                   listsource.DataTextField = "SourceName";
                   listsource.DataValueField = "SourceID";
                   listsource.DataBind();
                   listsource.Items.FindItemByText("Selected by user").ForeColor = Color.Red;
                   if (editableitem.ItemIndex > -1)
                   {
                       if (!string.IsNullOrEmpty(Convert.ToString(editableitem.GetDataKeyValue("SourceName"))))
                       {
                           listsource.SelectedValue = Convert.ToString(editableitem.GetDataKeyValue("SourceName"));
                       }
                   }
               }

           }

       }

Code behind for "Validators" and "Selection changed event"

protected void cmbsource_SelectedIndexChanged(object sender, RadComboBoxSelectedIndexChangedEventArgs e)
        {
            RadComboBox rcsource = (sender as RadComboBox);
            GridEditableItem editItem = (GridEditableItem)rcsource.NamingContainer;
            RadComboBox rcsourcebreakdown = (RadComboBox)editItem["SourceBreakdown"].FindControl("cmbbreakdown");
            string value = rcsource.SelectedValue;
            using (EnabledDataContext db = new EnabledDataContext())
            {
                var queues = (from queue in db.Queues
                              where queue.StoreID.Equals(535)
                              select new
                              {
                                  Queue = queue.Queue1,
                                  SortOrder = queue.SortOrder,
                                  QueueName = queue.Media,
                                  PhoneNumber = queue.PhoneNumber,
                                  SourceID = queue.SourceID,
                                  SourceBreakdownID = queue.SourceBreakdownID,
                                  Active = queue.Deleted
                              }).OrderBy(a => a.SortOrder).ThenBy(a => a.QueueName).ToList();
                var results = (from sourcebreakdowns in db.SourceBreakdowns
                               where sourcebreakdowns.SourceID == Convert.ToInt32(value) &&
                                     !sourcebreakdowns.Deleted
                               orderby sourcebreakdowns.BreakdownOrder, sourcebreakdowns.BreakdownValue
                               select new
                               {
                                   SourceBreakdownID = sourcebreakdowns.SourceBreakdownID.ToString(),
                                   BreakdownValue = sourcebreakdowns.BreakdownValue
                               }).ToList();
                results.Insert(0, new { SourceBreakdownID = "", BreakdownValue = "Selected by user" });
                rcsourcebreakdown.Visible = true;
                rcsourcebreakdown.DataSource = results;
                rcsourcebreakdown.DataTextField = "BreakdownValue";
                rcsourcebreakdown.DataValueField = "SourceBreakdownID";
                rcsourcebreakdown.DataBind();
                rcsourcebreakdown.Items.FindItemByText("Selected by user").ForeColor = Color.Red;
            }

        }

[Nani]

Hi Pavlina,

I fixed the selection thing can u help with the "Validate thing"

I will be waiting for ur reply...

Its urgent.

Thanku in advance

[Pavlina]

Hello Nani,

I noticed that you have opened a duplicate post on the same matter. Please, refer to the other forum ticket post for additional information. To avoid duplicate posts, I suggest you continue the communication there.

Regards,
Pavlina
the Telerik team
