RadGrid PAging not working with clienside (pageMethod) binding

2 posts, 0 answers
  1. Somnath
    Somnath avatar
    43 posts
    Member since:
    Jun 2012

    Posted 28 Jan 2013 Link to this post

    Hi ,

    I am strange issue in particular page.
    I am using client side binding using following tag
            <DataBinding Location="~/ReportManagement/ReportDesigner.aspx" SelectMethod="wmBindSecurity" />

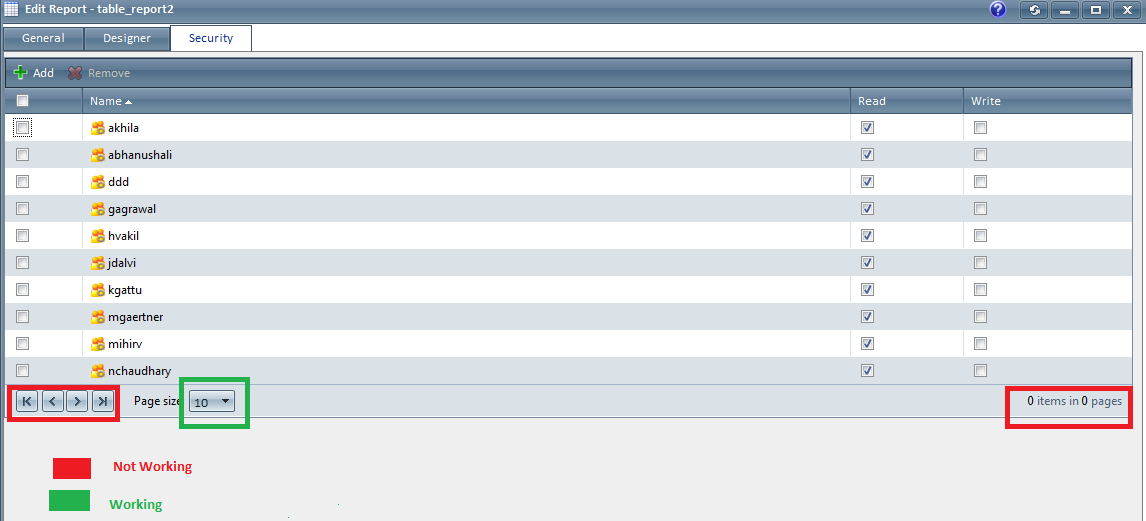

    After page load 10 records display properly, but in pagination bar page number is missing ,and also it is written 0 items in 0 pages.
    and page size changing works perfectly.


    On change of next or prev request is not going to server side.

    Please help me .
    I am using following code.

    ASPX
    <telerik:RadGrid ID="rgSecurity" runat="server" AllowPaging="true" AllowMultiRowSelection="True"
                               GridLines="None" AllowSorting="true" Width="99%">
                               <PagerStyle Mode="NextPrevAndNumeric" AlwaysVisible="true" />
                               <ItemStyle Wrap="false" />
                               <HeaderStyle Wrap="false" />
                               <ClientSettings EnableRowHoverStyle="true" AllowColumnsReorder="true" AllowColumnHide="true"
                                   Resizing-AllowColumnResize="true" Resizing-EnableRealTimeResize="true" ReorderColumnsOnClient="true">
                                   <Resizing ResizeGridOnColumnResize="true" ClipCellContentOnResize="false" />
                                   <DataBinding Location="~/ReportManagement/ReportDesigner.aspx" SelectMethod="wmBindSecurity" />
                                   <Selecting AllowRowSelect="true" />
                                   <ClientEvents OnRowSelected="RowSelected" OnRowDeselected="RowSelected" OnDataBindingFailed="rgSecurity_OnDataBindingFailed">
                                   </ClientEvents>
                               </ClientSettings>
                               <MasterTableView AutoGenerateColumns="false" AllowNaturalSort="false" ClientDataKeyNames="Id"
                                   CommandItemDisplay="Top">
                                   <CommandItemTemplate>
                                       <telerik:RadToolBar ID="rtbSecurity" runat="server" Height="26px" Width="100%" ClientIDMode="Static"
                                           OnClientButtonClicking="rtbSecurity_onToolBarClientButtonClicking">
                                           <Items>
                                               <telerik:RadToolBarButton Text="Add" ImageUrl="~/Images/NewEnable2.png" runat="server"
                                                   ClientIDMode="Static" Value="Add" CommandName="Add" CssClass="RadToolBar">
                                               </telerik:RadToolBarButton>
                                               <telerik:RadToolBarButton Text="Remove" ImageUrl="~/Images/imgDelBtnEnable.png" runat="server"
                                                   ClientIDMode="Static" Value="Delete" CommandName="Delete" CssClass="RadToolBar"
                                                   Enabled="false">
                                               </telerik:RadToolBarButton>
                                           </Items>
                                       </telerik:RadToolBar>
                                   </CommandItemTemplate>
                                   <Columns>
                                       <telerik:GridClientSelectColumn UniqueName="column" HeaderStyle-Width="35px" ItemStyle-Width="35px"
                                           Resizable="false">
                                       </telerik:GridClientSelectColumn>
                                       <telerik:GridTemplateColumn UniqueName="Name" HeaderText="Name" SortExpression="Name"
                                           ShowSortIcon="true" ItemStyle-Wrap="false">
                                           <ClientItemTemplate>
                                               <label id="aName_#=Id#" border="0"  #=Type == 0 ? "style='background: url(../Images/usersetting.png) top left no-repeat !important;padding-left:18px'" :  "style='background: url(../Images/user-groups.png) top left no-repeat !important;padding-left:18px'"#>#=Name#</label>
                                           </ClientItemTemplate>
                                           <ItemStyle Wrap="false" />
                                           <HeaderStyle Wrap="false" />
                                       </telerik:GridTemplateColumn>
                                       <telerik:GridTemplateColumn UniqueName="AllowRead" HeaderText="Read" SortExpression="AllowRead"
                                           ShowSortIcon="true" HeaderStyle-Width="10%" ItemStyle-Width="10%">
                                           <ClientItemTemplate>
                                               <input type="checkbox" id="chk_read_#=Id#" #=AllowRead == true ? "checked" : "" # #=AllowWrite == true ? "disabled" : "" # onclick="javascript:OnChangeSecurity('#=Id#','#=Type#')"/>
                                           </ClientItemTemplate>
                                       </telerik:GridTemplateColumn>
                                       <telerik:GridTemplateColumn UniqueName="AllowWrite" HeaderText="Write" SortExpression="AllowWrite"
                                           ShowSortIcon="true" HeaderStyle-Width="15%" ItemStyle-Width="15%">
                                           <ClientItemTemplate>
                                                 <input type="checkbox" id="chk_write_#=Id#" #=AllowWrite == true ? "checked" : "" # onclick="javascript:OnChangeSecurity('#=Id#','#=Type#')"/>
                                           </ClientItemTemplate>
                                       </telerik:GridTemplateColumn>
                                   </Columns>
                               </MasterTableView>
                           </telerik:RadGrid>


    JS

    function RowSelected(rowObject, args) {

                if (args != null)
                    gridEventArg = args;

                var length = $find(rgSecurity_id).get_selectedItems().length;
                var radGrid = $get(rgSecurity_id);
                var radToolBar = $telerik.findControl(radGrid, "rtbSecurity");
                var addButton = radToolBar.get_items().getItem(0);
                var removeButton = radToolBar.get_items().getItem(1);
                switch (parseInt(length)) {
                    case 0:
                        addButton.set_enabled(true);
                        removeButton.set_enabled(false);
                        break;
                    case 1:
                        addButton.set_enabled(false);
                        removeButton.set_enabled(true);
                        break;
                    default:
                        addButton.set_enabled(false);
                        removeButton.set_enabled(true);
                        break;
                }
            }
    [WebMethod]
           public static Dictionary<string, object> wmBindSecurity(int startRowIndex, int maximumRows, List<GridSortExpression> sortExpression, List<GridFilterExpression> filterExpression)
           {
               if (HttpContext.Current.Session["UserName"] == null)
                   throw new Exception("SESSION_TIMEOUT");

               Dictionary<string, object> data = new Dictionary<string, object>();

               if (HttpContext.Current.Session["AnalystFile"] == null)
                   throw new Exception("SESSION_TIMEOUT");

               List<SQCUser> allUsers = SQCUserList.GetUserList();

               List<SQCUserGroup> allGroups = SQCUserGroupList.GetGroupList();

               List<SQCUserGroupResourceMapping> lstUserGroupResourceMapping = ((SQWAnalystFile)HttpContext.Current.Session["AnalystFile"]).UserGroupReportMapping;

               List<SQCUserResourceMapping> lstUserResourceMapping = ((SQWAnalystFile)HttpContext.Current.Session["AnalystFile"]).UserReportMapping;

               List<SQCUser> oUsers = SQCUserList.GetUserList();

               var oData = lstUserGroupResourceMapping.Select(o => new
               {
                   Id = o.GroupId,
                   Name = allGroups.Find(g => g.GroupId == o.GroupId).GroupName,
                   Type = "User Group",
                   AllowRead = o.AllowRead,
                   AllowWrite = o.AllowWrite
               }).ToList();

               oData.AddRange(lstUserResourceMapping.Select(p => new
               {
                   Id = p.UserId,
                   Name = SQCUserList.GetUserByUserID(p.UserId).UserName,
                   Type = "User",
                   AllowRead = p.AllowRead,
                   AllowWrite = p.AllowWrite
               }).ToList());

               if (oData.Count > 0)
                    data.Add("Data", oData.Skip(startRowIndex).Take(maximumRows));
               else
                   data.Add("Data", new List<SQCUserGroupResourceMapping>());
               data.Add("Count", 0);
               return data;

           }

    Thanks & Regards ,
    Somnath
  2. Antonio Stoilkov
    Admin
    Antonio Stoilkov avatar
    530 posts

    Posted 31 Jan 2013 Link to this post

    Hi Somnath,

    In order to resolve your issue you could modify the value of the "Count" key in the returned dictionary because the value is used to determine what to show in the pager. The value should equal the total count of items in the data source. You could take a look at the code provided below.
    data.Add("Count", oData.Count());


    All the best,
    Antonio Stoilkov
    the Telerik team
