[Solved] RadGrid Header Not Formatting Correctly

1 Answer 136 Views

Grid

This is a migrated thread and some comments may be shown as answers.

Steve asked on 28 May 2010, 03:42 PM

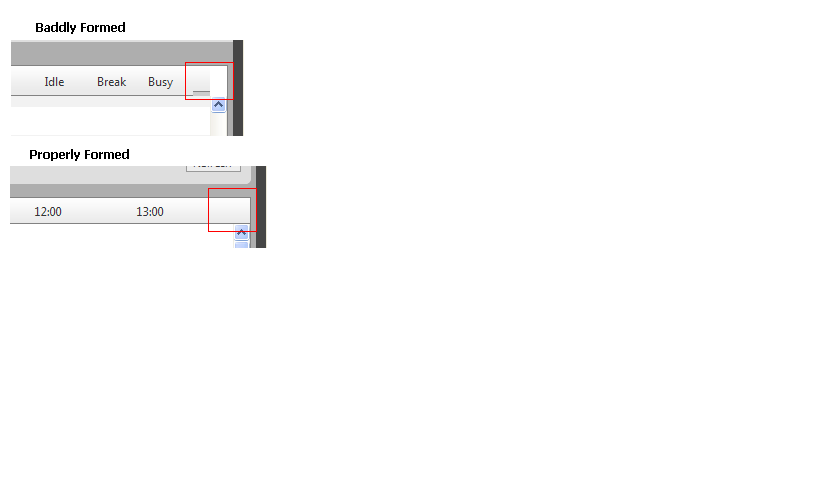

I have a RadGrid that is not displaying the header row correctly. The right column of the RadGrid has got some odd formatting. I have attached a document (.png) that illustrates the issue.

Here is sample code the pages:

This page is not working:


            <telerik:RadGrid ID="grdMasterList" Visible="true" runat="server" EnableEmbeddedSkins="false"

                                        Skin="Premise" AllowPaging="false" AllowMultiRowSelection="false" AutoGenerateColumns="false"

                                        PageSize="25" AllowSorting="true" OnItemDataBound="grdMasterList_ItemDataBound"

                                        OnItemCreated="grdMasterList_ItemCreated" Height="100%">

                                        <ClientSettings EnableRowHoverStyle="true">

                                            <Selecting AllowRowSelect="true" />

                                            <Scrolling AllowScroll="true" UseStaticHeaders="true" />

                                            <ClientEvents OnGridCreated="GridHeight" />

                                        </ClientSettings>

                                        <MasterTableView Name="CodeTable" HierarchyLoadMode="ServerOnDemand" DataKeyNames="PersNbr"

                                            ClientDataKeyNames="ChkInOutStatus, PersNbr, DeviceNbr, CurrBreakStatCd, BreakNbr" TableLayout="Fixed">

This page is working:


            <telerik:RadGrid ID="grdMasterList_ZoneCoverage" runat="server" EnableEmbeddedSkins="false"

                                                    Skin="Premise" AllowPaging="false" AllowMultiRowSelection="false" AutoGenerateColumns="false"

                                                    PageSize="25" AllowSorting="true" OnItemCreated="grdMasterList_ZoneCoverage_ItemCreated"

                                                    OnItemDataBound="grdMasterList_ZoneCoverage_ItemDataBound" OnPreRender="grdMasterList_ZoneCoverage_PreRender"

                                                    Height="600">

                                                    <ClientSettings EnableRowHoverStyle="false">

                                                        <Selecting AllowRowSelect="true" />

                                                        <Scrolling AllowScroll="true" UseStaticHeaders="true" />

                                                        <ClientEvents OnGridCreated="GridHeight" />

            </ClientSettings>
                                        <MasterTableView Name="CodeTable" HierarchyLoadMode="ServerOnDemand" DataKeyNames="OrgNbr" TableLayout="Fixed">

I have tried turning TableLayout Auto and Fixed. But that had no effect.

Any thoughts?

Thanks.

Steve

1 Answer, 1 is accepted

answered on 28 May 2010, 03:58 PM

Hi Steve,

For some reason the RadGrid header item becomes higher than usual. Either prevent this, or remove the top-right background with

<telerik:RadGrid CssClass="rgNoScrollImage" />

Due to the specifics of the RadGrid rendering, we do not support alignment of the top-right image with a random header height.

Greetings,
Dimo
the Telerik team
