RadGrid group headers display issue

1 Answer 77 Views
General Discussions
This is a migrated thread and some comments may be shown as answers.
Jesse Roper
Top achievements
Rank 1
Jesse Roper asked on 31 Oct 2012, 09:20 PM
Hi -

I'm using grouping by dragging them to the group region, which works fine.  However, the group headers in the  grid are displaying with dark grid lines going through them.  I have tried the following code to turn off displaying of them but to no effect:

<GroupPanel SkinID="Office2007">
    <PanelItemsStyle GridLines="None" />
    <PanelStyle GridLines="None"
</GroupPanel>

I also tried setting the style as follows, but couldn't effect the grid lines:

GroupHeaderItemStyle-BackColor="White"

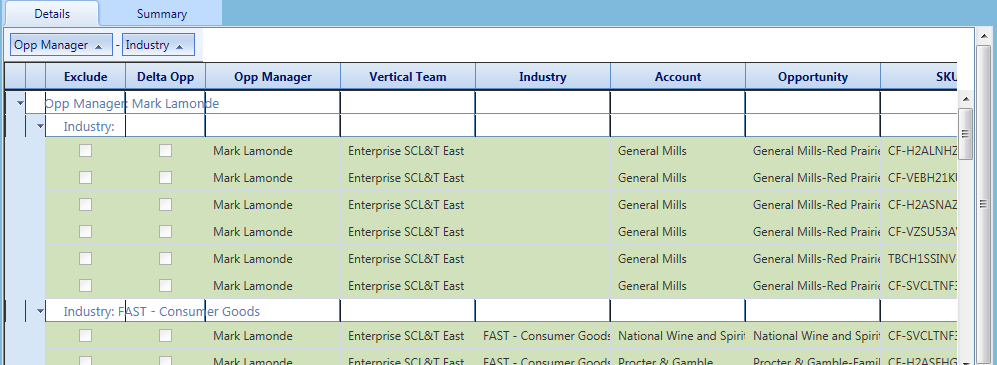

I have included the code for my (growingly-complicated) grid and an image of what I'm seeing for good measure.  Please let me know if you have any suggestions.

Thank you

<telerik:RadGrid ID="DetailsGrid" runat="server" CellSpacing="0" Skin="Office2007" GridLines="Vertical" AllowSorting="true" ShowGroupPanel="true" AllowPaging="false" OnNeedDataSource="DetailsGrid_NeedDataSource" OnUpdateCommand="DetailsGrid_UpdateCommand" OnItemDataBound="DetailsGrid_ItemDataBound"
OnItemCreated="DetailsGrid_ItemCreated" OnDataBound="DetailsGrid_DataBound" OnDataBinding="DetailsGrid_DataBinding" GroupHeaderItemStyle-BackColor="White">
    <SelectedItemStyle CssClass="selectedRow" />
    <ClientSettings ReorderColumnsOnClient="true" EnablePostBackOnRowClick="false" AllowDragToGroup="true">
        <Resizing AllowColumnResize="true" EnableRealTimeResize="true" ShowRowIndicatorColumn="true" AllowResizeToFit="true" />
        <ClientEvents OnGridCreated="GridCreated" OnKeyPress="KeyPress" OnRowDblClick="RowDblClick" OnCommand="GridCommand" />
        <Selecting AllowRowSelect="true" CellSelectionMode="SingleCell" />
        <Scrolling UseStaticHeaders="true" AllowScroll="true" />
    </ClientSettings>
    <MasterTableView TableLayout="Fixed" EditMode="InPlace" AutoGenerateColumns="false" DataKeyNames="opportunityProductId" ShowFooter="true">
        <HeaderStyle HorizontalAlign="Center" Width="135px" Font-Bold="true" />
        <Columns>
        ...
        </Columns>
    </MasterTableView>
</telerik:RadGrid>

1 Answer, 1 is accepted

Sort by
0
Accepted
Pavlina
Telerik team
answered on 05 Nov 2012, 05:19 PM
Hi,

Try removing GridLines="Vertical" from the grid declaration and see if it makes any difference.

Regards,
Pavlina
the Telerik team
