RadGrid GridTemplateColumn Horizontal Scrolling Issue

17 Answers 508 Views
Grid
This is a migrated thread and some comments may be shown as answers.
Kai
Top achievements
Rank 1
Kai asked on 26 Jun 2009, 03:38 PM
I'm currently using the trial version of RadControls for ASP.NET.  What I'm trying to do is insert a web control into a GridTemplateColumn in the MasterTableView in the RadGrid control.  All works out fine, but the one thing that I've been trying to get to work is to not have the horizontal scrolling.  I've tried everything from the forums of using the NoPadding CSS to add to the tables, the RadGrid, and even the template columns and everything.  Nothing seems to work.  The one thing that I did find interesting was that if I don't use the NoPadding CSS and leave the cellspacing and cellpadding properties to the defaults, when I do get the message " Telerik.Web.UI 2009.1.527.20 trial version. Copyright telerik © 2002-2009. To remove this message, please purchase a developer version.", everything seems to fit in the RadGrid just fine (no horizontal scrolling).  Is this because I have a trial version?

I can set the percentage width of the MasterTableView to like 95% and that will make it so that there is no horizontal scrolling, but when I do the drag and drop, I have all that white space on the right because the row doesn't fill up the entire table row.

Can someone help me get going in the right direction?

Thanks in advance.
Kai Thao

17 Answers, 1 is accepted

Sort by
0
Dimo
Telerik team
answered on 30 Jun 2009, 02:51 PM
Hello Kai,

The trial and dev versions of RadControls have the same functionality and behavior.

In order to not have a horizontal RadGrid scrollbar, I suggest that you set the TableLayout of the MasterTableView to "Fixed", remove the MasterTableView's width and make sure that if you are setting column widths, their sum does not exceed the width of RadGrid.

Let us know if you need more information.

Sincerely yours,
Dimo
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Check out the tips for optimizing your support resource searches.
0
Kai
Top achievements
Rank 1
answered on 11 Aug 2009, 01:21 PM
So I finally get the chance to dig back into this, since I was put on a new project for a while.  I'm still getting the horizontal scrolling issue regardless of what I try.  The only thing that I did get to work is if I set the with of the MasterTableView to be around 97% or so.  With this I can select the entire row and not have the extra white space and such.  All my table widths are set in percentages.  I did notice that the reason to why I'm getting the horizontal scroll is that when I set the MasterTable width to 100% and I get a vertical scroll bar, that adds on to the width of the MasterTable and therefore giving the table horizontal scrolling.

Is there something else I need to set in the MasterTable to account for this?  If I can adjust the width of the MasterTable to take up the entire width of the RadGrid excluding the scroll bar, that would work as well.  The only issue here is that I'm doing everything in percentages and that doesn't figure out to well with the exact size of the scroll bar.

Kai Thao
0
Dimo
Telerik team
answered on 14 Aug 2009, 06:23 AM
Hi Kai,

Did you try my suggestion to set TableLayout="FIxed" for the MasterTableView and no width?

In addition, you can set column widths, according to your preference (in percent or in pixels). It is good to leave at least one column with no width, so that it adjusts and the MasterTableView continues to be as wide as the RadGrid control wrapper.


<%@ Page Language="C#" %>
<%@ Import Namespace="System.Data" %>
<%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<script runat="server"

    protected void RadGrid_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)
    {
        DataTable dt = new DataTable();
        DataRow dr;
        int colsNum = 5
        int rowsNum = 30
        string colName = "Column"

        for (int j = 1; j <= colsNum; j++)
        {
            dt.Columns.Add(String.Format("{0}{1}", colName, j));
        }

        for (int i = 1; i <= rowsNum; i++)
        {
            dr = dt.NewRow();

            for (int k = 1; k <= colsNum; k++)
            {
                dr[String.Format("{0}{1}", colName, k)] = String.Format("{0}{1} Row{2}", colName, k, i);
            }
            dt.Rows.Add(dr);
        }

        (sender as RadGrid).DataSource = dt
    }

</script>

<html xmlns="http://www.w3.org/1999/xhtml" >
<head runat="server"
<meta http-equiv="content-type" content="text/html;charset=utf-8" />
<title>RadControls for ASP.NET AJAX</title>
</head>
<body>
<form id="form1" runat="server"
<asp:ScriptManager ID="ScriptManager1" runat="server" />

<telerik:RadGrid
    ID="RadGrid1"
    runat="server"
    OnNeedDataSource="RadGrid_NeedDataSource"
    <MasterTableView TableLayout="Fixed" />
    <ClientSettings>
        <Scrolling AllowScroll="true" UseStaticHeaders="true" />
    </ClientSettings>
</telerik:RadGrid>

</form>
</body>
</html>


Kind regards,
Dimo
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Check out the tips for optimizing your support resource searches.
0
Kai
Top achievements
Rank 1
answered on 20 Aug 2009, 05:26 PM
Okay, so it seems that I have fixed my issue with the scrolling.  What I ended up doing was removed the width properties from both the RadGrid and the MasterTableView.

Kai Thao
0
anu
Top achievements
Rank 1
answered on 04 Jun 2010, 11:27 AM
Team ,
i am facing issue using telerik grid.
i set scroll bar = true.
that scroll bar height coming default.
if i don't have more than 5 records grid height cant decrease.

how to decrease grid height and i want scroll bar for grid.

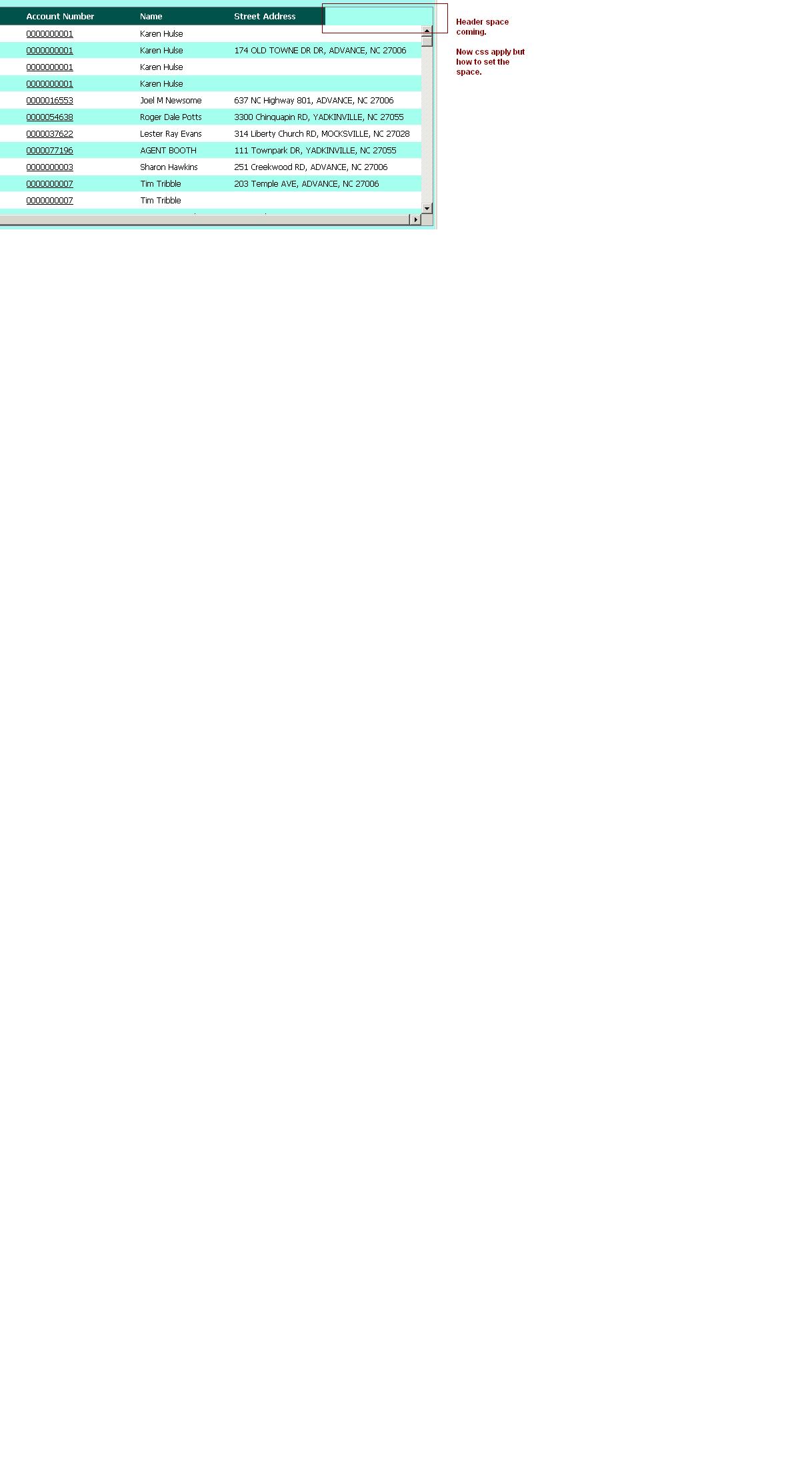

i want to remove the space in first image
0
Dimo
Telerik team
answered on 10 Jun 2010, 06:47 AM
Hi Anu,

Please refer to

http://www.telerik.com/help/aspnet-ajax/grdresizegridwithscrollingwhenlessdata.html

Greetings,
Dimo
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
0
anu
Top achievements
Rank 1
answered on 10 Jun 2010, 07:52 AM
Thank you.. grid roll space problem was solved.

now its working..

and i am facing one more issue.
in grid i am not etting any width for all columns.

i have set table lay out ="auto" and fixed tested.
in scroll bar set the usestaticheader. i am getting the space in header.
how to solve this issue please help me.

thank you .
0
Dimo
Telerik team
answered on 10 Jun 2010, 09:28 AM
Hi Anu,

Please refer to:

http://www.telerik.com/community/forums/aspnet-ajax/grid/ie-8-header-ui-problem.aspx#1153840

All the best,
Dimo
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
0
anu
Top achievements
Rank 1
answered on 10 Jun 2010, 10:12 AM
Thanks for the reply..
now i am getting the css for empty space in scrol bar.

but i am getting the empty space in header row.

i have set the row "ItemStley-wrap = false" for all my rows in grid.

i want to get the header css full in header row..

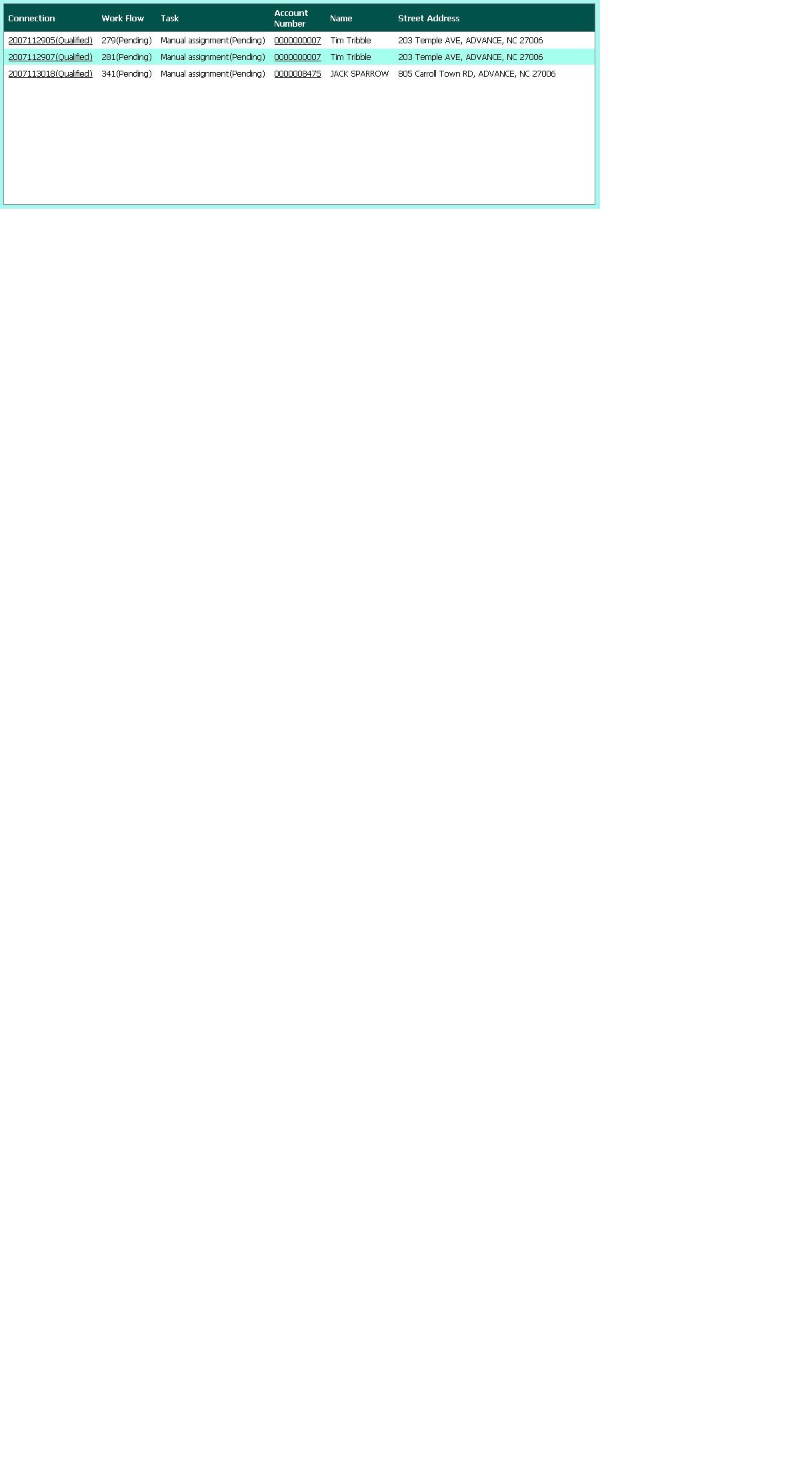

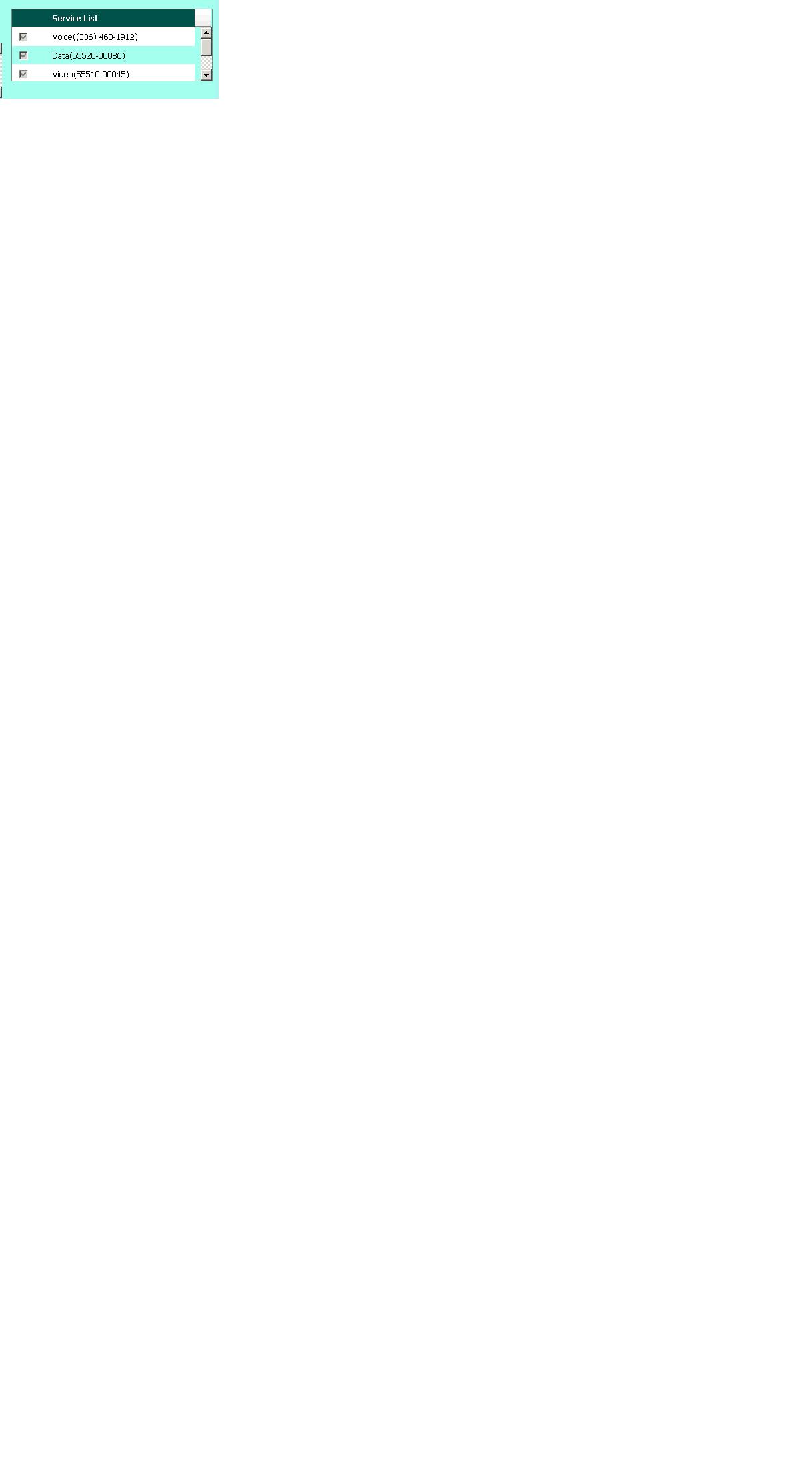

see below image.
0
Dimo
Telerik team
answered on 10 Jun 2010, 11:21 AM
Anu,

It is not clear how you manage to obtain that visual discrepancy. Please provide a runnable demo.

Best wishes,
Dimo
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
0
James Tsotsos
Top achievements
Rank 1
answered on 19 Jul 2010, 08:31 PM

I was having a problem with an unwanted horizontal scrollbar showing and have been reading up on  this problem in the forum.  In the grid, I have set AutoGenerateColumns="False". I have set the MasterTableView TableLayout property to "Fixed". I am specifying Gridbound columns and a GridTemplateColumn in which the column widths are set in style sheets. They add up to less than the size o the grid. I am allowing scrolling, and no horizontal scrollbar shows, which is what I want.

However, when the grid is shown, the column headers are at the width they were set to in the stylesheet, but in the datarows, each of the 6 columns is the same width, like they were autogenerated so they don't line up with the headers at all.  What am I doing wrong?

0
Pavlina
Telerik team
answered on 22 Jul 2010, 09:54 AM
Hello James,

I am not sure how to reproduce this. Have you set ItemStyle-Width? If yes, please remove those and use only HeaderStyle-Width.

Give this suggestion a try and let me know about the result.

Greetings,
Pavlina
the Telerik team
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
0
James Tsotsos
Top achievements
Rank 1
answered on 22 Jul 2010, 03:13 PM
Yes, after posting that, I found a code example that indicated I needed to set the item width as well as the header. Thank you.
0
anu
Top achievements
Rank 1
answered on 27 Jul 2010, 03:30 PM
Hello,

i set the wodth for grid only i am not set any width for rows columns.

i have used grid bound columns.
i have set only client scrolls used static header.

but in my grid i am not getting the header full. i am getting empty space between grid nad scroll bar.

please can you help me how to slove this issue.

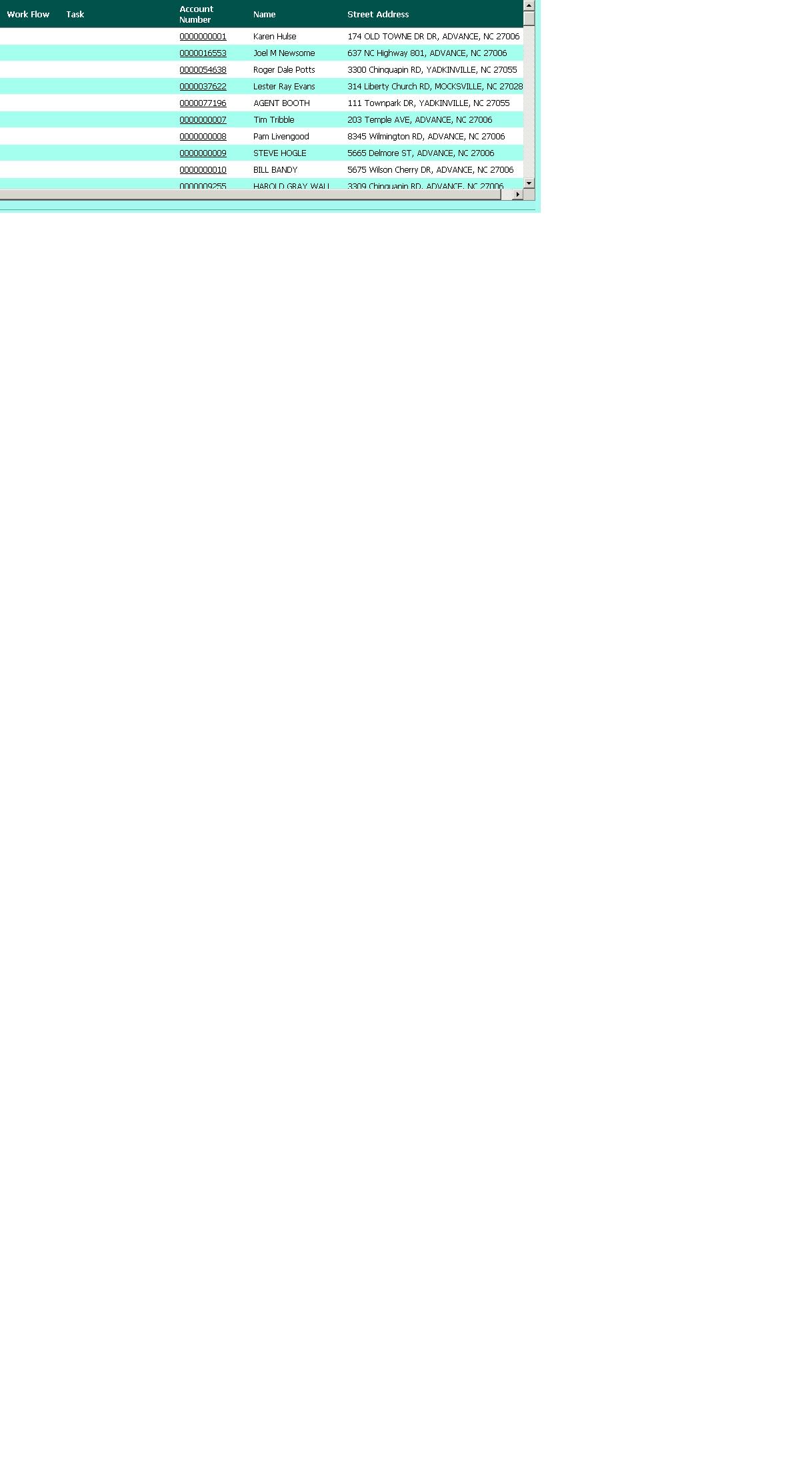

see the attached image.
0
Dimo
Telerik team
answered on 28 Jul 2010, 09:32 AM
Hi Anu,

The observed layout can be achieve if

+ you have set width to the MasterTableView
+ you have set column widths
+ there are some custom margin or padding styles inherited by the RadGrid <div>s or <table>s.

Please check the above suppositions and send a runnable demo if you need further assistance.

All the best,
Dimo
the Telerik team
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
0
mark
Top achievements
Rank 1
answered on 20 Aug 2010, 02:49 AM
Hi all

It appears as  though the horizontal scrolling is an issue  when using scrolling in IE8  compatibility  mode, when used in non-compatibility mode it works ok
0
Dimo
Telerik team
answered on 20 Aug 2010, 06:41 AM
Hello Mark,

Can you please specify what issue exactly do you have?


Dimo
the Telerik team
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
