Radgrid GridCellSelectionMode MultiColumn with UseStaticHeaders

7 Answers 87 Views
Grid
This is a migrated thread and some comments may be shown as answers.
Ronny
Top achievements
Rank 1
Ronny asked on 13 Mar 2014, 02:01 PM
Hi,

The combination of GridCellSelectionMode MultiColumn and UseStaticHeaders does not work, nothing happens onclick.
Without UseStaticHeaders theres no problem to multiselect columns.
I have generic grid columns, all added programmatically.
Any solutions?

Best Regards

7 Answers, 1 is accepted

Sort by
0
Princy
Top achievements
Rank 2
answered on 14 Mar 2014, 06:49 AM
Hi Ronny,

It is hard to identify the issue with such less information, please provide your full code snippet. Below is a sample code snippet which works fine with use of UseStaticHeaders and MultiColumn cell selection. Please have a try and see if it helps.

ASPX:
<asp:PlaceHolder ID="PlaceHolder1" runat="server"></asp:PlaceHolder>

C#:
RadGrid RadGrid1;
protected void Page_Init(object source, System.EventArgs e)
{
    RadGrid1 = new RadGrid();
    RadGrid1.MasterTableView.DataKeyNames = new string[] { "OrderID" };
    RadGrid1.Skin = "Default";
    RadGrid1.Width = Unit.Percentage(100);
    RadGrid1.Height= Unit.Pixel(800);
    RadGrid1.AutoGenerateColumns = false;
    RadGrid1.AllowSorting = true;
    RadGrid1.ClientSettings.Scrolling.AllowScroll = true;
    RadGrid1.ClientSettings.Scrolling.UseStaticHeaders = true;
    RadGrid1.ClientSettings.Selecting.CellSelectionMode = GridCellSelectionMode.MultiColumn;
    RadGrid1.ClientSettings.ClientEvents.OnCellSelected = "OnCellSelected";
    RadGrid1.NeedDataSource += new GridNeedDataSourceEventHandler(RadGrid1_NeedDataSource);

    GridBoundColumn boundColumn;
    boundColumn = new GridBoundColumn();
    RadGrid1.MasterTableView.Columns.Add(boundColumn);
    boundColumn.DataField = "OrderID";
    boundColumn.HeaderText = "OrderID";
    boundColumn.SortExpression = "OrderID";
    boundColumn = new GridBoundColumn();
    RadGrid1.MasterTableView.Columns.Add(boundColumn);
    boundColumn.DataField = "ShipCountry";
    boundColumn.HeaderText = "ShipCountry";
    boundColumn.SortExpression = "ShipCountry";
    boundColumn = new GridBoundColumn();
    RadGrid1.MasterTableView.Columns.Add(boundColumn);
    boundColumn.DataField = "CustomerID";
    boundColumn.HeaderText = "CustomerID";
    boundColumn.SortExpression = "CustomerID";
    this.PlaceHolder1.Controls.Add(RadGrid1);
}
void RadGrid1_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)
{
    RadGrid1.DataSource = GetDataTable("SELECT  * FROM Orders");
}
public DataTable GetDataTable(string query)
{
    String ConnString = ConfigurationManager.ConnectionStrings["Northwind_newConnectionString3"].ConnectionString;
    SqlConnection conn = new SqlConnection(ConnString);
    SqlDataAdapter adapter = new SqlDataAdapter();
    adapter.SelectCommand = new SqlCommand(query, conn);

    DataTable myDataTable = new DataTable();

    conn.Open();
    try
    {
        adapter.Fill(myDataTable);
    }
    finally
    {
        conn.Close();
    }

    return myDataTable;
}

JS:
<script type="text/javascript">
   function OnCellSelected(sender, eventArgs) {
     var Rows = eventArgs.get_gridDataItem();
     var rowIndex = Rows.get_itemIndexHierarchical(); //Get index
     var columnName = eventArgs.get_column().get_uniqueName();
     var data = Rows.get_cell(columnName);
     alert(data.innerHTML); //Get the cell value
   }
</script>

Thanks,
Princy
0
Ronny
Top achievements
Rank 1
answered on 14 Mar 2014, 12:40 PM
Thanks for your reply, my Code is nearly similar.

private void InitRadGrid()
        {
            SetAdditionalFeatureList();
            _radGrid = new RadGrid();
            _radGrid.ID = "_radGrid";
            _radGrid.Font.Size = this.Prop_FontSize;
            _radGrid.Skin = this.prop_RadGrid_Skin_Enum.ToString();
            _radGrid.ExportSettings.Pdf.AllowPrinting = true;
            _radGrid.MasterTableView.CommandItemDisplay = GridCommandItemDisplay.Top;
            _radGrid.MasterTableView.CommandItemStyle.Wrap = true;
            _radGrid.MasterTableView.CommandItemTemplate = new CCCommandItemTemplate(this.Prop_RadGrid_Skin.ToString(), this.Prop_FontSize, this.Prop_ShowUpdateButton, this.Prop_UpdateButtonCaption, this.Prop_ShowFinishButton, this.Prop_FinishButtonCaption, this.Prop_ShowUndoFinishButton, this.Prop_UndoFinishButtonCaption, this.Prop_ShowReviewButton, this.Prop_ReviewButtonCaption, this.Prop_ShowPDFExportButton, this.Prop_PdfExportButtonCaption);
            _radGrid.ItemCreated += _radGrid_ItemCreated;
            _radGrid.NeedDataSource += _radGrid_NeedDataSource;

            _radGrid.AllowMultiRowEdit = true;
            _radGrid.ItemDataBound += _radgrid_ItemDataBound;
            _radGrid.ItemCommand += _radGrid_ItemCommand;
            _radGrid.Init += _radGrid_Init;
            _radGrid.ClientSettings.Selecting.CellSelectionMode = GridCellSelectionMode.MultiColumn;
            _radGrid.ClientSettings.EnableAlternatingItems = true;

            if (this.Prop_Allow_Columns_Resize)
            {
                _radGrid.ClientSettings.Resizing.AllowColumnResize = true;
                _radGrid.ClientSettings.Resizing.AllowResizeToFit = true;
                _radGrid.ClientSettings.Resizing.ResizeGridOnColumnResize = true;
                _radGrid.ClientSettings.Resizing.EnableRealTimeResize = true;
                _radGrid.ClientSettings.Resizing.ShowRowIndicatorColumn = true;
            }
            _radGrid.ClientSettings.Selecting.EnableDragToSelectRows = true;

            _radGrid.MasterTableView.EditMode = this.Prop_RadGrid_EditMode;
            _radGrid.AutoGenerateColumns = false;
            _radGrid.ShowFooter = true;
            _radGrid.MasterTableView.TableLayout = GridTableLayout.Auto;

            if (Prop_EnableFiltering)
            {
                _radGrid.AllowFilteringByColumn = true;
                _radGrid.EnableLinqExpressions = false;
            }
            if (Prop_EnableSorting)
            {
                _radGrid.AllowSorting = true;
            }

            if (Prop_FreezeInfoColumns)
            {
                _radGrid.ClientSettings.Scrolling.AllowScroll = true;
                _radGrid.ClientSettings.Scrolling.FrozenColumnsCount = this.Prop_FreezeInfoColumns_Count;
                _radGrid.ClientSettings.Scrolling.SaveScrollPosition = true;
                _radGrid.ClientSettings.Scrolling.UseStaticHeaders = true;
                _radGrid.ClientSettings.Selecting.CellSelectionMode = GridCellSelectionMode.MultiColumn;
            }
        }

The grid is hosted in as a SharePoint 2013 webpart.

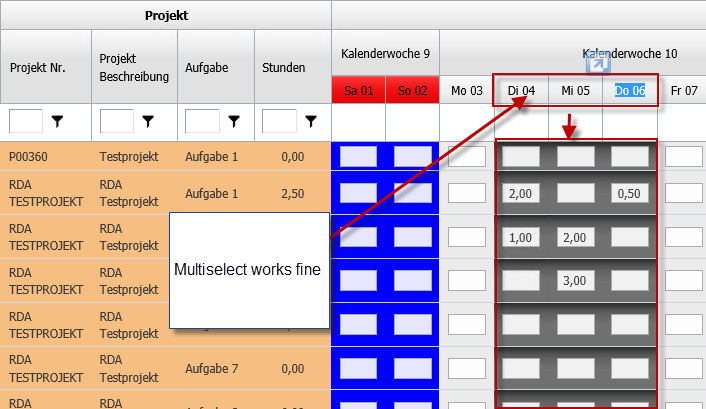

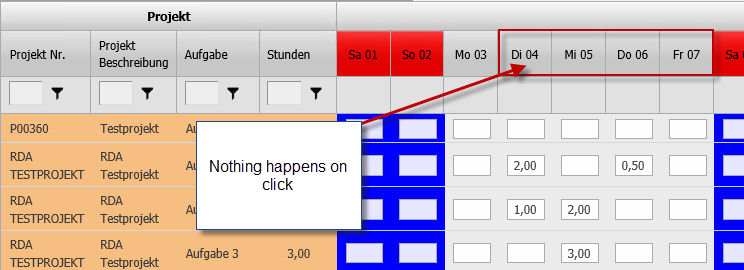

Without UseStaticHeaders i can select all columns, with UseStaticHeaders only the cell click works.
Please see attached screenshots.

Thanks

0
Ronny
Top achievements
Rank 1
answered on 14 Mar 2014, 12:42 PM
Error on Screenshot Upload last post.
0
Ronny
Top achievements
Rank 1
answered on 20 Mar 2014, 04:45 PM
Sorry for *Bump*, but this is very important for my customer.

Greetings
0
Angel Petrov
Telerik team
answered on 25 Mar 2014, 01:04 PM
Hi Ronny,

From the provided code I did not notice how are the columns being added. However I noticed that both multi-column headers and frozen column are enabled. Note that this is currently not supported(as noted here) and may cause unexpected behavior. Therefore I recommend enabling only the multi-column headers functionality and testing whether the problem is resolved. Additionally please ensure that a JavaScript error is not present on the page which might be breaking the functionality.

Regards,
Angel Petrov
Telerik


Build cross-platform mobile apps using Visual Studio and .NET. Register for the online webinar on 03/27/2014, 11:00AM US ET.. Seats are limited.


0
Ronny
Top achievements
Rank 1
answered on 26 Mar 2014, 08:14 AM
Hi Angel,

I tested with complete disabled multheaders, still have the same problem.
See following code how my columns are added:
protected void SetGridColumns(DataTable dataTable)
        {
            if (_radGrid.Columns.Count > 0)
                return;
            string[] monthnames = culture.DateTimeFormat.MonthNames;
            List<DateTime> dtList = new List<DateTime>();
            DateTime currDT = this.currentPeriodStart;
            while (currDT <= this.currentPeriodEnd)
            {
                dtList.Add(currDT);
                currDT = currDT.AddDays(1);
            }
            if (!this.Prop_FreezeInfoColumns)
            {
                List<string> monthInDaterangeList = new List<string>();
                List<int> kWInDaterangeList = new List<int>();
                foreach (DateTime dt in dtList)
                {
                    // KalenderWoche
                    CultureInfo CUI = CultureInfo.CurrentCulture;
                    int kw = CUI.Calendar.GetWeekOfYear(dt, CUI.DateTimeFormat.CalendarWeekRule, CUI.DateTimeFormat.FirstDayOfWeek);
                    if (Prop_ShowMonth && !monthInDaterangeList.Contains(String.Format("{0:MMMM}", dt).ToString()))
                    {
                        monthInDaterangeList.Add(String.Format("{0:MMMM}", dt).ToString());
                        GridColumnGroup monthGrp = new GridColumnGroup();
                        //monthGrp.HeaderText = String.Format("{0:MMMM}", dt).ToString() + Environment.NewLine + dt.Year.ToString();
                        monthGrp.HeaderText = monthnames[(int)dt.Month - 1] + Environment.NewLine + dt.Year.ToString();
                        monthGrp.Name = "Year" + dt.Year.ToString() + String.Format("{0:MMMM}", dt).ToString();
                        monthGrp.HeaderStyle.Font.Bold = true;
                        monthGrp.HeaderStyle.HorizontalAlign = System.Web.UI.WebControls.HorizontalAlign.Center;
                        monthGrp.HeaderStyle.Font.Size = this.Prop_FontSize;
                        this._radGrid.MasterTableView.ColumnGroups.Add(monthGrp);
                    }
                    if (Prop_ShowKW && !kWInDaterangeList.Contains(kw))
                    {
                        kWInDaterangeList.Add(kw);
                        GridColumnGroup kWGrp = new GridColumnGroup();
                        string kw_string = "KW";
                        switch (this.Prop_Language)
                        {
                            case "en-US":
                                {
                                    kw_string = "Calendar Week";
                                    break;
                                }
                            case "de-DE":
                                {
                                    kw_string = "Kalenderwoche";
                                    break;
                                }
                            default:
                                {
                                    kw_string = "Calendar Week";
                                    break;
                                }
                        }
                        kWGrp.HeaderText = kw_string + " " + kw.ToString();
                        kWGrp.Name = "Year" + dt.Year.ToString() + "KW" + kw.ToString();
                        kWGrp.HeaderStyle.HorizontalAlign = System.Web.UI.WebControls.HorizontalAlign.Center;
                        kWGrp.HeaderStyle.Font.Size = this.Prop_FontSize;
                        if (Prop_ShowMonth)
                            kWGrp.ParentGroupName = "Year" + dt.Year.ToString() + String.Format("{0:MMMM}", dt).ToString();
                        this._radGrid.MasterTableView.ColumnGroups.Add(kWGrp);
                    }
                }

                GridColumnGroup colGrp1 = new GridColumnGroup();
                if (!string.IsNullOrEmpty(this.Prop_ProjectGrpCaption))
                    colGrp1.HeaderText = Prop_ProjectGrpCaption;
                colGrp1.Name = "ProjectGroup";
                colGrp1.HeaderStyle.HorizontalAlign = System.Web.UI.WebControls.HorizontalAlign.Center;
                colGrp1.HeaderStyle.Font.Bold = true;
                colGrp1.HeaderStyle.Font.Size = this.Prop_FontSize;
                this._radGrid.MasterTableView.ColumnGroups.Add(colGrp1);
            }

            // Gruppe Projekte
            GridBoundColumn gbc = new GridBoundColumn();
            if (!this.Prop_FreezeInfoColumns)
                gbc.ColumnGroupName = "ProjectGroup";
            if (!string.IsNullOrEmpty(this.Prop_AdditionalCaption1))
                gbc.HeaderText = this.Prop_AdditionalCaption1;
            gbc.HeaderStyle.Font.Size = this.Prop_FontSize;
            gbc.ItemStyle.Font.Size = this.Prop_FontSize;
            gbc.UniqueName = "SortOrder";
            gbc.DataField = "Sort Order";
            gbc.DataType = typeof(int);
            gbc.ReadOnly = false;
            gbc.Visible = this.additionalFeatureList.Contains("Favorites");
            if (Prop_EnableFiltering)
            {
                gbc.AutoPostBackOnFilter = true;
                gbc.AllowFiltering = true;
            }
            gbc.AllowSorting = false;
            gbc.ShowSortIcon = false;
            this._radGrid.Columns.Add(gbc);

            gbc = new GridBoundColumn();
            if (!this.Prop_FreezeInfoColumns)
                gbc.ColumnGroupName = "ProjectGroup";
            if (!string.IsNullOrEmpty(this.Prop_JobNoCaption))
                gbc.HeaderText = this.Prop_JobNoCaption;
            gbc.HeaderStyle.Font.Size = this.Prop_FontSize;
            gbc.ItemStyle.Font.Size = this.Prop_FontSize;
            gbc.UniqueName = "JobNo_";
            gbc.DataField = "Job No_";
            gbc.ReadOnly = true;
            if (Prop_EnableFiltering)
            {
                gbc.AutoPostBackOnFilter = true;
                gbc.AllowFiltering = true;
            }
            gbc.AllowSorting = true;
            gbc.ShowSortIcon = true;
            this._radGrid.Columns.Add(gbc);

            gbc = new GridBoundColumn();
            if (!this.Prop_FreezeInfoColumns)
                gbc.ColumnGroupName = "ProjectGroup";
            if (!string.IsNullOrEmpty(this.Prop_JobDescriptionCaption))
                gbc.HeaderText = this.Prop_JobDescriptionCaption;
            gbc.HeaderStyle.Font.Size = this.Prop_FontSize;
            gbc.ItemStyle.Font.Size = this.Prop_FontSize;
            gbc.UniqueName = "JobDescription";
            gbc.DataField = "Job Description";
            gbc.ReadOnly = true;
            if(!this.Prop_Wrap_Description)
                gbc.DataFormatString = "<nobr>{0}</nobr>";
            if (Prop_EnableFiltering)
            {
                gbc.AutoPostBackOnFilter = true;
                gbc.AllowFiltering = true;
            }
            gbc.AllowSorting = true;
            this._radGrid.Columns.Add(gbc);

            gbc = new GridBoundColumn();
            if (!this.Prop_FreezeInfoColumns)
                gbc.ColumnGroupName = "ProjectGroup";
            gbc.HeaderStyle.Font.Size = this.Prop_FontSize;
            gbc.ItemStyle.Font.Size = this.Prop_FontSize;
            gbc.UniqueName = "JobLineUniqueNo_";
            gbc.DataField = "Job Line Unique No_";
            gbc.ReadOnly = true;
            gbc.Visible = false;
            this._radGrid.Columns.Add(gbc);

            gbc = new GridBoundColumn();
            if (!this.Prop_FreezeInfoColumns)
                gbc.ColumnGroupName = "ProjectGroup";
            if (!string.IsNullOrEmpty(this.Prop_JobLineDescriptionCaption))
                gbc.HeaderText = this.Prop_JobLineDescriptionCaption;
            gbc.HeaderStyle.Font.Size = this.Prop_FontSize;
            gbc.ItemStyle.Font.Size = this.Prop_FontSize;
            gbc.UniqueName = "JobLineDescription";
            gbc.DataField = "Job Line Description";
            if (!this.Prop_Wrap_Description)
                gbc.DataFormatString = "<nobr>{0}</nobr>";
            gbc.ReadOnly = true;
            if (Prop_EnableFiltering)
            {
                gbc.AutoPostBackOnFilter = true;
                gbc.AllowFiltering = true;
            }
            gbc.AllowSorting = true;
            this._radGrid.Columns.Add(gbc);

            gbc = new GridBoundColumn();
            if (!this.Prop_FreezeInfoColumns)
                gbc.ColumnGroupName = "ProjectGroup";
            if (!string.IsNullOrEmpty(this.Prop_TimeValueCaption))
                gbc.HeaderText = this.Prop_TimeValueCaption;
            gbc.HeaderStyle.Font.Size = this.Prop_FontSize;
            gbc.ItemStyle.Font.Size = this.Prop_FontSize;
            gbc.UniqueName = "TimeValue";
            gbc.DataField = "TimeValue";
            gbc.ReadOnly = true;
            if (Prop_EnableFiltering)
            {
                gbc.AutoPostBackOnFilter = true;
                gbc.AllowFiltering = true;
            }
            gbc.AllowSorting = false;
            gbc.ItemStyle.HorizontalAlign = System.Web.UI.WebControls.HorizontalAlign.Center;
            this._radGrid.Columns.Add(gbc);
            dataTable.Columns.Add("TimeValue");

            int i = 0;
            string[] daynames = culture.DateTimeFormat.AbbreviatedDayNames;
            foreach (DateTime dt in dtList)
            {
                i++;
                // KalenderWoche
                CultureInfo CUI = CultureInfo.CurrentCulture;
                int kw = CUI.Calendar.GetWeekOfYear(dt, CUI.DateTimeFormat.CalendarWeekRule, CUI.DateTimeFormat.FirstDayOfWeek);
                gbc = new GridBoundColumn();
                if (!Prop_FreezeInfoColumns)
                {
                    if (Prop_ShowMonth && !Prop_ShowKW)
                        gbc.ColumnGroupName = "Year" + dt.Year.ToString() + String.Format("{0:MMMM}", dt).ToString();
                    else if (Prop_ShowKW)
                        gbc.ColumnGroupName = "Year" + dt.Year.ToString() + "KW" + kw.ToString();
                }
                gbc.HeaderStyle.Font.Size = this.Prop_FontSize;
                gbc.ItemStyle.Font.Size = this.Prop_FontSize;
                gbc.DataType = typeof(decimal);
                string day = daynames[(int)dt.DayOfWeek];
                gbc.HeaderText = day + Environment.NewLine + dt.ToString("dd");
                gbc.HeaderStyle.Wrap = false;
                gbc.UniqueName = dt.ToString("yyyy/MM/dd");
                gbc.DataField = dt.ToString("yyyy/MM/dd");
                gbc.MaxLength = 5;
                gbc.HeaderTooltip = "Zur Auswahl klicken";
                gbc.AllowFiltering = false;
                gbc.AllowSorting = false;
                gbc.HeaderStyle.HorizontalAlign = System.Web.UI.WebControls.HorizontalAlign.Center;
                switch (dt.DayOfWeek)
                {
                    case DayOfWeek.Saturday:
                    case DayOfWeek.Sunday:
                        {
                            if (!string.IsNullOrEmpty(this.Prop_WeekendColumnColor))
                                gbc.HeaderStyle.BackColor = System.Drawing.Color.FromArgb(Convert.ToInt32(this.Prop_WeekendColumnColor, 16));
                            break;
                        }
                    default:
                        {
                            break;
                        }
                }
                if (!PZEDateHasCapacity(dt))
                {
                    if (!string.IsNullOrEmpty(this.Prop_WithoutCapacityColumnColor))
                        gbc.HeaderStyle.BackColor = System.Drawing.Color.FromArgb(Convert.ToInt32(this.Prop_WithoutCapacityColumnColor, 16));
                    if (!string.IsNullOrEmpty(this.Prop_WithoutCapacityColumnColor))
                        gbc.ItemStyle.BackColor = System.Drawing.Color.FromArgb(Convert.ToInt32(this.Prop_WithoutCapacityColumnColor, 16));
                }
                this._radGrid.Columns.Add(gbc);
                dataTable.Columns.Add(dt.ToString("yyyy/MM/dd"));
            }
        }

The cells are set to editable:

protected void SetGridEditable()
{
    for (int i = 0; i < _radGrid.MasterTableView.Items.Count; i++)
    {
        _radGrid.EditIndexes.Add(i);
    }
    _radGrid.Rebind();
}

On _radGrid_ItemCreated  i implemented cell validations and rules for visibility.

protected void UpdateGridCells(GridItem gridItem)
        {
            if (gridItem is GridEditableItem && gridItem.IsInEditMode)
            {
                GridEditableItem item = gridItem as GridEditableItem;
                int i = 0;
                foreach (GridBoundColumn col in _radGrid.Columns)
                {
                    string colUniqueName = col.UniqueName;
                    if (colUniqueName.Equals("SortOrder"))
                    {
                        GridTextBoxColumnEditor editor = (GridTextBoxColumnEditor)item.EditManager.GetColumnEditor(colUniqueName);
                        TableCell cell = (TableCell)editor.TextBoxControl.Parent;
                        editor.TextBoxControl.Columns = 1;

                    }
                    DateTime colDate = DateTime.MinValue;
                    DateTime.TryParse(colUniqueName, out colDate);
                    if (colDate != DateTime.MinValue)
                    {
                        GridTextBoxColumnEditor editor = (GridTextBoxColumnEditor)item.EditManager.GetColumnEditor(colUniqueName);
                        TableCell cell = (TableCell)editor.TextBoxControl.Parent;
                        int jobLineUniqueNo = Convert.ToInt32(((DataRowView)item.DataItem).Row.ItemArray[1]);

                        string jobNo = ((DataRowView)item.DataItem).Row.ItemArray[0].ToString();
                        editor.TextBoxControl.Columns = 1;

                        int entryType = GetTimeEntryType(jobNo, jobLineUniqueNo, colDate);
                        if (entryType.Equals(0))
                        {
                            if (!string.IsNullOrEmpty(this.Prop_StandardTEColumnColor))
                                cell.BackColor = System.Drawing.Color.FromArgb(Convert.ToInt32(this.Prop_StandardTEColumnColor, 16));
                        }
                        switch (colDate.DayOfWeek)
                        {
                            case DayOfWeek.Saturday:
                            case DayOfWeek.Sunday:
                                {
                                    if (!string.IsNullOrEmpty(this.Prop_WeekendColumnColor))
                                    {
                                        col.ItemStyle.BackColor = System.Drawing.Color.FromArgb(Convert.ToInt32(this.Prop_WeekendColumnColor, 16));
                                    }
                                    break;
                                }
                            default:
                                {
                                    break;
                                }
                        }

                        int readOnly = 0;
                        int cellState = GetTimeEntryCellEditableState(jobNo, jobLineUniqueNo, colDate, out readOnly);
                        switch (cellState)
                        {
                            case 0: // nicht editierbar - Eintrag nicht vorhanden
                                {
                                    if (string.IsNullOrEmpty(((DataRowView)item.DataItem).Row.ItemArray[i].ToString()))
                                    {
                                        editor.TextBoxControl.Visible = false;
                                    }
                                    else
                                    {
                                        editor.TextBoxControl.Enabled = false;
                                    }
                                    break;
                                }
                            case 1: // ReadOnly - Eintrag nicht mehr editierbar
                                {
                                    if (string.IsNullOrEmpty(((DataRowView)item.DataItem).Row.ItemArray[i].ToString()))
                                    {
                                        editor.TextBoxControl.Visible = false;
                                    }
                                    else
                                    {
                                        decimal dec = 0;
                                        decimal.TryParse(((DataRowView)item.DataItem).Row.ItemArray[i].ToString(), out dec);
                                        if (dec == 0)
                                            editor.TextBoxControl.Visible = false;
                                        else
                                            editor.TextBoxControl.Enabled = false;
                                    }
                                    editor.TextBoxControl.ForeColor = Color.Red;
                                    break;
                                }
                            case 2: // editierbar
                                {

                                    if (string.IsNullOrEmpty(((DataRowView)item.DataItem).Row.ItemArray[i].ToString()))
                                    {
                                        editor.TextBoxControl.Visible = true;
                                    }
                                    else
                                    {
                                        editor.TextBoxControl.Enabled = true;
                                    }
                                    break;
                                }
                            case 3: // Status zurückgesetzt
                                {
                                    if (string.IsNullOrEmpty(((DataRowView)item.DataItem).Row.ItemArray[i].ToString()))
                                    {
                                        editor.TextBoxControl.Visible = true;
                                    }
                                    else
                                    {
                                        editor.TextBoxControl.Enabled = true;
                                    }
                                    editor.TextBoxControl.ForeColor = Color.Red;
                                    break;
                                }
                            case 4: // Abgeschlossen
                                {
                                    if (string.IsNullOrEmpty(((DataRowView)item.DataItem).Row.ItemArray[i].ToString()))
                                    {
                                        editor.TextBoxControl.Visible = false;
                                    }
                                    else
                                    {
                                        editor.TextBoxControl.Visible = true;
                                    }
                                    editor.TextBoxControl.Enabled = false;
                                    editor.TextBoxControl.Font.Bold = true;

                                    if (!string.IsNullOrEmpty(this.Prop_FinishedColumnColor))
                                    {
                                        col.ItemStyle.BackColor = System.Drawing.Color.FromArgb(Convert.ToInt32(this.Prop_FinishedColumnColor, 16));
                                    }
                                    break;
                                }
                            case 5: // Abgeschlossen u. Importiert
                                {
                                    if (string.IsNullOrEmpty(((DataRowView)item.DataItem).Row.ItemArray[i].ToString()))
                                    {
                                        editor.TextBoxControl.Visible = false;
                                    }
                                    else
                                    {
                                        editor.TextBoxControl.Enabled = false;
                                    }
                                    editor.TextBoxControl.Font.Bold = true;
                                    if (!string.IsNullOrEmpty(this.Prop_FinishedColumnColor))
                                        col.ItemStyle.BackColor = System.Drawing.Color.FromArgb(Convert.ToInt32(this.Prop_FinishedColumnColor, 16));
                                    break;
                                }
                            case 6: // Reviewed
                                {
                                    if (string.IsNullOrEmpty(((DataRowView)item.DataItem).Row.ItemArray[i].ToString()))
                                    {
                                        editor.TextBoxControl.Visible = false;
                                    }
                                    else
                                    {
                                        editor.TextBoxControl.Enabled = false;
                                    }
                                    editor.TextBoxControl.Font.Bold = true;
                                    editor.TextBoxControl.ForeColor = Color.Green;
                                    if (!string.IsNullOrEmpty(this.Prop_ReviewedColumnColor))
                                        col.ItemStyle.BackColor = System.Drawing.Color.FromArgb(Convert.ToInt32(this.Prop_ReviewedColumnColor, 16));
                                    break;
                                }
                        }

                        switch (entryType)
                        {
                            case 0: // Standard
                                {
                                    // not implemented
                                    break;
                                }
                            case 1: // S+P
                                {
                                    int suPType = GetSuPEntryType(jobNo, jobLineUniqueNo, colDate);
                                    string fzColor = sqlFunctions.GetPZEFZArtColor_sp(suPType);

                                    if (!string.IsNullOrEmpty(fzColor))
                                        cell.BackColor = System.Drawing.Color.FromArgb(Convert.ToInt32(fzColor, 16));
                                    if (string.IsNullOrEmpty(((DataRowView)item.DataItem).Row.ItemArray[i].ToString()))
                                    {
                                        editor.TextBoxControl.Visible = false;
                                    }
                                    else
                                    {
                                        editor.TextBoxControl.Enabled = false;
                                    }
                                    break;
                                }
                        }

                        if(!LoginUserCanUpdateResource())
                        {
                            editor.TextBoxControl.Enabled = false;
                        }
                        if (readOnly == 1)
                        {
                            if (string.IsNullOrEmpty(((DataRowView)item.DataItem).Row.ItemArray[i].ToString()))
                            {
                                editor.TextBoxControl.Visible = false;
                            }
                            else
                            {
                                decimal nullDec = 0;
                                decimal.TryParse(((DataRowView)item.DataItem).Row.ItemArray[i].ToString(), out nullDec);
                                if (nullDec != 0)
                                    editor.TextBoxControl.Enabled = false;
                                else
                                    editor.TextBoxControl.Visible = false;
                            }
                        }

                        PZECustomValidator columnValidator = new PZECustomValidator();
                        columnValidator.JobNo = jobNo;
                        columnValidator.JobLineUniqueNo = jobLineUniqueNo;
                        columnValidator.ColumnDate = colDate;
                        columnValidator.ServerValidate += columnValidator_ServerValidate;
                        columnValidator.ControlToValidate = editor.TextBoxControl.ID;
                        columnValidator.Display = ValidatorDisplay.Dynamic;
                        columnValidator.ForeColor = Color.Red;
                        columnValidator.SetFocusOnError = true;
                        columnValidator.ErrorMessage = "Fehler";
                        cell.Controls.Add(columnValidator);
                    }
                    i++;
                }
            }
            if (editableRebind)
            {
                if (gridItem is GridDataItem)
                {
                    GridDataItem item = (GridDataItem)gridItem;
                    ist_sum_filtered += decimal.Parse(((DataRowView)item.DataItem).Row.ItemArray[4].ToString());

                    int i = 0;
                    foreach (GridColumn col in _radGrid.Columns)
                    {
                        string colUniqueName = col.UniqueName;
                        DateTime colDate = DateTime.MinValue;
                        DateTime.TryParse(colUniqueName, out colDate);
                        if (colDate != DateTime.MinValue)
                        {
                            int jobLineUniqueNo = Convert.ToInt32(((DataRowView)item.DataItem).Row.ItemArray[1]);
                            string jobNo = ((DataRowView)item.DataItem).Row.ItemArray[0].ToString();
                            col_sum[i] += GetPZETimeEntryHours(jobNo, jobLineUniqueNo, colDate, colDate);
                        }
                        i++;
                    }
                }
            }
            if (gridItem is GridFooterItem)
            {
                GridFooterItem footer = (GridFooterItem)gridItem;
                decimal ist_sum_gesamt = this.GetPZETimeEntryHours(this.currentPeriodStart, this.currentPeriodEnd);
                footer["JobDescription"].Text = string.Format("Soll: {0}", decimal.Round(this.currentCapacityHours, this.Prop_MaxDecimalPlaces).ToString()); // Soll
                footer["JobLineDescription"].Text = string.Format("Rest: {0}", decimal.Round((this.currentCapacityHours - ist_sum_gesamt), this.Prop_MaxDecimalPlaces).ToString()); // Rest
                footer["TimeValue"].Text = decimal.Round(ist_sum_gesamt, this.Prop_MaxDecimalPlaces).ToString(); // Ist

                footer["JobLineDescription"].HorizontalAlign = System.Web.UI.WebControls.HorizontalAlign.Left;
                footer["TimeValue"].HorizontalAlign = System.Web.UI.WebControls.HorizontalAlign.Center;
                int i = 0;
                foreach (GridColumn col in _radGrid.Columns)
                {
                    string colUniqueName = col.UniqueName;
                    footer[colUniqueName].Font.Size = this.Prop_FontSize;
                    DateTime colDate = DateTime.MinValue;
                    DateTime.TryParse(colUniqueName, out colDate);
                    if (colDate != DateTime.MinValue)
                    {
                        footer[colUniqueName].HorizontalAlign = System.Web.UI.WebControls.HorizontalAlign.Left;
                        decimal col_sum_gesamt = this.GetPZETimeEntryHours(colDate, colDate);
                        if (col_sum_gesamt != 0)
                        {
                            if (!string.IsNullOrEmpty(_radGrid.MasterTableView.FilterExpression))
                                footer[colUniqueName].Text = string.Format("{0} ({1})", decimal.Round(col_sum[i], this.Prop_MaxDecimalPlaces).ToString(), decimal.Round(col_sum_gesamt, this.Prop_MaxDecimalPlaces));
                            else
                                footer[colUniqueName].Text = string.Format("{0}", decimal.Round(col_sum[i], this.Prop_MaxDecimalPlaces).ToString());
                        }
                    }
                    i++;
                }
            }
            if (gridItem is GridFilteringItem)
            {
                GridFilteringItem filteringItem = gridItem as GridFilteringItem;
                //set dimensions for the filter textbox
                if (this.Prop_FilteringColumnSize > 0)
                {
                    TextBox box = new TextBox();
                    if (this.additionalFeatureList.Contains("Favorites"))
                    {
                        box = filteringItem["SortOrder"].Controls[0] as TextBox;
                        box.Columns = this.Prop_FilteringColumnSize;
                        box.Font.Size = this.Prop_FontSize;
                    }
                    box = filteringItem["JobNo_"].Controls[0] as TextBox;
                    box.Columns = this.Prop_FilteringColumnSize;
                    box.Font.Size = this.Prop_FontSize;
                    box = filteringItem["JobDescription"].Controls[0] as TextBox;
                    box.Columns = this.Prop_FilteringColumnSize;
                    box.Font.Size = this.Prop_FontSize;
                    box = filteringItem["JobLineDescription"].Controls[0] as TextBox;
                    box.Columns = this.Prop_FilteringColumnSize;
                    box.Font.Size = this.Prop_FontSize;
                    box = filteringItem["TimeValue"].Controls[0] as TextBox;
                    box.Columns = this.Prop_FilteringColumnSize;
                    box.Font.Size = this.Prop_FontSize;
                }
            }
        }

I also tried several combinations of radgrid properties, nothing worked :-(

Best regards
0
Angel Petrov
Telerik team
answered on 31 Mar 2014, 05:59 AM
Hi Ronny,

I am sorry to say but the information provided is not sufficient for us to determine what might be causing this problem. In order to further investigate the matter I would like to ask you to send us an isolated sample which we can debug locally. Once we have a runnable project that we can inspect we should be able to quickly resolve the problem.

Additionally could you please tell us was there a JavaScript error on the page? Also is the project using the latest version of the controls? If not I suggest updating and testing the application again.

Regards,
Angel Petrov
Telerik


Build cross-platform mobile apps using Visual Studio and .NET. Register for the online webinar on 03/27/2014, 11:00AM US ET.. Seats are limited.


Tags
Grid
Asked by
Ronny
Top achievements
Rank 1
Answers by
Princy
Top achievements
Rank 2
Ronny
Top achievements
Rank 1
Angel Petrov
Telerik team
Share this question
or
