RadGrid Footer

[Julie]

Hello :)

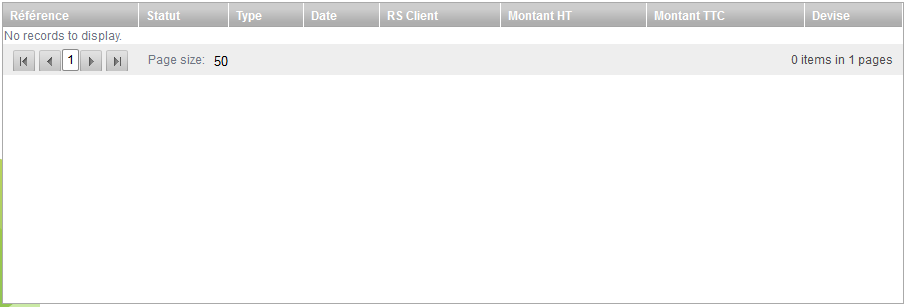

Sure it's pretty simple, but how can I put the footer (pages moves buttons, page size and number of item) in my grid foot when there is no record instead of my present grid.

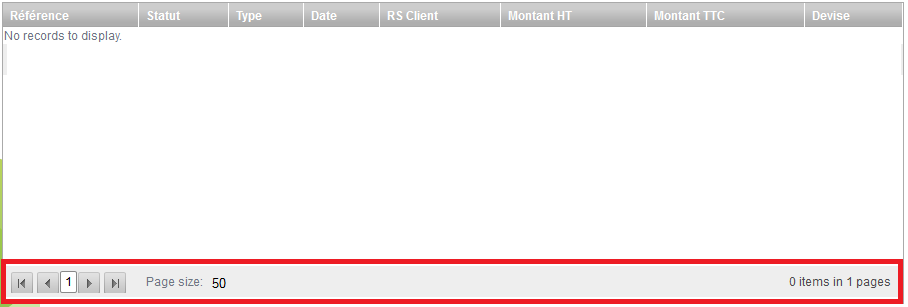

The result I would like :



Thank you
Julie

[Shinu]

Hi Julie,

 I could replicate the issue when i have set the height of the RadGrid or MasterTableView and if there is no records to display. Please try setting the height of the NoRecordTemplate using css, to place the footer as per the height of the Radgrid.

ASPX:

<telerik:RadGrid ID="RadGrid1" Height="500px">

CSS:

<style type="text/css">
    .RadGrid .rgNoRecords
    {
        height:415px ! important;
    }
    .rgNoRecords td
    {
        position:absolute !important;
        margin-top:0px !important;
    }
</style>

Thanks,
Shinu.

[Julie]

It works prefectly when there is no record.
But, for 1 or 2 record, the min-height property doesn't work and the footer goes next to the last line.
How can I fix that problem ?

Thanks a lot.
Julie

[Vasssek]

Hello Julie,

this works in my case.

1. You need set some javascript code which will fire when radgrid is created:

<telerik:RadCodeBlock ID="RadCodeBlock1" runat="server">
       <script type="text/javascript">
        function GridCreated(sender, args) {
               var scrollArea = sender.GridDataDiv;
               var dataHeight = sender.get_masterTableView().get_element().clientHeight;
               if (dataHeight < 642) {
                   if (scrollArea.scrollWidth != scrollArea.clientWidth) scrollArea.style.height = dataHeight + 18 + "px";
                   else scrollArea.style.height = dataHeight + 1 + "px";
               }
           }
     </script>
</telerik:RadCodeBlock>

2. Then you need to set height in aspx radgrid clientsection declaration:

<ClientSettings EnableRowHoverStyle="true" ReorderColumnsOnClient="True" AllowColumnsReorder="True">
           <Selecting AllowRowSelect="true" />
           <Scrolling AllowScroll="true" ScrollHeight="642px" UseStaticHeaders="false" />
       <ClientEvents OnGridCreated="GridCreated" />
    </ClientSettings>
    </telerik:RadGrid>

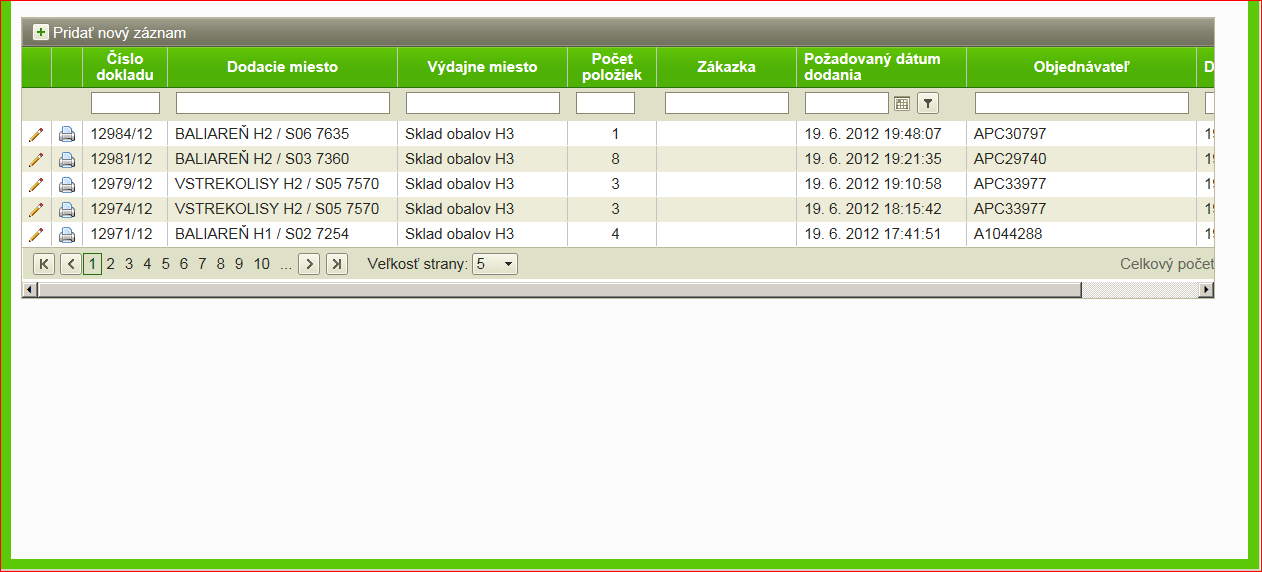

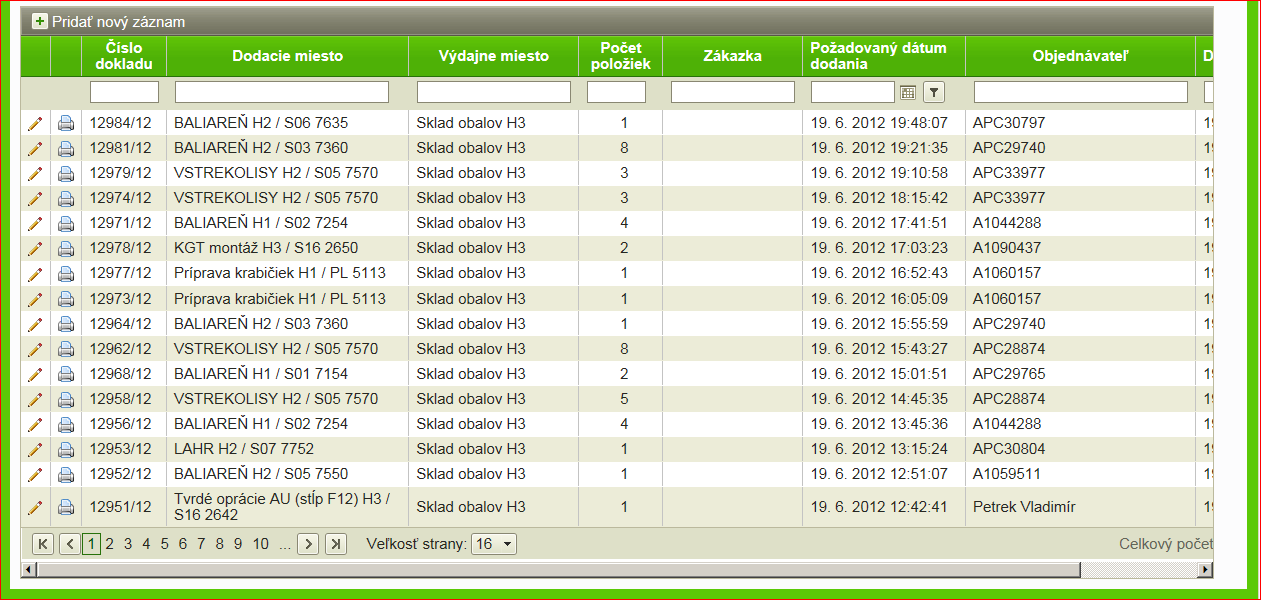

In the attachement, there are two pictures. First has 16 rows, which points to 642px height. Second has just 5 rows and as you can see, radgrid height is adjust properly...

I hope the information I have provided will help you a bit...

Best regards

Vasssek

[Shinu]

Hi Julie,

Try the following code snippet
C#:

protected void Radr_PreRender(object sender, EventArgs e)
{
   int c = Radr.Items.Count;
   Radr.MasterTableView.FooterStyle.Height = new Unit(c * 20 + 290);
   Radr.MasterTableView.Height = new Unit(c * 20 + 450);
}

Thanks,
Shinu.

[Matthew]

I ran across this same problem and none of the above solutions helped me. I did find a solution to my problem and figured I'd post it incase anyone else had the same requirements as mine. I have a area with a min height. The radgrid is inside this area. I needed the grid to fill the min height if the number of items did not cause the grid to fill the area. Then the grid needed to keep expanding vertically as more items were added. Setting the grid hight directly was causing the column filter row to distort. I was able to fix this issue by setting the scroll height info on page load, only when the minimun number of required to fill the grid was not met (meaning scroll bars are not shown and will be removed before they would appear). So as long as there are 6 or fewer items(partially filled grid) there is a scroll height with hidden scroll bars, then once the next item is added the scroll height is no longer added and the grid continues to expand vertically.

​

protected void GridPreRender(object sender, EventArgs e)
{
    int c = Grid.Items.Count;
    if (c < 7)
    {
        Grid.ClientSettings.Scrolling.AllowScroll = true;
        Grid.ClientSettings.Scrolling.UseStaticHeaders = true;
        Grid.ClientSettings.Scrolling.ScrollHeight = new Unit("335px");
    }
}

[Maria Ilieva]

Hello Matthew,

Thank you for sharing your solution. I'm sure it will be of a big help for other users that are facing the same issue.

Regards,
Maria Ilieva
Telerik
