radGrid ExportToExcel styles

[dima]

Hello,
When I export radGrid  to excel file I got a table with different text-align styles in each row. !!!!!
I'm trying set style:

radGrid1.MasterTableView.Style[

"text-align"] = "left";
but this don't solve my problem. This style for a table and not for a table cells.
how can I set cells styles?

Thanks a lot



[Princy]

Hi Dima,

I tried exporting to excel in my end and I am getting all the cells as left aligned. You can try aligning the cells by using following code snippets and see if it working fine for you.

CS:

bool isExport = false;
protected void RadGrid1_ItemCreated(object sender, GridItemEventArgs e)
{
    if (isExport && e.Item is GridDataItem)
    {
        GridDataItem Item = (GridDataItem)e.Item;
        foreach (TableCell cell in Item.Cells)
        {
            cell.Style["text-align"] = "left";

        }
    }
}

protected void RadGrid1_ItemCommand(object source, GridCommandEventArgs e)
{
    if (e.CommandName == RadGrid.ExportToExcelCommandName)
    {
        isExport = true;
        RadGrid1.ExportSettings.IgnorePaging = true;
    }
}

Thanks,
Princy.

[dima]

Hi, Princy

Thanks for you solution. I'll try it

[Shinu]

Hi Dima,

You can also have a look at the following help article which give more tips and tricks in exporting.
Exporting tips and tricks

Shinu

[Georgi Krustev]

Hi guys,

The suggested approach by Princy is perfectly right when the type of the exported grid is Html.
My suggestion is when you exporting grid in html format to wire the ExcelExportCellFormatting event. This event is raised for every cell which is created. In this event handler just set horizontal align of the cell to System.Web.UI.WebControls.HorizontalAlign.Left.

Here is a code snippet showing how to achieve this:

    protected void RadGrid1_ExcelExportCellFormatting(object source, ExcelExportCellFormattingEventArgs e)
    {
        e.Cell.HorizontalAlign = HorizontalAlign.Left;
    }

If you export the grid in ExcelML format, you have to wire other two events - ExcelMLExportStylesCreated and ExcelMLExportRowCreated. When ExcelMLExportStylesCreated event is raised you can create the style which you want to apply to the cells and add it to the style collection of the grid. Then in the RadGrid1_ExcelMLExportRowCreated event handler merely assign your custom style as a cell style.

Below is a code excerpts which describes this approach:

    void RadGrid1_ExcelMLExportStylesCreated(object source, Telerik.Web.UI.GridExcelBuilder.GridExportExcelMLStyleCreatedArgs e)
    {
        Telerik.Web.UI.GridExcelBuilder.StyleElement myStyle = new Telerik.Web.UI.GridExcelBuilder.StyleElement("MyCustomStyle");
        myStyle.AlignmentElement.HorizontalAlignment = Telerik.Web.UI.GridExcelBuilder.HorizontalAlignmentType.Left;
        e.Styles.Add(myStyle); //adding your custom style.
    }

    void RadGrid1_ExcelMLExportRowCreated(object source, Telerik.Web.UI.GridExcelBuilder.GridExportExcelMLRowCreatedArgs e)
    {
        if (e.RowType == Telerik.Web.UI.GridExcelBuilder.GridExportExcelMLRowType.DataRow)
        {
            foreach (Telerik.Web.UI.GridExcelBuilder.CellElement cell in e.Row.Cells)
            {
                cell.StyleValue = "MyCustomStyle";
            }
        }
    }

Best regards,
Georgi Krustev
the Telerik team

Check out Telerik Trainer, the state of the art learning tool for Telerik products.

[Laura]

Hello,
I tried the solution Georgi mentioned using the ExcelMLExportStylesCreated and ExcelMLExportRowCreated events, but
when i try to open the exported Excel file an error occurs and the workbook can not be opened. Is there anything else
I need to consider when I use these two events?

[Daniel]

Hi Laura,

Please post your code here. Also sharing the error message could help.
In the meantime you could examine our online examples where the you can find a fully runnable ExcelML demo.
ExcelML demo
ExcelML topic

Kind regards,
Daniel
the Telerik team

[Laura]

Hi Daniel,

thanks for your reply. Here is my code:

Codebehind:

  public void TeamAdm_ExcelMLExportStylesCreated(object sender, GridExportExcelMLStyleCreatedArgs e)

       {

           StyleElement gHeaderStyle = new StyleElement("gridHeaderStyle");

           gHeaderStyle.FontStyle.Bold = true;

           gHeaderStyle.FontStyle.Size = 10.0;

           e.Styles.Add(gHeaderStyle);

       }

public void TeamAdm_ExcelMLExportRowCreated(object source, Telerik.Web.UI.GridExcelBuilder.GridExportExcelMLRowCreatedArgs e)

       {

          if (e.RowType == GridExportExcelMLRowType.HeaderRow)
        {

               foreach (Telerik.Web.UI.GridExcelBuilder.CellElement c in e.Row.Cells)

               {

                   c.StyleValue = "gridHeaderStyle";

               }

       }

Aspx:

<telerik:RadGrid ID="gv_Team_Overview" runat="server" OnPreRender="gv_Team_Overview_PreRender"
              OnItemCommand="gv_Team_Overview_ItemCommand"
              OnItemDataBound="gv_Team_Overview_ItemDataBound"
              OnColumnsReorder="gv_Team_Overview_ColumnsReorder"
              AutoGenerateColumns="True" AllowSorting="true"
              AllowPaging="True" AllowMultiRowSelection="true"
              ExcelMLExportStylesCreated="TeamAdm_ExcelMLExportStylesCreated"
              OnExcelMLExportRowCreated="TeamAdm_ExcelMLExportRowCreated">
        <ExportSettings ExportOnlyData="True" IgnorePaging="True" OpenInNewWindow="True"
            HideStructureColumns="True" FileName="Team Overview">
          <Excel Format="ExcelML" />
         </ExportSettings>
         <ClientSettings EnableRowHoverStyle="True" AllowColumnsReorder="True"
            <Selecting AllowRowSelect="true" />
            <Scrolling AllowScroll="True" SaveScrollPosition="True"
             UseStaticHeaders="True" />
         </ClientSettings>
         <MasterTableView ShowFooter="False" CommandItemDisplay="Top"
             ExpandCollapseColumn-Display="true">
             <RowIndicatorColumn FilterControlAltText="Filter RowIndicator column">
             </RowIndicatorColumn>
             <CommandItemSettings ShowAddNewRecordButton="false"
              ShowExportToExcelButton="true"  ShowRefreshButton="true">
             </CommandItemSettings>
             <Columns>
             <telerik:GridBoundColumn DataField="NR" HeaderText="NR" UniqueName="NR">
             </telerik:GridBoundColumn>
             <telerik:GridBoundColumn DataField="TEAM" HeaderText="TEAM" UniqueName="TEAM">
             </telerik:GridBoundColumn>
             <telerik:GridBoundColumn DataField="NO_OF_WORKGROUPS"
               HeaderText="NO_OF_WORKGROUPS" UniqueName="NO_OF_WORKGROUPS">
             </telerik:GridBoundColumn>
             </Columns>
            <PagerStyle AlwaysVisible="True" Mode="NextPrevNumericAndAdvanced" />
         </MasterTableView>
         <PagerStyle Mode="NextPrevNumericAndAdvanced" />
         <FilterMenu EnableImageSprites="False"></FilterMenu>
         <HeaderContextMenu CssClass="GridContextMenu GridContextMenu_Default">
         </HeaderContextMenu>
</telerik:RadGrid>

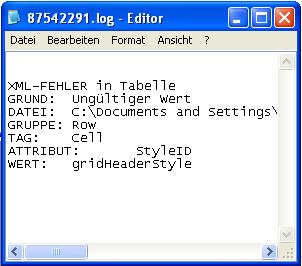

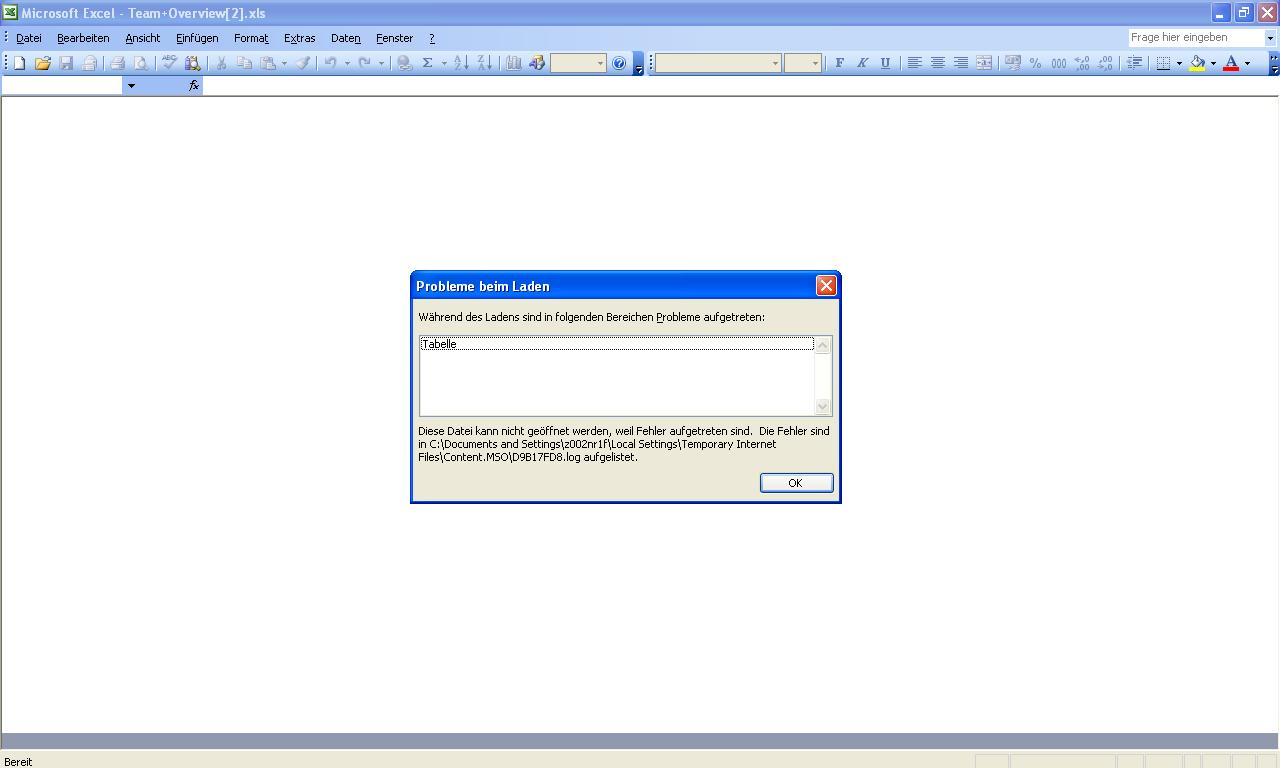

I attached the error message. It refers to a log file, which I also attached. The log file says there is an xml error in the table because of an invalid value.

Thanks,
Laura

[Laura]

I was able to solve the problem in the meantime. Thanks anyway!
