Radgrid disappear
2 Answers 44 Views
This is a migrated thread and some comments may be shown as answers.
Kiran
Top achievements
Rank 1
Kiran asked on 20 Oct 2010, 04:11 PM
Dear team

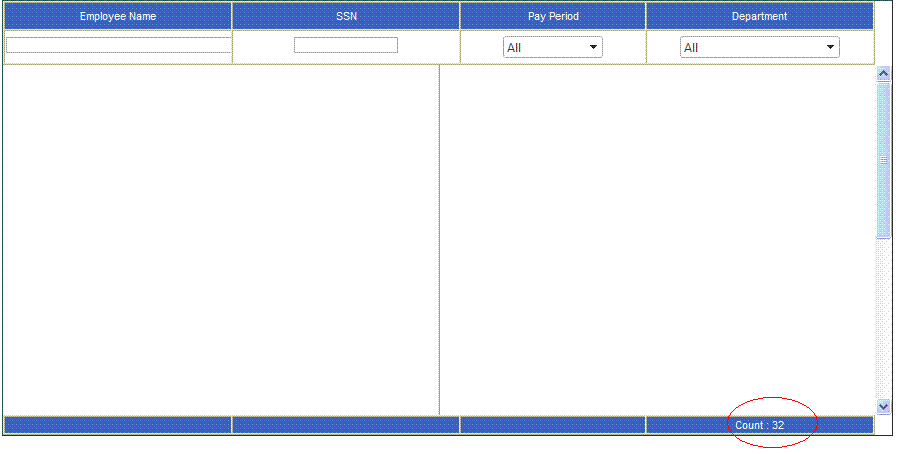

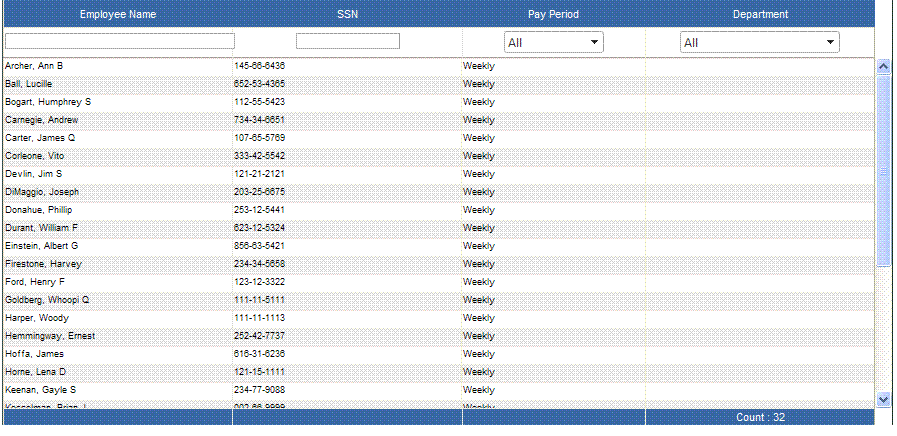

I am facing an issue with the radgrid in IE8 (Compatibitily view / IE7),  When i set gridlines = both, Radgrid gets disappeared on this browser I can see only header , its work fine with IE8

check attached screens

Below is my code,

<



telerik:RadGrid ID="RadGrid1" ShowFooter="true"





Width="99%" EnableLinqExpressions="false" FooterStyle-CssClass="GridColHeadNormal"





AllowSorting="True" runat="server">





<MasterTableView ClientDataKeyNames="KEYID">





<Columns>









<telerik:GridBoundColumn HeaderText="Employee Name" DataField="Name" UniqueName="Name"





SortExpression="Name" FilterControlWidth="100%" AutoPostBackOnFilter="true"





CurrentFilterFunction="contains" ShowFilterIcon="false" Resizable="False" />







<telerik:GridBoundColumn HeaderText="SSN" DataField="EMP_SSN"





UniqueName="SSN" SortExpression="EMP_SSN" FilterControlWidth="100px" AutoPostBackOnFilter="true"





CurrentFilterFunction="contains" ShowFilterIcon="false" Resizable="False" />







<telerik:GridBoundColumn HeaderText="Pay Period" DataField="CODE" SortExpression="CODE"





UniqueName="CODE" AutoPostBackOnFilter="true" Resizable="False" >





<FilterTemplate>





<telerik:RadComboBox ID="RadComboBoxPP" DataSourceID="SqlDataSourcePP" DataTextField="Code" Width="100px"





DataValueField="Code" Height="100px" AppendDataBoundItems="true" OnClientSelectedIndexChanged="SelectedIndexChanged"





SelectedValue='<%# TryCast(Container, GridItem).OwnerTableView.GetColumn("Code").CurrentFilterValue %>'





runat="server">





<Items>





<telerik:RadComboBoxItem Text="All" />





</Items>





</telerik:RadComboBox>





<telerik:RadScriptBlock ID="RadScriptBlock1" runat="server">





<script type="text/javascript">





function SelectedIndexChanged(sender,args) {





var tableView=$find("<%# TryCast(Container, GridItem).OwnerTableView.ClientID %>");



sender.value= args.get_item().get_value();

tableView.filter(

"CODE",args.get_item().get_value(),"EqualTo");



}



</script>





</telerik:RadScriptBlock>





</FilterTemplate>





</telerik:GridBoundColumn>





<telerik:GridBoundColumn HeaderText="Department" Aggregate="Count" DataField="Department" SortExpression="Department"





UniqueName="Department" AutoPostBackOnFilter="true" Resizable="False" >







<FilterTemplate>





<telerik:RadComboBox ID="RadComboBoxDep" DataSourceID="SqlDataSourceDepartment" DataTextField="Department"





DataValueField="Department" Height="100px" AppendDataBoundItems="true" OnClientSelectedIndexChanged="SelectedIndexChanged2"





SelectedValue='<%# TryCast(Container, GridItem).OwnerTableView.GetColumn("Department").CurrentFilterValue %>'





runat="server">





<Items>





<telerik:RadComboBoxItem Text="All" />





</Items>





</telerik:RadComboBox>





<telerik:RadScriptBlock ID="RadScriptBlock2" runat="server">





<script type="text/javascript">





function SelectedIndexChanged2(sender,args) {





var tableView=$find("<%# TryCast(Container, GridItem).OwnerTableView.ClientID %>");



sender.value= args.get_item().get_value();

tableView.filter(

"Department",args.get_item().get_value(),"EqualTo");



}



</script>





</telerik:RadScriptBlock>







</FilterTemplate>





<FooterStyle CssClass="GridColHeadNormal" />







</telerik:GridBoundColumn>





<telerik:GridNumericColumn Aggregate="Count" DataField="KEYID" Display="false"





UniqueName="KEYID" SortExpression="KEYID" ShowFilterIcon="false" AllowFiltering="false" />





</Columns>





</MasterTableView>





<ClientSettings AllowGroupExpandCollapse="False" AllowExpandCollapse="False" ReorderColumnsOnClient="False" Resizing-AllowColumnResize="False" Resizing-ClipCellContentOnResize="True" Scrolling-ScrollHeight="350px">





<ClientEvents OnRowSelected="RowSelected" />





</ClientSettings>







</telerik:RadGrid>

css



.normal



{





font-family: Verdana, 'MS Sans Serif';





font-weight: normal;





font-size: 8pt;



}






.GridColHeadNormal



{





background-color: #3969A5;





color:White ;





font-weight:normal;





font-size: 8pt;





width: 1%;





text-align: center;



}





.GridRow



{





padding-right: 5px;





padding-left: 3px;





cursor: pointer;





background-color: white;





height: 18px;





white-space: nowrap;





vertical-align: top;





text-align: left;



}





.GridAltRow



{





padding-right: 5px;





padding-left: 3px;





/*background-color: #EFE7EF;*/











background-color: #efefef;





cursor: pointer;





height: 18px;





white-space: nowrap;





vertical-align: top;





text-align: left;



}




Base class page load





Protected Sub SetRadGridProperties(ByVal grd As RadGrid)





Try









grd.EnableEmbeddedSkins =

False









grd.AutoGenerateColumns =

False









grd.CssClass =

"normal"











'grd.ShowFooter = False









grd.BorderColor = System.Drawing.Color.FromArgb(66, 105, 99)

grd.BorderWidth =

New System.Web.UI.WebControls.Unit("1")





'grd.GridLines = GridLines.Both









grd.CellPadding = 0

grd.CellSpacing = 0

grd.BorderStyle = System.Web.UI.WebControls.BorderStyle.Outset

grd.HeaderStyle.Height =

New System.Web.UI.WebControls.Unit("24")



grd.HeaderStyle.Width =

New System.Web.UI.WebControls.Unit("1")



grd.HeaderStyle.VerticalAlign = VerticalAlign.NotSet

grd.HeaderStyle.CssClass =

"GridColHeadNormal"









grd.ItemStyle.CssClass =

"GridRow"









grd.AlternatingItemStyle.CssClass =

"GridAltRow"









grd.PagerStyle.Height =

New System.Web.UI.WebControls.Unit("18")



grd.PagerStyle.HorizontalAlign = HorizontalAlign.NotSet

grd.PagerStyle.Mode = System.Web.UI.WebControls.PagerMode.NumericPages

grd.AllowSorting =

True









grd.EnableLinqExpressions =

False









grd.AllowFilteringByColumn =

True









grd.ClientSettings.Selecting.AllowRowSelect =

True









grd.ClientSettings.Scrolling.UseStaticHeaders =

True









grd.AllowMultiRowSelection =

True









grd.GridLines = GridLines.Both



''grd.ClientSettings.Scrolling.ScrollHeight = Unit.Percentage(60)









grd.ClientSettings.Scrolling.AllowScroll =

True











grd.FilterItemStyle.Height = Unit.Pixel(30)







Catch ex As Exception





End Try











End Sub








Bindgrid

Protected



Sub BindGrid2()





Dim sFilter As String = ""





Dim ssnLookUp As String = "" '--filter text box type #+, etc





Dim nKeyID As Integer = -1 '--selected criteria id





Dim iMode As Integer = 0 '--filter combo





Dim sEnhSQL As String = "1=1"





Dim blnTerm As Boolean = False '--Not clear





Dim sNumEmpNo As String = "Y" '--if emp no is numeric > global setting





Dim sValidateEmp As String = "N" '--if validate emp > global setting





Dim obj As New PerfectEmployee





Dim strExcep As String = ""





Try





If Not Page.IsPostBack Then



sourceMode =

"(For Groups)"





If obj.GetData(SqlDataSourceGroups, strExcep, "groups") = False Then





Throw New Exception(strExcep.ToString)





End If



sourceMode =

"(For Users)"





If obj.GetData(SqlDataSourceUsers, strExcep, "users") = False Then





Throw New Exception(strExcep.ToString)





End If





End If





If isSelIndex = False Then BindFilters()



sourceMode =

"(For Departments)"





If obj.GetData(SqlDataSourceDepartment, strExcep, "departments") = False Then





Throw New Exception(strExcep.ToString)





End If



sourceMode =

"(For Payperiods)"





If obj.GetData(SqlDataSourcePP, strExcep, "payperiods") = False Then





Throw New Exception(strExcep.ToString)





End If



iDisplayMode = 1

'--Name



sFilter = txtSearch.Text &

""





If sFilter.Trim <> "" Then





If sFilter.Substring(0, 1) >= "0" And sFilter.Substring(0, 1) <= "9" Then



ssnLookUp =

"TRUE"



iDisplayMode = 2

'--SSN Mumber





End If





If sFilter.Substring(0, 1) = "#" Then



iDisplayMode = 3

'--emp number





ElseIf sFilter.Substring(0, 1) = "+" Then



iDisplayMode = 4

'--Pay File Number





End If





End If



G_StrAdCriteria =

"1=1"



iMode = cmbMode.SelectedIndex



If (cmbCriteria.SelectedIndex >= cmbCriteria.Items.Count - 1) Then



G_StrAdCriteria = Request.Form(

"hdAdCriteria") & ""





If IsNumeric(G_StrAdCriteria) Then



nKeyID =

CInt(G_StrAdCriteria)



G_StrAdCriteria = GetCriteriaFormula(nKeyID)

G_StrAdCriteria = NulltoNone(G_StrAdCriteria,

"1=1")





End If





ElseIf (cmbCriteria.SelectedIndex <> 0) Then





Dim sPart1 As String = cmbCriteria.SelectedItem.Value.Split("|")(0).ToString()





Dim sPart2 As String = cmbCriteria.SelectedItem.Value.Split("|")(1).ToString()



sFlagForCrit = sPart2

nKeyID =

CInt(sPart1)





Dim sSelText As String



sSelText = cmbCriteria.SelectedItem.Text



'-- to avoid unhandled NULL statements.





If InStr(sSelText, "(filter)") > 0 Then



G_StrAdCriteria =

""





Else



G_StrAdCriteria = GetCriteriaFormula(nKeyID) &

"" '--check if criteria selected





End If





End If



G_StrAdCriteria = NulltoNone(G_StrAdCriteria,

"1=1")





'Code to filter employees based on groups, department and Payperiods





If radioGD.Items(1).Selected = True Then



G_StrAdCriteria = G_StrAdCriteria &

" and employee_main.keyid in (Select emp_key from employee_group where GRP_Key = " & cmbGroup.Items(cmbGroup.SelectedIndex).Value & ") "





'ElseIf radioGD.Items(2).Selected = True Then





' G_StrAdCriteria = G_StrAdCriteria & " and employee_main.keyid in (Select emp_key from employee_Department where DEP_KEY = " & cmbDepartment.Items(cmbDepartment.SelectedIndex).Value & ") "





'ElseIf radioGD.Items(3).Selected = True Then





' G_StrAdCriteria = G_StrAdCriteria & " and employee_main.EmpPayPeriodCd=" & cmbPayPeriod.Items(cmbPayPeriod.SelectedIndex).Value & " "





End If





'grid



RadGrid1.MasterTableView.GetColumn(

"Name").HeaderStyle.Width = Unit.Percentage(25)



RadGrid1.MasterTableView.GetColumn(

"SSN").HeaderStyle.Width = Unit.Percentage(25)



RadGrid1.MasterTableView.GetColumn(

"CODE").HeaderStyle.Width = Unit.Percentage(20)



RadGrid1.MasterTableView.GetColumn(

"Department").HeaderStyle.Width = Unit.Percentage(25)



RadGrid1.MasterTableView.GetColumn(

"KEYID").HeaderStyle.Width = Unit.Point(0)



SqlDataSourceGrid.ConnectionString = conString

SqlDataSourceGrid.SelectCommand =

"spFilterEmployee"



SqlDataSourceGrid.SelectCommandType = SqlDataSourceCommandType.StoredProcedure

SqlDataSourceGrid.SelectParameters.Clear()

SqlDataSourceGrid.SelectParameters.Add(

"Mode", cmbMode.SelectedIndex)



SqlDataSourceGrid.SelectParameters.Add(

"gtxtEnhancedSQL", sEnhSQL)



SqlDataSourceGrid.SelectParameters.Add(

"Term", 0)



SqlDataSourceGrid.SelectParameters.Add(

"strAdditionalCriteria", G_StrAdCriteria)



SqlDataSourceGrid.SelectParameters.Add(

"NUMERICEMPNBR", sNumEmpNo)



SqlDataSourceGrid.SelectParameters.Add(

"EMPVALIDATION", sValidateEmp)



RadGrid1.DataSourceID =

"SqlDataSourceGrid"









Catch excep As Exception



DisplayError(excep)



Finally





'If (Not objDS Is Nothing) Then





' objDS.Dispose()





' objDS = Nothing





'End If





'If (Not objDS Is Nothing) Then





' objDV.Dispose()





' objDV = Nothing





'End If





'If (Not objEmp Is Nothing) Then





' objEmp.Dispose()





' objEmp = Nothing





'End If





'If (Not objIntegration Is Nothing) Then





' objIntegration.Dispose()





' objIntegration = Nothing





'End If





'If (Not objCombo Is Nothing) Then





' objCombo.Dispose()





' objCombo = Nothing





'End If





End Try





End Sub





2 Answers, 1 is accepted

Sort by
0
Dimo
Telerik team
answered on 20 Oct 2010, 05:45 PM
Hi Kiran,

It will be a lot better if you paste your code by using the "Format Code Block" tool available in the editor in which you are typing. Or, paste it as plain text. Thank you.

Now to your question: this definitely looks like one of those IE bugs, which appear randomly and are triggered by specific HTML and CSS code on the page. Here are some suggestions for you.

+ do not define widths for RadGrid cells in CSS code
+ do not define padding and vertical-align styles for table rows. These should be used for table cells only
+ 1px is a too small value - grd.HeaderStyle.Width = New System.Web.UI.WebControls.Unit("1")
+ ScrollHeight should not be set in percent

You can also try applying hasLayout to RadGrid elements with CSS like this:

div, table
{
       zoom: 1 ;
}

Regards,
Dimo
the Telerik team
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
0
Danyal Rashid
Top achievements
Rank 1
answered on 10 Mar 2011, 09:39 PM
This might help someone experiencing similar issues.

I found a couple of good solutions for RadGrid disappear problem.

1. SetDataDivHeight (Javascript)
if ($find("RadGrid1")._scrolling != null)
  $find("RadGrid1")._scrolling.setDataDivHeight();

2. Conflicting Ajax settings for RadGrid
If RadGrid is contained inside another parent element (asp:Panel, RadPane, div, table, etc.) and the parent element is Ajaxified, do not add any Ajax settings for the RadGrid
// aspx
<Panel1>
  <RadGrid1>
</Panel1>
// Code behind
AjxMgr.AjaxSettings.AddAjaxSetting(Button1, Panel1)
AjxMgr.AjaxSettings.AddAjaxSetting(Button1, RadGrid1) // should not have this line

Asked by
Kiran
Top achievements
Rank 1
Answers by
Dimo
Telerik team
Danyal Rashid
Top achievements
Rank 1
Share this question
or
