RadGrid DataTable Bound Not Binding Values

[Michael Robbins]

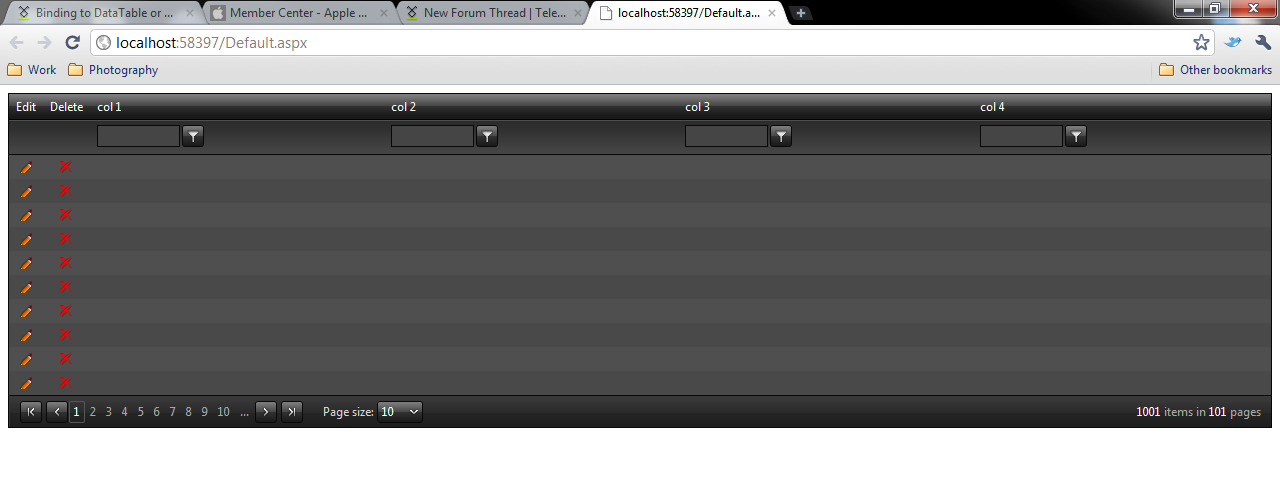

  Im data binding a radgrid to a datatable and creating the columns and setting them to a column in the datatable. This shows all the columns and creates the correct number of rows but doesn't bind the values from the datatable into the grid. My code is below. and see screenshot attached.


          Me.uxGrid.DataSource = dt

            For Each dc In dt.Columns

                gc = New GridBoundColumn

                gc.HeaderText = dc.Caption

                gc.UniqueName = dc.Caption

                gc.DataField = dc.Caption

                Me.uxGrid.MasterTableView.Columns.Add(gc)

            Next

            Me.uxGrid.DataBind()

[Iana Tsolova]

Hello Michael,

Can you specify where the code for adding the grid columns is placed? Is it in the Page_Init or Page_Load event handler? Also tell us where is the grid defined, in the page markup or code behind.

Additionally, you can refer to this help article for more information on how to dynamically create RadGrid structure.

All the best,
Iana
the Telerik team

[Michael Robbins]

Hi Grid is defined in the mark up and the code to generate columns is on the Page_PreInit.

        <telerik:RadGrid ID="uxGrid" runat="server" AutoGenerateColumns="false" AllowAutomaticDeletes="false" AllowFilteringByColumn="True" AllowSorting="True" GridLines="None" Skin="Black" AllowPaging="True"  Culture="en-GB" >

            <MasterTableView>

                <Columns>

                    <telerik:GridButtonColumn HeaderText="Edit" UniqueName="Edit" ItemStyle-HorizontalAlign="Center" CommandArgument="test" CommandName="Edit" ButtonType="PushButton" ButtonCssClass="Edit" Text="" HeaderStyle-Width="20px" HeaderStyle-HorizontalAlign="Center"></telerik:GridButtonColumn>

                    <telerik:GridButtonColumn HeaderText="Delete" UniqueName="Delete" ItemStyle-HorizontalAlign="Center" CommandArgument="test" CommandName="Delete" ButtonType="PushButton" ButtonCssClass="Delete" Text="" ConfirmText="Do you want to delete this record?" HeaderStyle-Width="20px"  HeaderStyle-HorizontalAlign="Center"></telerik:GridButtonColumn>



                </Columns>

            </MasterTableView>





        </telerik:RadGrid>

[Iana Tsolova]

Hello Michael,

RadGrid does not support mixing declarative and dynamic columns. You should either add all the columns in code behind or in the markup. Further more, if the grid is added declaratively on the page, columns should be added on Page_Load. If you decide to add the columns on Page_Init then the entire grid should created there.
Please refer to the previously provided help topic for further details.

Sincerely yours,
Iana
the Telerik team

[Michael Robbins]

How would i add these two GridButtonColumn's from the code behind?

Cheers Mike

[Princy]

Hello Michael,

You can add the GridButtonColumns in Page_Load event like below.

VB.NET:

Protected Sub Page_Load(sender As Object, e As EventArgs)
    If Not IsPostBack Then
        btncol.ButtonType = GridButtonColumnType.PushButton
        btncol.HeaderText = "Edit"
        btncol.UniqueName = "Edit"
        btncol.CommandName = "Edit"
        Me.uxGrid.MasterTableView.Columns.Add(btncol)
        ' similarly add the Delete Button
        Me.uxGrid.DataSource = dt
        Dim dc As DataColumn
        For Each dc_loopVariable As Object In dt.Columns
            dc = dc_loopVariable
            GC = New GridBoundColumn()
            GC.HeaderText = dc.Caption
            GC.UniqueName = dc.Caption
            GC.DataField = dc.Caption
            Me.uxGrid.MasterTableView.Columns.Add(GC)
        Next
        Me.uxGrid.DataBind()
    End If
End Sub

Thanks,
Princy.
