Chad Johnson asked on 03 Jan 2013, 07:51 PM



My application is using version 2012.3.1016.40 of the ASP.NET AJAX telerik controls. My interface is using a RadTabStrip. On Tab A I have the following RadGrid defined:

<telerik:RadGrid ID="radGridAttachments" runat="server" AutoGenerateColumns="false" AllowPaging="true" AllowCustomPaging="true"

OnNeedDataSource="radGridAttachments_NeedDataSource" OnInsertCommand="radGridAttachments_InsertCommand" OnItemDataBound="radGridAttachments_ItemDataBound"

Visible="false" OnDeleteCommand="radGridAttachments_DeleteCommand" OnItemCommand="radGridAttachments_ItemCommand">

<MasterTableView CommandItemDisplay="Top" DataKeyNames="ID" NoMasterRecordsText="No Attachment records to display">

<CommandItemTemplate>

<telerik:RadButton ID="radButtonAdd" runat="server" Text="Add New Attachment" CommandName="InitInsert"

Visible='<%# !radGridAttachments.MasterTableView.IsItemInserted %>'

ButtonType="StandardButton" CssClass="button" Skin="Windows7" />

</CommandItemTemplate>

<Columns>

<telerik:GridBoundColumn DataField="FileName" HeaderText="File" ReadOnly="true" />

<telerik:GridDateTimeColumn DataField="UploadDate" DataFormatString="{0:MM/dd/yyyy hh:mm tt}" HeaderText="Upload Date" ReadOnly="true" />

<telerik:GridBoundColumn DataField="UploadEmployee" HeaderText="Uploaded By" ReadOnly="true" />

<telerik:GridBoundColumn DataField="Description" HeaderText="Description" />

<telerik:GridTemplateColumn HeaderText="Attachment">

<ItemTemplate>

<telerik:RadButton ID="radButtonView" runat="server" CommandName="ViewAttachment" Text="View" CssClass="button" />

</ItemTemplate>

</telerik:GridTemplateColumn>

<telerik:GridButtonColumn UniqueName="DeleteColumn" ButtonType="PushButton" Text="Delete" CommandName="Delete" />

</Columns>

<PagerStyle AlwaysVisible="True" />

<EditFormSettings EditFormType="Template">

<FormTemplate>

<table>

<tr>

<td><asp:Label Text="File:" runat="server" /></td>

<td><telerik:RadAsyncUpload ID="radAsyncUpload" runat="server" InitialFileInputsCount="1" MaxFileInputsCount="1" ControlObjectsVisibility="None" /></td>

</tr>

<tr>

<td><asp:Label Text="Description:" runat="server" /></td>

<td><telerik:RadTextBox ID="radTextBoxFileDescription" runat="server" Text='<%# Bind("Description") %>' /></td>

</tr>

<tr>

<td colspan="2">

<telerik:RadButton ID="radButtonInsert" runat="server" Text='<%# (Container is GridEditFormInsertItem) ? "Insert" : "Update" %>'

CommandName='<%# (Container is GridEditFormInsertItem) ? "PerformInsert" : "Update" %>'

OnClientClicking="radButtonInsert_ClientClicking" CssClass="button">

</telerik:RadButton>

<telerik:RadButton ID="radButtonCancel" runat="server" Text="Cancel" CausesValidation="false"

CommandName="Cancel" CssClass="button">

</telerik:RadButton>

</td>

</tr>

</table>

</FormTemplate>

</EditFormSettings>

</MasterTableView>

<ClientSettings>

<Scrolling AllowScroll="true" UseStaticHeaders="true" />

</ClientSettings>

<PagerStyle Mode="NextPrevAndNumeric" AlwaysVisible="true" />

<FilterMenu EnableImageSprites="False">

</FilterMenu>

</telerik:RadGrid>

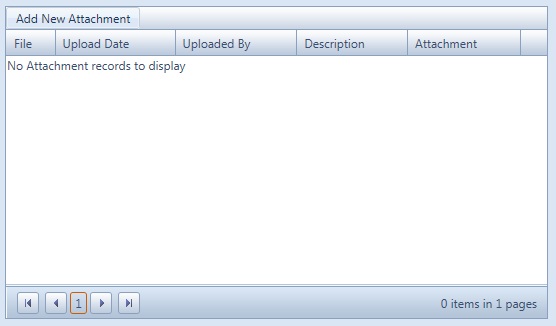

The Tab A RadGrid is shown in the attachment named TabARadGrid.jpg.

On Tab B I have the following RadGrid defined:

<telerik:RadGrid ID="radGridClients" runat="server" AllowCustomPaging="True" AllowFilteringByColumn="true"

AllowPaging="True" AllowSorting="True" AutoGenerateColumns="False" GridLines="Horizontal"

EnableLinqExpressions="False" Width="100%" Visible="false"

OnNeedDataSource="radGridClients_NeedDataSource" OnItemDataBound="radGridClients_ItemDataBound"

OnInit="radGridClients_Init" EnableHeaderContextMenu="true" GroupingEnabled="false">

<GroupingSettings CaseSensitive="false" />

<MasterTableView DataKeyNames="ID" AllowCustomSorting="true" NoMasterRecordsText="No Client records to display">

<Columns>

<telerik:GridHyperlinkColumn DataNavigateUrlFields="ID" DataTextField="ID" HeaderText="Client ID" SortExpression="ID" UniqueName="ClientID" />

<telerik:GridBoundColumn DataField="LastName" HeaderText="Last" SortExpression="LastName" UniqueName="LastName" />

<telerik:GridBoundColumn DataField="FirstName" HeaderText="First" SortExpression="FirstName" UniqueName="FirstName" />

<telerik:GridBoundColumn DataField="MiddleName" HeaderText="Middle" SortExpression="MiddleName" UniqueName="MiddleName" />

<telerik:GridBoundColumn DataField="SSN4" HeaderText="SSN4" SortExpression="SSN4" UniqueName="SSN4" />

</Columns>

<PagerStyle AlwaysVisible="True" />

</MasterTableView>

<ClientSettings>

<Scrolling AllowScroll="true" UseStaticHeaders="true" />

</ClientSettings>

<PagerStyle Mode="NextPrevAndNumeric" AlwaysVisible="true" />

<FilterMenu EnableImageSprites="False">

</FilterMenu>

</telerik:RadGrid>

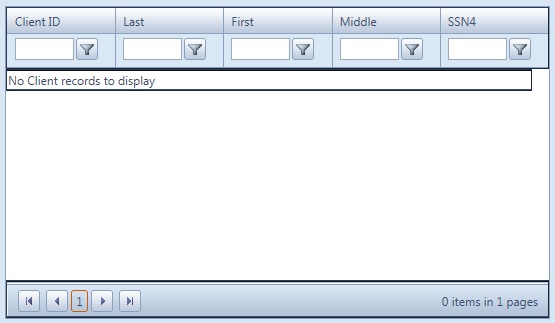

The Tab B RadGrid is shown in the attachment named TabBRadGrid.jpg.

In my Web.Config file I have the following line in the <appSettings> section:

<add key="Telerik.Skin" value="Office2010Blue" />

I am not applying any further styling of my own to the RadGrids.

My first question is why does the Tab B RadGrid have bold lines in the header and footer and around the "No records..." message and the Tab A RadGrid doesn't?

My second question is how do I get the Tab B RadGrid to look like the Tab A RadGrid (no bold lines, etc.)?
