RadEditor’s Toolbar icons missing images and functionalities
2 Answers 74 Views
This is a migrated thread and some comments may be shown as answers.
Stephen
Top achievements
Rank 1
Stephen asked on 29 Jul 2012, 03:06 PM

Hi,

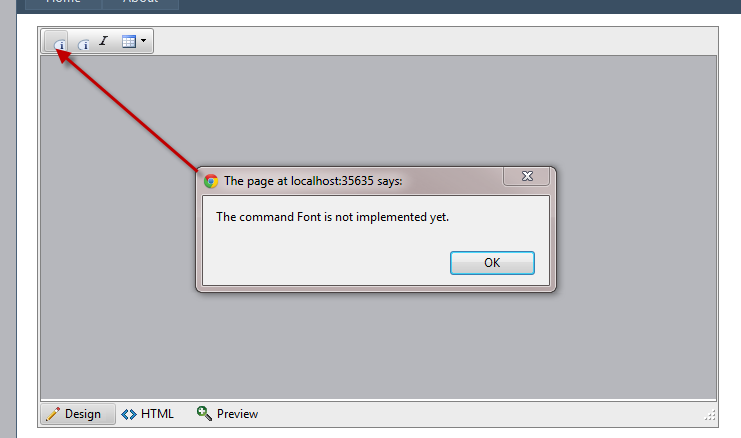

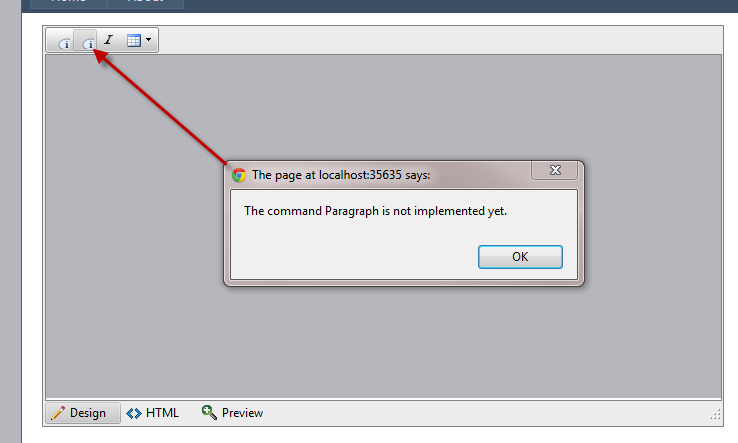

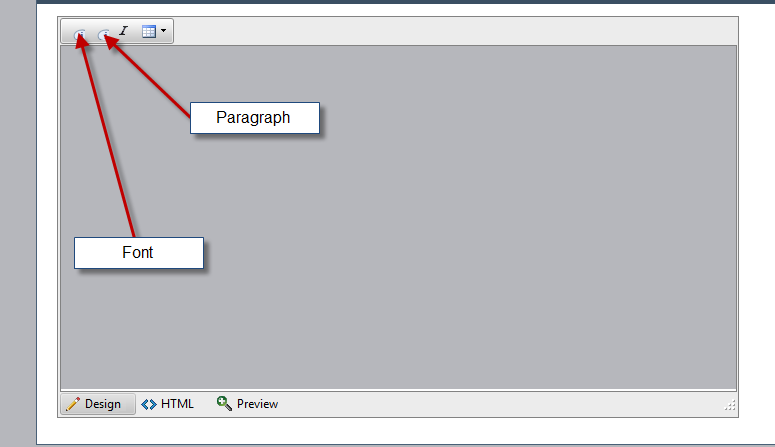

I have issue with some of the tools icons in RadEditor. Some of the icon shows and functioning as it supposed to, but some it does not show the icon image and looks like it has some problem firing the event for the button as well. This is really simple and I haven’t used any JavaScript. I also attached couple of images for mentioned issue.

Your advice and help would greatly be appreciated!



<%@ Page Title="Home Page" Language="C#" MasterPageFile="~/Site.master" AutoEventWireup="true"
    CodeBehind="Default.aspx.cs" Inherits="TestAndDelete._Default" %>

<%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>

<asp:Content ID="HeaderContent" runat="server" ContentPlaceHolderID="HeadContent">
</asp:Content>
<asp:Content ID="BodyContent" runat="server" ContentPlaceHolderID="MainContent">
    <asp:ScriptManager ID="ScriptManager1" runat="server">
    </asp:ScriptManager>

    <telerik:RadEditor ID="RadEditor1" runat="server">
        <Tools>
            <telerik:EditorToolGroup>
                <telerik:EditorTool Name="Font" />
                <telerik:EditorTool Name="Paragraph" />
                <telerik:EditorTool Name="Italic" />
                <telerik:EditorTool Name="InsertTable" />
            </telerik:EditorToolGroup>
        </Tools>
        <Content>
</Content>
    </telerik:RadEditor>
</asp:Content>

2 Answers, 1 is accepted

Sort by
0
Rumen
Telerik team
answered on 01 Aug 2012, 03:01 PM
Hi,

RadEditor does not offer tools called Font and Paragraph.

You can replace them with FontName, FontSize and InsertParagraph.

More information is available in this help article: Introduction to Toolbars.

All the best,
Rumen
the Telerik team
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
0
Waseem
Top achievements
Rank 1
answered on 05 Sep 2014, 05:07 PM
 Radeditor icons are missing in Internet explorer. But when i show full RadEditor. it is showing correctly.

<telerik:RadEditor ID="txtEditor1" runat="server" ToolbarMode="Default" BorderStyle="None" EditModes="Design" BorderWidth="0" BorderColor="Transparent"
                                                     Height="190" Width="575">
                                                      <Tools>
                                                        <telerik:EditorToolGroup>
                                                            <telerik:EditorTool Name="Bold" />
                                                            <telerik:EditorTool Name="Italic" />
                                                            <telerik:EditorTool Name="Underline" />
                                                            <telerik:EditorTool Name="ForeColor" />
                                                            <telerik:EditorTool Name="InsertSymbol" />
                                                        </telerik:EditorToolGroup>
                                                        <telerik:EditorToolGroup>
                                                            <telerik:EditorTool Name="InsertUnorderedList" />
                                                            <telerik:EditorTool Name="InsertOrderedList" />
                                                        </telerik:EditorToolGroup>
                                                        <telerik:EditorToolGroup>
                                                            <telerik:EditorTool Name="Outdent" />
                                                            <telerik:EditorTool Name="Indent" />
                                                        </telerik:EditorToolGroup>
                                                        <telerik:EditorToolGroup>
                                                            <telerik:EditorTool Name="JustifyLeft" />
                                                            <telerik:EditorTool Name="JustifyCenter" />
                                                            <telerik:EditorTool Name="JustifyRight" />
                                                        </telerik:EditorToolGroup>
                                                        <telerik:EditorToolGroup>
                                                            <telerik:EditorTool Name="LinkManager" />
                                                        </telerik:EditorToolGroup>
                                                        <telerik:EditorToolGroup>
                                                            <telerik:EditorToolStrip Name="InsertTable" />
                                                        </telerik:EditorToolGroup>
                                                    </Tools>
                                                    <Content>
                                                    </Content>

                                                </telerik:RadEditor>


Thanks,
Muhammad Waseem
The Telerik Team
