RadEditor's DockingZone Work in RibbonBar Mode ?

1 Answer 34 Views

Editor

This is a migrated thread and some comments may be shown as answers.

gzzn asked on 14 May 2012, 05:21 PM



<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebFormEditorDock.aspx.cs" Inherits="X.Model.GOV.Public.WebFormEditorDock" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head runat="server">

<title>RadEditor RibbonBar outerdiv Test</title>

</head>

<body>

<form id="form1" runat="server">

<telerik:RadScriptManager ID="RadScriptManager1" runat="server">

<Scripts>

<asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.Core.js" />

<asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.jQuery.js" />

<asp:ScriptReference Assembly="Telerik.Web.UI" Name="Telerik.Web.UI.Common.jQueryInclude.js" />

</Scripts>

</telerik:RadScriptManager>

<telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">

</telerik:RadAjaxManager>

<table width="640px" border="1" style="border-collapse:collapse;">

<tr><td><div id="outerdiv"></div></td></tr>

<tr><td><input type="text" runat="server" value="Please Input Title Here ..." style="width:99%;" /></td></tr>

<tr>

<td>

<telerik:RadEditor ID="RadEditor1" runat="server" ToolbarMode="Default" ToolsFile="~/xml/EditorRibbonBarDock.xml" Width="100%">

<Content>Please Input Text Here ...</Content>

</telerik:RadEditor>

</td>

</tr>

</table>

</form>

</body>

</html>

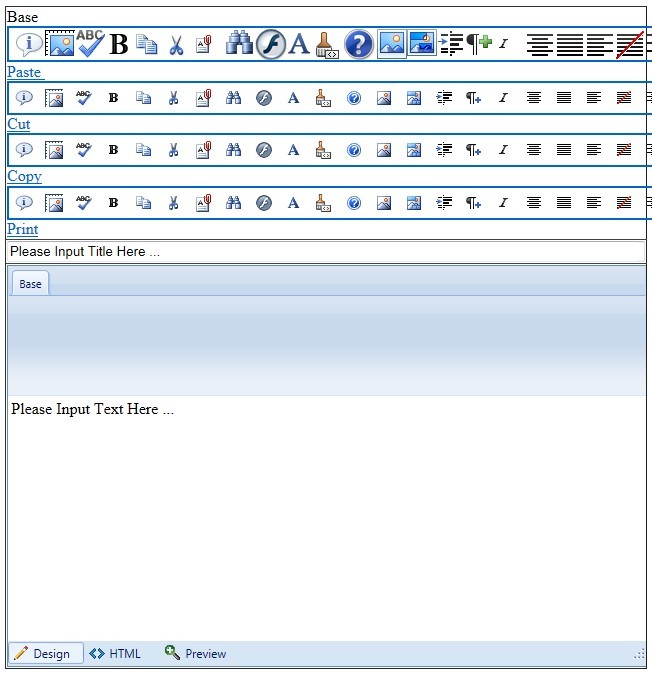

when i change ToolbarMode="Default" as ToolbarMode="RibbonBar", it work wrong.

EditorRibbonBarDock.xml

<?xml version="1.0" encoding="utf-8" ?>

<root>

<tools name="Base" tab="Base" Enabled="true" DockingZone="outerdiv">

<tool name="PasteStrip" size="large" />

<tool name="Cut" size="medium" />

<tool name="Copy" size="medium" shortcut="CTRL+C" />

<tool name="Print" size="medium" shortcut="CTRL+P" />

</tools>

</root>

1 Answer, 1 is accepted

answered on 16 May 2012, 03:49 PM

Hello,

You can achieve the requested ribbonbar in an outer div functionality using the following code:

<div id="RibbbonBarWrapper" class="RadEditor">

</div>

<br />

<telerik:RadEditor ID="RadEditor1" runat="server" OnClientLoad="OnClientLoad" ToolbarMode="RibbonBar">

</telerik:RadEditor>

<script type="text/javascript">

function OnClientLoad(editor) {

$get('RibbbonBarWrapper').appendChild(editor.get_toolAdapter().get_toolsWrapper());

}

</script>

You can also move the RibbbonBarWrapper div to the desired location on the page.

Regards,
Rumen
