RadDock content width changes after collapse/expand

4 Answers 145 Views

Dock

This is a migrated thread and some comments may be shown as answers.

Michael asked on 11 May 2010, 10:43 PM

When specifying the raddock's content width to be 100%, Firefox 3.6 and IE8 appear to function as expected; however, Safari(4.0.5) and Chrome(4.1.249.1064) seem to lose some width after the raddock control is collapsed, and then expanded.

Perhaps I'm doing something wrong? Any help is greatly appreciated.

Below is a snippet of the code:


            <form id="form1" runat="server" method="post">

                <telerik:RadScriptManager ID="scriptManager1" runat="server"></telerik:RadScriptManager>

                <telerik:RadDockZone runat="server" ID="dzLeft" Orientation="Vertical" FitDocks="true">

                    <telerik:RadDock runat="server" ID="raddock1" Title="RadDock1" DefaultCommands="ExpandCollapse">

                        <ContentTemplate>

                            <div style="background: grey; width: 100%;">&nbsp;</div>

                        </ContentTemplate>

                    </telerik:RadDock>

                </telerik:RadDockZone>

            </form>

Thanks,

Mike

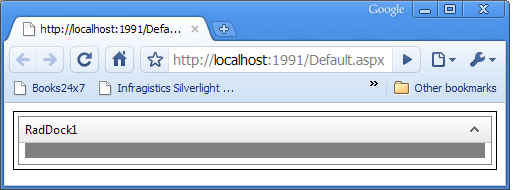

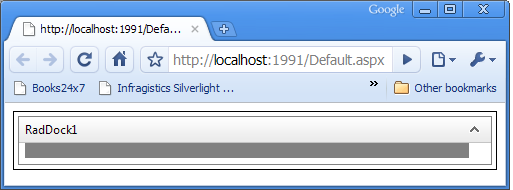

edit: attached before and after images.

4 Answers, 1 is accepted

answered on 12 May 2010, 04:42 PM



I am using version 2009.3.1103.35 of Telerik.Web.UI.dll.

Mike

Accepted

answered on 13 May 2010, 11:53 AM

Hi Mike,

It seems like, this is a browser related issue. When the dock is collapsed, its content is hid using display: none. After expanding the dock, the browser (Safari or Chrome) does not correctly redraw, the previously hidden content. To avoid the problem, you can reset the width of the <div/> to 100%, when the dock is expanded or collapsed. Here is a sample source code that does that:

<%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head runat="server">

<title></title>

<script type="text/javascript">

function resizeDiv(sender, args)

{

if (args.command.get_name() == "ExpandCollapse")

{

$get("a1").style.width = "100%";

window.setTimeout(function() { $get("a1").style.width = ""; }, 1);

}

</script>

</head>

<body>

<form id="form1" runat="server" method="post">

<telerik:RadScriptManager ID="scriptManager1" runat="server">

</telerik:RadScriptManager>

<telerik:RadDockZone runat="server" ID="dzLeft" Orientation="Vertical" FitDocks="true"

Width="300px">

<telerik:RadDock Title="RadDock1" DefaultCommands="ExpandCollapse" runat="server"

EnableAnimation="false" Width="500px" OnClientCommand="resizeDiv">

<ContentTemplate>

<div id="a1" style="background: grey;">

some content

</div>

</ContentTemplate>

</telerik:RadDock>

</telerik:RadDockZone>

</form>

</body>

</html>

Our recommendation is to not set width to the <div/> at all, since it is a "block" element, and its width will be 100% by default. For example if you set border: 2px solid Red; and width:100%, scrollbars will be shown, which is not the case if the width is not set at all.

Best wishes,
Pero
