RadContext Menu issue in RadGrid

6 posts, 0 answers
  1. Sunil
    Sunil avatar
    29 posts
    Member since:
    Jul 2010

    Posted 30 Jul 2010 Link to this post

    Hi all,

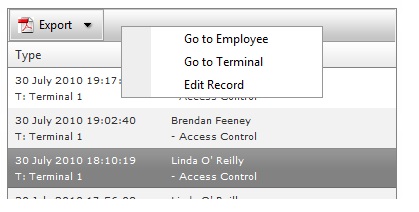

    I have a context menu in a grid. The context menu works as it should but when I right click on areas in the grid that are not rows or columns then I get a code error because there is no row selected. If you look at the attached image you can see what I mean.

    Code is below. I've set the context menu target to the grid.

    Thanks for any help!

             <asp:SqlDataSource ID="SqlDataSource_PT20" runat="server">
             </asp:SqlDataSource>
         </asp:PlaceHolder>
    <asp:PlaceHolder ID="PlaceHolder2" runat="server">
    <input type="hidden" id="RadGridClickedRowIndex" name="RadGridClickedRowIndex" value="1" />
     <telerik:RadGrid ID="RadGrid_PT20" runat="server" AutoGenerateColumns="false"
     AllowMultiRowSelection="false" AllowPaging="True" AllowCustomPaging="True" PageSize="15" AllowAutomaticInserts="false"
     GridLines="None" CellPadding="0" AllowSorting="false" Skin="Default" OnItemDataBound="Att_Log_Translate"
     ItemStyle-VerticalAlign="Top" OnNeedDataSource="RadGrid_PT20_NeedDataSource">
         <ExportSettings IgnorePaging="false" OpenInNewWindow="true">
             <Pdf PageHeight="297mm" PageWidth="210mm" PageTitle="OnTime System Logs" />
         </ExportSettings>
         <PagerStyle Mode="NextPrevAndNumeric"/>
         <MasterTableView Width="100%" CommandItemDisplay="Top" GridLines="None" AllowAutomaticInserts="false">
         <CommandItemSettings ShowAddNewRecordButton="false" />
         <CommandItemTemplate>
             <telerik:RadToolBar ID="RadToolBar_PT20" runat="server" Skin="Default"
             OnButtonClick="RadToolBar_PT20_CommandClick">
                 <Items>
                     <telerik:RadToolBarDropDown Text="Export" ImageUrl="Images/pdf_icon.gif">
                         <Buttons>
                             <telerik:RadToolBarButton Text="Export Current View"  Group="Bold"
                             CheckOnClick="true" AllowSelfUnCheck="true"
                              CommandName="ExportToPDF" ImageUrl="Images/pdf_icon.gif"/>
                             <telerik:RadToolBarButton Text="Export All Records" Group="Italic"
                             CheckOnClick="true" AllowSelfUnCheck="true" />
                         </Buttons>
                     </telerik:RadToolBarDropDown>
                 </Items>
             </telerik:RadToolBar>
         </CommandItemTemplate>
             <Columns>

                  <telerik:GridBoundColumn UniqueName="Log_ID" DataField="Attendance_Logs_Auto_ID" HeaderText="Log ID"
                  Visible="false"/>
                  <telerik:GridBoundColumn UniqueName="Employee_First_Name" DataField="Employee_First_Name" HeaderText="First Name"
                  Visible="false"/>
                 <telerik:GridTemplateColumn UniqueName="PT20_Left_Column" HeaderText="Type" HeaderStyle-Width="40%">
                     <ItemTemplate>

                         <asp:Panel ID="Panel3" runat="server" CssClass="logs_table_text">
                             <asp:Literal ID="Literal_Att_Logs_DateTime" runat="server"
                             Text='<%# Eval("Attendance_Logs_DateTime").ToString() %>'></asp:Literal>
                             <br />
                             <asp:Literal ID="Literal2" runat="server" meta:resourcekey="Literal2Resource1"
                              Text="T: "></asp:Literal>
                             <asp:Literal ID="Literal_Att_Logs_Terminal_Name" runat="server"
                             Text='<%# Eval("Terminal_Name").ToString() %>'></asp:Literal>
                         </asp:Panel>
                     </ItemTemplate>
                 </telerik:GridTemplateColumn>

                 <telerik:GridTemplateColumn UniqueName="PT20_Right_Column" HeaderText="Description" HeaderStyle-Width="60%">
                     <ItemTemplate>
                     <asp:Panel ID="Panel4" runat="server" CssClass="logs_table_text" >
                         <asp:Literal ID="Literal_Att_Logs_Employee_Name" runat="server"
                         Text='<%# Eval("Employee_First_Name").ToString() %>'></asp:Literal>
                             <asp:Literal ID="Literal_Att_Logs_Employee_Name1" runat="server"
                             Text='<%# Eval("Employee_Last_Name").ToString() %>'></asp:Literal>
                             <br />
                             <asp:Literal ID="Literal1" runat="server" meta:resourcekey="Literal1Resource1" Text="-">
                             </asp:Literal>
                             <asp:Literal ID="Literal_Att_Logs_Type" runat="server"
                              Text='<%# Eval("Attendance_Logs_Type").ToString() %>'>
                              </asp:Literal>
                     </asp:Panel>
                     </ItemTemplate>
                 </telerik:GridTemplateColumn>
             </Columns>
         </MasterTableView>
         <ClientSettings>
             <Selecting AllowRowSelect="true" />
             <ClientEvents OnRowContextMenu="PT20_ContextMenu"></ClientEvents>
         </ClientSettings>
     </telerik:RadGrid>
     <telerik:RadContextMenu ID="RadMenu_PT20" runat="server" OnItemClick="RadMenu_PT20_ItemClick"
     Skin="Default" >
           <Items>
                <telerik:RadMenuItem Text="Go to Employee" />
                <telerik:RadMenuItem Text="Go to Terminal" />
                <telerik:RadMenuItem Text="Edit Record" />
           </Items>
           <Targets>
                <telerik:ContextMenuControlTarget ControlID="RadGrid_PT20"/>
           </Targets>
     </telerik:RadContextMenu>
  2. Sunil
    Sunil avatar
    29 posts
    Member since:
    Jul 2010

    Posted 30 Jul 2010 Link to this post

    Just to clarify, although you can see a row selected in that picture, its just the previous row that I manually selected.

    I right clicked on the toolbar and the context menu appears.
    I right click on the column names in the grid and the menu appears.

    I just want the menu to appear for the rows/columns in the rad grid.

    Thanks
  3. Sunil
    Sunil avatar
    29 posts
    Member since:
    Jul 2010

    Posted 01 Aug 2010 Link to this post

    I fixed this by getting rid of the target tag in the context menu....

    I still have one question though. How does the context menu know to bind itself to the grid???

    Sunny
  4. Yana
    Admin
    Yana avatar
    5025 posts

    Posted 05 Aug 2010 Link to this post

    Hi Sunil,

    The grid is subscribed to the client-side OnRowContextMenu event, can you paste the code of its handler? Thanks

    Greetings,
    Yana
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  5. Sunil
    Sunil avatar
    29 posts
    Member since:
    Jul 2010

    Posted 05 Aug 2010 Link to this post

    Hi,

    Code is pasted below. As you will note, I've had to manually type in the name of the RadMenu control. The reason I have done this is because the RadMenu and RadGrid (code posted in first post on thread) controls are in a Web User Control. This WUC is then loaded in a default.aspx page.

    You could make the RadMenu a public property with get/set methods but I just typed the name on the control instead.

    function PT20_ContextMenu(sender, eventArgs) {
        var menu = $find("WUC_previous_20_transactions_wuc_RadMenu_PT20");
        var evt = eventArgs.get_domEvent();

        if (evt.target.tagName == "INPUT" || evt.target.tagName == "A") {
            return;
        }

        var index = eventArgs.get_itemIndexHierarchical();
        document.getElementById("RadGridClickedRowIndex").value = index;

        sender.get_masterTableView().selectItem(sender.get_masterTableView().get_dataItems()[index].get_element(), true);

        menu.show(evt);

        evt.cancelBubble = true;
        evt.returnValue = false;

        if (evt.stopPropagation) {
            evt.stopPropagation();
            evt.preventDefault();
        }
    }
  6. Yana
    Admin
    Yana avatar
    5025 posts

    Posted 10 Aug 2010 Link to this post

    Hello Sunny,

    Actually you open the context menu manually using its show() method. Also you can access the client-side object of the menu like this:

    var menu = $find("<%=RadMenu_PT20.ClientID %>");


    All the best,
    Yana
    the Telerik team
