RadComboBox arrow cell size changes when AllowCustomText option set

[Karl]

Hi All,

I have a custom skin for my RadComboBox and wondered if any of you out there could explain to me why the arrow 'box' on the right of the control changes width if I set the "AllowCustomeText" option to true?

I have attached the exact code I'm using to create the issue along with my custom skin. It is worth noting that this custom skin was generated with the Beta version of Teleriks's StyleBuilder ( http://stylebuilder.telerik.com ) . Of course because this is in Beta it's not guaranteed to generate skins with out teething problems and I understand that. That said I'm using Teleriks icon png file.

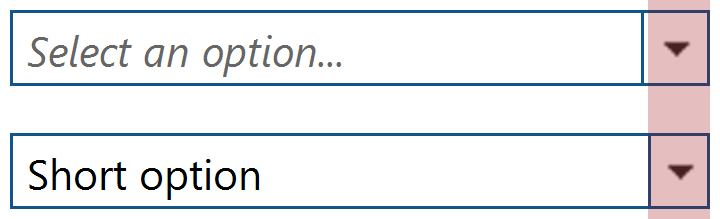

I've also attached a blown up image of the controls sat on my page and highlighted the difference in width between them. The only difference between the setup of these controls is that the top on has AllowCustomText="True" whereas the bottom one doesn't have the option set at all.

To configure a test page, save my skin, reference it in a new asp.net web page, copy my code in and start debugging.

Relevant ASP.Net mark up:

 <telerik:RadComboBox
                id="Test15"
                runat="server"
                width="200px"
                height="100px"
                DropDownWidth="200px"
                AllowCustomText="true"
                EmptyMessage="Select an option..."
                Skin="Probitas"
                EnableEmbeddedSkins="false"
                onClientDropDownClosing="AlignDropDownCaretLeft"
                >
            <Items>
                <telerik:RadComboBoxItem Text="Short option" Value="1" />
                <telerik:RadComboBoxItem Text="AaBbCcDdEeFfGgHhIiJjKkLlMmNnOoPpQqRrSsTtUuVvWwXxYyZz1234567890" Value="2" />
                <telerik:RadComboBoxItem Text="aAbBcCdDeEfFgGhHiIjJkKlLmMnNoOpPqQrRsStTuUvVwWxXyYzZ0123456789" Value="3" />
                <telerik:RadComboBoxItem Text="ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz9876543210" Value="4" />
                <telerik:RadComboBoxItem Text="abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ9876543210" Value="5" />
            </Items>
        </telerik:RadComboBox><br />
        <br />
         <telerik:RadComboBox
                id="Test16"
                runat="server"
                width="200px"
                height="100px"
                DropDownWidth="200px"
                AllowCustomText="false"
                EmptyMessage="Select an option..."
                Skin="Probitas"
                EnableEmbeddedSkins="false"
                onClientDropDownClosing="AlignDropDownCaretLeft"
                >
            <Items>
                <telerik:RadComboBoxItem Text="Short option" Value="1" />
                <telerik:RadComboBoxItem Text="AaBbCcDdEeFfGgHhIiJjKkLlMmNnOoPpQqRrSsTtUuVvWwXxYyZz1234567890" Value="2" />
                <telerik:RadComboBoxItem Text="aAbBcCdDeEfFgGhHiIjJkKlLmMnNoOpPqQrRsStTuUvVwWxXyYzZ0123456789" Value="3" />
                <telerik:RadComboBoxItem Text="ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz9876543210" Value="4" />
                <telerik:RadComboBoxItem Text="abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ9876543210" Value="5" />
            </Items>
        </telerik:RadComboBox><br />

StyleSheet (ComboBox.Probitas.Css):

/* RadComboBox Simple skin */

/*global*/

.RadComboBox_Probitas,
.RadComboBox_Probitas .rcbInput,
.RadComboBoxDropDown_Probitas
{
    font: 12px "Segoe UI", Arial, sans-serif;
    color: #333;
}

/* combobox */

div.RadComboBox_Probitas table td.rcbInputCell
{
    height: 18px;
    line-height: 18px;
    border: 1px solid #10568A;
    background: #fff;
}

* html div.RadComboBox_Probitas table td.rcbInputCell
{
    height /**/: 20px;
    line-height /**/: 20px;
}

div.RadComboBox_Probitas table td.rcbInputCellLeft { border-width: 1px 0 1px 1px; }
div.RadComboBox_Probitas table td.rcbInputCellRight { border-width: 1px 1px 1px 0; }

* html div.RadComboBox_Probitas .rcbInputCell .rcbInput
{
    height /**/: 16px;
    padding /**/: 2px 0; /* This should fix the ajax introduced height in IE7 and not break IE6 */
}

.RadComboBox_Probitas .rcbInputCell .rcbEmptyMessage
{
    color: #666;
}

.RadComboBox_Probitas .rcbHovered .rcbInputCell .rcbInput,
.RadComboBox_Probitas .rcbFocused .rcbInputCell .rcbInput { color: #333333; }

div.RadComboBox_Probitas table td.rcbArrowCell
{
    border: 1px solid #10568A;
    background: #fff url('ComboBox/rcbSprite.png') no-repeat -1px 50%;
}

div.RadComboBox_Probitas .rcbReadOnly .rcbArrowCellLeft,
div.RadComboBox_Probitas .rcbArrowCellHidden.rcbArrowCellLeft { border-width: 1px 1px 1px 1px; }
div.RadComboBox_Probitas .rcbReadOnly .rcbArrowCellRight,
div.RadComboBox_Probitas .rcbArrowCellHidden.rcbArrowCellRight { border-width: 1px 1px 1px 1px; }

.RadComboBox_Probitas td.rcbArrowCell { background-position: -1px 50%; }
.RadComboBox_Probitas .rcbHovered .rcbArrowCell { background-position: -21px 50%; }
.RadComboBox_Probitas .rcbFocused .rcbArrowCell { background-position: -41px 50%; }
.RadComboBox_Probitas .rcbDisabled .rcbArrowCell { background-position: -61px 50%; }

.RadComboBox_Probitas .rcbReadOnly td.rcbArrowCell { background-position: -2px 50%; }
.RadComboBox_Probitas .rcbHovered .rcbReadOnly .rcbArrowCell { background-position: -22px 50%; }
.RadComboBox_Probitas .rcbFocused .rcbReadOnly .rcbArrowCell { background-position: -42px 50%; }
.RadComboBox_Probitas .rcbDisabled .rcbReadOnly .rcbArrowCell { background-position: -62px 50%; }

.RadComboBox_Probitas td.rcbArrowCellHidden,
.RadComboBox_Probitas .rcbHovered td.rcbArrowCellHidden,
.RadComboBox_Probitas .rcbFocused td.rcbArrowCellHidden,
.RadComboBox_Probitas .rcbReadOnly td.rcbArrowCellHidden,
.RadComboBox_Probitas .rcbHovered .rcbReadOnly .rcbArrowCellHidden,
.RadComboBox_Probitas .rcbFocused .rcbReadOnly .rcbArrowCellHidden,
.RadComboBox_Probitas .rcbDisabled .rcbReadOnly .rcbArrowCellHidden,
.RadComboBox_Probitas table.rcbDisabled td.rcbArrowCellHidden
{
    /*background: #none; */
    background: #ffffff;
}


.RadComboBox_Probitas .rcbHovered .rcbArrowCell,
.RadComboBox_Probitas .rcbHovered .rcbReadOnly .rcbInputCell,
.RadComboBox_Probitas .rcbHovered .rcbReadOnly .rcbArrowCellHidden { background-color: #ffffff; }
.RadComboBox_Probitas .rcbFocused .rcbArrowCell,
.RadComboBox_Probitas .rcbFocused .rcbReadOnly .rcbInputCell,
.RadComboBox_Probitas .rcbFocused .rcbReadOnly .rcbArrowCellHidden { background-color: #ffffff; }

div.RadComboBox_Probitas .rcbHovered .rcbArrowCell,
div.RadComboBox_Probitas .rcbHovered .rcbInputCell { border-color: #10568A; }
div.RadComboBox_Probitas .rcbFocused .rcbArrowCell,
div.RadComboBox_Probitas .rcbFocused .rcbInputCell { border-color: #10568A; }
div.RadComboBox_Probitas .rcbDisabled .rcbArrowCell,
div.RadComboBox_Probitas .rcbDisabled .rcbInputCell { border-color: #10568A; }

div.RadComboBox_Probitas .rcbArrowCell a
{
    height: 20px;
}

div.RadComboBox_Probitas td.rcbArrowCellHidden,
div.RadComboBox_Probitas .rcbArrowCellHidden a
{
    width: 1px;
}

div.RadComboBox_Probitas td.rcbArrowCellHidden.rcbArrowCellRight
{
    border-left: 1px solid #10568A;
}

/* Read-only styles */

/* dropdown */

.RadComboBoxDropDown_Probitas
{
    background: #fff;
    border-color: #10568A;
}

.RadComboBoxDropDown_Probitas .rcbHeader,
.RadComboBoxDropDown_Probitas .rcbFooter
{
    background: #e4e4e4;
    color: #000;
}

.RadComboBoxDropDown_Probitas .rcbHeader
{
    border-bottom-color: #10568A;
}

.RadComboBoxDropDown_Probitas .rcbFooter
{
    border-top-color: #10568A;
}

.RadComboBoxDropDown_Probitas .rcbItem em
{
    background: #ffffff;
}

div.RadComboBoxDropDown_Probitas .rcbHovered
{
    background: #ffffff;
    color: #ffffff;
    border: 1px solid #10568A;
    padding: 1px 5px;
}

.RadComboBoxDropDown_Probitas .rcbSeparator
{
    color: #fff;
    background: #8a8a8a;
}

.RadComboBox_Probitas .rcbDisabled .rcbInputCell .rcbInput,
.RadComboBoxDropDown_Probitas .rcbDisabled
{
    color: #888888;
}

.RadComboBoxDropDown_Probitas .rcbLoading
{
    background: #ffffff;
}

.RadComboBoxDropDown_Probitas .rcbMoreResults
{
    border-top-color: #10568A;
    background: #ffffff;
    color: #333333;
}

.RadComboBoxDropDown_Probitas .rcbMoreResults a
{
    background: url('ComboBox/rcbSprite.png') no-repeat -1px -85px;
}

div.RadComboBox_Probitas .rcbInputCell
{
    border-color: #10568A;
}

.RadComboBox_Probitas .rcbInput
{
    color: #000000;
}

DIV.RadComboBox_Probitas .rcbArrowCell
{
    border-color: #10568A;
}

div.RadComboBox_Probitas .rcbHovered .rcbInputCell
{
    border-color: #10568A;
}

div.RadComboBox_Probitas .rcbHovered .rcbInput
{
    color: #000000;
}

.RadComboBox_Probitas .rcbHovered .rcbArrowCell
{
    border-color: #10568A;
    background-color: #FFFFFF;
}

div.RadComboBox_Probitas .rcbFocused .rcbInputCell
{
    border-color: #10568A;
}

div.RadComboBox_Probitas .rcbFocused .rcbInput
{
    color: #000000;
}

div.RadComboBox_Probitas .rcbFocused .rcbArrowCell
{
    background-color: #FFFFFF;
}

div.RadComboBox_Probitas .rcbDisabled .rcbInputCell
{
    border-color: #888888;
}

div.RadComboBox_Probitas .rcbDisabled .rcbArrowCell
{
    border-color: #888888;
}

div.RadComboBoxDropDown_Probitas
{
    border-color: #10568A;
}


div.RadComboBoxDropDown_Probitas .rcbHeader
{
    background-color: #BCD1E1; /*light blue*/
}
div.RadComboBoxDropDown_Probitas .rcbHovered
{
    border: #10568A 1px solid;
    background-color: #BCD1E1;
    color: #000000;
}

/*General*/
div.RadComboBox_Probitas .rcbInputCell
{
    border-color: #10568A;
    border-right: #10568A 1px solid;
}

div.RadComboBox_Probitas .rcbArrowCell
{
    border-color: #10568A;
}

/*Hovered*/
div.RadComboBox_Probitas .rcbHovered .rcbInputCell
{
    border-right: #10568A 1px solid;
}
div.RadComboBox_Probitas .rcbHovered .rcbInput
{
    color: #000000;
}
/*Focused*/
div.RadComboBox_Probitas .rcbFocused .rcbInputCell
{
    border-right: #10568A 1px solid;
    border-color: #10568A;
}
div.RadComboBox_Probitas .rcbFocused .rcbInput
{
    color: #000000;
}
/*Disabled*/
div.RadComboBox_Probitas .rcbDisabled .rcbInputCell
{
    border-right: #888888 1px solid;
    border-color: #888888;
}
div.RadComboBox_Probitas .rcbDisabled .rcbInput
{
    color: #888888;
}
div.RadComboBox_Probitas .rcbDisabled .rcbArrowCell
{
    border-color: #888888;
    color: #888888;
}

div.RadComboBox_Probitas table td.rcbInputCell
{
    padding-right: 5px;
    padding-left: 0px;
}

[Helen]

Hi Karl,

Thank you for the provided code.
Actually the .rcbReadOnly class is applied to the "td" when the AllowCustomText property of RadComboBox is false.
You should override it in order to appear the same:

<style type="text/css">
       .RadComboBox .rcbReadOnly td.rcbArrowCell { width: 18px !important }

       .RadComboBox .rcbReadOnly td.rcbArrowCell a { width: 18px !important }
</style>

Regards,
Helen
the Telerik team
