RadClientExportManager svg blank issue

[Jesse Mabon]

Hello,

Any chart that renders as SVG or any .svg image end up blank when using the RadClientExportManager.

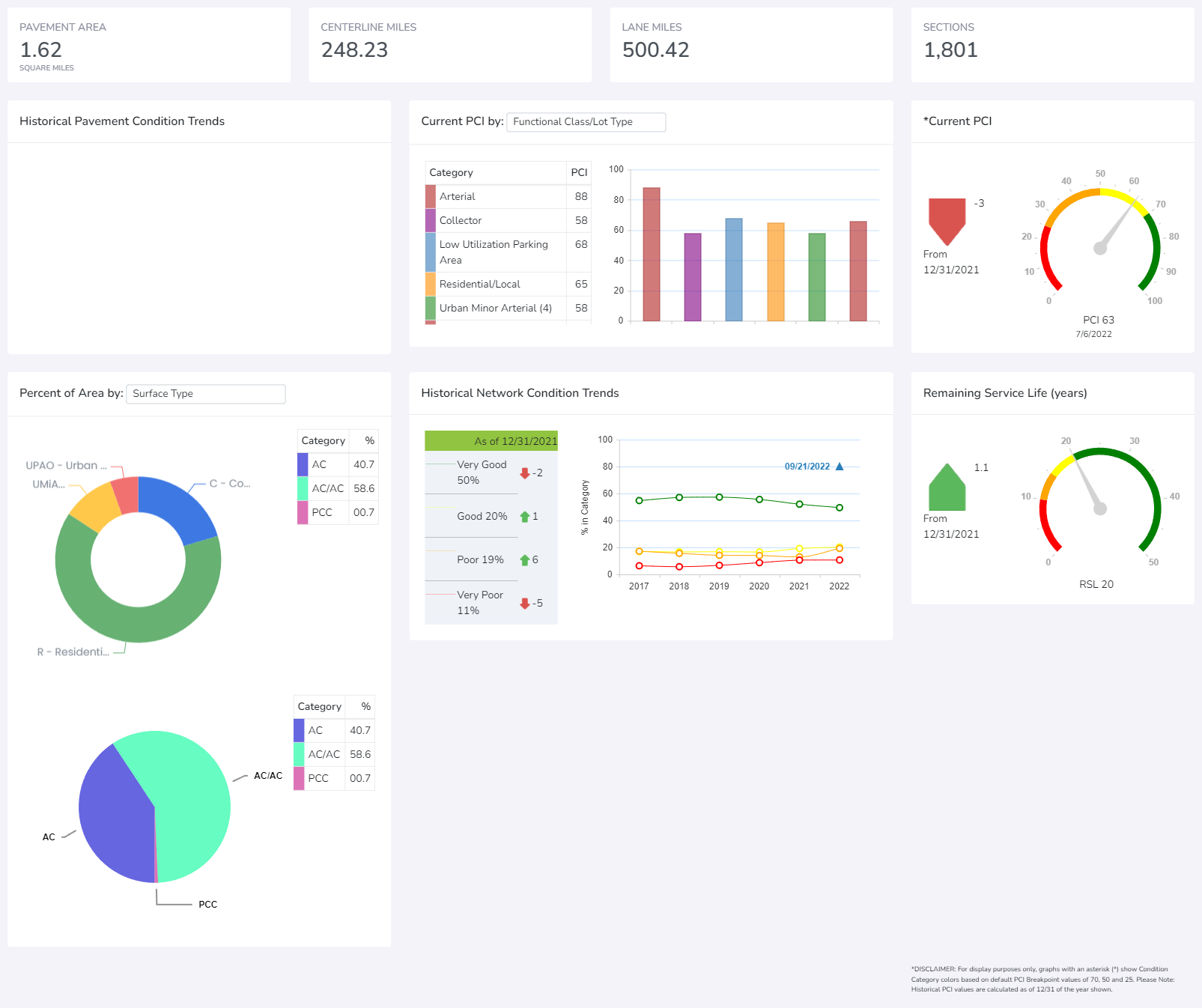

The blank chart in the attached image is rendered as svg. The first donut chart renders as SVG but I convert it to png so it shows. If  I convert them to an svg file first they are still blank. The other charts are using telerik charts.

This happens for exportPDF, exportIMAGE and exportSVG in the RadClientExportManager. Anything that renders as an SVG ends up blank.

I tried your demo online and it renders the map blank as well. So I'm assuming the map renders as an SVG. Is there a way to fix this?

https://demos.telerik.com/aspnet-ajax/client-export-manager/applicationscenarios/wysiwyg-export/defaultcs.aspx

Thanks,

Jesse

[Peter Milchev]

Hi Jesse,

The ClientExportManager does have a limitation in exporting SVG elements.

• https://docs.telerik.com/devtools/aspnet-ajax/controls/clientexportmanager/troubleshooting/known-limitations

On the other hand, the Telerik controls have an integration with the ClientExportManager. That means you can use Telerik's RadHtmlChart and export it successfully.

• https://demos.telerik.com/aspnet-ajax/client-export-manager/applicationscenarios/export-radhtmlchart/defaultcs.aspx?product=htmlchart

As for the Map demo you have shared, the issue was due to the links for the background images pointing to an http:// URL when the page was loaded under https. Thank you for bringing this to our attention, we have fixed this and updated the links so the demo works correctly now.

Regards,
Peter Milchev
Progress Telerik

[Jesse Mabon]

So your export control will export to an SVG file, but not export any SVG images or SVG charts except Telerik charts?

Is there plans to allow exporting of SVG files or other charts that render as SVG in the future?

It sounds like my options are to use Telerik charts or find a different client exporter...

Thanks,

Jesse

[Doncho]

Hi Jesse,

RadClientExportManager is built on top of the Kendo UI Drawing API and unfortunately, the content of <iframe> and <svg> elements currently cannot be processed and exported by the Drawing API.

At the moment, I can only suggest you log a feature request for the desired functionality in the Kendo jQuery feedback portal so it can gather votes and measurable demand. If the item gets high interest, our developers will reevaluate the feasibility of such an improvement.

We apologize for the inconvenience caused.
