RadChart axis alignment

[Bill]

Hi,

I am using RadChart version 2010.2.929.35 . Here is what I would like to accomplish:
I would like to create a scatter plot with a fixed min and max for the X-axis and Y-axis. In this case i want the min/max to be -3/3. The ChartSeriesType that I am using is Point with the following settings:

PlotArea-XAxis-MaxValue=3
PlotArea-XAxis-MinValue=-3
PlotArea-YAxis-MaxValue=3
PlotArea-YAxis-MinValue=-3
PlotArea-XAxis-AutoScale=false
PlotArea-YAxis-AutoScale=false

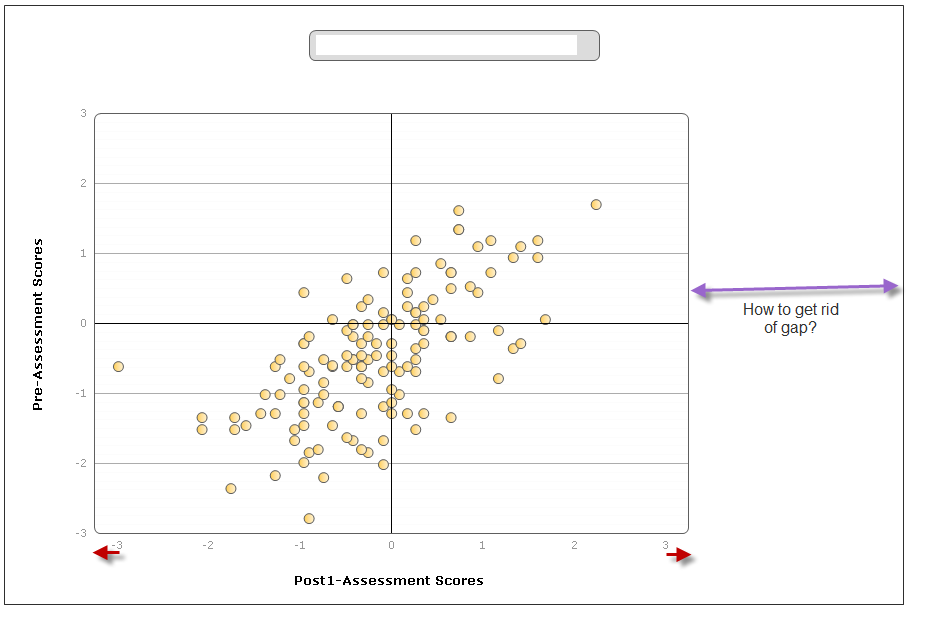

When the chart gets rendered on my page, the Y-axis display correctly with the min value at the bottom and the max value at the top. For the X-Axis, there seems to be a padding for the min and max. Please see the attached image for refference.

So the question is:
1) Is there a way to force the X-axis to display the min value at the far left and the max value at the far right with out any padding?
2) Also, how can I get rid of the gap to the right of the chart?

Thanks,
Vuthy

[Evgenia]

Hi Vuthy,

1)  You can force the XAxis minvalue and maxvalue to be shown in the far left and right accordingly by setting the AxisX.LayoutMode to Normal like this:

RadChart2.PlotArea.XAxis.LayoutMode = Telerik.Charting.Styles.ChartAxisLayoutMode.Normal;

You can find more information about this property here - http://www.telerik.com/help/aspnet-ajax/understandingelementsmarks.html.

2) The gap in the right appears because you made Legend invisible but RadChart has default Paddings and Margins set by default which may differ in different skins. You can find more information about Paddings and Margins in our help topic -  http://www.telerik.com/help/aspnet-ajax/understandingelementsmargins.html.Anyway to remove this gap in Default skin you should set the Right Margin to 5% for example:

<Appearance Dimensions-Margins="18%, 5%, 12%, 10%">

Kind regards,
Evgenia
the Telerik team

[Bill]

Hi Evgenia ,

Thank you very much!  This is exactly what I was looking for!

Vuthy
