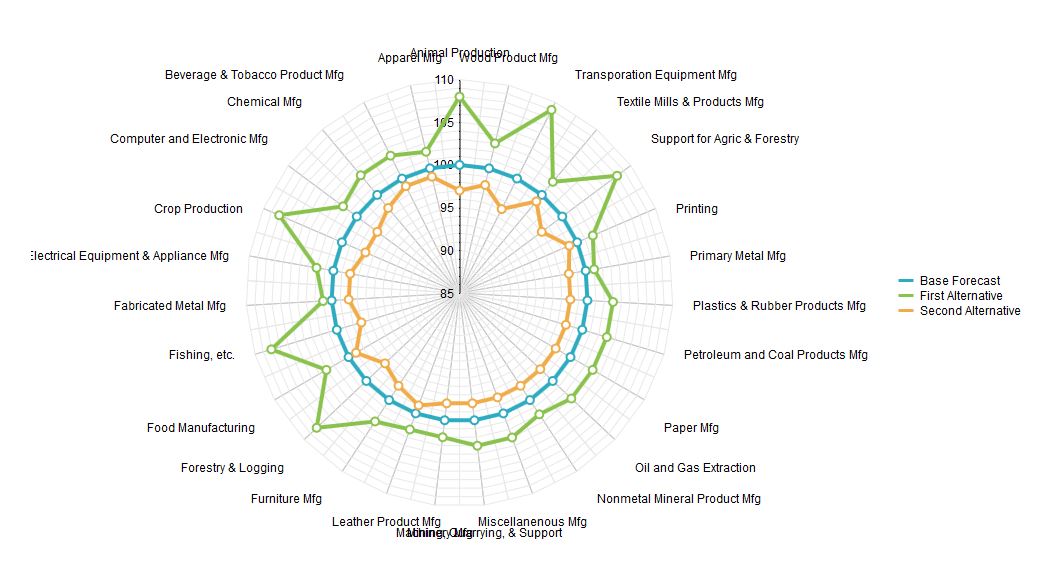

In attached the file you can see bunched labels on top and bottom.
I tried to adjust margin and padding, but it didn't help
Any advice?
