Rad scheduler appointment row height not changing

7 posts, 0 answers
  1. Phani
    Phani avatar
    19 posts
    Member since:
    Dec 2013

    Posted 10 Dec 2013 Link to this post


    I have a radscheduler on my page. I want to adjust the height of the appointment. I played with the rowheight parameter and adaptiverowheight parameter but nothing seems to change.


    <telerik:RadScheduler ID="radScheduler" runat="server" OnLoad="radScheduler_Load" SelectedView="MonthView"
                    DataKeyField="AppointmentID" DataSubjectField="AppointmentInformation" DataStartField="BeginningDayDate" DataEndField="EndingDayDate" Height="700px"
                    OnAppointmentCreated="radScheduler_AppointmentCreated" OnAppointmentInsert="radScheduler_AppointmentInsert" OnAppointmentUpdate="radScheduler_AppointmentUpdate"
                    OnAppointmentDelete="radScheduler_AppointmentDelete" Font-Bold="true" ShowHeader="true" OnClientAppointmentClick="OnClientAptClick"
                    OnClientAppointmentEditing="OnClientAptEditing"
                    OnAppointmentClick="radScheduler_AppointmentClick" AllowInsert="false" RowHeight="10px" AppointmentStyleMode="Default">
    <MonthView HeaderDateFormat="MMMM yyyy" VisibleAppointmentsPerDay="30" AdaptiveRowHeight="false"  />

    Why is this not changing? What am i missing?If you need more info,please ask.Thanks. The telerik version is : 2013.1.417.40

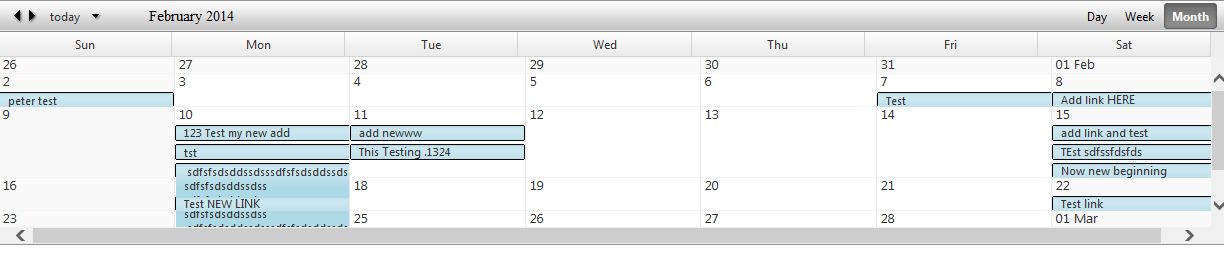

    EDIT: I got some of it working by modifying the css. But I ended up with not the desired result.Please see attached image. As you can see there are 3 appointments for 22nd Day. But there is space between them. I want them to be adjacent to each other. How do i do that?
  2. Shinu
    Shinu avatar
    17764 posts
    Member since:
    Mar 2007

    Posted 11 Dec 2013 Link to this post

    Hi Phani,

    Please have a look into the following sample code.

    ASPX:
    <telerik:RadScheduler OnClientAppointmentMoveEnd="onAppointmentMoveEnd" Font-Bold="true"
        SelectedView="MonthView" runat="server" ID="schPlanning" DataKeyField="Libelle"
        DataSubjectField="SujetEvenement" DataDescriptionField="Libelle" DataStartField="Debut"
        AllowInsert="false" DataEndField="Fin" Height="700px" ShowHeader="true" RowHeight="40px"
        AppointmentStyleMode="Default">
        <MonthView HeaderDateFormat="MMMM yyyy" VisibleAppointmentsPerDay="30" AdaptiveRowHeight="false" />
    </telerik:RadScheduler>

    C#:
    protected void Page_Load(object sender, EventArgs e)
    {
        Appointment meetingAppointment = new Appointment();
        meetingAppointment.Subject = "Subject1";
        meetingAppointment.Start = DateTime.Now;
        meetingAppointment.End = DateTime.Now;
        schPlanning.InsertAppointment(meetingAppointment);
        Appointment meetingAppointment1 = new Appointment();
        meetingAppointment1.Subject = "Subject2";
        meetingAppointment1.Start = DateTime.Now;
        meetingAppointment1.End = DateTime.Now;
        schPlanning.InsertAppointment(meetingAppointment1);
        Appointment meetingAppointment3 = new Appointment();
        meetingAppointment3.Subject = "Subject3";
        meetingAppointment3.Start = DateTime.Now;
        meetingAppointment3.End = DateTime.Now;
        schPlanning.InsertAppointment(meetingAppointment3);
    }

    Please provide your full code if it doesn't help.
    Thanks,
    Shinu.
  3. Phani
    Phani avatar
    19 posts
    Member since:
    Dec 2013

    Posted 11 Dec 2013 Link to this post

    Hi Shinu,

    I bind my radscheduler to a datatable that I populate by the result of a stored procedure. So, something like this



    radScheduler.DataSource = dt 'Datatable filled by stored procedure

    radScheduler.DataBind()





    I modified the css by telerik and I overwrite it. My entire css is like this. I GET my desired result though. My question is without overwriting the css cannot I just bind the datatable to radscheduler and be done with it?





    <style type="text/css">

    .RadCalendar .rcMain {

    border-style: dashed;

    border-width: 0 1px 1px;

    padding: 0;

    }

    .RadCalendar_Default .rcMainTable {

    height: 650px !important;

    width: 100% !important;

    }

    .RadCalendar_Default {

    width: 100% !important;

    }

    .RadCalendar .rcRow TD {

    border-color: black !important;

    }

    .rsMonthView .rsWrap {

    height: 20px !important;

    }

    .rsMonthView .rsDateWrap {

    height: 24px !important;

    }

    .rsMonthView .rsLastWrap {

    height: 24px !important;

    }

    .rsMonthView .rsApt {

    height: 48px !important;

    }

    .rsPrevDay {

    /*visibility:hidden !important;*/

    }

    .rsNextDay {

    /*visibility:hidden !important;*/

    }

    .rsToday {

    visibility:hidden !important;

    }

    .rsDatePickerActivator {

    visibility:hidden !important;

    }

    .rsHeader {

    text-align:center !important;

    font-weight:900 !important;

    }

    .RadScheduler .rsHeader h2 {

    font-weight : bold !important;

    }

    .rsHeaderDay {

    visibility:hidden !important;

    }

    .rsHeaderWeek {

    /*visibility:hidden !important;*/

    }

    .rsSelected {

    /*visibility:hidden !important;*/

    }

    .rsLast {

    visibility:hidden !important;

    }

    .right {

    position:absolute;

    right:20px;

    }

    .rsAptContent {

    height :16px !important;

    }

    .rsAptIn {

    height:0px !important;

    }

    .rsAptMid {

    height:0px !important;

    }

    .rsAptOut {

    height:0px !important;

    }


    .radiobuttonlistRCR {

    color:blue;

    }

    .radiobuttonlistDC {

    color:maroon;

    }


    .rsAptEditSizingWrapper {

    visibility:hidden !important;

    }

    </style>



  4. Plamen
    Admin
    Plamen avatar
    2968 posts

    Posted 13 Dec 2013 Link to this post

    Hello,

    The height of the appointments in RadScheduler does not depend on the databinding. It depends on the RowHeight propery and on the CSS property set. You can also customize the month view to show auto height of the appointments as it is described in this KB article.

    Regards,
    Plamen
    Telerik
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to the blog feed now.
  5. Phani
    Phani avatar
    19 posts
    Member since:
    Dec 2013

    Posted 13 Feb 2014 in reply to Plamen Link to this post

    Hello Plamen,

    Sorry for the late reply. I got some other tasks. I tried your link for the KB article but the link doesn't exist anymore. But I found this link
    http://www.telerik.com/support/kb/aspnet-ajax/scheduler/details/auto-expand-the-height-of-the-appointment-to-accomodate-the-entire-subject-in-month-view
    When I used this and removed my css. So the css now in my page is the css in the above link. My page doesn't show up as desired. It shrunk to half its size and still the appointment subject was also not expanded. Its bizarre. My radscheduler is like this
    <br><telerik:RadScheduler ID="radScheduler" runat="server" SelectedView="MonthView"<br>                    DataKeyField="AppointmentID" DataSubjectField="AppointmentInformation" DataStartField="BeginningDayDate" DataEndField="EndingDayDate" Height="1000px" <br>                    OnAppointmentUpdate="radScheduler_AppointmentUpdate" OnAppointmentDelete="radScheduler_AppointmentDelete" Font-Bold="true" ShowHeader="true"  <br>                    OnClientAppointmentEditing="OnClientAptEditing" AllowEdit="true" AllowDelete="true" CustomAttributeNames="CompanyLocation,AppointmentInformation"<br>                    EnableCustomAttributeEditing="true" OnAppointmentClick="radScheduler_AppointmentClick" AllowInsert="false" RowHeight="70px" AppointmentStyleMode="Default" OnClientAppointmentMoving="ClientMovingApt"<br>                    DisplayDeleteConfirmation="false" OnNavigationComplete="radScheduler_NavigationComplete" OnAppointmentContextMenuItemClicked="radScheduler_AppointmentContextMenuItemClicked" OnClientAppointmentMoveEnd="OnClientAppointmentMoving"  ><br>   <TimeSlotContextMenuSettings EnableDefault="true" />
    .....

    Please take a look at it and let me know what changes I need to make. Take a look at the attached image.

  6. Phani
    Phani avatar
    19 posts
    Member since:
    Dec 2013

    Posted 13 Feb 2014 in reply to Phani Link to this post

    I forgot to mention the adaptive row height I am using within the rad scheduler

    ​ <MonthView HeaderDateFormat="MMMM yyyy" VisibleAppointmentsPerDay="30" AdaptiveRowHeight="true" ><br>                       <br>                    </MonthView>
  7. Plamen
    Admin
    Plamen avatar
    2968 posts

    Posted 17 Feb 2014 Link to this post

    Hi Phani,

    Yes indeed the solution in the KB is possible only when AdaptiveRowHeight="false". In cases when AdaptiveRowHeight="true" the only way to control the height of the appointments is by setting a larger general height of the RowHeight property of RadScheduler.

    Hope this information will be helpful.

    Regards,
    Plamen
    Telerik
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the UI for ASP.NET AJAX, subscribe to the blog feed now.
