Rad Grid Edition

[william]

Good Day,

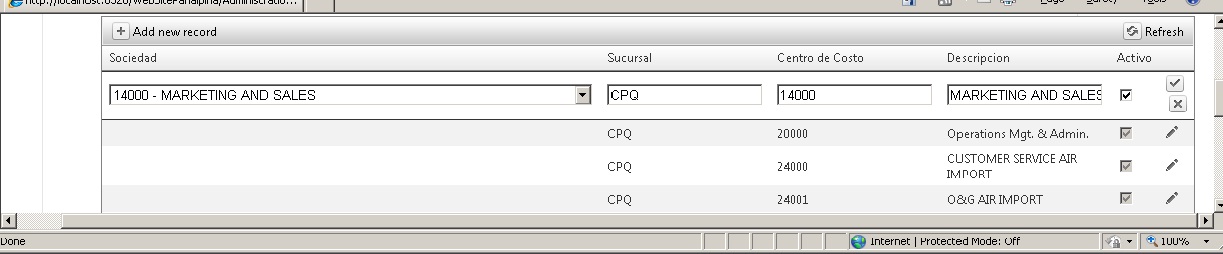

I have an issue, I'm editing a rad grid when I click the edit button I able to edit the complete row (horizontal), but I want to see the edition fields in a vertical order.  I attached a couple of pictures. I want so see it in vertical order.
Thanks in advance.
The Best.

William

<telerik:RadGrid  runat="server" ID="grid" AutoGenerateColumns="false"
    AllowPaging="true" OnNeedDataSource="grid_NeedDataSource" OnUpdateCommand="RadGrid1_UpdateCommand"
    OnInsertCommand="RadGrid1_InsertCommand"  OnItemCommand="RadGrid1_ItemCommand"
    onpageindexchanged="grid_PageIndexChanged"  OnItemDataBound="RadGrid1_ItemDataBound" Culture="es-CO" >
    <MasterTableView DataKeyNames="" CommandItemDisplay="Top" InsertItemPageIndexAction="ShowItemOnCurrentPage" EditMode="InPlace">
        <Columns>
        <telerik:GridTemplateColumn  UniqueName="CompanyID" DataField="CompanyID" HeaderText="Sociedad"
             ForceExtractValue="InEditMode" ConvertEmptyStringToNull="true" >
              <EditItemTemplate>
                        <asp:DropDownList CssClass="dropdownlist" ID="ddlContainer" runat="server"></asp:DropDownList>
                    </EditItemTemplate>
             </telerik:GridTemplateColumn>
      <telerik:GridBoundColumn DataField="BranchID" HeaderText="Sucursal"
            ForceExtractValue="InEditMode" ConvertEmptyStringToNull="true" >
      </telerik:GridBoundColumn>
      <telerik:GridBoundColumn DataField="CenterCostID" HeaderText="Centro de Costo"
            ForceExtractValue="InEditMode" ConvertEmptyStringToNull="true" >
      </telerik:GridBoundColumn>
      <telerik:GridBoundColumn DataField="Descripcion" HeaderText="Descripcion"
            ForceExtractValue="InEditMode" ConvertEmptyStringToNull="true" >
      </telerik:GridBoundColumn>
       <telerik:GridTemplateColumn UniqueName="Active" DataField="Active" HeaderText="Activo"  >
                  <ItemTemplate>
                      <asp:CheckBox  Checked='<%#Eval("Active") %>' ID="CheckBox1" runat="server"   />
                  </ItemTemplate>
        </telerik:GridTemplateColumn>

       <telerik:GridEditCommandColumn ButtonType="ImageButton" />
        </Columns>
    </MasterTableView>
    <PagerStyle Mode="NextPrevAndNumeric" />
</telerik:RadGrid>

[Princy]

Hello William,

In order to display the edit fields vertically, use EditMode property of MasterTableView as "EditForms" .

<MasterTableView DataKeyNames="" CommandItemDisplay="Top" InsertItemPageIndexAction="ShowItemOnCurrentPage" EditMode="EditForms">

Thanks,
Princy.

[william]

Thanks a lot It works.

However I have found another additional issue implementing  this.

 I cannot hide a couple of columns since I have:

if (!(e.Item is GridDataInsertItem) && e.Item.IsInEditMode)

        {





            //GridEditableItem editItem = (GridEditableItem)e.Item;

            //TextBox txtid = (TextBox)editItem["CenterCostID"].Controls[0];

            //txtid.ReadOnly = true;

            GridEditFormItem item = (GridEditFormItem)e.Item;

            CheckBox chkbx = (CheckBox)item["Active"].FindControl("CheckBox1");

            chkbx.Enabled = true;

            GridHeaderItem header = (GridHeaderItem)e.Item;
 header["CenterCostID"].Visible = false;


            item["CenterCostID"].Visible = false;

            item["Descripcion"].Visible = false;

            DropDownList dropDownList =        (DropDownList)item["CompanyID"].FindControl("ddlContainer");

            dropDownList.DataSource = sp.GetSAPCenterCostBranchDDL();

            dropDownList.SelectedValue = ((TextBox)item["CenterCostID"].Controls[0]).Text + " - " + ((TextBox)item["Descripcion"].Controls[0]).Text;



            dropDownList.DataBind();



        }

it's throwing the follow exception: Unable to cast object of type 'Telerik.Web.UI.GridEditFormItem' to type 'Telerik.Web.UI.GridHeaderItem'. And it is reasonable since e.Item is a GridEditFormItem.
I would appreciate if you can help me with this inconsistency.
Looking forward to your comments.

And I have an additional issue. I get the following exception when I'm trying to Insert a register: Cannot find cell bound to column with unique name 'Active'

protected void RadGrid1_ItemDataBound(object sender, GridItemEventArgs e)
    {
        if (e.Item.OwnerTableView.IsItemInserted && e.Item is GridDataInsertItem)
        {
            GridDataInsertItem insertItem = (GridDataInsertItem)e.Item;
            TextBox txtid = (TextBox)insertItem["CenterCostID"].Controls[0];
            txtid.ReadOnly = false;
            GridDataItem item = (GridDataItem)e.Item;
            CheckBox chkbx = (CheckBox)item["Active"].FindControl("CheckBox1");
            chkbx.Enabled = true;
        }
        if (!(e.Item is GridDataInsertItem) && e.Item.IsInEditMode)
        {
            GridEditFormItem editItem = (GridEditFormItem)e.Item;
            TextBox txtid = (TextBox)editItem["CenterCostID"].Controls[0];
            txtid.ReadOnly = true;
            //GridEditFormItem item = (GridEditFormItem)e.Item;
            CheckBox chkbx = (CheckBox)editItem["Active"].FindControl("CheckBox1");
            chkbx.Enabled = true;

        }

        if (e.Item is GridDataItem && !(!(e.Item is GridDataInsertItem) && e.Item.IsInEditMode) && !((e.Item.OwnerTableView.IsItemInserted && e.Item is GridDataInsertItem)))
        {
            GridDataItem item = (GridDataItem)e.Item;
            CheckBox chkbx = (CheckBox)item["Active"].FindControl("CheckBox1");
            chkbx.Enabled = false;
        }

    }

It seems it doesn't found any GridBoundColumn any suggestion?

<telerik:RadGrid  runat="server" ID="grid" AutoGenerateColumns="false"
    AllowPaging="true" OnNeedDataSource="grid_NeedDataSource" OnUpdateCommand="RadGrid1_UpdateCommand"
    OnInsertCommand="RadGrid1_InsertCommand"  OnItemCommand="RadGrid1_ItemCommand"
                    OnItemDataBound="RadGrid1_ItemDataBound" Culture="es-CO" >
    <MasterTableView DataKeyNames="CenterCostID" CommandItemDisplay="Top" InsertItemPageIndexAction="ShowItemOnCurrentPage"  EditMode="EditForms">
        <Columns>
        <telerik:GridBoundColumn  DataField="CenterCostID" HeaderText="Id Centro de Costo"
             ForceExtractValue="InEditMode" ConvertEmptyStringToNull="true" >
             </telerik:GridBoundColumn>
      <telerik:GridBoundColumn DataField="Description" HeaderText="Descripcion"
            ForceExtractValue="InEditMode" ConvertEmptyStringToNull="true" >
      </telerik:GridBoundColumn>

       <telerik:GridTemplateColumn UniqueName="Active" DataField="Active" HeaderText="Activo"  >
                  <ItemTemplate>
                      <asp:CheckBox  Checked='<%#Eval("Active") %>' ID="CheckBox1" runat="server"   />
                  </ItemTemplate>
        </telerik:GridTemplateColumn>

       <telerik:GridEditCommandColumn ButtonType="ImageButton" />
        </Columns>
    </MasterTableView>
    <PagerStyle Mode="NextPrevAndNumeric" />
</telerik:RadGrid>

And finally the  property e.Item is GridDataInsertItem it seems always false which if you click insert or add it would never
execute the code inside if (e.Item.OwnerTableView.IsItemInserted && e.Item is GridDataInsertItem)

Kind Regards,
William


[Princy]

Hello William,

Try the following code snippet in ItemDataBound event to hide grid column in edit mode. Since you are using EditMode as 'EditForms', check the item in edit mode as 'GridEditFormItem'.

C#:

protected void grid_ItemDataBound(object sender, GridItemEventArgs e)
    {
        if (e.Item is GridEditFormItem && e.Item.IsInEditMode)
        //item about to edit
        {
            GridEditFormItem editItem = (GridEditFormItem)e.Item;
            TextBox txt = (TextBox)editItem["CenterCostID"].Controls[0];
            txt.Parent.Parent.Visible = false;
        }
    }

Then for the second scenario, you have added the CheckBox inside ItemTemplate. So you cannot access it in insert mode. If you want the checkbox in insert/edit mode, add it in EditItemTemplate of GridTemplate column.

And in order to get the Item in insert mode(if EditMode is 'EditForms') , you need to use the following condition.

protected void grid_ItemDataBound(object sender, GridItemEventArgs e)
   {
      if (e.Item.OwnerTableView.IsItemInserted && e.Item is GridEditFormInsertItem)
       // item about to insert ( if EditMode is 'EditForms')
       {
           GridEditFormInsertItem insertItem = (GridEditFormInsertItem)e.Item;
           . . . . . .
       }
   }

Hope this information helps,
Princy.

[william]

Thanks a lot for your feedback. It has been very useful. However I have an additional issue.
Let's suppose first I bind a grid and I click on Add New Record option, afterwards I click on the Edit button (without to click on the previous  Add New Record's CancelOption ) when I click on Edit option throws the following exception: System.InvalidCastException: Specified cast is not valid. And I'm not casting anything.
it doesn't happen if I try the opposite. (if I click on the edit button and after I click on add new record option ).
Any suggestion?
You can find this issue in the attached documents.

Thanks for your support.
William

[Princy]

Hello William,

One suggestion to eliminate this error is setting the Checked property of CheckBox in EditItemTemplate from code behind. Sample code is given below for you reference.

ASPX:

<telerik:GridTemplateColumn UniqueName="Active" DataField="Active" HeaderText="Activo">
    <EditItemTemplate>
        <asp:CheckBox ID="CheckBox1" runat="server" />
    </EditItemTemplate>
    <ItemTemplate>
        <asp:CheckBox ID="CheckBox1" Checked='<%#Eval("Active") %>' runat="server" />
    </ItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridEditCommandColumn ButtonType="ImageButton" />

C#:

protected void grid_ItemDataBound(object sender, GridItemEventArgs e)
   {
       if (e.Item is GridEditFormItem && e.Item.IsInEditMode && !e.Item.OwnerTableView.IsItemInserted)
       //item about to edit
       {
           GridEditFormItem editItem = (GridEditFormItem)e.Item;
           CheckBox chk = (CheckBox)editItem.FindControl("CheckBox1");
           GridDataItem item = (GridDataItem)editItem.ParentItem;
           CheckBox parentchk = (CheckBox)item.FindControl("CheckBox1");
           if (parentchk.Checked)
           {
               chk.Checked = parentchk.Checked; ;
           }
         }
    }

Thanks,
Princy.

[william]

Princy thanks a lot  for your suggestion it was very useful.

All the Best,
William
