QR Barcode Image Size

[Alejandro Genovesi]

It is possible to set the height and width of the QR Code in pixels?. Already set de DotSize in 0, but the result image always has 53x53px.





[Marin Bratanov]

Hello,

If you want to have the barcode size to its container you need to set DotSize to 0: https://docs.telerik.com/devtools/aspnet-ajax/controls/barcode/qrcode.

<telerik:RadBarcode runat="server" ID="RadBarcode1"
    Type="QRCode" Height="140px" Width="140px"
    Text="http://www.telerik.com/products/aspnet-ajax/barcode.aspx">
    <QRCodeSettings Version="5" DotSize="0" Mode="Byte" />
</telerik:RadBarcode>

<telerik:RadBarcode runat="server" ID="RadBarcode2"
    Type="QRCode" Height="340px" Width="340px"
    Text="http://www.telerik.com/products/aspnet-ajax/barcode.aspx">
    <QRCodeSettings Version="5" DotSize="0" Mode="Byte" />
</telerik:RadBarcode>

Regards,
Marin Bratanov
Progress Telerik

[Alejandro Genovesi]

Thanks Marin, here is my code:



 <telerik:RadScriptManager ID="RadScriptManager1" Runat="server">
        </telerik:RadScriptManager>


     <telerik:RadTextBox RenderMode="Lightweight" ID="RadTextBoxURL" LabelWidth="40px" Width="400px" runat="server"
                        Label="URL: " Text="www.google.com" />
         <telerik:RadButton RenderMode="Lightweight" ID="Button1" runat="server" Text="Generate" OnClick="Button1_Click" />
        <telerik:RadBarcode runat="server" ID="barcode" Type="QRCode" OutputType="EmbeddedPNG"
                >
                <QRCodeSettings Version="5" DotSize="0" Mode="Byte" />
            </telerik:RadBarcode>
        <telerik:RadTextBox ID="txtTamano" runat="server" Label="Tamaño"></telerik:RadTextBox>
        <telerik:RadTextBox ID="txtDotSize" runat="server" Label="DotSize"></telerik:RadTextBox>





protected void Button1_Click(object sender, EventArgs e)
        {
            //barcode.BorderWidth = 0;
            barcode.QRCodeSettings.DotSize = Convert.ToInt16(txtDotSize.Text);
            barcode.Height = Convert.ToInt16(txtTamano.Text);
            barcode.Width = Convert.ToInt16(txtTamano.Text);
            barcode.Text = RadTextBoxURL.Text;

            Bitmap bitmap1 = new Bitmap(barcode.GetImage());
            bitmap1.Save("C:\\inetpub\\wwwroot\\cache\\ale.png", System.Drawing.Imaging.ImageFormat.Png);

            //string sArc = "C:\\inetpub\\wwwroot\\cache\\ale.png";
            //barcode.GetImage().Save(sArc);

        }

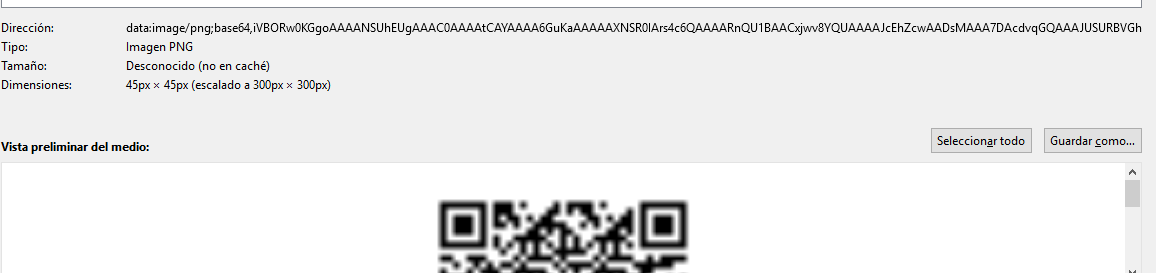

The image always has 45x45 px as you can see in th attached file.

Is the version related with de heigth and width? with AutoIncreaseVersion="true" the image always has 53x53px



Alejandro





[Alejandro Genovesi]

Sorry, forgot the image

[Alejandro Genovesi]

Sorry forgot the image

[Marin Bratanov]

Hi Alejandro,

I added explanations on how this works in the documentation, and they will be live with our next upload. You can preview them here: https://github.com/telerik/ajax-docs/blob/master/controls/barcode/qrcode.md#how-to-control-the-size-of-the-qr-code. I hope this explains how the control works.

Regards,
Marin Bratanov
Progress Telerik
