Progress Bar not working for ADFS

Hi,
We are using the teleric RAD upload control and progress bar for uploading files in our web site. We are an application using ADFS for authentication and are using the

<add name="Identity Federation Services Application Authentication Module" type="System.Web.Security.SingleSignOn.WebSsoAuthenticationModule, System.Web.Security.SingleSignOn, Version=1.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35, Custom=null" />

When we use the same application with Windows Authentication the progress bar displays fine , but when we switch to ADFS , the progress bar stops appering.

We are using Windows Server 2008 and IIS 7 .

Let us know if something can be done about this.
Thanks,
Manish

Hi Manish Tandon,

Please make sure that you have granted authorization to the RadUploadProgressHandler. Other possible reason might be the order in which the modules are registered. Make sure that the RadUploadProgressModule is before the authorization module into the web.config. Also, RadProgressArea requires full trust in order to operate. You can also check the possible reasons for the area not working enlisted here.

Sincerely yours,
Genady Sergeev
the Telerik team

Thanks Genady Sergeev for the reply. I had tried all following options but still in vain.

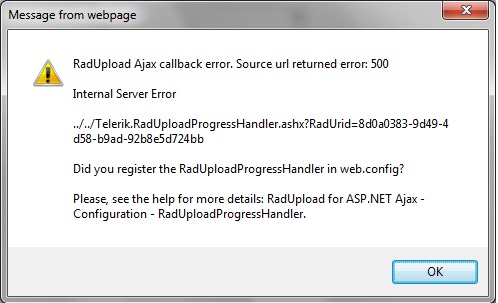

Attachment has the exact error I am getting and Following is the web.config entries we have:

<



location allowOverride="true" path="Telerik.RadUploadProgressHandler.ashx">





   <



system.web>



      <



trust level="Full" originUrl="" />
      <authorization>



             <



allow users="*"/>





      </



authorization >





 </



system.web>





</



location>



========================


<system.webServer>



    <



security>





        <



requestFiltering>



             <



requestLimits maxAllowedContentLength="1024000000" />



         </



requestFiltering>



     </



security>



     <



validation validateIntegratedModeConfiguration="false" />



 <



modules>



         <



add name="ScriptModule" preCondition="managedHandler" type="System.Web.Handlers.ScriptModule, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />



         <



add name="RadUploadModule" preCondition="integratedMode" type="Telerik.Web.UI.RadUploadHttpModule" />



 </



modules>



 <



handlers>



     <



remove name="WebServiceHandlerFactory-Integrated" />



     <



remove name="WebServiceHandlerFactory-ISAPI-2.0" />



     <



remove name="ScriptHandlerFactory" />



     <



remove name="ScriptHandlerFactoryAppServices" />



     <



remove name="ScriptResource" />



     <



add name="ScriptHandlerFactory" verb="*" path="*.asmx" preCondition="integratedMode" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />



     <



add name="ScriptHandlerFactoryAppServices" verb="*" path="*_AppService.axd" preCondition="integratedMode" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />



     <



add name="ScriptResource" preCondition="integratedMode" verb="GET,HEAD" path="ScriptResource.axd" type="System.Web.Handlers.ScriptResourceHandler, System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" />



     <



add name="Telerik_RadUploadProgressHandler_ashx" verb="*" preCondition="integratedMode" path="Telerik.RadUploadProgressHandler.ashx" type="Telerik.Web.UI.RadUploadProgressHandler" />



 </



handlers>







.....
......
......
</system.webServer>

Please let me know if there is something missing here.

Thanks,
Manish

Hello Manish Tandon,

This error indicates that the RadUploadProgressHandler was not correctly registered in the web.config. However, based on the configuration that you have posted here I can see that you have correct registrations for IIS7.0 Such error, however, will be thrown if you try to access the site trough the VisualStudio's integrated web server - Cassini. Does the error show up when testing under Cassini or under IIS 7.0? Everything else in your configuration seem to be pretty fine. Can you reproduce the problem on a sample project?

Sincerely yours,
Genady Sergeev
the Telerik team
