Problem with RadNumericTextBox in programmatically created Grid

0 Answers 61 Views
Grid
This is a migrated thread and some comments may be shown as answers.
Rui Brito
Top achievements
Rank 1
Rui Brito asked on 10 Aug 2010, 10:45 AM
So i have the need to create programmatically a grid so I began to dig around to see how this could be done, and found i needed to implement the ITemplate interface. So the following classes is those implementations. One for the header template, one for the itemtemplate and one for the footer template.

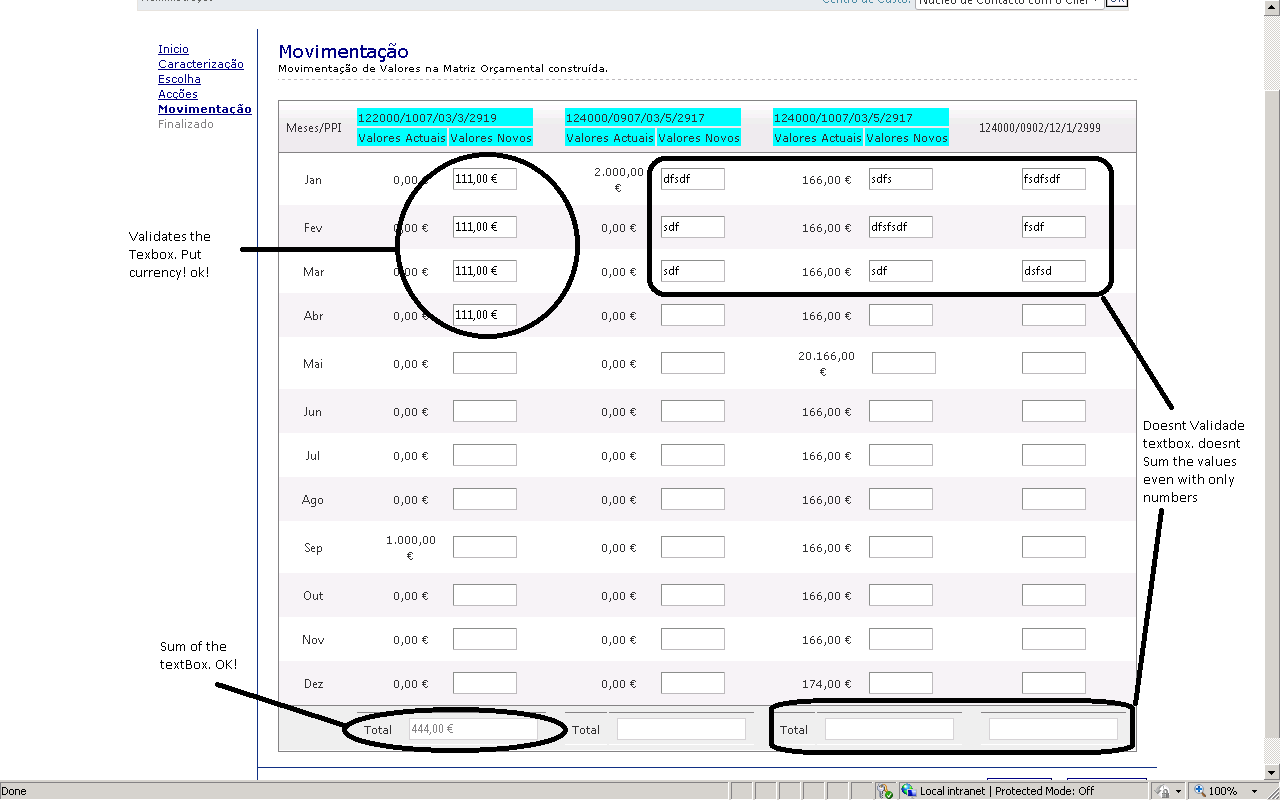

My problem is, for the first column, all works out great, with the numeric RadNumericTextBox validating good, the footer sums the values i put on the items RadNumericTextBox and it's perfect. But for the other columns, the it seems like it's a normal textbox. No validation is made, the the footer doesnt sum up the values. In attachment is the imagem of the final grid.

And sorry for the long post :)

The is the Header template. I have the need to divide the header into 2 columns, One will have the values from the datasource and the other will contain RadNumericTextBox with the type of currency. (see attachment for a visualization of the final result)

public class RadGridHeaderTemplate : ITemplate

    private string _columName;
    public string ColumName
    {
        get { return _columName; }
        set { _columName = value; }
    }
    public RadGridHeaderTemplate(string cName)
    {
        _columName = cName;
    }

    public RadGridHeaderTemplate()
    {
    }

    public void InstantiateIn(Control container)
    {
        Table table = new Table();
        TableRow row1 = new TableRow();
        TableRow row2 = new TableRow();

        TableCell cell11 = new TableCell();
        TableCell cell21 = new TableCell();
        TableCell cell22 = new TableCell();

        cell11.ColumnSpan = 2;
        cell11.BackColor = System.Drawing.Color.Aqua;
        cell11.Text = ColumName;
        row1.Cells.Add(cell11);

        cell21.Text = "Valores Actuais";
        cell21.BackColor = System.Drawing.Color.Aqua;
        row2.Cells.Add(cell21);

        cell22.Text = "Valores Novos";
        cell22.BackColor = System.Drawing.Color.Aqua;
        row2.Cells.Add(cell22);

        table.Rows.Add(row1);
        table.Rows.Add(row2);
        container.Controls.Add(table);
    }
}

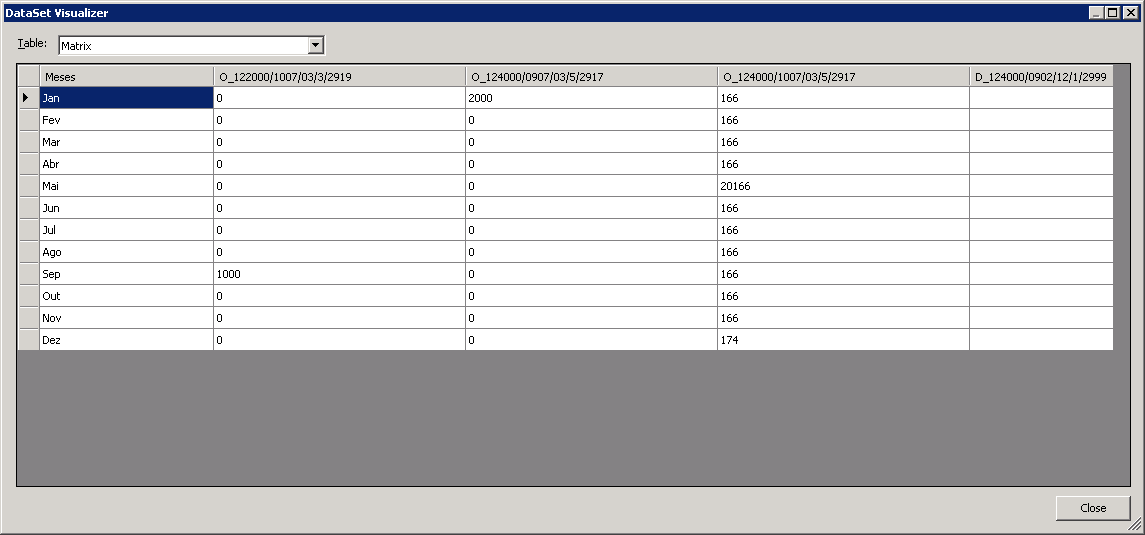

This is the Item Template, where i fill the values. One of the cells will have the values from the datasource, the other will contain a RadNumericTextBox  (see attachment for a visualization of the final and for an example of the datasource)

public class RadGridItemTemplate: ITemplate
{
    protected LiteralControl lControl;
    protected RangeValidator validatorTextBox;
    protected RadNumericTextBox textBox;
    private string _columnName;
    private string _headerName;
    private bool _isOrigin;


public string ColumnName
    {
        get { return _columnName; }
        set { _columnName = value; }
    }

    public string HeaderName
    {
        get { return _headerName; }
        set { _headerName = value; }
    }

    public bool IsOrigin
    {
        get { return _isOrigin; }
        set { _isOrigin = value; }
    }


public RadGridItemTemplate(string cName, string hName, bool isOrigin)
    {
        _columnName = cName;
        _headerName = hName;
        _isOrigin = isOrigin;
    }
    public RadGridItemTemplate()

    }


public void InstantiateIn(Control container)
    {
        Table table = new Table();
        table.BorderColor = System.Drawing.Color.Black;
        table.Style.Add(HtmlTextWriterStyle.BorderWidth, "1px");
        TableRow row1 = new TableRow();

        textBox = new RadNumericTextBox();
        textBox.ID = "templateColumnTextBox";
        textBox.Type = NumericType.Currency;
        textBox.ClientEvents.OnBlur = "Blur";
        textBox.ClientEvents.OnFocus = "Focus";
        textBox.Width = Unit.Pixel(60);

        if (IsOrigin)
        {
            lControl = new LiteralControl();
            lControl.ID = "lControl";
            lControl.DataBinding += lControl_DataBinding;

            TableCell cell11 = new TableCell();
            TableCell cell12 = new TableCell();


            cell11.Width = Unit.Pixel(50);
            cell11.Style.Add(HtmlTextWriterStyle.TextAlign, "center");
            cell11.Controls.Add(lControl);
            cell12.Controls.Add(textBox);

            row1.Cells.Add(cell11);
            row1.Cells.Add(cell12);
        }
        else
        {
            TableCell cell11 = new TableCell();
            cell11.Controls.Add(textBox);

            row1.Cells.Add(cell11);
        }


        table.Rows.Add(row1);
        container.Controls.Add(table);
    }


public void lControl_DataBinding(object sender, EventArgs e)
    {
        LiteralControl l = (LiteralControl)sender;
        GridDataItem container = (GridDataItem)l.NamingContainer;
        l.Text = String.Format("{0:C}", Convert.ToDouble(((DataRowView) container.DataItem)[ColumnName]));
    }


Footer template for my column. On the footer, I want to have the sum of all values of the textboxes. For that I use javascript, indicated on the line textBox.ClientEvents.OnLoad = "Load";
public class RadGridFooterTemplate : ITemplate
{
    protected RadNumericTextBox textBox;
    private bool _isOrigin;

    public bool IsOrigin
    {
        get { return _isOrigin; }
        set { _isOrigin = value; }
    }

    public RadGridFooterTemplate(bool isOrigin)
    {
        _isOrigin = isOrigin;
    }
    public RadGridFooterTemplate()

    }

    public void InstantiateIn(Control container)
    {
        Table table = new Table();
        TableRow row1 = new TableRow();

        textBox = new RadNumericTextBox();
        textBox.ID = "footerColumnTextBox";
        textBox.Type = NumericType.Currency;
        textBox.ClientEvents.OnLoad = "Load";
        textBox.Enabled = false;

        if (IsOrigin)
        {
            TableCell cell11 = new TableCell();
            TableCell cell12 = new TableCell();

            cell11.Text = "Total";
            cell12.Controls.Add(textBox);

            row1.Cells.Add(cell11);
            row1.Cells.Add(cell12);
        }
        else
        {
            TableCell cell11 = new TableCell();
            cell11.Controls.Add(textBox);

            row1.Cells.Add(cell11);
        }


        table.Rows.Add(row1);
        container.Controls.Add(table);
    }
}


This final code, is where i do the assembling of the grid

        RadGrid radGrid = new RadGrid();

        radGrid.ID = "gvSetValues";
        radGrid.DataSource = buildDataTable;

        radGrid.AllowPaging = false;
        radGrid.AllowSorting = false;
        radGrid.PagerStyle.Mode = GridPagerMode.NextPrevAndNumeric;
        radGrid.AutoGenerateColumns = false;
        radGrid.ShowStatusBar = true;
        radGrid.ShowFooter = true;
        radGrid.MasterTableView.ShowFooter = true;

        GridBoundColumn boundColumn = new GridBoundColumn();
        boundColumn.DataField = "Meses";
        boundColumn.UniqueName = "Meses";
        boundColumn.HeaderText = "Meses/PPI";
        radGrid.MasterTableView.Columns.Add(boundColumn);

        foreach (DataColumn column in buildDataTable.Columns)
        {
            //Add origins Columns
            if (column.ColumnName.StartsWith("O_"))
            {
                GridTemplateColumn templateColumn = new GridTemplateColumn();
                templateColumn.HeaderTemplate = new RadGridHeaderTemplate(column.ColumnName.Split('_')[1]);
                templateColumn.ItemTemplate = new RadGridItemTemplate(column.ColumnName, column.ColumnName.Split('_')[1], true);
                templateColumn.FooterTemplate = new RadGridFooterTemplate(true);
                radGrid.MasterTableView.Columns.Add(templateColumn);
                templateColumn.UniqueName = "OldValues";
            }

            //Add Destinations Columns
            if (column.ColumnName.StartsWith("D_"))
            {
                GridTemplateColumn templateColumn = new GridTemplateColumn();
                templateColumn.HeaderText = column.ColumnName.Split('_')[1];
                templateColumn.ItemTemplate = new RadGridItemTemplate(column.ColumnName, column.ColumnName.Split('_')[1], false);
                templateColumn.FooterTemplate = new RadGridFooterTemplate(false);
                radGrid.MasterTableView.Columns.Add(templateColumn);
            }
        }

        radGrid.DataBind();
        phGvMoveValues.Controls.Add(radGrid);

No answers yet. Maybe you can help?
