Problem with Grid Header

5 Answers 143 Views
Grid
This is a migrated thread and some comments may be shown as answers.
Lynn
Top achievements
Rank 2
Lynn asked on 18 Nov 2011, 06:32 PM
I am having a problem with the header portion of the radgrid.

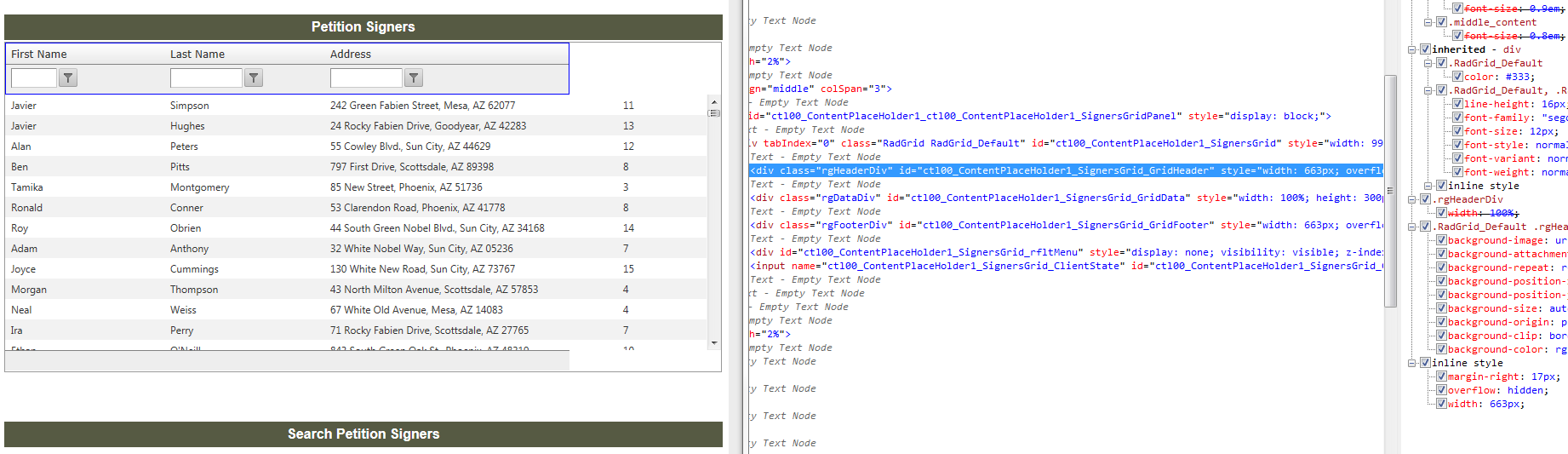

When the page is first displayed the right-hand portion of the header has been eliminated and replaced with white space.  Attached graphic "HeaderWidth1.png" shows this and also shows the Developer Tools display with the header segment highlighted.  You can see the width is set at "663px".

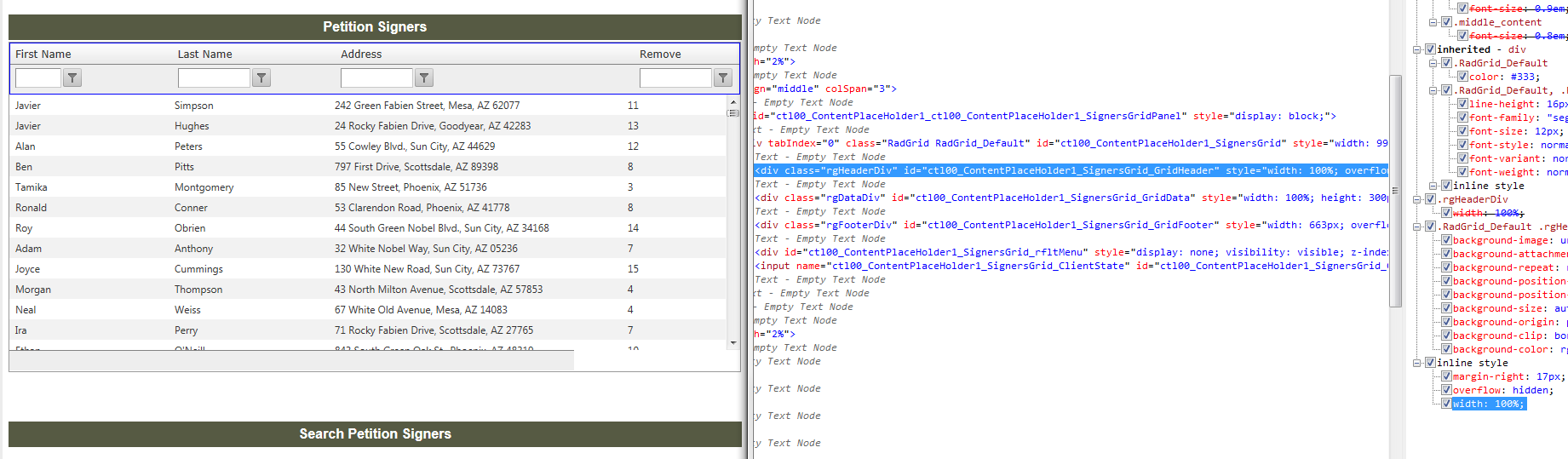

If I change the "663px" to "100%", the header will be displayed at full width (refer to attached graphic "HeaderWidth2.png").

I have tried coding a special css class for this item setting its width to 100% to no avail.

The code for the .aspx file is displayed immediately below.  Can anyone tell me why this issue is happening and how I can eliminate it?

Thanks in advance!

Lynn

<%@ Page Title="" Language="C#" MasterPageFile="~/Masters/EPSDev3.master" AutoEventWireup="true" CodeFile="PetitionInfo.aspx.cs" Inherits="PetitionInfo" %>
<asp:Content ID="Content1" ContentPlaceHolderID="head" Runat="Server">
<style type="text/css">
    .VerticalAlign1

        padding-top: 6px;
    }
    .rgHeaderDiv
    {
        width: 100%;
    }
</style>
 </asp:Content>
<asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceHolder1" Runat="Server">

      <telerik:RadScriptManager ID="RadScriptManager1" runat="server" />
        <!-- content start -->
        <telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">
            <AjaxSettings>
                <telerik:AjaxSetting AjaxControlID="SignersGrid">
                    <UpdatedControls>
                        <telerik:AjaxUpdatedControl ControlID="SignersGrid" LoadingPanelID="RadAjaxLoadingPanel1" />
                    </UpdatedControls>
                </telerik:AjaxSetting>
            </AjaxSettings>
        </telerik:RadAjaxManager>
        <telerik:RadAjaxLoadingPanel ID="RadAjaxLoadingPanel1" runat="server" />



    <div style="width: 800px;">
        <div style="float: left; background-color: White; padding: 0px;">
            <table cellpadding="1" cellspacing="0" border="0" >
                <tr>
                    <td colspan="5" align="center" >
                        <h2>
                            <asp:Label ID="VoterAuthenticationLabel" runat="server" Text="<%$ Resources:Resource, PetitionInformationLabel %>"></asp:Label>
                        </h2>
                    </td>
                </tr>
                <tr>
                    <td width="2%">

                    </td>
                    <td width="47%" valign="top">
                        <table >
                            <tr>
                                <td colspan="2" align="left" style="font-weight: normal; height: 12px;">
                                    <asp:Label ID="Label6" runat="server" Font-Bold="true" Text="<%$ Resources:Resource, CandidateInformationLabel%>"></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="CycleLabel" runat="server" Text="<%$ Resources:Resource, CycleLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="ElectionCycleList" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label1" runat="server" Text="<%$ Resources:Resource, RaceLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="PoliticalRaceList" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label2" runat="server" Text="<%$ Resources:Resource, NameLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="CandidateName" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label3" runat="server" Text="<%$ Resources:Resource, AddressLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="CandidateAddress" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label4" runat="server" Text="<%$ Resources:Resource, CityStZipLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="CandidateCity" runat="server" Text=""></asp:Label>

                                    <asp:Label ID="CandidateState" runat="server" Text=""></asp:Label>

                                    <asp:Label ID="CandidateZipCode" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label5" runat="server" Text="<%$ Resources:Resource, CountyLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="CandidateCountyList" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                        </table>
                    </td>
                    <td width="2%">

                    </td>
                    <td width="47%"  valign="top">
                        <table width="100%">
                            <tr>
                                <td colspan="2" align="left" style="font-weight: normal; height: 12px;">
                                    <asp:Label ID="Label7" runat="server" Font-Bold="true" Text="<%$ Resources:Resource, ContactInformationLabel%>"></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label8" runat="server" Text="<%$ Resources:Resource, NameLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="ContactName" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label9" runat="server" Text="<%$ Resources:Resource, PhoneLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="ContactPhone" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label10" runat="server" Text="<%$ Resources:Resource, EmailLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="ContactEmailAddress" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label11" runat="server" Text="<%$ Resources:Resource, WebSiteLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="ContactWebSiteURL" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label16" runat="server" Text="<%$ Resources:Resource, LinkToLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="LinkToURL" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                        </table>
                    </td>
                    <td width="2%">

                    </td>
                </tr>
                <tr>
                    <td colspan="5">

                    </td>
                </tr>
                <tr >
                    <td>

                    </td>
                        <td align="center" valign="middle" colspan="3" >
                            <asp:Label CssClass="VerticalAlign1" ID="PetitionsListTitle" Font-Size="16px" Width="100%" BackColor="#565A43" Height="24px" ForeColor="#ffffff" Font-Bold="true" runat="server" Text="<%$ Resources:Resource, PetitionSignersLabel %>"></asp:Label>
                        </td>
                    <td>

                    </td>
                </tr>
                <tr>
                    <td width="2%">

                    </td>
                    <td colspan="3" valign="middle">
                        <telerik:RadGrid AutoGenerateColumns="false" ID="SignersGrid" runat="server" Width="99.7%"
                            AllowSorting="true" AllowFilteringByColumn="true" EnableLinqExpressions="false"
                            AllowPaging="false" PageSize="15"
                            BorderWidth="1px" BorderColor="#999999" EnableEmbeddedSkins="true" Skin="Default"
                            DataSourceID="SQLDataSource1"
                            ShowFooter="True" GridLines="None" >
                            <PagerStyle Mode="NextPrevAndNumeric" />
                            <GroupingSettings CaseSensitive="false" />
                            <MasterTableView AutoGenerateColumns="false" EditMode="InPlace" AllowFilteringByColumn="True"
                                ShowFooter="True" TableLayout="Auto">
                                <Columns>

                                    <telerik:GridBoundColumn FilterControlWidth="50px" HeaderText="First Name" UniqueName="FirstName" DataField="FirstName" SortExpression="FirstName" >
                                    </telerik:GridBoundColumn>

                                    <telerik:GridBoundColumn UniqueName="LastName" HeaderText="Last Name" DataField="LastName" SortExpression="LastName" >
                                    </telerik:GridBoundColumn>

                                    <telerik:GridBoundColumn UniqueName="VoterAddress" HeaderText="Address" DataField="Address" SortExpression="Address"  >
                                    </telerik:GridBoundColumn >

                                    <telerik:GridBoundColumn UniqueName="RemoveSignature" HeaderText="Remove" DataField="CountyId" SortExpression="CountyId" >
                                    </telerik:GridBoundColumn>


                                </Columns>
                            </MasterTableView>
                            <ClientSettings>
                                <Scrolling AllowScroll="true" UseStaticHeaders="true" />
                            </ClientSettings>
                        </telerik:RadGrid>
                    </td>
                    <td width="2%">

                    </td>
                </tr>

                <tr>
                    <td colspan="5" align="center" >
                        <asp:Label ID="Label17" runat="server" Text=""></asp:Label>
                    </td>
                </tr>

                <tr>
                    <td colspan="5" align="center" >
                        <asp:Label ID="SignatureCountMessage" runat="server" Text=""></asp:Label>
                    </td>
                </tr>

                <tr>
                    <td colspan="5" align="center" >
                        <asp:Label ID="Label18" runat="server" Text=""></asp:Label>
                    </td>
                </tr>

                <tr>
                    <td colspan="5" align="center" >

                    </td>
                </tr>

                <tr>
                    <td colspan="5" align="center" >

                    </td>
                </tr>
                <tr>
                    <td colspan="5" align="center" >

                    </td>
                </tr>



                <tr >
                    <td>

                    </td>
                        <td align="center" valign="middle" colspan="3" >
                            <asp:Label CssClass="VerticalAlign1" ID="Label12" Font-Size="16px" Width="100%" BackColor="#565A43" Height="24px" ForeColor="#ffffff" Font-Bold="true" runat="server" Text="<%$ Resources:Resource, SearchPetitionSignersLabel %>"></asp:Label>
                        </td>
                    <td>

                    </td>
                </tr>
                <tr>
                    <td colspan="5" align="center" >

                    </td>
                </tr>
                <tr>
                    <td colspan="5" align="center" >
                        <asp:Label ID="Label15" runat="server" Text="<%$ Resources:Resource, FirstLastNameLabel %>"></asp:Label>
                        <asp:TextBox ID="SearchFirstName" Width="80px" runat="server" TabIndex="1"></asp:TextBox>

                        <asp:TextBox ID="SearchLastName" Width="80px" runat="server" TabIndex="2"></asp:TextBox>

                        <asp:Label ID="Label13" runat="server" Text="<%$ Resources:Resource, AddressLabel %>"></asp:Label>

                        <asp:TextBox ID="SearchAddress" runat="server" TabIndex="3"></asp:TextBox>
                    </td>
                </tr>
                <tr>
                    <td colspan="5" align="center" >
                        <asp:RadioButtonList ID="TypeOfCompare" runat="server" CellSpacing="10" RepeatDirection="Horizontal" >
                            <asp:ListItem Enabled="True" Selected="True" Text="Contains the value anywhere" Value="1" />
                            <asp:ListItem Enabled="True" Selected="False" Text="Only check the beginning of the entry" Value="2" />
                        </asp:RadioButtonList>

                        <br />
                        <asp:Label ID="SearchInstructions" runat="server" Text="<%$ Resources:Resource, SearchInstructionsLabel %>"></asp:Label>
                    </td>
                </tr>
                <tr>
                    <td colspan="5" align="center" >

                    </td>
                </tr>
                <tr>
                    <td colspan="5" align="center" >

                    </td>
                </tr>
                <tr >
                    <td>

                    </td>
                        <td align="center" valign="middle" colspan="3" >
                            <asp:Label CssClass="VerticalAlign1" ID="Label14" Font-Size="16px" Width="100%" BackColor="#565A43" Height="24px" ForeColor="#ffffff" Font-Bold="true" runat="server" Text="<%$ Resources:Resource, CloseAndPrintLabel %>"></asp:Label>
                        </td>
                    <td>

                    </td>
                </tr>
                <tr>
                    <td colspan="5" align="center" >

                    </td>
                </tr>
                <tr>
                    <td colspan="5" align="center" >
                        <asp:Button ID="ClosePetitionButton" TabIndex="6" runat="server" Text="<%$ Resources:Resource, ClosePetitionBtn %>" />

                        <asp:Button ID="PrintListButton" TabIndex="7" runat="server" Text="<%$ Resources:Resource, PrintListBtn %>" />

                        <asp:Button ID="PrintForFilingButton" TabIndex="8" runat="server" Text="<%$ Resources:Resource, PrintForFilingBtn %>" />
                    </td>
                </tr>
                <tr>
                    <td colspan="5" align="center" >

                    </td>
                </tr>
            </table>
        </div>
        <div class="clear">
        </div>
    </div>
    <asp:SqlDataSource ID="SqlDataSource1" ConnectionString="<%$ ConnectionStrings:ElectronicPetitionSystemConnectionString %>"
        ProviderName="System.Data.SqlClient" runat="server">
    </asp:SqlDataSource>


</asp:Content>



5 Answers, 1 is accepted

Sort by
0
Princy
Top achievements
Rank 2
answered on 21 Nov 2011, 05:19 AM
Hello,

I have tried to reproduce the issue at my end but no avail. You can set the TableLayout as Fixed in MasterTableView.

Thanks,
Princy.
0
Lynn
Top achievements
Rank 2
answered on 23 Nov 2011, 12:35 AM
Princy,

Thanks for your assistance.  Your suggestion did not completely fix the issue.  I made a couple of changes after your suggestion and am getting closer.

Basically, I set the width of each column (in the code behind) to 25%, and also changed the width of the overall grid from "99.7%" to "785x".

The grid code now looks like (and the code behind segment added is just below this):
<td colspan="3" valign="middle">
    <telerik:RadGrid AutoGenerateColumns="false" ID="SignersGrid" runat="server" Width="785px"
        AllowSorting="true" AllowFilteringByColumn="true" EnableLinqExpressions="true"
        AllowPaging="false" PageSize="15"
        BorderWidth="1px" BorderColor="#999999" EnableEmbeddedSkins="true" Skin="Default"
        DataSourceID="SQLDataSource1"
        ShowFooter="True" GridLines="None" >
        <PagerStyle Mode="NextPrevAndNumeric" />
        <GroupingSettings CaseSensitive="false" />
        <MasterTableView AutoGenerateColumns="false" EditMode="InPlace" AllowFilteringByColumn="True"
            ShowFooter="True" TableLayout="Fixed" >
            <Columns>

                <telerik:GridBoundColumn HeaderText="First Name" UniqueName="FirstName" DataField="FirstName" SortExpression="FirstName" >
                </telerik:GridBoundColumn>

                <telerik:GridBoundColumn UniqueName="LastName" HeaderText="Last Name" DataField="LastName" SortExpression="LastName" >
                </telerik:GridBoundColumn>

                <telerik:GridBoundColumn UniqueName="VoterAddress" HeaderText="Address" DataField="Address" SortExpression="Address"  >
                </telerik:GridBoundColumn >

                <telerik:GridBoundColumn UniqueName="RemoveSignature" HeaderText="Remove" DataField="CountyId" SortExpression="CountyId" >
                </telerik:GridBoundColumn>
            </Columns>
        </MasterTableView>
        <ClientSettings>
            <Scrolling AllowScroll="true" UseStaticHeaders="true" />
        </ClientSettings>
    </telerik:RadGrid>
</td>

protected void SignersGrid_PreRender(object sender, EventArgs e)
{
    GridColumn gridCol = SignersGrid.MasterTableView.GetColumn("FirstName");
    //gridCol.HeaderStyle.Width = Unit.Pixel(100);
    gridCol.HeaderStyle.Width = Unit.Percentage(25);

    gridCol = SignersGrid.MasterTableView.GetColumn("LastName");
    gridCol.HeaderStyle.Width = Unit.Percentage(25);

    gridCol = SignersGrid.MasterTableView.GetColumn("VoterAddress");
    gridCol.HeaderStyle.Width = Unit.Percentage(25);

    gridCol = SignersGrid.MasterTableView.GetColumn("RemoveSignature");
    gridCol.HeaderStyle.Width = Unit.Percentage(25);
}

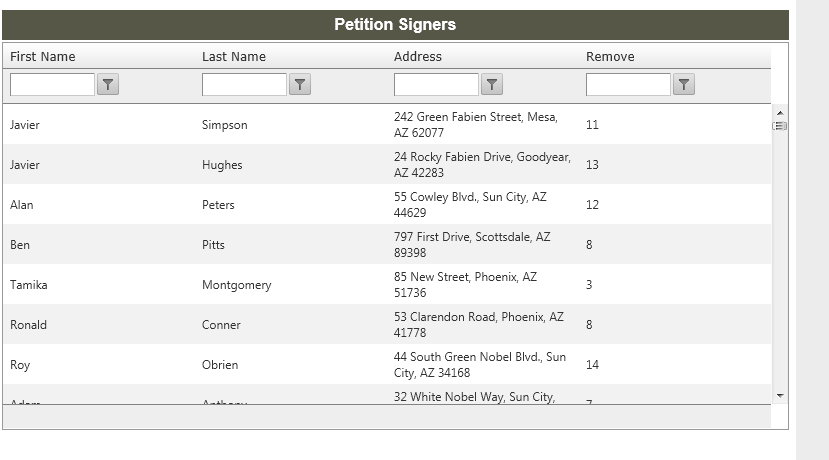

As you can see from the attached new screen capture, both the header and the footer now extend across the entire grid -- except for the scroll bar.  How do I (or can I) correct this?

Thanks!

Lynn
0
Accepted
Pavlina
Telerik team
answered on 24 Nov 2011, 05:58 PM
Hello Lynn,

Please refer to the forum thread below for more information about this problem:
http://www.telerik.com/community/forums/aspnet-ajax/grid/column-misalignment-with-static-headers-and-scrolling.aspx'

Greetings,
Pavlina
the Telerik team
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now
0
Lynn
Top achievements
Rank 2
answered on 25 Nov 2011, 04:15 PM
Pavlina,

The referenced thread did not help me out, but I believe I have resolved this issue (at least it's working for me right now). Basically, I overrode some grid style information per the following:

<asp:Content ID="Content1" ContentPlaceHolderID="head" Runat="Server">
<style type="text/css">
        .RadGrid_Default .rgHeaderDiv
        {
            width: 785px !important;
        }

        .RadGrid_Default .rgFooterDiv
        {
            width: 785px !important;
        }
</style>
</asp:Content>

In case it helps someone else, the complete .aspx code for this page is:


<%@ Page Title="" Language="C#" MasterPageFile="~/Masters/EPSDev3.master" AutoEventWireup="true" CodeFile="PetitionInfo.aspx.cs" Inherits="PetitionInfo" %>
<asp:Content ID="Content1" ContentPlaceHolderID="head" Runat="Server">
<style type="text/css">
    .VerticalAlign1

        padding-top: 6px;
    }
        .style1
        {
            height: 31px;
        }
        .RadGrid_Default .rgHeaderDiv
        {
            width: 785px !important;
        }

        .RadGrid_Default .rgFooterDiv
        {
            width: 785px !important;
        }
</style>
</asp:Content>
<asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceHolder1" Runat="Server">
      <telerik:RadScriptManager ID="RadScriptManager1" runat="server" />
        <!-- content start -->

        <telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">
            <AjaxSettings>
                <telerik:AjaxSetting AjaxControlID="SignersGrid">
                    <UpdatedControls>
                        <telerik:AjaxUpdatedControl ControlID="SignersGrid" LoadingPanelID="RadAjaxLoadingPanel1" />
                    </UpdatedControls>
                </telerik:AjaxSetting>
            </AjaxSettings>
        </telerik:RadAjaxManager>

        <telerik:RadAjaxLoadingPanel ID="RadAjaxLoadingPanel1" AlternateText="Loading..." Skin="Black" runat="server"  />
    <div style="width: 800px;">
        <div style="float: left; background-color: White; padding: 0px;">
            <table cellpadding="1" cellspacing="0" border="0" >
                <tr>
                    <td colspan="5" align="center" >
                        <h2>
                            <asp:Label ID="VoterAuthenticationLabel" runat="server" Text="<%$ Resources:Resource, PetitionInformationLabel %>"></asp:Label>
                        </h2>
                    </td>
                </tr>
                <tr>
                    <td width="2%">

                    </td>
                    <td width="47%" valign="top">
                        <table >
                            <tr>
                                <td colspan="2" align="left" style="font-weight: normal; height: 12px;">
                                    <asp:Label ID="Label6" runat="server" Font-Bold="true" Text="<%$ Resources:Resource, CandidateInformationLabel%>"></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="CycleLabel" runat="server" Text="<%$ Resources:Resource, CycleLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="ElectionCycleList" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label1" runat="server" Text="<%$ Resources:Resource, RaceLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="PoliticalRaceList" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label2" runat="server" Text="<%$ Resources:Resource, NameLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="CandidateName" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label3" runat="server" Text="<%$ Resources:Resource, AddressLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="CandidateAddress" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label4" runat="server" Text="<%$ Resources:Resource, CityStZipLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="CandidateCity" runat="server" Text=""></asp:Label>

                                    <asp:Label ID="CandidateState" runat="server" Text=""></asp:Label>

                                    <asp:Label ID="CandidateZipCode" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label5" runat="server" Text="<%$ Resources:Resource, CountyLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="CandidateCountyList" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                        </table>
                    </td>
                    <td width="2%">

                    </td>
                    <td width="47%"  valign="top">
                        <table width="100%">
                            <tr>
                                <td colspan="2" align="left" style="font-weight: normal; height: 12px;">
                                    <asp:Label ID="Label7" runat="server" Font-Bold="true" Text="<%$ Resources:Resource, ContactInformationLabel%>"></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label8" runat="server" Text="<%$ Resources:Resource, NameLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="ContactName" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label9" runat="server" Text="<%$ Resources:Resource, PhoneLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="ContactPhone" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label10" runat="server" Text="<%$ Resources:Resource, EmailLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="ContactEmailAddress" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label11" runat="server" Text="<%$ Resources:Resource, WebSiteLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="ContactWebSiteURL" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                            <tr>
                                <td align="left">
                                    <asp:Label ID="Label16" runat="server" Text="<%$ Resources:Resource, LinkToLabel %>"></asp:Label>
                                </td>
                                <td align="left">
                                    <asp:Label ID="LinkToURL" runat="server" Text=""></asp:Label>
                                </td>
                            </tr>
                        </table>
                    </td>
                    <td width="2%">

                    </td>
                </tr>
                <tr>
                    <td colspan="5">

                    </td>
                </tr>
                <tr >
                    <td>

                    </td>
                        <td align="center" valign="middle" colspan="3" >
                            <asp:Label CssClass="VerticalAlign1" ID="PetitionsListTitle" Font-Size="16px" Width="100%" BackColor="#565A43" Height="24px" ForeColor="#ffffff" Font-Bold="true" runat="server" Text="<%$ Resources:Resource, PetitionSignersLabel %>"></asp:Label>
                        </td>
                    <td>

                    </td>
                </tr>
                <tr>
                    <td width="2%">

                    </td>
                    <td colspan="3" valign="middle">
                        <telerik:RadGrid AutoGenerateColumns="false" ID="SignersGrid" runat="server" Width="785px"
                            AllowSorting="true" AllowFilteringByColumn="true" EnableLinqExpressions="true"
                            AllowPaging="false" PageSize="15" CommandItemDisplay="Bottom"
                            BorderWidth="1px" BorderColor="#999999" EnableEmbeddedSkins="true" Skin="Default"
                            DataSourceID="SQLDataSource1"
                            ShowStatusBar="true"
                            ShowFooter="false" GridLines="None" >
                            <PagerStyle Mode="NextPrevAndNumeric" />
                            <GroupingSettings CaseSensitive="false" />
                            <StatusBarSettings ReadyText="Ready" LoadingText="Loading..." />
                            <MasterTableView AutoGenerateColumns="false" EditMode="InPlace" AllowFilteringByColumn="True"
                                ShowFooter="True" TableLayout="Auto">
                                <Columns>

                                    <telerik:GridBoundColumn HeaderStyle-Width="150px" HeaderText="First Name" UniqueName="FirstName" DataField="FirstName" SortExpression="FirstName" >
                                    </telerik:GridBoundColumn>

                                    <telerik:GridBoundColumn HeaderStyle-Width="150px" UniqueName="LastName" HeaderText="Last Name" DataField="LastName" SortExpression="LastName" >
                                    </telerik:GridBoundColumn>

                                    <telerik:GridBoundColumn HeaderStyle-Width="350px" UniqueName="VoterAddress" HeaderText="Address" DataField="Address" SortExpression="Address"  >
                                    </telerik:GridBoundColumn >

                                    <telerik:GridButtonColumn CommandName="RemoveSigner" HeaderStyle-Width="135px" UniqueName="RemoveSigner" HeaderText="Remove" ButtonType="PushButton" Text="Remove" ConfirmText="Are you certain that you want to remove this signature?" >
                                    </telerik:GridButtonColumn>

                                </Columns>
                            </MasterTableView>
                            <ClientSettings>
                                <Scrolling AllowScroll="true" UseStaticHeaders="true" />
                            </ClientSettings>
                        </telerik:RadGrid>
                    </td>
                    <td width="2%">

                    </td>
                </tr>

                <tr>
                    <td colspan="5" align="center" >
                        <asp:Label ID="Label17" runat="server" Text=""></asp:Label>
                    </td>
                </tr>

                <tr>
                    <td colspan="5" align="center" >
                        <asp:Label ID="SignatureCountMessage" runat="server" Text=""></asp:Label>
                    </td>
                </tr>

                <tr>
                    <td colspan="5" align="center" >
                        <asp:Label ID="Label18" runat="server" Text=""></asp:Label>
                    </td>
                </tr>
                <tr>
                    <td colspan="5" align="center" >

                    </td>
                </tr>
                <tr >
                    <td>

                    </td>
                        <td align="center" valign="middle" colspan="3" >
                            <asp:Label CssClass="VerticalAlign1" ID="Label14" Font-Size="16px" Width="100%" BackColor="#565A43" Height="24px" ForeColor="#ffffff" Font-Bold="true" runat="server" Text="<%$ Resources:Resource, CloseAndPrintLabel %>"></asp:Label>
                        </td>
                    <td>

                    </td>
                </tr>
                <tr>
                    <td colspan="5" align="center" >

                    </td>
                </tr>
                <tr>
                    <td colspan="5" align="center" >
                        <asp:Button ID="ReturnToMyDocs" runat="server" TabIndex="6"
                            Text="<%$ Resources:Resource, ReturnToMyEDocs %>"
                            onclick="ReturnToMyDocs_Click" />

                        <asp:Button ID="ClosePetitionButton" TabIndex="7" runat="server" Text="<%$ Resources:Resource, ClosePetitionBtn %>" />

                        <asp:Button ID="PrintListButton" TabIndex="8" runat="server" Text="<%$ Resources:Resource, PrintListBtn %>" />

                        <asp:Button ID="PrintForFilingButton" TabIndex="9" runat="server" Text="<%$ Resources:Resource, PrintForFilingBtn %>" />
                    </td>
                </tr>
                <tr>
                    <td colspan="5" align="center" >

                    </td>
                </tr>
            </table>
        </div>
        <div class="clear">
        </div>
    </div>
    <asp:SqlDataSource ID="SqlDataSource1" ConnectionString="<%$ ConnectionStrings:ElectronicPetitionSystemConnectionString %>"
        ProviderName="System.Data.SqlClient" runat="server">
    </asp:SqlDataSource>
</asp:Content>

Thanks for your help.  I am going to close this item, but if you think my solution is a "bad practice" or there is a better way of resolving the issue, please feel free to let me know.

Lynn
0
Accepted
Pavlina
Telerik team
answered on 25 Nov 2011, 04:27 PM
Hi Lynn,

Thank you for sharing your experience and solution found with the community.

Best wishes,
Pavlina
the Telerik team
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now
Tags
Grid
Asked by
Lynn
Top achievements
Rank 2
Answers by
Princy
Top achievements
Rank 2
Lynn
Top achievements
Rank 2
Pavlina
Telerik team
Share this question
or
