Anthony asked on 13 Sep 2012, 07:05 PM

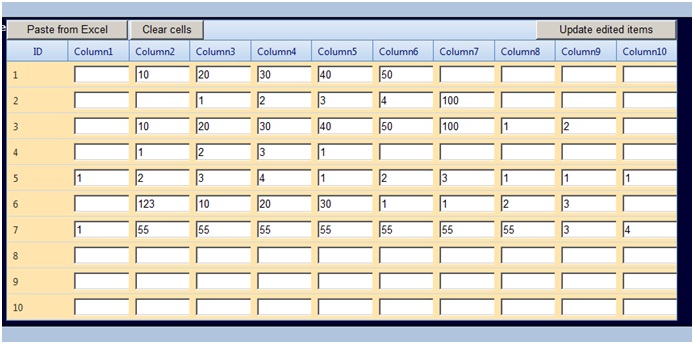

I am using the Copy and Paste example mentioned in this thread (and in other copy and paste threads). The only thing that I change is to set AutoGenerateColumns="False" and list down the columns. Everything works like the original example.

Code that works:
ASPX
<telerik:RadCodeBlock ID="rcb1" runat="server">
    <script type="text/javascript">

        // ***** Begin Paste from Excel scripts.
        var lastFocused;

        function pasteFromExcel() {
            if (!lastFocused) return;
            var clipData = window.clipboardData.getData('Text');
            var crlf = String.fromCharCode(13) + String.fromCharCode(10);
            var table = clipData.split(crlf);
            for (var tRow = 0; tRow < table.length - 1; tRow++)
                table[tRow] = table[tRow].split(String.fromCharCode(9));
            Array.remove(table, table[table.length - 1]);
            fillTable(table);
        }

        function fillTable(table) {
            var pCell = lastFocused.parentNode;
            var pRow = pCell.parentNode;
            var pBody = pRow.parentNode;
            var maxRows = pBody.rows.length;
            var maxCols = pRow.cells.length;

            hasChanges = true;
            for (var row = 0; row < table.length; row++) {
                for (var col = 0; col < table[row].length; col++) {
                    var cCellIndex = pCell.cellIndex + col;
                    var cRowIndex = pRow.sectionRowIndex + row;

                    if (cRowIndex < maxRows && cCellIndex < maxCols) {
                        var cCell = pBody.rows[cRowIndex].cells[cCellIndex];
                        var pInput = cCell.getElementsByTagName("input")[0];

                        pInput.style.backgroundColor = "#F7FAFF";
                        pInput.value = table[row][col];
                    }
                }
            }
        }

        function gridFocus(e) {
            e = e || window.event;
            var target = e.target || e.srcElement;
            if (target.tagName.toLowerCase() == "input" && target.type.toLowerCase() == "text")
                lastFocused = target;
        }

        function clearCells(sender) {
            var radGrid = $get('<%= RadGrid1.ClientID %>');
            var inputs = radGrid.getElementsByTagName("input");
            for (var el = 0; el < inputs.length; el++) {
                if (inputs[el].type == "text") {
                    inputs[el].value = "";
                    inputs[el].style.backgroundColor = "";
                }
            }
        }
        // ***** End Paste from Excel scripts.


    </script>

</telerik:RadCodeBlock>
<div>
    <telerik:RadAjaxPanel ID="RadAjaxPanel1" runat="server">
        <telerik:RadGrid ID="RadGrid1" runat="server" AllowMultiRowEdit="true" DataSourceID="SqlDataSource1"
            onclick="gridFocus(event)" Width="830px" ShowHeader="true" Skin="Office2007" OnColumnCreated="RadGrid1_ColumnCreated"
            AllowAutomaticUpdates="true" OnItemUpdated="RadGrid1_ItemUpdated" AutoGenerateColumns="False">
            <MasterTableView EditMode="InPlace" CommandItemDisplay="Top" TableLayout="Fixed">
                <CommandItemTemplate>
                    <div style="float: left">
                        <input type="button" value="Paste from Excel" onclick="pasteFromExcel()" />
                        <input type="button" value="Clear cells" onclick="clearCells()" />
                    </div>
                    <div style="float: right">
                        <asp:Button ID="UpdateEditedButton" CommandName="UpdateEdited" Text="Update edited items"
                            runat="server" />
                    </div>
                </CommandItemTemplate>
                <Columns>
                    <telerik:GridBoundColumn DataField="ID" DataType="System.Int32"
                        HeaderText="ID" UniqueName="ID" Visible="true" ReadOnly="True">
                        <HeaderStyle HorizontalAlign="Center" />
                        <ItemStyle HorizontalAlign="Left" />
                    </telerik:GridBoundColumn>
                        <telerik:GridBoundColumn DataField="Column1"
                            HeaderText="Column1"
                            UniqueName="Column1" Visible="true">
                        </telerik:GridBoundColumn>
                        <telerik:GridBoundColumn DataField="Column2"
                            HeaderText="Column2"
                            UniqueName="Column2" Visible="true">
                        </telerik:GridBoundColumn>
                        <telerik:GridBoundColumn DataField="Column3"
                            HeaderText="Column3"
                            UniqueName="Column3" Visible="true">
                        </telerik:GridBoundColumn>
                        <telerik:GridBoundColumn DataField="Column4"
                            HeaderText="Column4"
                            UniqueName="Column4" Visible="true">
                        </telerik:GridBoundColumn>
                        <telerik:GridBoundColumn DataField="Column5"
                            HeaderText="Column5"
                            UniqueName="Column5" Visible="true">
                        </telerik:GridBoundColumn>
                        <telerik:GridBoundColumn DataField="Column6"
                            HeaderText="Column6"
                            UniqueName="Column6" Visible="true">
                        </telerik:GridBoundColumn>
                        <telerik:GridBoundColumn DataField="Column7"
                            HeaderText="Column7"
                            UniqueName="Column7" Visible="true">
                        </telerik:GridBoundColumn>
                        <telerik:GridBoundColumn DataField="Column8"
                            HeaderText="Column8"
                            UniqueName="Column8" Visible="true">
                        </telerik:GridBoundColumn>
                        <telerik:GridBoundColumn DataField="Column9"
                            HeaderText="Column9"
                            UniqueName="Column9" Visible="true">
                        </telerik:GridBoundColumn>
                        <telerik:GridBoundColumn DataField="Column10"
                            HeaderText="Column10"
                            UniqueName="Column10" Visible="true">
                        </telerik:GridBoundColumn>
                    </Columns>
            </MasterTableView>
        </telerik:RadGrid>
    </telerik:RadAjaxPanel>
    <asp:SqlDataSource ID="SqlDataSource1" runat="server" ConnectionString="<%$ ConnectionStrings:ConnectionString1 %>"
        DeleteCommand="DELETE FROM [EmptyTable] WHERE [ID] = @ID" InsertCommand="INSERT INTO [EmptyTable] ([ID], [Column1], [Column2], [Column3], [Column4], [Column5], [Column6], [Column7], [Column8], [Column9], [Column10]) VALUES (@ID, @Column1, @Column2, @Column3, @Column4, @Column5, @Column6, @Column7, @Column8, @Column9, @Column10)"
        SelectCommand="SELECT * FROM [EmptyTable]" UpdateCommand="UPDATE [EmptyTable] SET [Column1] = @Column1, [Column2] = @Column2, [Column3] = @Column3, [Column4] = @Column4, [Column5] = @Column5, [Column6] = @Column6, [Column7] = @Column7, [Column8] = @Column8, [Column9] = @Column9, [Column10] = @Column10 WHERE [ID] = @ID">
        <DeleteParameters>
            <asp:Parameter Name="ID" Type="Int32" />
        </DeleteParameters>
        <UpdateParameters>
            <asp:Parameter Name="Column1" Type="String" />
            <asp:Parameter Name="Column2" Type="String" />
            <asp:Parameter Name="Column3" Type="String" />
            <asp:Parameter Name="Column4" Type="String" />
            <asp:Parameter Name="Column5" Type="String" />
            <asp:Parameter Name="Column6" Type="String" />
            <asp:Parameter Name="Column7" Type="String" />
            <asp:Parameter Name="Column8" Type="String" />
            <asp:Parameter Name="Column9" Type="String" />
            <asp:Parameter Name="Column10" Type="String" />
            <asp:Parameter Name="ID" Type="Int32" />
        </UpdateParameters>
        <InsertParameters>
            <asp:Parameter Name="ID" Type="Int32" />
            <asp:Parameter Name="Column1" Type="String" />
            <asp:Parameter Name="Column2" Type="String" />
            <asp:Parameter Name="Column3" Type="String" />
            <asp:Parameter Name="Column4" Type="String" />
            <asp:Parameter Name="Column5" Type="String" />
            <asp:Parameter Name="Column6" Type="String" />
            <asp:Parameter Name="Column7" Type="String" />
            <asp:Parameter Name="Column8" Type="String" />
            <asp:Parameter Name="Column9" Type="String" />
            <asp:Parameter Name="Column10" Type="String" />
        </InsertParameters>
    </asp:SqlDataSource>
</div>

.CS
protected void Page_Load(object sender, EventArgs e)
{
                for (int i = 0; i < RadGrid1.PageSize; i++)
                    RadGrid1.EditIndexes.Add(i);
}

protected void RadGrid1_ColumnCreated(object sender, GridColumnCreatedEventArgs e)
{

    if (e.Column is GridBoundColumn)
        e.Column.Visible = (e.Column as GridBoundColumn).DataField != "ID";

}

protected void RadGrid1_ItemUpdated(object source, GridUpdatedEventArgs e)
{
    e.KeepInEditMode = true;
}

Now when I change the columns in the grid from GridBoundColumn to GridNumericColumn, here's what I find out:

1. There is an extra <span> element in the GridNumericColumn so I had to update function fillTable to go to an extra parentNode. The data is pasted on the correct cells but if you click on those cells, it removes the pasted data and reverts to the original data.

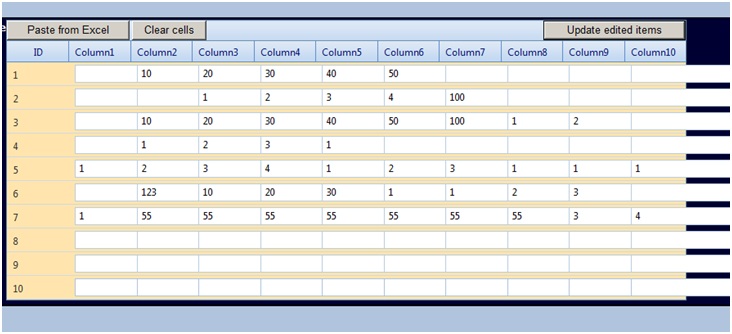

2. The edit cells changed from an inset border and each cell is slightly indented to a thin solid border where the first column is slightly indented and all succeeding columns mis-aligned. I can deal with the border style, I need to know how to remove the slight indent in the first column or at least make it look like the GridBoundColumn example.

    <telerik:RadCodeBlock ID="rcb1" runat="server">
        <script type="text/javascript">

            // ***** Begin Paste from Excel scripts.
            var lastFocused;

            function pasteFromExcel() {
                if (!lastFocused) return;
                var clipData = window.clipboardData.getData('Text');
                var crlf = String.fromCharCode(13) + String.fromCharCode(10);
                var table = clipData.split(crlf);
                for (var tRow = 0; tRow < table.length - 1; tRow++)
                    table[tRow] = table[tRow].split(String.fromCharCode(9));
                Array.remove(table, table[table.length - 1]);
                fillTable(table);
            }

            function fillTable(table) {

//Changed this line to the 2 lines below.
//                var pCell = lastFocused.parentNode;

                var pSpan = lastFocused.parentNode;
                var pCell = pSpan.parentNode;

                var pRow = pCell.parentNode;
                var pBody = pRow.parentNode;
                var maxRows = pBody.rows.length;
                var maxCols = pRow.cells.length;

                hasChanges = true;
                for (var row = 0; row < table.length; row++) {
                    for (var col = 0; col < table[row].length; col++) {
                        var cCellIndex = pCell.cellIndex + col;
                        var cRowIndex = pRow.sectionRowIndex + row;

                        if (cRowIndex < maxRows && cCellIndex < maxCols) {
                            var cCell = pBody.rows[cRowIndex].cells[cCellIndex];
                            var pInput = cCell.getElementsByTagName("input")[0];

                            pInput.style.backgroundColor = "#F7FAFF";
                            pInput.value = table[row][col];
                        }
                    }
                }
            }

            function gridFocus(e) {
                e = e || window.event;
                var target = e.target || e.srcElement;
                if (target.tagName.toLowerCase() == "input" && target.type.toLowerCase() == "text")
                    lastFocused = target;
            }

            function clearCells(sender) {
                var radGrid = $get('<%= RadGrid1.ClientID %>');
                var inputs = radGrid.getElementsByTagName("input");
                for (var el = 0; el < inputs.length; el++) {
                    if (inputs[el].type == "text") {
                        inputs[el].value = "";
                        inputs[el].style.backgroundColor = "";
                    }
                }
            }
            // ***** End Paste from Excel scripts.


        </script>

    </telerik:RadCodeBlock>
    <div>
        <telerik:RadAjaxPanel ID="RadAjaxPanel1" runat="server">
            <telerik:RadGrid ID="RadGrid1" runat="server" AllowMultiRowEdit="true" DataSourceID="SqlDataSource1"
                onclick="gridFocus(event)" Width="830px" ShowHeader="true" Skin="Office2007" OnColumnCreated="RadGrid1_ColumnCreated"
                AllowAutomaticUpdates="true" OnItemUpdated="RadGrid1_ItemUpdated" AutoGenerateColumns="False">
                <MasterTableView EditMode="InPlace" CommandItemDisplay="Top" TableLayout="Fixed">
                    <editformsettings>
                        <editcolumn filtercontrolalttext="Filter EditCommandColumn column">
                        </editcolumn>
                    </editformsettings>
                    <CommandItemTemplate>
                        <div style="float: left">
                            <input type="button" value="Paste from Excel" onclick="pasteFromExcel()" />
                            <input type="button" value="Clear cells" onclick="clearCells()" />
                        </div>
                        <div style="float: right">
                            <asp:Button ID="UpdateEditedButton" CommandName="UpdateEdited" Text="Update edited items"
                                runat="server" />
                        </div>
                    </CommandItemTemplate>
                    <CommandItemSettings ExportToPdfText="Export to PDF" />
                    <rowindicatorcolumn filtercontrolalttext="Filter RowIndicator column"
                        visible="True">
                    </rowindicatorcolumn>
                    <expandcollapsecolumn filtercontrolalttext="Filter ExpandColumn column"
                        visible="True">
                    </expandcollapsecolumn>
                    <Columns>
                        <telerik:GridNumericColumn DataField="ID" DataType="System.Int32"
                            HeaderText="ID" UniqueName="ID" Visible="true" ReadOnly="True">
                        </telerik:GridNumericColumn>
                            <telerik:GridNumericColumn DataField="Column1"
                                HeaderText="Column1"
                                UniqueName="Column1" Visible="true">
                            </telerik:GridNumericColumn>
                            <telerik:GridNumericColumn DataField="Column2"
                                HeaderText="Column2"
                                UniqueName="Column2" Visible="true">
                            </telerik:GridNumericColumn>
                            <telerik:GridNumericColumn DataField="Column3"
                                HeaderText="Column3"
                                UniqueName="Column3" Visible="true">
                            </telerik:GridNumericColumn>
                            <telerik:GridNumericColumn DataField="Column4"
                                HeaderText="Column4"
                                UniqueName="Column4" Visible="true">
                            </telerik:GridNumericColumn>
                            <telerik:GridNumericColumn DataField="Column5"
                                HeaderText="Column5"
                                UniqueName="Column5" Visible="true">
                            </telerik:GridNumericColumn>
                            <telerik:GridNumericColumn DataField="Column6"
                                HeaderText="Column6"
                                UniqueName="Column6" Visible="true">
                            </telerik:GridNumericColumn>
                            <telerik:GridNumericColumn DataField="Column7"
                                HeaderText="Column7"
                                UniqueName="Column7" Visible="true">
                            </telerik:GridNumericColumn>
                            <telerik:GridNumericColumn DataField="Column8"
                                HeaderText="Column8"
                                UniqueName="Column8" Visible="true">
                            </telerik:GridNumericColumn>
                            <telerik:GridNumericColumn DataField="Column9"
                                HeaderText="Column9"
                                UniqueName="Column9" Visible="true">
                            </telerik:GridNumericColumn>
                            <telerik:GridNumericColumn DataField="Column10"
                                HeaderText="Column10"
                                UniqueName="Column10" Visible="true">
                            </telerik:GridNumericColumn>
                        </Columns>
                </MasterTableView>
                <filtermenu enableimagesprites="False">
                </filtermenu>
            </telerik:RadGrid>
        </telerik:RadAjaxPanel>
        <asp:SqlDataSource ID="SqlDataSource1" runat="server" ConnectionString="<%$ ConnectionStrings:ConnectionString1 %>"
            DeleteCommand="DELETE FROM [EmptyTable] WHERE [ID] = @ID" InsertCommand="INSERT INTO [EmptyTable] ([ID], [Column1], [Column2], [Column3], [Column4], [Column5], [Column6], [Column7], [Column8], [Column9], [Column10]) VALUES (@ID, @Column1, @Column2, @Column3, @Column4, @Column5, @Column6, @Column7, @Column8, @Column9, @Column10)"
            SelectCommand="SELECT * FROM [EmptyTable]" UpdateCommand="UPDATE [EmptyTable] SET [Column1] = @Column1, [Column2] = @Column2, [Column3] = @Column3, [Column4] = @Column4, [Column5] = @Column5, [Column6] = @Column6, [Column7] = @Column7, [Column8] = @Column8, [Column9] = @Column9, [Column10] = @Column10 WHERE [ID] = @ID">
            <DeleteParameters>
                <asp:Parameter Name="ID" Type="Int32" />
            </DeleteParameters>
            <UpdateParameters>
                <asp:Parameter Name="Column1" Type="String" />
                <asp:Parameter Name="Column2" Type="String" />
                <asp:Parameter Name="Column3" Type="String" />
                <asp:Parameter Name="Column4" Type="String" />
                <asp:Parameter Name="Column5" Type="String" />
                <asp:Parameter Name="Column6" Type="String" />
                <asp:Parameter Name="Column7" Type="String" />
                <asp:Parameter Name="Column8" Type="String" />
                <asp:Parameter Name="Column9" Type="String" />
                <asp:Parameter Name="Column10" Type="String" />
                <asp:Parameter Name="ID" Type="Int32" />
            </UpdateParameters>
            <InsertParameters>
                <asp:Parameter Name="ID" Type="Int32" />
                <asp:Parameter Name="Column1" Type="String" />
                <asp:Parameter Name="Column2" Type="String" />
                <asp:Parameter Name="Column3" Type="String" />
                <asp:Parameter Name="Column4" Type="String" />
                <asp:Parameter Name="Column5" Type="String" />
                <asp:Parameter Name="Column6" Type="String" />
                <asp:Parameter Name="Column7" Type="String" />
                <asp:Parameter Name="Column8" Type="String" />
                <asp:Parameter Name="Column9" Type="String" />
                <asp:Parameter Name="Column10" Type="String" />
            </InsertParameters>
        </asp:SqlDataSource>
    </div>

1 Answer, 1 is accepted

Sort by
0
Vasil
Telerik team
answered on 18 Sep 2012, 10:25 AM
Hello Anthony,

For styling the columns I would recommend you to see these help topics:
http://www.telerik.com/help/aspnet-ajax/input-single-rendering-output-css-styling.html
http://www.telerik.com/help/aspnet-ajax/input-css-selectors.html

Additionally, you will achieve better performance for so many inputs, if you use GridBoundColumn that renders asp:TextBox. During the ItemCreated or ItemDataBound event of the grid, find these TextBoxes and add them to the settings of RadInputManager that you can place on the page.

Regards,
Vasil
the Telerik team
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
Tags
Grid
Asked by
Anthony
Top achievements
Rank 1
Answers by
Vasil
Telerik team
Share this question
or
