Previous Day and Next Day to appear beside the month name

2 posts, 0 answers
  1. Phani
    Phani avatar
    19 posts
    Member since:
    Dec 2013

    Posted 12 Dec 2013 Link to this post

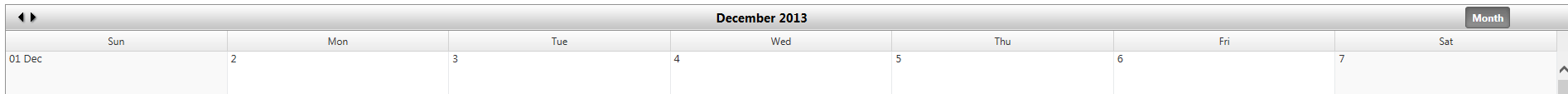

    My Radscheduler header looks like the attached image. I want to bring the previous day and next day arrow keys on the either side of the month name. Like this

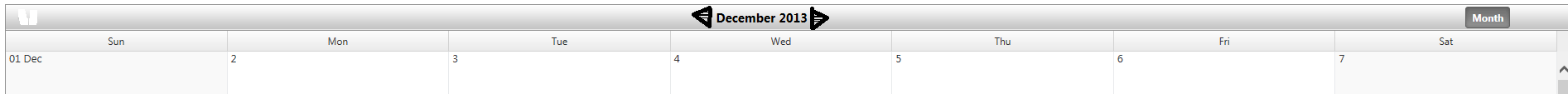

        <| December 2013 |>. How can I do that? I am attaching an image for that as well. it is named as monthwanted.png

    Also there is space between appointments. How can I get rid of that space and make the appointments to be adjacent to each other. I am attaching an image that shows space between the appointments

  2. Magdalena
    Magdalena avatar
    463 posts

    Posted 14 Dec 2013 Link to this post

    Hi Phani,

    The layout you have described is not anticipated for RadScheduler header, but you could achieve it with relative/absolute positioning of the arrows. For example as the following:
    .rsNextDay {
        position: relative;
    .rsPrevDay {
        left: x1 px;
    .rsNextDay {
        left: x2 px;

    where x1 and x2 are your custom distances. I hope this was helpful for you.
