PLEASE HELP ME!!! bug with ItemStyle HeaderStyle in a grid with custom skin!!! they are not equal!

[lina fetisova]

Good day!
I have got a grid with my custom skin made in the Visual Style Builder.
My custom skin css is here - http://new.globalfarm.ru/FarmPortal/Grid.FarmPortal.css
No matter what i write in ItemStyle Width &  HeaderStyle Width - columns look like they wants by themselfs in different browsers :(
HeaderStyle width is not equal with ItemStyle Width!

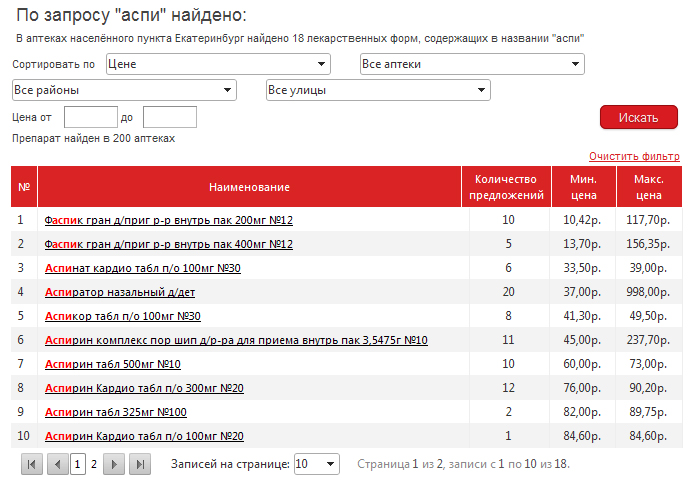

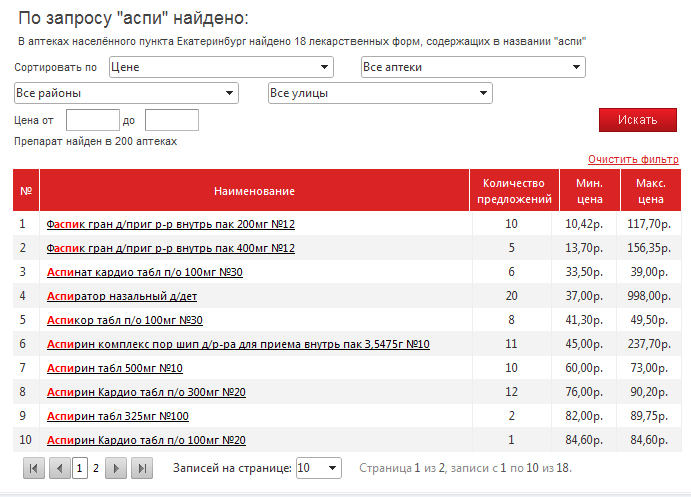

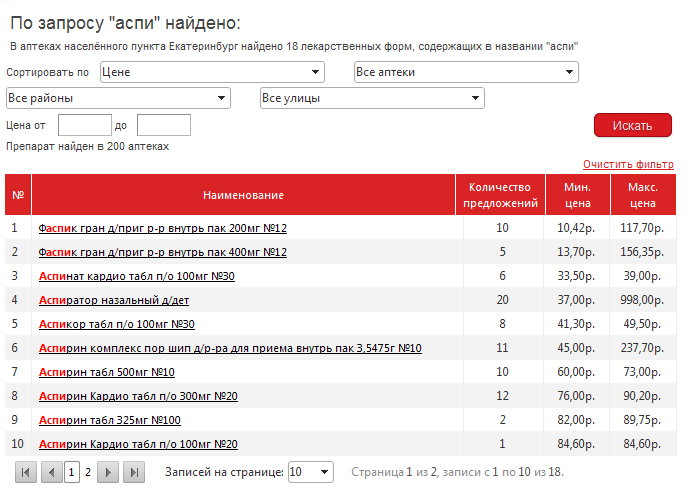

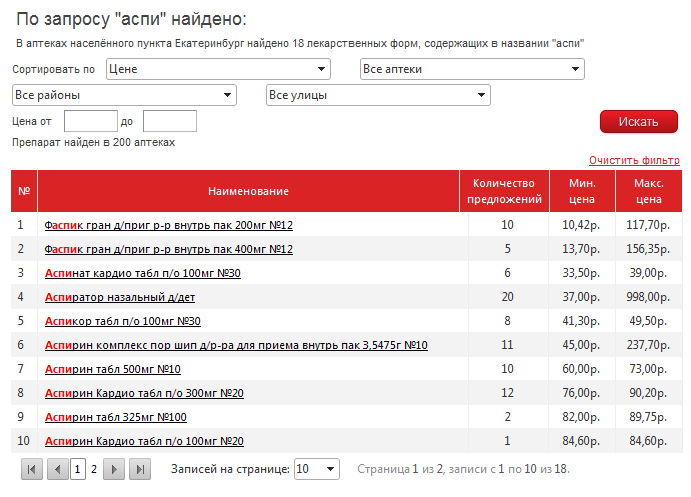

for example there are attached images for such code in different browsers (it no matter if i write only HeaderStyle Width or both ItemStyle Width &  HeaderStyle Width)

<telerik:RadGrid ID="grProducts" runat="server" CssClass="MyGridClass1"
        AllowPaging="True" AllowSorting="True" AutoGenerateColumns="False"
        GridLines="None" Skin="FarmPortal" EnableEmbeddedSkins="false"
        onitemdatabound="grProducts_ItemDataBound" onprerender="grProducts_PreRender" Width="100%">
<MasterTableView Width="100%" TableLayout="Auto">
    <Columns>
        <telerik:GridBoundColumn DataField="Id" HeaderText="Id" ReadOnly="True" UniqueName="Id" SortExpression="Id" Visible="false">
            <HeaderStyle Width="0" />
            <ItemStyle  HorizontalAlign="Left" Width="0" />
        </telerik:GridBoundColumn>
        <telerik:GridBoundColumn DataField="Num" HeaderText="№" ReadOnly="True" UniqueName="Num" SortExpression="Num" HeaderStyle-Width="3%" ItemStyle-Width="3%" >
            <HeaderStyle Width="3%" />
             <ItemStyle Width="3%" />
        </telerik:GridBoundColumn>
        <telerik:GridHyperLinkColumn DataNavigateUrlFields="Name" DataTextField ="Name" HeaderText="Наименование" UniqueName="Name" SortExpression="Name" HeaderStyle-Width="65%" ItemStyle-Width="65%">
            <ItemStyle   Width="65%"  />
            <HeaderStyle Width="65%" />
        </telerik:GridHyperLinkColumn>
        <telerik:GridBoundColumn DataField="Count" HeaderText="Количество предложений" ReadOnly="True" UniqueName="Count" SortExpression="Count" HeaderStyle-Width="12%" ItemStyle-Width="12%" >
            <ItemStyle  HorizontalAlign="Center" Width="12%"  />
            <HeaderStyle Width="12%" />
        </telerik:GridBoundColumn>
        <telerik:GridBoundColumn DataField="MinPrice" HeaderText="Мин. цена" ReadOnly="True" UniqueName="MinPrice" SortExpression="MinPrice" DataFormatString="{0:c2}" HeaderStyle-Width="10%" ItemStyle-Width="10%" >
            <HeaderStyle Width="10%" />
            <ItemStyle  HorizontalAlign="Center" Width="10%"  />
        </telerik:GridBoundColumn>
        <telerik:GridBoundColumn DataField="MaxPrice" HeaderText="Макс. цена" ReadOnly="True" UniqueName="MaxPrice" SortExpression="MaxPrice" DataFormatString="{0:c2}" HeaderStyle-Width="10%" ItemStyle-Width="10%" >
            <HeaderStyle Width="10%"  />
            <ItemStyle  HorizontalAlign="Center" Width="10%" />
        </telerik:GridBoundColumn>
    </Columns>
</MasterTableView>
    <ClientSettings AllowColumnsReorder="True" AllowDragToGroup="True"
        ReorderColumnsOnClient="True">
        <Selecting AllowRowSelect="True" />
        <Scrolling AllowScroll="True" UseStaticHeaders="True" />
    </ClientSettings>
</telerik:RadGrid>

there width i not equal, in the example in is not very aufull, but in other tables is. I want them to have equal width. What do I do wrong?

[lina fetisova]

any ideas?

[Pavlina]

Hi Lina,

Please have in mind that it is not recommended to use ItemStyle-Width to set column widths. Only HeaderStyle-Width should be used.

Give this suggestion a try and see if it helps.

Greetings,
Pavlina
the Telerik team

[lina fetisova]

Pavlina, i've already tried it. it do not help too, it makes everything worse :(

[lina fetisova]

I use Rad Grid with default skin (office2007), I write there only Header-Style width and everything is ok =(
but not here =(
maybe the problem is in the custom skin?

[lina fetisova]

Pavlina! I've sold my problem - because of smth the bug was in <Scrolling AllowScroll="True" UseStaticHeaders="True" />
=) now everything is ok! =))) thank you!

[Pavlina]

Hello Lina,

I am glad that you could solve the problem on your own.

Best wishes,
Pavlina
the Telerik team

[Michael McCallum]

I am having the same type of issue using HeaderStyle Width. I can only get the following header style to work:

<HeaderStyle HorizontalAlign="Center" Width="50px" />


when client scrolling is set like this:

<Scrolling AllowScroll="True" UseStaticHeaders="True" />

If is turn of either of the AllowScroll or UseStaticHeaders, the width of the column is no longer set.  This would appear to be a bug. I use both of these client options as false, so I cannot get a column width to work for editing.  I really do not want to have to grab the text box on editing and manually set the width.

Any suggestions?

Thanks, Mike

[Michael McCallum]

Opened a support ticket on this and found that the MasterTableView needs to have following setting for the HeaderStyle widths to be applied to the all columns of the table.

Mike

TableLayout



="Fixed"



[Pavlina]

Hello Michael,

Please, refer to the support ticket post for additional information. To avoid duplicate posts, I suggest that we continue our communication there.

Best wishes,
Pavlina
the Telerik team
