2 Answers, 1 is accepted
0
Accepted
Hi Davis,
The way labels are drawn around the Pie Chart is determined by the series.padding and series.labels.distance properties, as well as the total Chart width. You can try different combinations of these values in your Chart and see what numbers are needed in order to get better labels alignment. Here is an example of their usage: https://dojo.telerik.com/IhiwULoy.
These properties did not exist in the 2013 version, so this is probably why you see a different behavior.
If the problem persists, please send us a Dojo, where we can reproduce it and see how it can be fixed.
Regards,
Tsvetina
Progress Telerik
The way labels are drawn around the Pie Chart is determined by the series.padding and series.labels.distance properties, as well as the total Chart width. You can try different combinations of these values in your Chart and see what numbers are needed in order to get better labels alignment. Here is an example of their usage: https://dojo.telerik.com/IhiwULoy.
These properties did not exist in the 2013 version, so this is probably why you see a different behavior.
If the problem persists, please send us a Dojo, where we can reproduce it and see how it can be fixed.
Regards,
Tsvetina
Progress Telerik
Try our brand new, jQuery-free Angular components built from ground-up which
deliver the business app essential building blocks - a grid component,
data visualization (charts) and form elements.
0
C.F.
Top achievements
Rank 1
Rank 1
answered on 02 May 2018, 07:01 AM
Dear Tsvetina,

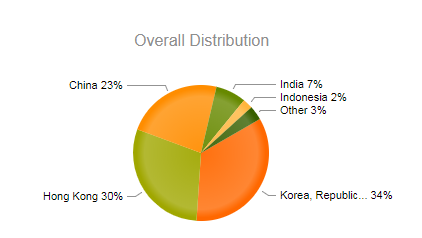

Thank you for the information. It is very useful and helped us to solve the problem. Now the Pie Chart adjusted to our previous view.
Regards,
Davis
