Pie chart graphics is not shown

5 Answers 85 Views
Chart (Obsolete)
This is a migrated thread and some comments may be shown as answers.
Carlos
Top achievements
Rank 1
Carlos asked on 21 Sep 2012, 04:28 PM
Hi, I'm working on an app asp.net and using radchart control in it, I wrote the next test code:

HTML
<form id="form1" runat="server">
    <telerik:RadScriptManager ID="RadScriptManager1" runat="server">
    </telerik:RadScriptManager>
    <div>
        <telerik:RadChart ID="chrChart" runat="server" >
            <PlotArea>
                <EmptySeriesMessage  Visible="True">
                    <Appearance Visible="True">
                    </Appearance>
                </EmptySeriesMessage>
            </PlotArea>
        </telerik:RadChart>
    </div>
</form>

vb.net code

Protected Sub Page_Load(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Load
    chrChart.Clear()
    chrChart.AutoLayout = True
    chrChart.PlotArea.XAxis.Appearance.TextAppearance.TextProperties.Font = New Font("Arial", 10)
    chrChart.PlotArea.XAxis.Appearance.TextAppearance.TextProperties.Color = Color.Black
    chrChart.PlotArea.XAxis.AutoScale = False
    Dim loDataSeries As New ChartSeries("Chart test", ChartSeriesType.Bar)
    loDataSeries.Appearance.LegendDisplayMode = ChartSeriesLegendDisplayMode.ItemLabels
    Dim myItem1 As New ChartSeriesItem(10, "myitem1")
    myItem1.Name = "myitem1"
    Dim myItem2 As New ChartSeriesItem(20, "myitem2")
    myItem2.Name = "myitem2"
    loDataSeries.AddItem(myItem1)
    loDataSeries.AddItem(myItem2)
    chrChart.AddChartSeries(loDataSeries)
End Sub

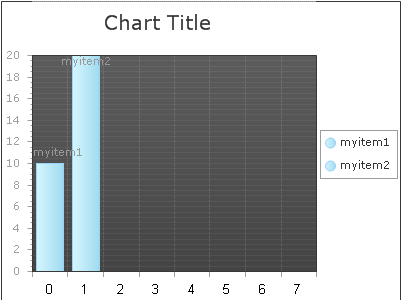

this code showed the bar chart correctly, but When I changed the ChartSeriesType to Pie, the graphics is not shown, (see image attached).
Dim loDataSeries As New ChartSeries("Chart test", ChartSeriesType.PIE)

When I comment the next code:

'chrChart.PlotArea.XAxis.AutoScale = False

I get the next exception

    Unable to cast object of type 'Telerik.Charting.ChartXAxis' to type 'Telerik.Charting.ChartYAxis'.

regardless if the  ChartSeriesType is Bar or Pie, I get the error.

What am I doing wrong?

This is my web.config file:

<?xml version="1.0"?>
<configuration>
  <appSettings>
    <add key="Telerik.Skin" value="Metro"/>
    <add key="Telerik.ScriptManager.TelerikCdn" value="Disabled"/>
    <add key="Telerik.StyleSheetManager.TelerikCdn" value="Disabled"/>
  </appSettings>
  <system.web>
    <compilation debug="true" strict="false" explicit="true" targetFramework="4.0">
      <assemblies>
        <add assembly="System.Design, Version=4.0.0.0, Culture=neutral, PublicKeyToken=B03F5F7F11D50A3A"/>
        <add assembly="System.Windows.Forms, Version=4.0.0.0, Culture=neutral, PublicKeyToken=B77A5C561934E089"/>
        <add assembly="System.Speech, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"/>
      </assemblies>
    </compilation>
    <pages>
      <controls>
        <add tagPrefix="telerik" namespace="Telerik.Web.UI" assembly="Telerik.Web.UI"/>
      </controls>
    </pages>
    <httpHandlers>
      <add path="ChartImage.axd" type="Telerik.Web.UI.ChartHttpHandler" verb="*" validate="false"/>
      <add path="Telerik.Web.UI.SpellCheckHandler.axd" type="Telerik.Web.UI.SpellCheckHandler" verb="*" validate="false"/>
      <add path="Telerik.Web.UI.DialogHandler.aspx" type="Telerik.Web.UI.DialogHandler" verb="*" validate="false"/>
      <add path="Telerik.RadUploadProgressHandler.ashx" type="Telerik.Web.UI.RadUploadProgressHandler" verb="*" validate="false"/>
      <add path="Telerik.Web.UI.WebResource.axd" type="Telerik.Web.UI.WebResource" verb="*" validate="false"/>
    </httpHandlers>
    <httpModules>
      <add name="RadCompression" type="Telerik.Web.UI.RadCompression"/>
    </httpModules>
  </system.web>
  <system.webServer>
    <validation validateIntegratedModeConfiguration="false"/>
    <modules runAllManagedModulesForAllRequests="true">
      <remove name="RadCompression"/>
      <add name="RadCompression" type="Telerik.Web.UI.RadCompression" preCondition="integratedMode"/>
    </modules>
    <handlers>
      <remove name="ChartImage_axd"/>
      <add name="ChartImage_axd" path="ChartImage.axd" type="Telerik.Web.UI.ChartHttpHandler" verb="*" preCondition="integratedMode"/>
      <remove name="Telerik_Web_UI_SpellCheckHandler_axd"/>
      <add name="Telerik_Web_UI_SpellCheckHandler_axd" path="Telerik.Web.UI.SpellCheckHandler.axd" type="Telerik.Web.UI.SpellCheckHandler" verb="*" preCondition="integratedMode"/>
      <remove name="Telerik_Web_UI_DialogHandler_aspx"/>
      <add name="Telerik_Web_UI_DialogHandler_aspx" path="Telerik.Web.UI.DialogHandler.aspx" type="Telerik.Web.UI.DialogHandler" verb="*" preCondition="integratedMode"/>
      <remove name="Telerik_RadUploadProgressHandler_ashx"/>
      <add name="Telerik_RadUploadProgressHandler_ashx" path="Telerik.RadUploadProgressHandler.ashx" type="Telerik.Web.UI.RadUploadProgressHandler" verb="*" preCondition="integratedMode"/>
      <remove name="Telerik.Web.UI.WebResource"/>
      <add name="Telerik.Web.UI.WebResource" path="Telerik.Web.UI.WebResource.axd" type="Telerik.Web.UI.WebResource" verb="*" preCondition="integratedMode"/>
    </handlers>
  </system.webServer>

  <location path="Telerik.Web.UI.WebResource.axd">
    <system.web>
      <authorization>
        <allow users="*"/>
      </authorization>
    </system.web>
  </location>
  <location path="ChartImage.axd">
    <system.web>
      <authorization>
        <allow users="*"/>
      </authorization>
    </system.web>
  </location
</configuration>


This problem didn't happen when I used the build 2012_1_215, this problem ocurred to me with the build  2012_2_918

any help solving this topic is appreciate, I need purchase this controls immediately.

kind regards.

5 Answers, 1 is accepted

Sort by
0
Petar Kirov
Telerik team
answered on 26 Sep 2012, 01:17 PM
Hi Carlos,

I have examined your code and created a test project, but unfortunately I couldn't reproduce your problems. As far as I know there are no changes in the RadChart codebase between these 2 versions you mentioned that could cause your issues.

Please examine the attached project and check for any inconsistencies with yours. I hope this will help.

All the best,
Petar Kirov
the Telerik team

If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
0
Aaron
Top achievements
Rank 1
answered on 27 Sep 2012, 12:43 AM
I have tested sample program using version 2012.2.925.40 and it still have same problem. I refer the component in download folder.
0
Carlos
Top achievements
Rank 1
answered on 27 Sep 2012, 03:05 PM
Thanks for you response, I have loaded the assembly that you put in the example project, and it's worked, the assembly
that I downloaded from your page seems to be faulty for it doesn't work eather in my project or yours, it should be noted that the size of telerik bin in my project is different that yours, but is the same version(in a few bytes).
0
Petar Kirov
Telerik team
answered on 01 Oct 2012, 02:54 PM
Hello,

We have been able to identify the cause for this error and the fix will be available with this week's latest internal build which you can download from your account.

Kind regards,
Petar Kirov
the Telerik team
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
0
Carlos
Top achievements
Rank 1
answered on 02 Oct 2012, 02:53 PM
Great, Thank you very much for your technical support.
