PDF export quirk and customization

[Alexander]

Hi, I use client-side binding and export to PDF works strange:

below normal data-filled rows it shows a row with "No data" text.

Where is that from? Could it have something to do with custom paging?

Also, on page load, before the data is received from webservice, the grid shows tons of empty rows.
I've seen somewhere on forum I should put [e.Item.Display = 'none'] to fix this. Is there a better approach? As i understand, this just hides these rows vis display: none, but markup anyway is huge!

And more questions about PDF customization: why

this.MasterTableView.ItemStyle.BorderStyle

assigning in PDF export event does not work? I want to remove this ugly double border around some cells in PDF and remain single border only around data cells.
Is there a way to acquire somehow CSS class data in ItemCreated event and 'transform' them into inline style to preserve grid outlook?

[Bruno]

Alex, how did you manage to export radgrid with client-side binding? As far as I know this is not possible.
To the second question - only the inline styles will be exported. Personally, I use the ItemCreated event to customize the item look. I pass a reference to the item to an external method that formats the cells automatically according to a predefined pattern that corresponds to the current style (skin).

[Alexander]

All-in-all, i've beaten some problems, but I cannot make spacing work: neither with

radGrid.MasterTableView.CellSpacing

nor with
cell.Style.Add("margin", "2px !important");

ANd well - what about "No data" row?? What is that? I still cannot get rid of it!

[Bruno]

Do you have ClientDeleteColumn?

[Alexander]

No, I don't

[Daniel]

Hello Alexander,

Could you please post your markup in this thread? I suggest that you use the "Format Code Block" tool from the toolbox above.

Regards,
Daniel
the Telerik team

[Alexander]

Here is :

protected void ExportToPdfClick(object sender, EventArgs e)
{
    currentlyExportingType = DSExportType.Pdf;
    ColumnsForExportManaged = false;
    if (DataExport != null)
    {
        DataExport.Invoke();
    }
    this.ExportSettings.OpenInNewWindow = true;
    this.BorderStyle = BorderStyle.None;
    this.MasterTableView.BorderStyle = BorderStyle.None;
    this.MasterTableView.Style["border-collapse"] = "collapse";

    this.MasterTableView.UseAllDataFields = true;
    this.MasterTableView.AllowSorting = false;
    this.Rebind();
    this.MasterTableView.ExportToPdf();
    currentlyExportingType = null;
}

Also (a propos, text-transform is also ignored and not applied to headers!):

protected override void OnItemCreated(GridItemEventArgs e)
{
    if (e.Item is GridCommandItem)
    {
        var item = e.Item as GridCommandItem;
        if (IsExport)
        {
            item.Font.Name = "Arial";
            item.Font.Bold = true;
            item.ForeColor = Color.Black;
        }
    }
    if (e.Item is GridHeaderItem)
    {
        if (IsExport)
        {
            var item = e.Item as GridHeaderItem;
            item.Font.Name = "Arial";
            item.Style["background-color"] = "#B5B5B5";
            item.Style["color"] = "#000000";
            foreach (TableCell cell in item.Cells)
            {
                cell.Style["text-transform"] = "uppercase";
                cell.Style["margin"] = "2px";
                cell.Style["text-align"] = "left";
                cell.Style["border-style"] = "1 px solid #FFFFFF";
            }
        }
    }
    if (e.Item is GridDataItem)
    {
        var item = e.Item as GridDataItem;
        if (IsExport)
        {
            item.Style.Clear();
            item.Font.Name = "Arial";
            item.Style["background-color"] = (item.ItemType == GridItemType.AlternatingItem ? "#F3F3F3" : "#E2E2E2");
            item.Style["color"] = "#000000";
            foreach (TableCell cell in item.Cells)
            {
                cell.Style["margin"] = "2px";
                cell.Style["text-align"] = "left";
                cell.Style["border-style"] = "1 px solid #FFFFFF";
            }
        }
    }

As to weirdness with "No data" row... I don't know what to post... There is a lot of code, but it's a usual calling WCF service, proper data is returned, record count is proper. However, below correct row data this "No data" is shown from somewhere... :(

Maybe instead you could give me a hint, what could it be and what to check?

And, by the way, why all these empty rows on initial grid load appears?

[Daniel]

Hello Alexander,

Regarding the first question - you can use padding instead of margin:

foreach (TableCell cell in item.Cells)
{
    cell.Style["padding"] = "20px";
    cell.Style["text-align"] = "left";
    cell.Style["border-style"] = "1 px solid #FFFFFF";
}

As to the "No data" issue - could you please share your markup with us? This problem is probably related to your columns (there is known issue related to the GridClientDeleteColumn - as suggested by Bruno).

Regards,
Daniel
the Telerik team

[Alexander]

Hi, I will do this later, but currently I have another, more important problem with this page.

SO, I have ItemTemplate with some 'data field' labels inside. If corresponding data field is marked with Export attribute, when currently exporting format is not present - label is not shown.
Here is the class for my grid:

[KnownType(typeof(GridInfo))]
public class Distributor
{
    [DataContract]
    [Serializable]
    public class GridInfo
    {
        [DataMember(Name = "ID", IsRequired = false, Order = 0)]
        public int? ID { get; set; }

        [Export(DSExportType.Pdf, DSExportType.Excel)]
        [DataMember(Name = "Name", IsRequired = false, Order = 1)]
        public string Name { get; set; }

        [DataMember(Name = "JsUrlName", IsRequired = false, Order = 2)]
        public string JsUrlName { get; set; }

        [Export(DSExportType.Excel)]
        [DataMember(Name = "ContactEmail", IsRequired = false, Order = 3)]
        public string ContactEmail { get; set; }
    }

    public class GridData
    {
        public List<GridInfo> Data { get; set; }
        public int Count { get; set; }
    }
}

AND - attention... :) - when there are NO visible labels in the corresponding column, I want to HIDE this column! I.e. ContactEmail column should not be visible when exporting to PDF. But I don't want to bother with some predefined uniquename (or datafield) attributes in EACH (i will have tons of them) grid! They should be generated automatically and 'unify' the column and the labels inside!

<B4Restore:DSGridView ID="dsgridDistributorView" runat="server" AutoGenerateColumns="False"
    SkinID="dsGridView" AllowPaging="true" AllowSorting="true" ExportEnabledFormats="pdf,excel"
    MasterTableViewCaption="Distributor List" MasterTableViewCssClass="bold" ProgressPanelID="ralp"
    DataBindingMethod="GetDistributorDataAndCount" DataBindingService="GridViewService" FilterGroup="Distributor">
    <MasterTableView VirtualItemCount="1000000" CommandItemDisplay="Top">
        <CommandItemTemplate>
            <B4Restore:FilterBar runat="server" />
            <B4Restore:HeaderBar runat="server" />
        </CommandItemTemplate>
        <Columns>
            <telerik:GridTemplateColumn HeaderStyle-CssClass="GridHeaderGreen la" ItemStyle-CssClass="la" HeaderText="Name" SortExpression="DSWIZARD.COMPANY.NAME">
                <ItemTemplate>
                    <asp:Label runat="server" ID="Name" />
                    <asp:Label runat="server" ID="JsUrlName" />
                </ItemTemplate>
            </telerik:GridTemplateColumn>
            <telerik:GridTemplateColumn HeaderStyle-CssClass="GridHeaderGreen la" ItemStyle-CssClass="la" HeaderText="Email" SortExpression="DSWIZARD.CONTACT.EMAIL">
                <ItemTemplate>
                    <asp:Label runat="server" ID="ContactEmail" />
                </ItemTemplate>
            </telerik:GridTemplateColumn>
        </Columns>
    </MasterTableView>
</B4Restore:DSGridView>

How to do this without assigning some UniqueNames everywhere in the grid columns? I want a GENERAL solution ;)

protected override void OnColumnCreated(GridColumnCreatedEventArgs e)
{
    var dataColumn = e.Column as GridTemplateColumn;
    if (dataColumn != null)
    {
        var columnUniqueName = string.Format("{0}_Column_{1:dd}", e.Column.OwnerGridID, e.Column.OrderIndex);
        dataColumn.UniqueName = columnUniqueName;
        // GOOD, but I have no access to my labels here! :(
    }
}

protected override void OnItemDataBound(GridItemEventArgs e)
        {
            if (!IsExport)
            {
                return;
            }
            if (e.Item is GridDataItem)
            {
                var item = e.Item as GridDataItem;
                if (item.DataItem == null || item.DataItem is DataRowView)
                {
                    return;
                }
                // if our data fields in the grid have Export attribute (see GridEntity.cs) - check if they should be shown (export type of the field contains currently exporting type)
                foreach (TableCell cell in item.Cells)
                {
                    var labels = cell.Controls.OfType<WebControl>().OfType<Label>();
                    foreach (var label in labels)
                    {
                        var property = item.DataItem.GetType().GetProperty(label.ID);
                        if (property != null)
                        {
                            var exportAttribute = ((MemberInfo)property).GetCustomAttributes(true).Where(attributeInstance => attributeInstance is ExportAttribute).FirstOrDefault();
                            if (exportAttribute != null && !((ExportAttribute)exportAttribute).ExportTypes.Contains(currentlyExportingType.Value))
                            {
                                label.Visible = false;
                            }
                            if (label.Visible)
                            {
                                label.Text = DataBinder.Eval(item.DataItem, label.ID).ToString();
                            }
                        }
                    }
                    //Great, but I can't access related column here :( I don't have UNIQUENAME!
                    [CURRENT COLUMN].Visible = (from label in labels where label.Visible select label).Count() > 0;
                }
            }
        }

The idea was to assign the same uniquename (as custom webcontrol attribute) to all labels that 'belongs' to the specific column and then check this attribute in ItemDataBound event, but how to do this?

[Daniel]

Hello Alexander,

Please test the attached project at your side. It demonstrates how to hide the columns in a similar scenario.

Regards,
Daniel
the Telerik team

[Alexander]

Hi. Thanks. This approach is ok. However, new error appears when column is made invisible:

Grid Export to PDF error Telerik.Web.Apoc.Render.Pdf.Fonts.Type2CIDSubsetFont.get_WArray()

I can see people here already had such problem. I discovered, that when I comment following lines - problem goes away. However, I would like to preserve these styles:

					//item.Font.Name = "Arial";
					//item.Font.Bold = true;

So, what is wrong?

And please - advice me something about 'No data' text in PDF and Excel files! The markup of my grid is already shown - as you can see, there is no any especial there. No any extra-columns.

[Daniel]

Hello Alexander,

Could you please try with another font? (for example Verdana or Garamond)

As to the "No data" problem. This problem will be addressed in the next official version of RadControls for ASP.NET AJAX.

Kind regards,
Daniel
the Telerik team

[Alexander]

Hi, I've tried with another fonts, but error is the same. Could you please also fix this issue in next build?

Btw, now I've discovered weird bug! So, I have client-side binding and webmethod returns 4 records. But in the grid 4th record is absent! Here is HTML, copied via Firebug:

<tr class="rgRow" id="ctl00_ctl00_cphMain_cphMain_masterDistributorView_dsgridDistributorView_ctl00__0" style="display: table-row;">
    <td class="la">
                <span id="ctl00_ctl00_cphMain_cphMain_masterDistributorView_dsgridDistributorView_ctl00_ctl04_Name">MASTER Software</span>
                <span id="ctl00_ctl00_cphMain_cphMain_masterDistributorView_dsgridDistributorView_ctl00_ctl04_ContactEmail">[e-mail]</span>
            </td>
</tr><tr class="rgAltRow" id="ctl00_ctl00_cphMain_cphMain_masterDistributorView_dsgridDistributorView_ctl00__1" style="display: table-row;">
    <td class="la">
                <span id="ctl00_ctl00_cphMain_cphMain_masterDistributorView_dsgridDistributorView_ctl00_ctl06_Name">DISTRIBUTOR Software</span>
                <span id="ctl00_ctl00_cphMain_cphMain_masterDistributorView_dsgridDistributorView_ctl00_ctl06_ContactEmail">[e-mail]</span>
            </td>
</tr><tr class="rgRow" id="ctl00_ctl00_cphMain_cphMain_masterDistributorView_dsgridDistributorView_ctl00__2" style="display: table-row;">
    <td class="la">
                <span id="ctl00_ctl00_cphMain_cphMain_masterDistributorView_dsgridDistributorView_ctl00_ctl08_Name">PARTNER Software</span>
                <span id="ctl00_ctl00_cphMain_cphMain_masterDistributorView_dsgridDistributorView_ctl00_ctl08_ContactEmail">[e-mail]</span>
            </td>
</tr><tr class="rgNoRecords" style="display:none;">
    <td colspan="1" style="text-align:left;"><div>No data</div></td>
</tr>
<tr class="rgAltRow" id="ctl00_ctl00_cphMain_cphMain_masterDistributorView_dsgridDistributorView_ctl00__3"><td></td></tr>

As you can see, there is also 'No data' intruder! That might be the reason of 'No data' row in exported PDF???

Ok, and now is corresponding dataItem output via Sys.Debug.traceDump. As you can see, there are 4 records, not 3!

traceDump {Object}
    __type: Distributor.GridInfo:#DebriefingSoftware.Web.PresentationObjects
    ID: 1
    Name: MASTER Software
    JsUrlName: null
    ContactEmail: [e-mail]




traceDump {Object}
    __type: Distributor.GridInfo:#DebriefingSoftware.Web.PresentationObjects
    ID: 3
    Name: DISTRIBUTOR Software
    JsUrlName: null
    ContactEmail: [e-mail]




traceDump {Object}
    __type: Distributor.GridInfo:#DebriefingSoftware.Web.PresentationObjects
    ID: 4
    Name: PARTNER Software
    JsUrlName: null
    ContactEmail: [e-mail]




traceDump {Object}
    __type: Distributor.GridInfo:#DebriefingSoftware.Web.PresentationObjects
    ID: 5
    Name: CLIENT Software
    JsUrlName: null
    ContactEmail: [e-mail]

[Daniel]

Hello Alexander,

The "No data" issue is already addressed by our developers.

Which version of RadControls for ASP.NET AJAX is used in your project? Also, could you please post a list of the fonts that cause exceptions?

As to the client-side databinding issue - it is hard to guess what is the root cause for this problem. Please submit a support ticket with a runnable demo attached and I will debug it locally.

Kind regards,
Daniel
the Telerik team

[Alexander]

Greetings, version is

2010.2.826.40

I know it may be not the latest, but sometimes we meet incompatibilities when running newer version, so we are not in a hurry to replace the version when it appears... :)
Concerning fonts. These are Arial, Garamond and Verdana I've tried.

I will send support ticket, maybe guys will find the reason of problem with fonts - maybe i'm doing something wrong - or other stuff, i am doing incorrect related to client-side binding. Because it's really quite advanced version of that simple sample, i've seen on your site ;)

add-on: today i've tested the grid and see weird thing:
first of all, I have a special user setting: page size for the grid. On initial load, in server side code, grid.PageSize and grid.MasterTableView.PageSize are assigned this number. Then i call web method for filling the grid, do client-side databinding (dataBind()) and other staff. Also, i set PageSize and CurrentPageIndex in my pager when I change page size or move across the pages with arrow buttons.
However, actually

tableView.get_pageCount()

returns incorrect value! It gives me INITIAL page count, not page count of REAL current state of the grid! However, I cannot see client-side setters for page count and no anything for record count. So, I suppose, this should be refreshed manually, when I do dataBind(), but this does not happen on client side...

[Daniel]

Hello Alexander,

About the PDF issue: The provided information is sufficient. There is no need to submit a support ticket at this point. I will keep you posted.

As to the client-side issue: The page count is automatically calculated according to the page size and the item count (virtualItemCount)

Kind regards,
Daniel
the Telerik team

[Alexander]

Daniel,

ok, i've added the line for setting virtual item count:

tableView.set_dataSource(result.Data); // was before
tableView.set_virtualItemCount(result.Count); // added now

but nothing changed: page count is still incorrect... :(

[Daniel]

Hello Alexander,

You can use the following links as a starting point:
Programmatic Binding demo
Client-side binding

I hope this helps.

Best regards,
Daniel
the Telerik team

[Alexander]

Hi, Daniel.

I've already read all these tutorials before :)
Btw, I don't use PageMethods, I use Sys.Net.WebServiceProxy.invoke. And I have everything working properly, except this pager thing...

add-on:

i've added this into _Succeeded method:
tableView.RecordCount = result.Count;

and this into SelectedIndexChanged method:
tableView.set_virtualItemCount(tableView.RecordCount);

So, I've added new property to tableView (strange, there is no record count property in tableView) and now it seems to work...
But I am still not sure everything is FULLY correct...

[Alexander]

Hi,

i have additional quirks when trying to do PDF export.

1) text in some columns overflows cell limits (to the right) - and after all, it looks like for some reason the same width is automatically assigned to all columns
2) can't manage command item template content (I have a header text for the grid there) look properly: it occupies some very small width and then wraps! I tried to set style white-space: none, also tried to indicate 100%-width, but latter caused exception...

How to fix these?

[Daniel]

Hello Alexander,

1) Cell contents will overflow when you have long text without whitespace characters inside.
PDF export help topic

2) You have to call PrepareItemStyle method for this item as demonstrated in the online demo:

protected void RadGrid1_ItemCreated(object sender, GridItemEventArgs e)
{
    if (e.Item is GridCommandItem)
    {
        e.Item.PrepareItemStyle(); //needed to span the image over the CommandItem cells
    }
}

Export to PDF

Regards,
Daniel
the Telerik team

[Alexander]

Thank you, second bug is fixed, but as to first one...
Well, yes, I do have text with no space - long names. But I cannot predict, how many symbols it will include in every given case. It depends on what entity is bound to that grid, etc. I want some common logic. I tried the following code, but it did not work:

protected override void OnItemDataBound(GridItemEventArgs e)
{
    base.OnItemDataBound(e);

    if (IsExport)
    {
        if (e.Item is GridDataItem)
        {
            var item = e.Item as GridDataItem;
            if (item.DataItem == null || item.DataItem is DataRowView)
            {
                return;
            }
            foreach (TableCell cell in item.Cells)
            {
                cell.ControlStyle.Width = Unit.Pixel(cell.Text.Length * 10);
            item.PrepareItemStyle();
        }
    }
}

[Daniel]

Hello Alexander,

I'm afraid it would be almost impossible to calculate the length of the string except if you use monospaced-type font (fixed pitch) like Courier New, Courier, Consolas, Lucida Console, Monaco, Terminal, etc.

Best regards,
Daniel
the Telerik team

[Alexander]

Ok, at least i would like to put approximate length.

Variant with fixed width is unacceptable: i have dozens of columns and dozens of entities and I never know what width should be!

So what do you offer? I would like to estimate width based on the actual text data, like in my example, but it could be not a text only, but href or something, when not whole innerHTML should be taken into account, but only displayed text.

[Jesper Matthiesen]

In general, i've solved the problem. Here is the code:

if (IsExport)
{
    const int charWidth = 10;
    var innerTextPattern = new Regex("\\>(.+)\\<\\/");

    foreach (GridColumn column in MasterTableView.Columns)
    {
        if (column is GridEditableColumn)
        {
            var columnWidth = 0;
            var currentlyExportingTypes = column.CurrentFilterValue.GetTypesFromSeparatedString<DSExportType>();

            if (currentlyExportingTypes.Count > 0 && !currentlyExportingTypes.Contains(_currentlyExportingType.Value) || column.HeaderText == "#")
            {
                column.Visible = false;
            }

            if (column.Visible)
            {
                foreach (GridDataItem dataItem in MasterTableView.Items)
                {
                    var labelLengths = 0;
                    if (column is GridTemplateColumn)
                    {
                        var labelTexts = (from label in dataItem[column.UniqueName].Controls.OfType<WebControl>().OfType<Label>() select label.Text);
                        foreach (var labelText in labelTexts)
                        {
                            var innerTextPatternMatches = innerTextPattern.Matches(labelText);
                            if (innerTextPatternMatches.Count > 0)
                            {
                                labelLengths += (from Match innerTextPatternMatch in innerTextPatternMatches
                                                 where innerTextPatternMatch.Success
                                                 select innerTextPatternMatch.Groups[1].Value
                                                 into innerText select innerText.Length).Sum();
                            }
                            else
                            {
                                labelLengths += labelText.Length;
                            }
                        }
                    }
                    else
                    {
                        var innerTextPatternMatches = innerTextPattern.Matches(dataItem[column.UniqueName].Text);
                        if (innerTextPatternMatches.Count > 0)
                        {
                            labelLengths += (from Match innerTextPatternMatch in innerTextPatternMatches
                                             where innerTextPatternMatch.Success
                                             select innerTextPatternMatch.Groups[1].Value
                                             into innerText select innerText.Length).Sum();
                        }
                        else
                        {
                            labelLengths = dataItem[column.UniqueName].Text.Length;
                        }
                    }
                    var currentColumnWidth = labelLengths * charWidth;
                    if (columnWidth < currentColumnWidth)
                    {
                        columnWidth = currentColumnWidth;
                    }
                }
                column.HeaderStyle.Width = Unit.Pixel(columnWidth);
            }
        }
    }
    _currentlyExportingType = null;
}

Btw, have you solved the problem with cookieless session when exporting in your latest release? This, may i have images preserved when exporting cookieless session page grid data into PDF? I cannot turn session off for this page, because i get data from session

[Alexander]

Small correction

column.HeaderStyle.Width = Unit.Pixel(Math.Max(columnWidth, column.HeaderText.Length * charWidth))

[Daniel]

Hello Jesper,

Thank you for sharing your code with our community. You could make a simple test project and submit it as a code-library.
Using the Code Library
Code Library

As to your question - the cookieless-related problem is already fixed. Let me know if you experience any issues when exporting images in cookieless mode.

Regards,
Daniel
the Telerik team

[Alexander]

I hoped, that problem with images have been fixed in latest version, but alas...
I have the same problem as here

Why is that? When will be next release, fixing that?

[Daniel]

Hello Alexander,

This issue was fixed in Q1 2011 SP1 (released on Apr 13, 2011). If you still experience problems in this scenario, please isolate the problem in a sample project. This way we will be able to investigate the cause locally.
Isolating a problem in a sample project

Regards,
Daniel
the Telerik team

[Alexander]

Hi, I do use latest version, but the problem remains.

Maybe i'm doing wrong something? I use client-side binding and one of columns is bound to the following property:

[DataMember]
public string MappedVdisksCountImg
{
    get
    {
        if (MappedVdisksCount.HasValue && MappedVdisksCount.Value > 0)
        {
            return "<img src='" + HttpContext.Current.GetWebRoot() + "/images/bullet_ball_green.png' />";
        }

        return "<img src='" + HttpContext.Current.GetWebRoot() + "/images/bullet_ball_red.png' />";
    }
    set { }
}

Markup is ok, image is displayed:

<td class="ca">
                    <span id="ctl00_cphMain_tc1_ctl00_ca1_ctl00_svc2HostView_gridClient_ctl00_ctl04_MappedVdisksCountImg"><img src="https://localhost/Client.TSM-SVC/images/bullet_ball_green.png"></span>
                </td>

But the error is following when I press my export button:

System.SystemException: Error while creating area : Encountered web exception while fetching image from file:///C:/TFS/WizardsFramework/Main/Source/B4Restore.Web.Client.TSM-SVC/Pages/SVC2/https://localhost/Client.TSM-SVC/images/bullet_ball_green.png: The given path's format is not supported.

[Daniel]

Hello Alexander,

Try to set the same file path on a server Image control and let me know what happens.

Best regards,
Daniel
the Telerik team

[Alexander]

Hi,
i'd like to try, but how do you suggest me to use server control here?

I've tried the following:

[DataMember]
public string MappedVdisksCountImg
{
    get
    {
        var sb = new StringBuilder();
        var tw = new StringWriter(sb);
        var hw = new HtmlTextWriter(tw);
        var img = new Image();

        if (MappedVdisksCount.HasValue && MappedVdisksCount.Value > 0)
        {
            img.ImageUrl = "~/images/bullet_ball_green.png";
        }
        else
        {
            img.ImageUrl = "~/images/bullet_ball_red.png";
        }

        img.RenderControl(hw);

        return sb.ToString();
    }
    set { }
}

and image is displayed, but when I try to do export, i am getting the error:

Unable to serialize the session state

[Daniel]

Hello Alexander,

I don't mind if you try this in another project. The important thing is to test the same URL on a server Image control. I'm trying to guess what is the root cause for the problem.

Regards,
Daniel
the Telerik team

[Alexander]

I feel that calculation of path is incorrect anyway. I've tried the following:

<ItemTemplate><asp:Image runat="server" ImageUrl="~/images/bullet_ball_green.png" /></ItemTemplate>

This is called from the page, that is situated in 'Pages' folder. As a result, the error is:

Encountered web exception while fetching image from file:///C:/TFS/WizardsFramework/Main/Source/B4Restore.Web.Client.TSM-SVC/Pages/images/bullet_ball_green.png: Could not find a part of the path 'C:\TFS\WizardsFramework\Main\Source\B4Restore.Web.Client.TSM-SVC\Pages\images\bullet_ball_green.png'

Instead, as ImageUrl supposes, the image should be searched in:

C:\TFS\WizardsFramework\Main\Source\B4Restore.Web.Client.TSM-SVC\images\bullet_ball_green.png

Of course, I could try to use absolute path and maybe it will work out, but... it's not a very good point

[Daniel]

Hello Alexander,

I will do my best to reproduce the problem locally. Any suggestions will be appreciated.

Kind regards,
Daniel
the Telerik team

[Alexander]

Hi,

any news about export to PDF on cookieless session page?

I have more and more pages with image columns and would like to get rid of exceptions, that i mentioned...

[Daniel]

Hello Alexander,

I'm afraid I have no luck reproducing this issue. I would appreciate it if you can provide a step-by-step instructions explaining how to recreate your scenario.

Kind regards,
Daniel
the Telerik team

[Alexander]

Hi, Daniel,

have you tested it using the same conditions that I have, meaning:
1) cookieless session is of course enabled in web config
2) you use relative path in server object property to show image in your client-side grid, i.e. "~/images/image.jpg"
3) the page that uses client-side grid is located inside a folder, not in root folder (Pages/Grid.aspx)

Thus, the structure of your web-site is as follows:
[images]
[Pages]
  Grid.aspx

Image is displayed ok in the grid, because the path is calculated correctly (~ means root)

BUT if you make export from Grid.aspx - the path for the image is calculated incorrectly: it calculates the path relatively to the current page, i.e.
file:///[your physical path]/[your web site root folder]/Pages/images/image.jpg
instead of
file:///[your physical path]/[your web site root folder]/images/image.jpg

and thus causes exception

[Daniel]

Hello Alexander,

Please download the attached project and see if my setup is correct.
I used RadControls version 2011.1.519 (.NET 4.0 version).

Regards,
Daniel
the Telerik team

[Alexander]

Hi,

in our production system we used version 315 and I confirm 2 things:
1) the problem with export in version 315 appears as I described
2) the problem with export in version 519 DOES NOT appear in test project, but when I try to use it in our project - I get the following error:

System.SystemException: Error while creating area : Encountered web exception while fetching image from https://localhost/Client.TSM-SVC/images/svc2/status_white.png: The underlying connection was closed: Could not establish trust relationship for the SSL/TLS secure channel. at Telerik.Web.Apoc.ApocDriver.FireApocError(String message) at Telerik.Web.Apoc.Fo.Flow.ExternalGraphic.Layout(Area area) at Telerik.Web.Apoc.Fo.FObjMixed.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Block.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.TableCell.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.TableRow.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.AbstractTableBody.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Table.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Block.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Flow.Layout(Area area, Region region) at Telerik.Web.Apoc.Fo.Pagination.PageSequence.Format(AreaTree areaTree) at Telerik.Web.Apoc.StreamRenderer.Render(PageSequence pageSequence) at Telerik.Web.Apoc.Fo.FOTreeBuilder.EndElement() at Telerik.Web.Apoc.Fo.FOTreeBuilder.Parse(XmlReader reader)

at Telerik.Web.Apoc.ApocDriver.FireApocError(String message) at Telerik.Web.Apoc.Fo.FOTreeBuilder.Parse(XmlReader reader) at Telerik.Web.Apoc.ApocDriver.Render(XmlReader inputReader, Stream outputStream) at Telerik.Web.UI.Grid.Export.TableViewExporter.PdfExportRenderForm(HtmlTextWriter nullWriter, Control form) at System.Web.UI.Control.RenderChildrenInternal(HtmlTextWriter writer, ICollection children) at System.Web.UI.HtmlControls.HtmlForm.RenderChildren(HtmlTextWriter writer) at System.Web.UI.HtmlControls.HtmlContainerControl.Render(HtmlTextWriter writer) at System.Web.UI.Control.RenderChildrenInternal(HtmlTextWriter writer, ICollection children) at System.Web.UI.Page.Render(HtmlTextWriter writer) at System.Web.UI.Page.ProcessRequestMain(Boolean includeStagesBeforeAsyncPoint, Boolean includeStagesAfterAsyncPoint)

System.SystemException: System.SystemException: Error while creating area : Encountered web exception while fetching image from https://localhost/Client.TSM-SVC/images/svc2/status_white.png: The underlying connection was closed: Could not establish trust relationship for the SSL/TLS secure channel. at Telerik.Web.Apoc.ApocDriver.FireApocError(String message) at Telerik.Web.Apoc.Fo.Flow.ExternalGraphic.Layout(Area area) at Telerik.Web.Apoc.Fo.FObjMixed.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Block.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.TableCell.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.TableRow.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.AbstractTableBody.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Table.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Block.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Flow.Layout(Area area, Region region) at Telerik.Web.Apoc.Fo.Pagination.PageSequence.Format(AreaTree areaTree) at Telerik.Web.Apoc.StreamRenderer.Render(PageSequence pageSequence) at Telerik.Web.Apoc.Fo.FOTreeBuilder.EndElement() at Telerik.Web.Apoc.Fo.FOTreeBuilder.Parse(XmlReader reader) at Telerik.Web.Apoc.ApocDriver.FireApocError(String message) at Telerik.Web.Apoc.Fo.FOTreeBuilder.Parse(XmlReader reader) at Telerik.Web.Apoc.ApocDriver.Render(XmlReader inputReader, Stream outputStream) at Telerik.Web.UI.Grid.Export.TableViewExporter.PdfExportRenderForm(HtmlTextWriter nullWriter, Control form) at System.Web.UI.Control.RenderChildrenInternal(HtmlTextWriter writer, ICollection children) at System.Web.UI.HtmlControls.HtmlForm.RenderChildren(HtmlTextWriter writer) at System.Web.UI.HtmlControls.HtmlContainerControl.Render(HtmlTextWriter writer) at System.Web.UI.Control.RenderChildrenInternal(HtmlTextWriter writer, ICollection children) at System.Web.UI.Page.Render(HtmlTextWriter writer) at System.Web.UI.Page.ProcessRequestMain(Boolean includeStagesBeforeAsyncPoint, Boolean includeStagesAfterAsyncPoint)

Is it because of 'hand-made' certificate on local host? Then why test project works ok via https? And I'd like to have a way to run export on 'hand-made' certificate, because I need to test it before publishing onto production server with 'valid' certificate.

[Daniel]

Hello Alexander,

As I thought, the problem is already fixed. It appears that you have found another issue, but unfortunately I'm unable to reproduce it on my end. I will have to ask you for a runnable sample project as this seems to be the only feasible option at this point.

Kind regards,
Daniel
the Telerik team

[Alexander]

Hi,

i have installed latest telerik version on our development server, with valid SSL certificate and now the message has been changed, please, have a look - maybe you get some clue what's wrong:

System.SystemException: Error while creating area : Encountered web exception while fetching image from https://devservice.debriefit.com/wizards/images/svc2/status_white.png: Unable to connect to the remote server at Telerik.Web.Apoc.ApocDriver.FireApocError(String message) at Telerik.Web.Apoc.Fo.Flow.ExternalGraphic.Layout(Area area) at Telerik.Web.Apoc.Fo.FObjMixed.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Block.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.TableCell.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.TableRow.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.AbstractTableBody.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Table.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Block.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Flow.Layout(Area area, Region region) at Telerik.Web.Apoc.Fo.Pagination.PageSequence.Format(AreaTree areaTree) at Telerik.Web.Apoc.StreamRenderer.Render(PageSequence pageSequence) at Telerik.Web.Apoc.Fo.FOTreeBuilder.EndElement() at Telerik.Web.Apoc.Fo.FOTreeBuilder.Parse(XmlReader reader)
at Telerik.Web.Apoc.ApocDriver.FireApocError(String message) at Telerik.Web.Apoc.Fo.FOTreeBuilder.Parse(XmlReader reader) at Telerik.Web.Apoc.ApocDriver.Render(XmlReader inputReader, Stream outputStream) at Telerik.Web.UI.Grid.Export.TableViewExporter.PdfExportRenderForm(HtmlTextWriter nullWriter, Control form) at System.Web.UI.Control.RenderChildrenInternal(HtmlTextWriter writer, ICollection children) at System.Web.UI.HtmlControls.HtmlForm.RenderChildren(HtmlTextWriter writer) at System.Web.UI.HtmlControls.HtmlContainerControl.Render(HtmlTextWriter writer) at System.Web.UI.Control.RenderChildrenInternal(HtmlTextWriter writer, ICollection children) at System.Web.UI.Page.Render(HtmlTextWriter writer) at System.Web.UI.Page.ProcessRequestMain(Boolean includeStagesBeforeAsyncPoint, Boolean includeStagesAfterAsyncPoint)
System.SystemException: System.SystemException: Error while creating area : Encountered web exception while fetching image from https://devservice.debriefit.com/wizards/images/svc2/status_white.png: Unable to connect to the remote server at Telerik.Web.Apoc.ApocDriver.FireApocError(String message) at Telerik.Web.Apoc.Fo.Flow.ExternalGraphic.Layout(Area area) at Telerik.Web.Apoc.Fo.FObjMixed.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Block.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.TableCell.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.TableRow.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.AbstractTableBody.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Table.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Block.Layout(Area area) at Telerik.Web.Apoc.Fo.Flow.Flow.Layout(Area area, Region region) at Telerik.Web.Apoc.Fo.Pagination.PageSequence.Format(AreaTree areaTree) at Telerik.Web.Apoc.StreamRenderer.Render(PageSequence pageSequence) at Telerik.Web.Apoc.Fo.FOTreeBuilder.EndElement() at Telerik.Web.Apoc.Fo.FOTreeBuilder.Parse(XmlReader reader) at Telerik.Web.Apoc.ApocDriver.FireApocError(String message) at Telerik.Web.Apoc.Fo.FOTreeBuilder.Parse(XmlReader reader) at Telerik.Web.Apoc.ApocDriver.Render(XmlReader inputReader, Stream outputStream) at Telerik.Web.UI.Grid.Export.TableViewExporter.PdfExportRenderForm(HtmlTextWriter nullWriter, Control form) at System.Web.UI.Control.RenderChildrenInternal(HtmlTextWriter writer, ICollection children) at System.Web.UI.HtmlControls.HtmlForm.RenderChildren(HtmlTextWriter writer) at System.Web.UI.HtmlControls.HtmlContainerControl.Render(HtmlTextWriter writer) at System.Web.UI.Control.RenderChildrenInternal(HtmlTextWriter writer, ICollection children) at System.Web.UI.Page.Render(HtmlTextWriter writer) at System.Web.UI.Page.ProcessRequestMain(Boolean includeStagesBeforeAsyncPoint, Boolean includeStagesAfterAsyncPoint)

This problem does not occur on the simple test project and I don't have idea what could be done about this to reveal the head of the problem. Maybe you may advice some watch tools to trace what happens when Export button is clicked so I could send some logs...

[Daniel]

Hello Alexander,

The error says that the control has failed to make connection to the server that is hosting the image.
I noticed that your PNG file is publicly exposed so I tried to make a simple demo but I'm afraid I failed to reproduce this exception.
By the way, our PDF export does not support transparency - this means that the transparent background will be filled with black color.

Regards,
Daniel
the Telerik team

[Jesper Matthiesen]

Ok, but what could be the reason of this error, why there is no connection? The image is situated in the same domain, same web application :)

[Daniel]

Hello Jesper,

I would also like to know what happens. By the way, do you have any luck in reproducing the error on your end?

Regards,
Daniel
the Telerik team

[Alexander]

Hi, Daniel,

I have solved the problem. It was about image path format.
What I had and it did not work:

private static string ImgHtmlWhiteOrGreen(double? itme)
{
    if (itme.HasValue && itme.Value > 0)
    {
        return "<img src='" + HttpContext.Current.GetWebRoot() + "/images/svc2/status_green.png' />";
    }

    return "<img src='" + HttpContext.Current.GetWebRoot() + "/images/svc2/status_white.png' />";
}

what I did to make it work:

private static string ImgHtmlWhiteOrGreen(double? itme)
{
    var sb = new StringBuilder();
    var tw = new StringWriter(sb);
    var hw = new HtmlTextWriter(tw);
    var img = new Image();

    if (itme.HasValue && itme.Value > 0)
    {
        img.ImageUrl = "~/images/svc2/status_green.png";
    }
    else
    {
        img.ImageUrl = "~/images/svc2/status_white.png";
    }

    img.RenderControl(hw);

    return sb.ToString();
}

Voila :)

[Daniel]

Hello Alexander,

Glad to hear you managed to sidestep this problem. Thanks to one of our clients we were able to reproduce a similar behavior in Sharepoint environment.
That said, this is already fixed in the latest internal builds, so you might want to give it a try and see if it helps in your scenario:
Latest Internal Builds

Best regards,
Daniel
the Telerik team

[Alexander]

Hi again :)

we still experience export problem with client-side binding grid. I won't put the code here again, because it has already been published in this thread.

The problem is that when I hide pager (it's also a custom one) in this grid - while exporting, I am getting this annoying "No data" text as a last row of my data. So, information exported is correct, just that I have this extra "trash" text below it.

Where this text could be coming from?

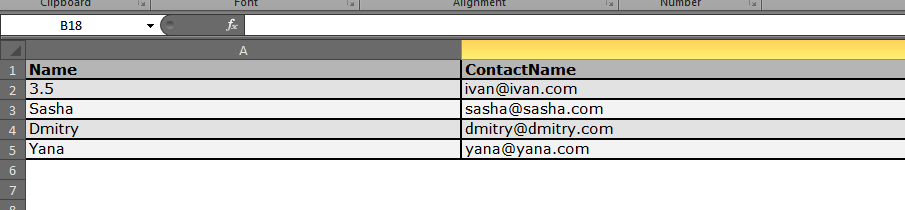

This problem exists both in Excel and PDF files. And additionally, I have weird "empty" button controls in Excel file, that are situated right on top of some data cells! They have no text on it, just narrow grey buttons...

Used Telerik version is 2011.3.1305.40

[Daniel]

Hello Alexander,

Let me know how do you hide the pager, please. About the empty buttons, can you show the modified version of your markup? I will try to identify the cause from your code-snippets.

Regards,
Daniel
the Telerik team

[Alexander]

Hi, thanks for the reply! Here's the html:

<div commanditemdisplay="Top" emptydatatext="No data" class="RadGrid RadGrid_GreenSF FullWidth" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient" tabindex="0" style="visibility: visible;">

<table border="0" style="width:100%;table-layout:auto;empty-cells:show;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00" class="rgMasterTable">
    <colgroup>
        <col>
        <col>
        <col>
        <col>
        <col>
        <col>
    </colgroup>
<thead>
        <tr class="rgCommandRow">
            <td colspan="6" class="rgCommandCell">
            <div class="gridCaptionBackground">

                <table class="gridCaptionTable"><tbody><tr><td></td><td><span class="textTransformUpperCase">Drive usage statistics per <span id="idDays">15</span> days:</span></td></tr></tbody></table>
            <div class="floatRight paddingLeft4px paddingRight4px paddingTop4px paddingBottom4px">
                    <a href="javascript:__doPostBack('ctl00$cphMain$tsmLibraryCard$ctl02$gridClient$ctl00$ctl02$ctl00$gridClient_ExportToExcelButton','')" class="excelbutton" title="Export this view to Excel" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl02_ctl00_gridClient_ExportToExcelButton"><img style="border-width:0px;" src="../App_Themes/GreenSF/B4Grid/excel.png"></a>
                </div><div class="floatRight paddingLeft4px paddingRight4px paddingTop4px paddingBottom4px">
                    <a href="javascript:__doPostBack('ctl00$cphMain$tsmLibraryCard$ctl02$gridClient$ctl00$ctl02$ctl00$gridClient_ExportToPdfButton','')" class="pdfbutton" title="Export this view to PDF" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl02_ctl00_gridClient_ExportToPdfButton"><img style="border-width:0px;" src="../App_Themes/GreenSF/B4Grid/pdf.png"></a>
                </div>
            </div>
        </td>
        </tr><tr>
            <th class="GridHeaderGreen la" scope="col">Server Name<input type="submit" style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__TemplateColumn__SortAsc" class="rgSortAsc" title="Sorted asc" onclick="if(!$find('ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00').sort('')) return false;" value=" " name="ctl00$cphMain$tsmLibraryCard$ctl02$gridClient$ctl00$ctl02$ctl01$ctl04"><input type="submit" style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__TemplateColumn__SortDesc" class="rgSortDesc" title="Sorted desc" onclick="if(!$find('ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00').sort('')) return false;" value=" " name="ctl00$cphMain$tsmLibraryCard$ctl02$gridClient$ctl00$ctl02$ctl01$ctl05"></th><th class="GridHeaderGreen la" scope="col">Library Name<input type="submit" style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__TemplateColumn1__SortAsc" class="rgSortAsc" title="Sorted asc" onclick="if(!$find('ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00').sort('')) return false;" value=" " name="ctl00$cphMain$tsmLibraryCard$ctl02$gridClient$ctl00$ctl02$ctl01$ctl06"><input type="submit" style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__TemplateColumn1__SortDesc" class="rgSortDesc" title="Sorted desc" onclick="if(!$find('ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00').sort('')) return false;" value=" " name="ctl00$cphMain$tsmLibraryCard$ctl02$gridClient$ctl00$ctl02$ctl01$ctl07"></th><th class="GridHeaderGreen la" scope="col">Drive<input type="submit" style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__TemplateColumn2__SortAsc" class="rgSortAsc" title="Sorted asc" onclick="if(!$find('ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00').sort('')) return false;" value=" " name="ctl00$cphMain$tsmLibraryCard$ctl02$gridClient$ctl00$ctl02$ctl01$ctl08"><input type="submit" style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__TemplateColumn2__SortDesc" class="rgSortDesc" title="Sorted desc" onclick="if(!$find('ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00').sort('')) return false;" value=" " name="ctl00$cphMain$tsmLibraryCard$ctl02$gridClient$ctl00$ctl02$ctl01$ctl09"></th><th class="GridHeaderGreen ra" scope="col">Drive usage, hours<input type="submit" style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__TemplateColumn3__SortAsc" class="rgSortAsc" title="Sorted asc" onclick="if(!$find('ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00').sort('')) return false;" value=" " name="ctl00$cphMain$tsmLibraryCard$ctl02$gridClient$ctl00$ctl02$ctl01$ctl10"><input type="submit" style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__TemplateColumn3__SortDesc" class="rgSortDesc" title="Sorted desc" onclick="if(!$find('ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00').sort('')) return false;" value=" " name="ctl00$cphMain$tsmLibraryCard$ctl02$gridClient$ctl00$ctl02$ctl01$ctl11"></th><th class="GridHeaderGreen ra" scope="col">Duty cycle, %<input type="submit" style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__TemplateColumn4__SortAsc" class="rgSortAsc" title="Sorted asc" onclick="if(!$find('ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00').sort('')) return false;" value=" " name="ctl00$cphMain$tsmLibraryCard$ctl02$gridClient$ctl00$ctl02$ctl01$ctl12"><input type="submit" style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__TemplateColumn4__SortDesc" class="rgSortDesc" title="Sorted desc" onclick="if(!$find('ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00').sort('')) return false;" value=" " name="ctl00$cphMain$tsmLibraryCard$ctl02$gridClient$ctl00$ctl02$ctl01$ctl13"></th><th class="GridHeaderGreen ra" scope="col">Mounts<input type="submit" style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__TemplateColumn5__SortAsc" class="rgSortAsc" title="Sorted asc" onclick="if(!$find('ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00').sort('')) return false;" value=" " name="ctl00$cphMain$tsmLibraryCard$ctl02$gridClient$ctl00$ctl02$ctl01$ctl14"><input type="submit" style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__TemplateColumn5__SortDesc" class="rgSortDesc" title="Sorted desc" onclick="if(!$find('ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00').sort('')) return false;" value=" " name="ctl00$cphMain$tsmLibraryCard$ctl02$gridClient$ctl00$ctl02$ctl01$ctl15"></th>
        </tr>
    </thead><tbody>
    <tr style="display: table-row;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__0" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl04_ServerName">LIBMAN01A</span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl04_LibraryName">TS3500-L1</span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl04_DriveNameValue">L1-DRV01 (/dev/rmt0)</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl04_HoursFormatted">0.1</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl04_HoursPercentFormatted">0.0</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl04_MountCountFormatted">1</span>
                </td>
    </tr><tr style="display: table-row;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__1" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl06_ServerName">LIBMAN01A</span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl06_LibraryName">TS3500-L1</span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl06_DriveNameValue">L1-DRV02 (/dev/rmt1)</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl06_HoursFormatted">0.2</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl06_HoursPercentFormatted">0.1</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl06_MountCountFormatted">3</span>
                </td>
    </tr><tr style="display: table-row;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__2" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl08_ServerName">LIBMAN01A</span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl08_LibraryName">TS3500-L1</span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl08_DriveNameValue">L1-DRV03 (/dev/rmt2)</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl08_HoursFormatted">0.1</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl08_HoursPercentFormatted">0.0</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl08_MountCountFormatted">1</span>
                </td>
    </tr><tr style="display: table-row;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__3" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl10_ServerName">LIBMAN01A</span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl10_LibraryName">TS3500-L1</span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl10_DriveNameValue">L1-DRV04 (/dev/rmt3)</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl10_HoursFormatted">0.3</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl10_HoursPercentFormatted">0.1</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl10_MountCountFormatted">4</span>
                </td>
    </tr><tr style="display: table-row;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__4" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl12_ServerName">LIBMAN01A</span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl12_LibraryName">TS3500-L1</span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl12_DriveNameValue">L1-DRV05 (/dev/rmt4)</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl12_HoursFormatted">0.0</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl12_HoursPercentFormatted">0.0</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl12_MountCountFormatted">1</span>
                </td>
    </tr><tr style="display: table-row;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__5" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl14_ServerName">LIBMAN01A</span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl14_LibraryName">TS3500-L1</span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl14_DriveNameValue">L1-DRV06 (/dev/rmt5)</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl14_HoursFormatted">0.2</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl14_HoursPercentFormatted">0.1</span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl14_MountCountFormatted">4</span>
                </td>
    </tr><tr style="display: table-row;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__6" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl16_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl16_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl16_DriveNameValue"><span class="bold">Average</span></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl16_HoursFormatted"><span class="bold">0.1</span></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl16_HoursPercentFormatted"><span class="bold">0.0</span></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl16_MountCountFormatted"><span class="bold">2.3</span></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__7" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl18_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl18_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl18_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl18_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl18_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl18_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__8" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl20_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl20_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl20_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl20_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl20_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl20_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__9" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl22_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl22_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl22_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl22_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl22_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl22_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__10" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl24_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl24_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl24_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl24_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl24_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl24_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__11" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl26_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl26_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl26_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl26_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl26_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl26_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__12" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl28_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl28_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl28_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl28_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl28_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl28_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__13" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl30_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl30_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl30_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl30_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl30_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl30_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__14" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl32_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl32_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl32_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl32_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl32_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl32_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__15" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl34_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl34_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl34_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl34_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl34_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl34_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__16" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl36_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl36_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl36_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl36_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl36_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl36_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__17" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl38_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl38_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl38_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl38_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl38_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl38_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__18" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl40_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl40_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl40_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl40_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl40_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl40_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__19" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl42_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl42_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl42_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl42_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl42_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl42_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__20" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl44_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl44_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl44_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl44_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl44_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl44_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__21" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl46_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl46_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl46_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl46_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl46_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl46_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__22" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl48_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl48_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl48_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl48_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl48_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl48_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__23" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl50_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl50_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl50_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl50_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl50_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl50_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__24" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl52_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl52_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl52_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl52_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl52_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl52_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__25" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl54_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl54_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl54_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl54_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl54_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl54_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__26" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl56_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl56_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl56_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl56_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl56_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl56_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__27" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl58_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl58_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl58_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl58_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl58_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl58_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__28" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl60_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl60_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl60_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl60_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl60_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl60_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__29" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl62_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl62_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl62_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl62_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl62_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl62_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__30" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl64_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl64_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl64_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl64_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl64_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl64_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__31" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl66_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl66_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl66_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl66_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl66_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl66_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__32" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl68_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl68_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl68_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl68_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl68_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl68_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__33" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl70_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl70_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl70_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl70_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl70_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl70_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__34" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl72_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl72_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl72_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl72_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl72_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl72_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__35" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl74_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl74_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl74_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl74_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl74_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl74_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__36" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl76_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl76_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl76_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl76_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl76_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl76_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__37" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl78_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl78_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl78_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl78_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl78_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl78_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__38" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl80_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl80_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl80_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl80_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl80_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl80_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__39" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl82_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl82_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl82_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl82_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl82_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl82_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__40" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl84_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl84_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl84_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl84_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl84_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl84_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__41" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl86_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl86_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl86_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl86_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl86_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl86_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__42" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl88_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl88_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl88_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl88_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl88_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl88_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__43" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl90_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl90_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl90_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl90_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl90_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl90_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__44" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl92_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl92_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl92_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl92_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl92_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl92_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__45" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl94_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl94_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl94_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl94_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl94_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl94_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__46" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl96_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl96_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl96_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl96_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl96_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl96_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__47" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl98_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl98_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl98_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl98_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl98_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl98_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__48" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl100_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl100_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl100_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl100_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl100_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl100_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__49" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl102_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl102_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl102_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl102_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl102_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl102_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__50" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl104_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl104_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl104_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl104_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl104_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl104_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__51" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl106_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl106_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl106_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl106_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl106_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl106_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__52" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl108_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl108_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl108_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl108_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl108_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl108_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__53" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl110_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl110_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl110_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl110_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl110_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl110_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__54" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl112_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl112_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl112_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl112_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl112_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl112_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__55" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl114_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl114_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl114_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl114_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl114_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl114_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__56" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl116_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl116_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl116_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl116_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl116_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl116_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__57" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl118_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl118_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl118_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl118_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl118_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl118_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__58" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl120_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl120_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl120_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl120_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl120_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl120_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__59" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl122_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl122_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl122_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl122_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl122_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl122_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__60" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl124_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl124_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl124_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl124_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl124_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl124_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__61" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl126_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl126_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl126_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl126_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl126_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl126_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__62" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl128_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl128_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl128_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl128_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl128_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl128_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__63" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl130_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl130_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl130_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl130_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl130_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl130_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__64" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl132_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl132_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl132_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl132_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl132_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl132_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__65" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl134_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl134_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl134_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl134_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl134_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl134_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__66" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl136_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl136_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl136_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl136_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl136_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl136_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__67" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl138_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl138_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl138_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl138_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl138_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl138_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__68" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl140_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl140_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl140_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl140_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl140_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl140_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__69" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl142_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl142_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl142_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl142_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl142_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl142_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__70" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl144_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl144_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl144_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl144_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl144_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl144_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__71" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl146_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl146_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl146_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl146_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl146_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl146_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__72" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl148_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl148_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl148_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl148_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl148_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl148_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__73" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl150_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl150_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl150_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl150_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl150_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl150_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__74" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl152_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl152_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl152_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl152_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl152_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl152_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__75" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl154_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl154_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl154_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl154_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl154_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl154_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__76" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl156_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl156_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl156_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl156_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl156_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl156_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__77" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl158_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl158_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl158_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl158_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl158_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl158_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__78" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl160_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl160_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl160_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl160_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl160_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl160_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__79" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl162_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl162_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl162_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl162_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl162_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl162_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__80" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl164_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl164_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl164_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl164_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl164_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl164_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__81" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl166_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl166_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl166_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl166_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl166_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl166_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__82" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl168_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl168_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl168_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl168_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl168_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl168_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__83" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl170_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl170_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl170_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl170_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl170_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl170_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__84" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl172_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl172_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl172_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl172_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl172_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl172_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__85" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl174_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl174_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl174_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl174_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl174_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl174_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__86" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl176_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl176_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl176_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl176_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl176_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl176_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__87" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl178_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl178_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl178_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl178_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl178_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl178_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__88" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl180_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl180_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl180_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl180_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl180_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl180_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__89" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl182_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl182_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl182_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl182_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl182_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl182_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__90" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl184_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl184_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl184_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl184_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl184_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl184_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__91" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl186_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl186_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl186_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl186_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl186_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl186_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__92" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl188_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl188_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl188_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl188_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl188_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl188_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__93" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl190_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl190_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl190_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl190_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl190_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl190_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__94" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl192_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl192_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl192_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl192_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl192_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl192_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__95" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl194_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl194_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl194_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl194_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl194_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl194_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__96" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl196_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl196_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl196_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl196_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl196_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl196_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__97" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl198_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl198_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl198_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl198_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl198_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl198_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__98" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl200_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl200_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl200_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl200_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl200_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl200_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__99" class="rgAltRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl202_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl202_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl202_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl202_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl202_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl202_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00__100" class="rgRow">
        <td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl204_ServerName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl204_LibraryName"></span>
                </td><td class="la">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl204_DriveNameValue"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl204_HoursFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl204_HoursPercentFormatted"></span>
                </td><td class="ra">
                    <span id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ctl00_ctl204_MountCountFormatted"></span>
                </td>
    </tr><tr style="display:none;" class="rgNoRecords">
        <td style="text-align:left;" colspan="6"><div>No data</div></td>
    </tr>
    </tbody>

</table><div style="display:none;" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_Panelctl00_cphMain_tsmLibraryCard_ctl02_gridClient">
    <table class="FullWidth FullHeight"><tbody><tr><td class="ma ca"><img style="border-width:0px;" src="../images/ajax/loading.gif"></td></tr></tbody></table>
</div><input type="hidden" name="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ClientState" id="ctl00_cphMain_tsmLibraryCard_ctl02_gridClient_ClientState" autocomplete="off">
    </div>

There's also corresponding Excel file, btw it contains DATE formatted average mounts value, although the field is numeric! Weid Excel file with empty buttons

As to the pager, I load the control, that contains the grid, dynamically. The way I "get rid" of pager is via property of the control:

public bool AllowPaging
{
    get
    {
        return gridClient.AllowPaging;
    }

    set
    {
        gridClient.PreRender += (sender, eventArgs) =>
        {
            var grid = (RadGrid)sender;
            grid.AllowPaging = value;
            grid.Rebind();
        };
    }
}

And this property is set in OnInit event of the control, containing grid control:

protected override void OnInit(EventArgs e)
        {
            base.OnInit(e);

            var tabId = Request.QueryString[UrlConst.TAB_ID];
            if (string.IsNullOrEmpty(tabId))
            {
                tabId = "Detail";
            }

            switch (tabId.ToLower())
            {
                case "detail":
                    tsmDriveCardMultiView.ActiveViewIndex = 0;
                    break;
                case "mounthistory":
                    tsmDriveCardMultiView.ActiveViewIndex = 1;
                    Filter.Current.RemoveParametersByGroup(SummaryDriveMountUsageView.FilterGroup);
                    var driveUsageMountFilter = (dynamic) LoadControl("~/Controls/Drive/DriveUsageMountFilter.ascx");
                    var driveMountUsageGraph = (dynamic) LoadControl("~/Controls/Drive/DriveMountUsageGraph.ascx");
                    var driveUsageMountView = (dynamic) LoadControl("~/Controls/Drive/DriveUsageMountView.ascx");
                    driveUsageMountView.AllowPaging = false;
            }
...........

Looking forward for the reply!

[Daniel]

Hello Alexander,

I asked you for the markup (ASP.NET markup) and not the rendered HTML code. I could not create a runnable ASP.NET project (for debugging purposed) based on your HTML.
In order to test a given problem (and then eventually fix it) I need to first run your code on my end.

Regards,
Daniel
the Telerik team

[Alexander]

I was unable to create a test project with current functionality, I was able to reproduce only 1 of found bugs in my old test project that I am attaching here (see attach). As you can see, data in first column of first row is treated as date, not a string! Could you please help with at least this problem?

Also, I am sending exported excel from current functionality with "phantom" buttons in it - maybe you have idea where it comes from?

Test project
Weird excel file

[Daniel]

Hello Alexander,

I'm willing to help you with all three problems, not only with the last one. The main issue now is that your project requires IBM DB2 .NET provider dll which is not part of your demo and therefore I can't run it on my end. I suppose this is the only thing missing, am I right? If so, could you please add it to the demo so that I can execute your code locally?

Thanks,
Daniel
the Telerik team

[Alexander]

Hi,
the test project is self-sufficient: required dll are in bin folder ;)
Some guy from your support team already managed to mount & run it successfully.

[Daniel]

Hello Alexander,

I've managed to run the application. The "phantom" buttons are actually the buttons that appear when sorting is enabled. I noticed that you have already set ExportOnlyData to true and the problem seems to be addressed this way.
Attached to this post is a screenshot showing how I see the exported file on my end. Let me know if you see anything wrong.

Regards,
Daniel
the Telerik team

[Alexander]

1) "The "phantom" buttons are actually the buttons that appear when sorting is enabled."
- just in case: I have sorting and paging DISABLED here, why the buttons appear then?... And how to get rid of them?
2) instead of 3.5 I have "3 of May" shown in my excel file, because my regional settings have dot as date separator... So, how to get number shown, not date?

[Daniel]

Hello Alexander,

1. These buttons are rendered with display:none but MS Excel still show them in the output file. You can remove them either by setting the ExportOnlyData property or with custom code:

var headerItem = grid.MasterTableView.GetItems(GridItemType.Header)[0];
foreach (TableCell cell in headerItem.Cells)
{
    cell.Controls.Clear();
}

2. A possible way around this behavior would be to force the cell content to text using mso-number-format attribute as explained in the online help.
Word/Excel Export (HTML-Based)

Regards,
Daniel
the Telerik team

[Alexander]

Hi,

thanks - trick with clearing cells did work: i got rid of those buttons.

But I cannot get numbers instead of dates! Can't make approach with mso-number-format work. Please, have a look at the code + markup and suggest something meaningful:

protected override void OnPreRender(EventArgs e)
{
    base.OnPreRender(e);

    if (IsExport)
    {
        const int defaultImageWidth = 100;
        const int charWidth = 10;
        var gridWidth = 0;
        var cssSetPattern = new Regex("\\{(?<cssSet>.+)\\}");
        var alignmentCssClassPattern = new Regex("\\b(?<alignment>ca|la|ra)\\b");
        var imageSourcePattern = new Regex("src=(?<bracket>(\"|'))(?<imagesource>.+)\\k<bracket>");

        foreach (GridColumn column in MasterTableView.Columns)
        {
            if (column is GridEditableColumn)
            {
                var columnWidth = 0;
                var currentlyExportingTypes = column.CurrentFilterValue.GetTypesFromSeparatedString<DSExportType>();

                if (currentlyExportingTypes.Count > 0 && !currentlyExportingTypes.Contains(_currentlyExportingType.Value) || column.HeaderText == "#" || column.UniqueName == "checker")
                {
                    column.Visible = false;
                }

                if (column.Visible)
                {
                    var cssSetPatternMatch = cssSetPattern.Match(column.HeaderStyle.CssClass);
                    var alignmentCssClassPatternMatch = alignmentCssClassPattern.Match(column.HeaderStyle.CssClass);
                    foreach (GridDataItem dataItem in MasterTableView.Items)
                    {
                        var labelLengths = 0;
                        IEnumerable<string> labelTexts = null;
                        if (column is GridTemplateColumn)
                        {
                            switch (_currentlyExportingType)
                            {
                                case DSExportType.Excel:
                                    labelTexts =
                                    (from label in dataItem[column.UniqueName].Controls.OfType<LiteralControl>().Where(label => !label.Text.StartsWith("\r\n")) select label.Text);
                                    break;
                                case DSExportType.Pdf:
                                    labelTexts =
                                    (from label in dataItem[column.UniqueName].Controls.OfType<WebControl>().OfType<Label>() select label.Text);
                                    break;
                            }
                            if (labelTexts != null)
                            {
                                labelLengths += labelTexts.Sum(labelText => { var imageSourcePatternMatch = imageSourcePattern.Match(labelText); return (imageSourcePatternMatch.Success ? defaultImageWidth / charWidth : labelText.Length); });
                            }
                        }
                        else
                        {
                            labelLengths = dataItem[column.UniqueName].Text.Length;
                        }
                        var currentColumnWidth = labelLengths * charWidth;
                        if (columnWidth < currentColumnWidth)
                        {
                            columnWidth = currentColumnWidth;
                        }
                        if (alignmentCssClassPatternMatch.Success)
                        {
                            switch (alignmentCssClassPatternMatch.Groups["alignment"].Value)
                            {
                                case "ca":
                                    dataItem[column.UniqueName].Style["text-align"] = "center";
                                    break;
                                case "ra":
                                    dataItem[column.UniqueName].Style["text-align"] = "right";
                                    break;
                                default:
                                    dataItem[column.UniqueName].Style["text-align"] = "left";
                                    break;
                            }
                        }
                        if (cssSetPatternMatch.Success)
                        {
                            var cssSetKeyValues = cssSetPatternMatch.Groups["cssSet"].Value.Split(';');
                            foreach (var cssSetKeyValue in cssSetKeyValues)
                            {
                                var cssSetKeyValuePair = cssSetKeyValue.Split(':');
                                if (cssSetKeyValuePair.Length == 2)
                                {
                                    var cssKey = cssSetKeyValuePair[0];
                                    var cssValue = cssSetKeyValuePair[1];
                            }
                        }
                        dataItem[column.UniqueName].Style.Add("white-space", "nowrap");
                    }
                    foreach (GridHeaderItem headerItem in MasterTableView.GetItems(GridItemType.Header))
                    {
                        foreach (TableCell cell in headerItem.Cells)
                        {
                            cell.Controls.Clear();
                        }
                        if (alignmentCssClassPatternMatch.Success)
                        {
                            switch (alignmentCssClassPatternMatch.Groups["alignment"].Value)
                            {
                                case "ca":
                                    headerItem[column.UniqueName].Style["text-align"] = "center";
                                    break;
                                case "ra":
                                    headerItem[column.UniqueName].Style["text-align"] = "right";
                                    break;
                                default:
                                    headerItem[column.UniqueName].Style["text-align"] = "left";
                                    break;
                            }
                        }
                    }
                    var finalColumnWidth = Math.Max(columnWidth, column.HeaderText.Length * charWidth);
                    column.HeaderStyle.Width = Unit.Pixel(finalColumnWidth);
                    gridWidth += finalColumnWidth;
                }
            }
        }
        ExportSettings.Pdf.PageWidth = Unit.Pixel(gridWidth + 2 * PdfGridPadding);
        _currentlyExportingType = null;
    }
    else
    {
        ShowProgressPanelString = "$find('" + _loadingPanel.ClientID + "').show('" + ClientID + @"');";
        HideProgressPanelString = "$find('" + _loadingPanel.ClientID + "').hide('" + ClientID + @"');";

        //Every <Apply filter> button contains corresponding jsonString[<group name>] that contains current json-encoded list of objects
        var scriptKey = "jsGridVars" + UniqueID;
        var scriptBlock = new StringBuilder(@"var tableView" + ClientID + @" = null; perPageRecordCount = 10; sortExpressions" + ClientID + @" = '';");
        if (IsCheckerGrid)
        {
            ScriptManager.RegisterStartupScript(this, GetType(), "checker" + UniqueID,
                                                              string.Format("$('#{0}').checkers();", ClientID), true);
        }

        Page.ClientScript.RegisterClientScriptBlock(GetType(), scriptKey, scriptBlock.ToString(), true);
        scriptBlock.Clear();

        scriptKey = "jsRadComboBoxPrototype";

        if (!Page.ClientScript.IsClientScriptBlockRegistered(scriptKey))
        {
            JsRadComboBoxFindByTextLike(scriptBlock);
            Page.ClientScript.RegisterClientScriptBlock(GetType(), scriptKey, scriptBlock.ToString(), true);
            scriptBlock.Clear();
        }

        scriptKey = "jsGrid" + UniqueID;

        JsOnClientMasterTableViewCreated(scriptBlock);
        JsOnClientSucceeded(scriptBlock);
        JsOnClientPagerPageIndex(scriptBlock);
        JsOnClientGeneratePaging(scriptBlock);
        JsOnClientFailed(scriptBlock);
        JsOnClientCommand(scriptBlock);
        JsOnClientOwnCommand(scriptBlock);
        JsOnClientRowDataBound(scriptBlock);
        JsOnClientPaging(scriptBlock);

        Page.ClientScript.RegisterClientScriptBlock(GetType(), scriptKey, scriptBlock.ToString(), true);
        scriptBlock.Clear();
    }
}

<%@ Control Language="C#" AutoEventWireup="true" CodeFile="DriveUsageMountView.ascx.cs" Inherits="Controls.TSM.Drive.DriveUsageMountView" %>

<script type="text/javascript">
    var gridClientID = '<%= gridClient.ClientID %>';
    $(document).on('gridboundsucceed', '#' + gridClientID, <%= gridClient.ClientID %>_GridBoundSucceeded);
    function <%= gridClient.ClientID %>_GridBoundSucceeded(sender, eventArgs) {
        var idDaysSpan = $('#idDays');
        idDaysSpan.text(eventArgs.result.Days);
    }
</script>

<B4Restore:B4GridClient ID="gridClient" runat="server" SkinID="b4GridClient" ExportEnabledFormats="pdf,excel"
    DataBindingService="TSMClientGrids" DataBindingMethod="DriveLoadForMountUsage" OnInit="gridClient_Init">
    <MasterTableView VirtualItemCount="1000000" CommandItemDisplay="Top">
        <CommandItemTemplate>
            <B4Restore:HeaderBar runat="server" CssClass="gridCaptionBackground">
                <table class="gridCaptionTable"><tr><td></td><td><span class="textTransformUpperCase">Drive usage statistics per <span id="idDays">?</span> days:</span></td></tr></table>
            </B4Restore:HeaderBar>
        </CommandItemTemplate>
        <Columns>
            <telerik:GridTemplateColumn HeaderStyle-CssClass='GridHeaderGreen la' ItemStyle-CssClass='la' HeaderText="Server Name">
                <ItemTemplate>
                    <asp:Label ID="ServerName" runat="server" />
                </ItemTemplate>
            </telerik:GridTemplateColumn>
            <telerik:GridTemplateColumn HeaderStyle-CssClass='GridHeaderGreen la' ItemStyle-CssClass='la' HeaderText="Library Name">
                <ItemTemplate>
                    <asp:Label ID="LibraryName" runat="server" />
                </ItemTemplate>
            </telerik:GridTemplateColumn>
            <telerik:GridTemplateColumn HeaderStyle-CssClass='GridHeaderGreen la' ItemStyle-CssClass='la' HeaderText="Drive">
                <ItemTemplate>
                    <asp:Label ID="DriveNameValue" runat="server" />
                </ItemTemplate>
            </telerik:GridTemplateColumn>
            <telerik:GridTemplateColumn HeaderStyle-CssClass='GridHeaderGreen ra {mso-number-format:"0\.0"}' ItemStyle-CssClass='ra' HeaderText="Drive usage, hours" >
                <ItemTemplate>
                    <asp:Label ID="HoursFormatted" runat="server" />
                </ItemTemplate>
            </telerik:GridTemplateColumn>
            <telerik:GridTemplateColumn HeaderStyle-CssClass='GridHeaderGreen ra {mso-number-format:"0\.0"}' ItemStyle-CssClass='ra' HeaderText="Duty cycle, %">
                <ItemTemplate>
                    <asp:Label ID="HoursPercentFormatted" runat="server" />
                </ItemTemplate>
            </telerik:GridTemplateColumn>
            <telerik:GridTemplateColumn HeaderStyle-CssClass='GridHeaderGreen ra' ItemStyle-CssClass='ra' HeaderText="Mounts">
                <ItemTemplate>
                    <asp:Label ID="MountCountFormatted" runat="server" />
                </ItemTemplate>
            </telerik:GridTemplateColumn>
        </Columns>
    </MasterTableView>
</B4Restore:B4GridClient>

[Daniel]

Hello Alexander,

You should apply the mso-number-format as inline style.

Regards,
Daniel
the Telerik team

[Alexander]

Could you please provide me with some lines of relevant code (like looping through dateItems in my code, so on)?
I have tried to use inline styling, but no success. So, why this does not work:



dataItem[column.UniqueName].Style.Add(cssKey, cssValue)

in my code above?

[Eyup]

Hi Alexander,

In order to get the exact numbers without them being formatted by Excel, could you please try to set them as string type? For example you could try:

protected void RadGrid1_ItemCommand(object sender, GridCommandEventArgs e)
{
    if (e.CommandName == RadGrid.ExportToExcelCommandName)
    {
        foreach (GridDataItem dataItem in RadGrid1.MasterTableView.Items)
        {
            GridTableCell cell = dataItem["OrderID"] as GridTableCell;
            cell.Text = cell.Text + "\nr";
        }
    }
}

I hope this will prove helpful. Please give it a try and let me know about the result.

Kind regards,
Eyup
the Telerik team

[Alexander]

Hi, this approach -
label.Text = itemText + "\n\r"
does not help.
This either:
label.Text = "<span style=\"mso-number-format: '0\\.0'\">" + itemText + "</span>";

Sure, if i concatenate number with some visible character - it gets string, but I don't want any additional visible characters.

Any other ideas?

[Alexander]

Hello? No any suggestions on this matter??

[Kostadin]

Hi Alexander,

Could you try to use div instead span? Example:

label.Text = "<div style=\"mso-number-format: '0\\.0'\">" + itemText + "</div>";

Regards,
Kostadin
the Telerik team

[Alexander]

Seems like div helps, thanks.

[Alexander]

var headerItem = grid.MasterTableView.GetItems(GridItemType.Header)[0];
foreach (TableCell cell in headerItem.Cells)
{
    cell.Controls.Clear();
}

Hi, Daniel,

the above code that you've offered does not work - strange that I have not noticed that from the beginning.
It.. removes captions from headers in Excel file :)

[Kostadin]

Hello Alexander,

Could you provide the test project again as you probably delete it from the dropbox and I was not able to download it?

Regards,
Kostadin
the Telerik team

[Alexander]

Unfortunately, I cannot find test project. I was preparing it so hard and now it's gone :(
I am afraid currently I'm not able to provide you with it...

[Kostadin]

Hello Alexander,

I took the project from my colleague Daniel but I was not able to reproduce the issue with the "phantom" buttons. I attached the example again so you could give it a try and let me know how it behaves on your side. Additionally I am attaching and the exported file as well.

All the best,
Kostadin
the Telerik team
